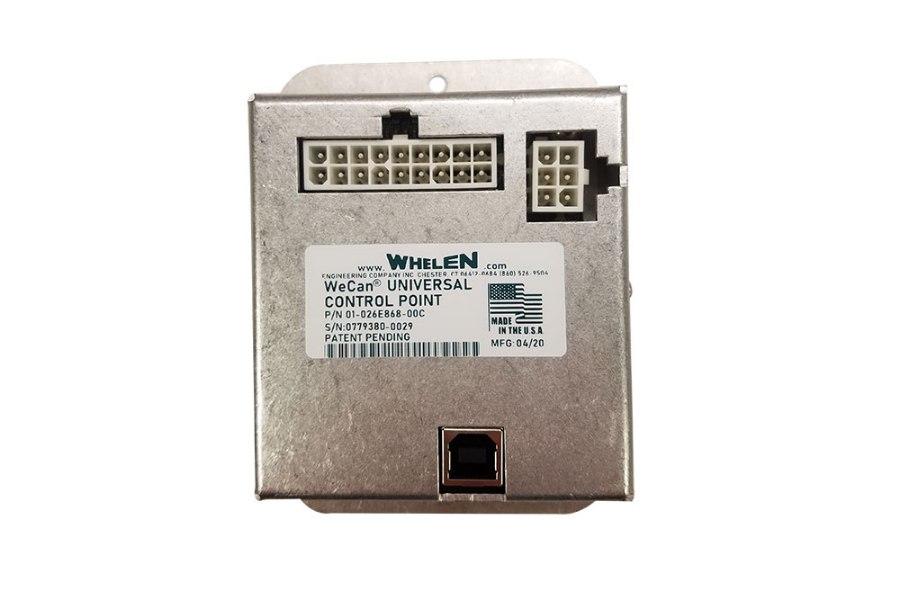

Whelen Wecan Universal Control Point

The is a universal control point that is needed if you have the exclusive Whelen light bar through Miller Industries but you want to use the light bar one quipment other than Miller Industries products with the MMO system. Thelight bar part number is 50003036.

• Control warning lights, take-downs, alley lights and Traffic Advisor from asingle key pad
• Control light bar functions using six pre-programmed control buttons plus a 3position slide switch
• Small 22 gauge, 2 conductor cable mates to your WeCan light bar for easyinstallation
• 10 pre-programmed popular warning configurations via four dip switcheslocated on the rear of the controller
• No computer required to program control head
• May be used with existing WeCan light bars or substituted for the WeCan ECM(Electronic Control Module) at the time of light bar purchase
• LED backlighted push buttons with bright LED On/Off indicators
• State of-the-art membrane switches provide tactile feedback of activation andare equipped with a solid rubber overlay for moisture resistance
• Surface mounting plate allows for vertical or horizontal mounting of controlhead

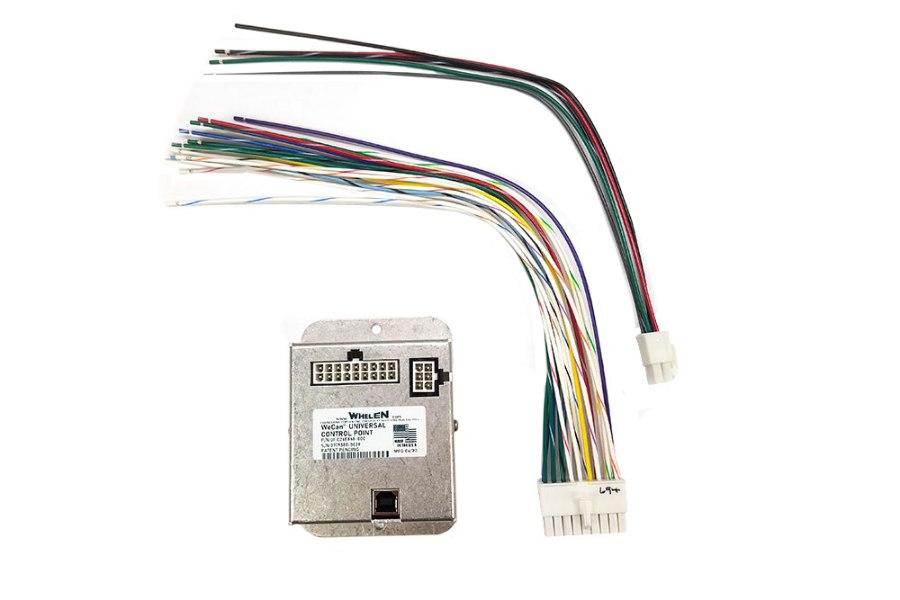

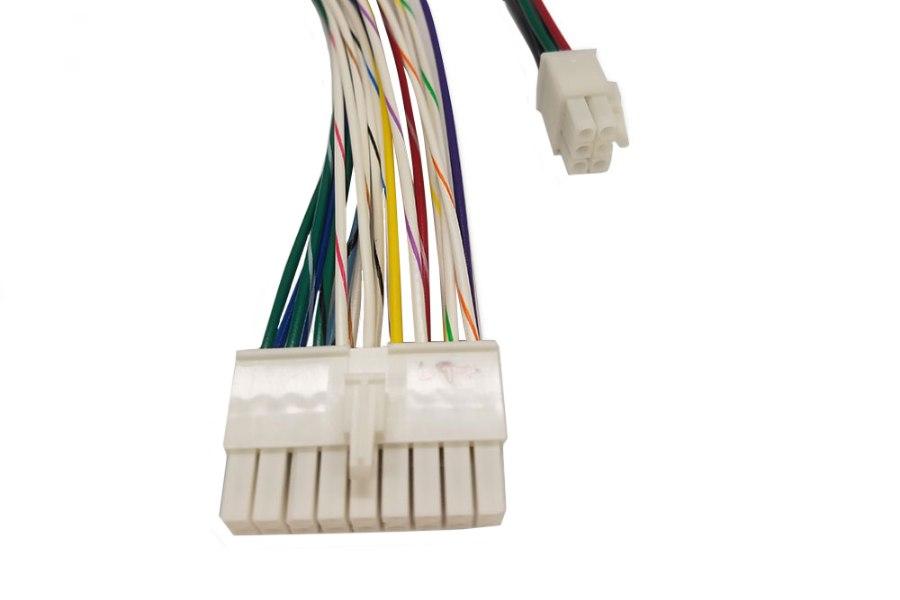

• 5 conductor, 3' input/output harness standard
• Function labels are included
• 4-3/16"L x 7/8"W x 2-1/2"H
