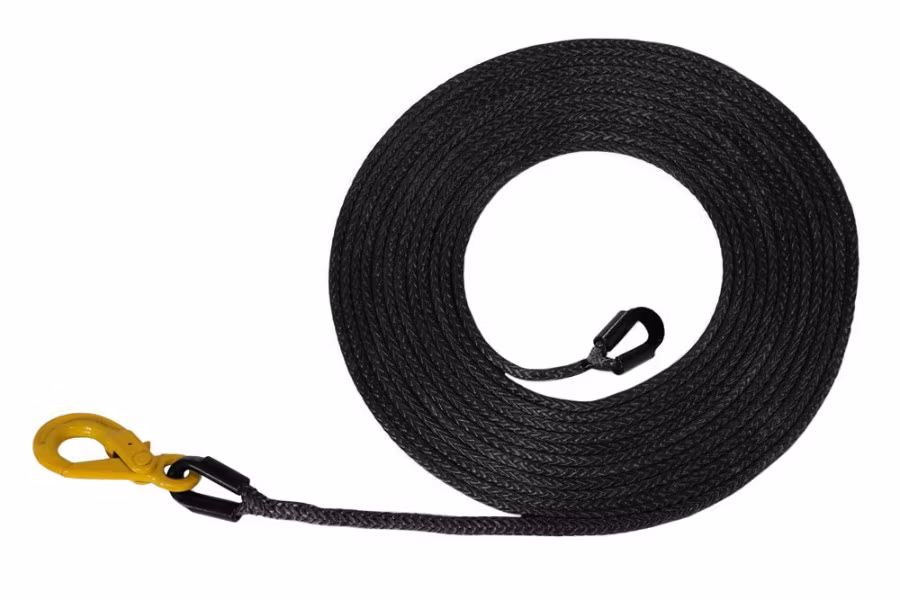

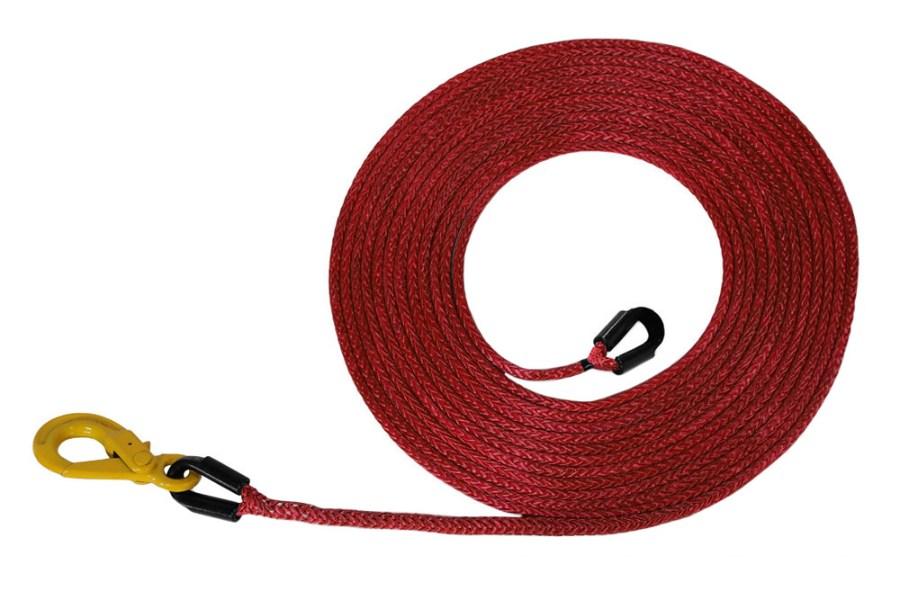

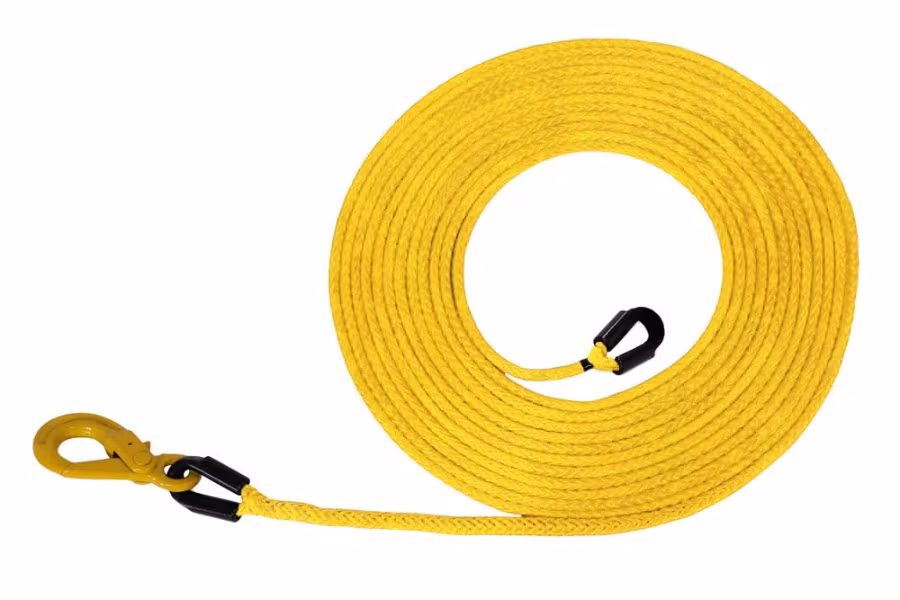

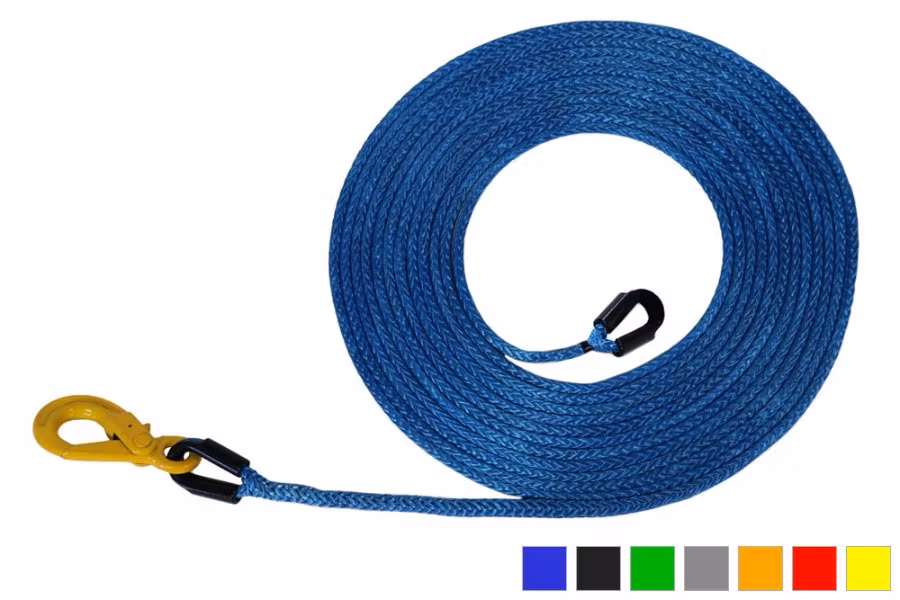

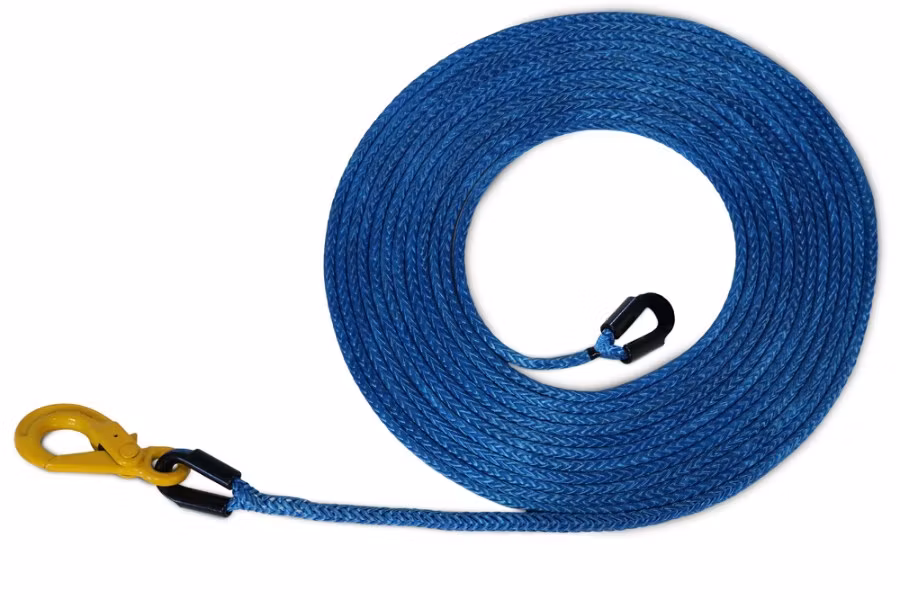

Amsteel-Blue Light Duty Synthetic Rope Extensions with Self-Locking Hook and Thimble | 5/16"-1/2"

$196.99$1,221.99
SKU: SR-WINCH-LINE-EXT-SM
*
*
*
Quantity Discounts
Available per size. Order more, Save more!
QuantityPriceSavings
3$133.27$8.16
5$129.19$34.00
10$122.39$135.99

View Cart
Qualifies for Free Shipping
with $199.00 minimum order
Description
AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Line Extensions are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

Here's a more in-depth look into the benfits of AmSteel Blue Synthetic Rope... Learn more by clicking here

Available in the following sizes

SizeWeight per 100'Minimum Break StrengthWorking Load LimitSafety Factor
5/16"2.7 lbs12,300 lbs2,460 lbs5:1
3/8"3.4 lbs17,600 lbs3,520 lbs5:1
7/16"4.5 lbs21,500 lbs4,300 lbs5:1
1/2"5.9 lbs30,600 lbs6,120 lbs5:1

  • Winch line extension
  • Abrasion resistant
  • Easy to inspect
  • Excellent wear characteristics
  • Extremely low stretch
  • Flexible
  • Floats
  • High strength
  • Highly flex-fatigue resistant
  • Lightweight
  • Maximum strength-to-weight ratio
  • Similar elastic elongation to wire rope
  • Torque-free construction
  • Wire rope replacement
  • Available in Blue
  • Many more dimensions and custom lengths available
  • Any other questions please call 800.222.6047

    Applications
  • Competition grade running rigging
  • Primary mooring line
  • Lifting slings
  • Trawl, bridle, and gilson lines
  • Kite/Wakeboard/Waterski lines
  • Trawl and bridle lines
  • Wire replacement - Non jacketed
  • High performance tug lines
  • Climbing and rigging accessories
  • Pulling and stringing lines
  • Winch lines
  • Low stretch support lines (Wire replacement)
  • Horizontal lifelines
  • Logging
  • Wire replacement ropes
  • General working lines
  • Rig tow lines
