Century 16 Series LCG Carriers 08/2009

Wheel Lift & Slide-In Tire Restraint Assembly

Other Schematics for this model:

Show More
Add All Quantities to Cart
ID Zip's Part Number Part Name Price Each Recommended Quantity Quantity to Order

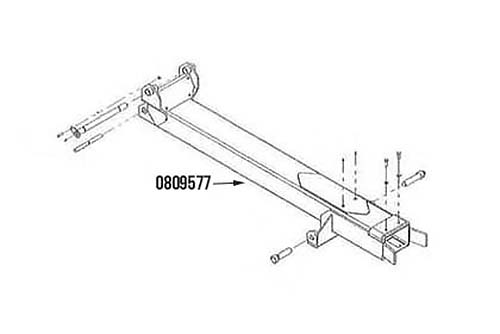

1 Miller Century LCG Outer Boom Weldment Miller Century LCG Outer Boom Weldment
View details
 1 Part Number:  12-0809577 Miller Century LCG Outer Boom Weldment Price: $2434.99 Recommended Quantity:   1
-
+
Add Item to Cart

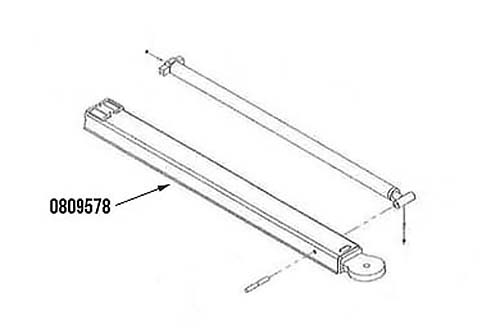

2 Miller Century LCG Inner Boom Weldment Miller Century LCG Inner Boom Weldment
View details
 2 Part Number:  12-0809578 Miller Century LCG Inner Boom Weldment Price: $1484.99 Recommended Quantity:   1
-
+
Add Item to Cart
3 MILLER PIVOT PIN W/L D/S A/G 10S MILLER PIVOT PIN W/L D/S A/G 10S
View details
 3 Part Number:  12-0809411 MILLER PIVOT PIN W/L D/S A/G 10S Price: $115.99 Recommended Quantity:   1
-
+
Add Item to Cart
4 Miller Wheel Lift Extend Cylinder Shaft Base End LCG Carriers Miller Wheel Lift Extend Cylinder Shaft Base End LCG Carriers
View details
 4 Part Number:  12-0750524 Miller Wheel Lift Extend Cylinder Shaft Base End LCG Carriers Price: $25.39 Recommended Quantity:   1
-
+
Add Item to Cart
5 Miller Lift Cylinder Weldment Pin 15 / 20 / 30 Series Car Carriers Miller Lift Cylinder Weldment Pin 15 / 20 / 30 Series Car Carriers
View details
 5 Part Number:  12-0806094 Miller Lift Cylinder Weldment Pin 15 / 20 / 30 Series Car Carriers Price: $79.99 Recommended Quantity:   4
-
+
Add Item to Cart
6 Century Bearing Pad In / Out Boom LCG Century Bearing Pad In / Out Boom LCG
View details
 6 Part Number:  12-0750505 Century Bearing Pad In / Out Boom LCG Price: $18.49 Recommended Quantity:   4
-
+
Add Item to Cart
7 Century Spacer Pad Outer Boom 10 Series Century Spacer Pad Outer Boom 10 Series
View details
 7 Part Number:  12-0750506 Century Spacer Pad Outer Boom 10 Series Price: $20.19 Recommended Quantity:   1
-
+
Add Item to Cart
8 Miller Wheel Lift Tilt Cylinder GEN I LCG 12 and 16 Series Miller Wheel Lift Tilt Cylinder GEN I LCG 12 and 16 Series
View details
 8 Part Number:  12-0308753 Miller Wheel Lift Tilt Cylinder GEN I LCG 12 and 16 Series Price: $747.99 Recommended Quantity:   2
-
+
Add Item to Cart
9 Miller Grease Fitting (See 80013) Miller Grease Fitting (See 80013)
View details
 9 Part Number:  12-0300113 Miller Grease Fitting (See 80013) Price: $5.89 Recommended Quantity:   4
-
+
Add Item to Cart
10 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 10 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   1
11 Miller Wheel Lift Extend Cylinder Shaft Rod End LCG Carriers Miller Wheel Lift Extend Cylinder Shaft Rod End LCG Carriers
View details
 11 Part Number:  12-0750525 Miller Wheel Lift Extend Cylinder Shaft Rod End LCG Carriers Price: $38.99 Recommended Quantity:   1
-
+
Add Item to Cart
12 Miller Century / Champion / Vulcan Crossbar 3.5" Miller Century / Champion / Vulcan Crossbar 3.5"
View details
 12 Part Number:  12-0808506 Miller Century / Champion / Vulcan Crossbar 3.5" Price: $975.99 Recommended Quantity:   1
-
+
Add Item to Cart
13 Century / Champion / Vulcan / LCG Left 3.5" Century / Champion / Vulcan / LCG Left 3.5"
View details
 13 Part Number:  12-0909498L Century / Champion / Vulcan / LCG Left 3.5" Price: $413.99 Recommended Quantity:   1
-
+
Add Item to Cart
14 Century / Champion / Vulcan / LCG Right Crosstube 3.5" Century / Champion / Vulcan / LCG Right Crosstube 3.5"
View details
 14 Part Number:  12-0909498R Century / Champion / Vulcan / LCG Right Crosstube 3.5" Price: $413.99 Recommended Quantity:   1
-
+
Add Item to Cart
15 Miller Steel Wheel Lift L-Arm - Century, Champion, Holmes and Vulcan Carriers Miller Steel Wheel Lift L-Arm - Century, Champion, Holmes and Vulcan Carriers
View details
 15 Part Number:  12-08006748 Miller Steel Wheel Lift L-Arm - Century, Champion, Holmes and Vulcan Carriers Price: $240.99 Recommended Quantity:   2
-
+
Add Item to Cart
16 Miller Skt Headset, Sc, Zp, 3/8-16 x 1 Miller Skt Headset, Sc, Zp, 3/8-16 x 1
View details
 16 Part Number:  12-0400221 Miller Skt Headset, Sc, Zp, 3/8-16 x 1 Price: $5.49 Recommended Quantity:   2
-
+
Add Item to Cart
17 Miller Jam Nut Hex 3/8" 16 Winch Clutch Control Miller Jam Nut Hex 3/8" 16 Winch Clutch Control
View details
 17 Part Number:  12-0400393 Miller Jam Nut Hex 3/8" 16 Winch Clutch Control Price: $0.29 Recommended Quantity:   2
-
+
Add Item to Cart
18 Button Head Screw Button Head Screw
View details
 18 Part Number:  12-0403004 Button Head Screw Price: $0.39 Recommended Quantity:   1
-
+
Add Item to Cart
19 Miller Washer, Flat 1" Od 3/8" Id Miller Washer, Flat 1" Od 3/8" Id
View details
 19 Part Number:  12-0720463 Miller Washer, Flat 1" Od 3/8" Id Price: $5.49 Recommended Quantity:   1
-
+
Add Item to Cart
20 Miller O-Ring, 1" Miller O-Ring, 1"
View details
 20 Part Number:  12-0308132 Miller O-Ring, 1" Price: $3.49 Recommended Quantity:   2
-
+
Add Item to Cart
21 Century Crossbeam Pivot Pin, 3" x 1-1/4" Century Crossbeam Pivot Pin, 3" x 1-1/4"
View details
 21 Part Number:  12-0720460 Century Crossbeam Pivot Pin, 3" x 1-1/4" Price: $52.99 Recommended Quantity:   1
-
+
Add Item to Cart
22 Miller Ball, Chrome, 1" Miller Ball, Chrome, 1"
View details
 22 Part Number:  12-0308129 Miller Ball, Chrome, 1" Price: $8.09 Recommended Quantity:   1
-
+
Add Item to Cart
23 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 23 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:
24 Miller Detent Spring Miller Detent Spring
View details
 24 Part Number:  12-0308131 Miller Detent Spring Price: $19.99 Recommended Quantity:   1
-
+
Add Item to Cart
25 Vulcan Pipe Plug, 1"-11 x 1/2" Zinc Vulcan Pipe Plug, 1"-11 x 1/2" Zinc
View details
 25 Part Number:  12-0308130 Vulcan Pipe Plug, 1"-11 x 1/2" Zinc Price: $9.59 Recommended Quantity:   1
-
+
Add Item to Cart
26 Miller Strap Ratchet Assembly Miller Strap Ratchet Assembly
View details
 26 Part Number:  12-0308664 Miller Strap Ratchet Assembly Price: $64.99 Recommended Quantity:   2
-
+
Add Item to Cart
27 3/8-16X1.25 Hhcs Gr5 Zp 3/8-16X1.25 Hhcs Gr5 Zp
View details
 27 Part Number:  12-0400148 3/8-16X1.25 Hhcs Gr5 Zp Price: $4.79 Recommended Quantity:   1
-
+
Add Item to Cart
28 3/8-16 Nylok Hex Nut Zinc 3/8-16 Nylok Hex Nut Zinc
View details
 28 Part Number:  12-0400392 3/8-16 Nylok Hex Nut Zinc Price: $5.49 Recommended Quantity:   1
-
+
Add Item to Cart
29 Miller Screw, 1/2" x 1-1/2", Hex Head, Century 10 Series '01-'04 Miller Screw, 1/2" x 1-1/2", Hex Head, Century 10 Series '01-'04
View details
 29 Part Number:  12-0400181 Miller Screw, 1/2" x 1-1/2", Hex Head, Century 10 Series '01-'04 Price: $5.49 Recommended Quantity:   2
-
+
Add Item to Cart
30 1/2 HCL Zinc Plated Lockwasher 1/2 HCL Zinc Plated Lockwasher
View details
 30 Part Number:  33626 1/2 HCL Zinc Plated Lockwasher Price: $0.09 Recommended Quantity:   2
-
+
Add Item to Cart
31 Miller Industries CAM LOCK ASSY 3/4" Diameter Miller Industries CAM LOCK ASSY 3/4" Diameter
View details
 31 Part Number:  12-0310120 Miller Industries CAM LOCK ASSY 3/4" Diameter Price: $89.99 Recommended Quantity:   4
-
+
Add Item to Cart
#31 Miller CamLock, 3.25" Short, Chevron Miller CamLock, 3.25" Short, Chevron
View details
 #31 Part Number:  15-88131 Miller CamLock, 3.25" Short, Chevron Price: $94.99 Recommended Quantity:   2
-
+
Add Item to Cart
32 Miller Wheel Lift Extend Cylinder Miller Wheel Lift Extend Cylinder
View details
 32 Part Number:  12-0302178 Miller Wheel Lift Extend Cylinder Price: $1058.99 Recommended Quantity:   1
-
+
Add Item to Cart
Add All Quantities to Cart
