Cargo Bars, Load Bars & Shoring Beams | Variety of Lengths | Zip's

Sort by

Ancra Economy Steel STA Cargo Load Bar with Bolt-on Feet

Economy Steel Cargo STA with bolt-on feet made of galvanized steel tubing. CAUTION: Due to the wall construction of a trailer, Cargo STA do not have a working load limit. Long Tube diameter 1.5"

$33.99

Ancra STA Adjustable Aluminum Cargo Load Bar

Built with 6061 T6 aluminum for durability, the Cargo STA adjustable aluminum cargo bar is strong enough to shore your cargo in a truck bed or van trailer. Featuring a lever ratchet for easy and convenient length adjustment and sturdy 4" x 4" rubber pad feet for securement, the aluminum cargo bar will hold up over extended use.

$65.99

Ancra Aluminum Series E and A Decking/Shoring Beam with Flat Latch

Note: Special Handling Fees Apply for Specific Items

Aluminum beams feature a patented flat latch mechanism that eliminates the age old problem of damaged trigger mechanisms. Its easier to release, even while wearing gloves. There is even a replacement flat latch channel assembly that can be used to update your existing beams. Extend beam life and keep your costs low.

Length: 85.7"-96.6" / 92.9"-103.8"
Style: Standard Duty or Heavy Duty
Sold as Each
AI-43638-50 Specifications
Style: Standard Duty
Length: 85.7"-96.6"
Weight: 16 lbs / 7.3 kgs
WLL: 2,200 lbs / 999 kgs
UPC: 092888307517

AI-43638-51 Specifications
Style: Standard Duty
Length: 92.9"-103.8"
Weight: 18.8 lbs / 8.5 kgs
WLL: 2,200 lbs / 999 kgs
UPC: 092888300921

AI-49039-50 Specifications
Style: Heavy Duty
Length: 85.7"-96.6"
Weight: 20.5 lbs / 9.3 kgs
WLL: 3,000 lbs / 1,363 kgs
UPC: 092888300389

AI-49039-51 Specifications
Style: Heavy Duty
Length: 92.9"-103.8"
Weight: 22.5 lbs / 10.2 kgs
WLL: 3,000 lbs / 1,363 kgs
UPC: 092888306510

$100.99 – $122.99

Ancra Standard Steel STA II Cargo Load Bar

Ancra's NEW Cargo STA II features a recessed gear rack, which helps prevent a pinch point while providing a smooth exterior surface for less potential cargo damage. The release latch is easier to operate as it is located on the handle vs. the housing.

$33.99

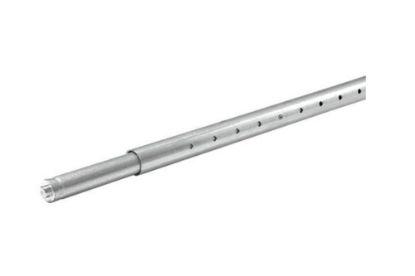

Ancra F Series Round Shoring Bar

Round Steel Shoring bar, adjustable in 2" increments.

$114.99

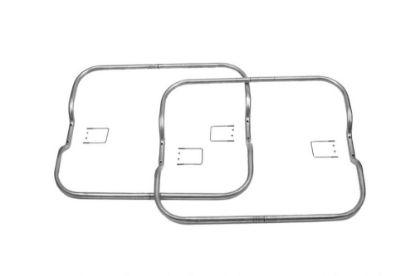

Ancra Hoop Set for Cargo STA

Designed to help restrain the movement of small packages of cargo within your truck or trailer. Two hoops and attachment hardware are included providing easy mounting. For AI-43782 and AI-48407 round tube bars.

$76.99

Ancra Standard Wooden Beam Socket

With Ancra's standard beam socket, you'll be able to take those pieces of lumber and use them as durable and reliable decking/shoring beams to help you secure and separate your cargo. With an internally welded plate for added strength, this beam socket puts that lumber into good use. Simply insert the standard commercial grade Douglas Fir 2" x 6" lumber into the beam socket, then attach the beam socket into the logistic track. You'll be able to keep your loads secure throughout transit. Note: The working load limit of lumber varies widely. Double check before using the beam to secure your loads.

$9.99

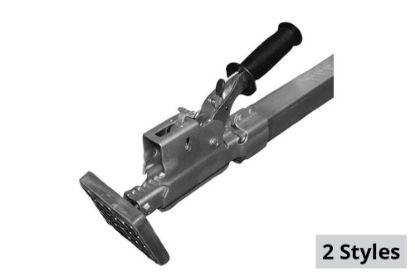

Ancra Heavy Duty One Piece Galvanized Jack Bar w/ Handle

Jack Bars feature 4"x 4" bolt-on feet assemblies and are designed for use in light to medium duty cargo applications. They feature 1-1/2" square heavy-gauge, galvanized steel tubing with a cycle tested, heavy duty automotive jack assembly. Due to the wall construction of a trailer Jack Bars do not have a working load limit. The Jack mechanism has a quick release feature that allows the bar to be retracted for easy removal. Read and follow instructions to prevent damage or injury.

$81.99 – $149.99

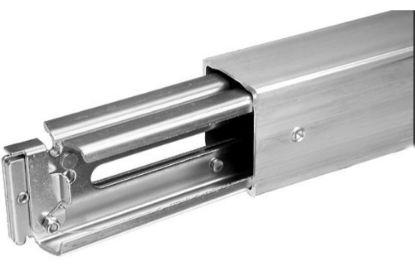

Ancra Series E 103" Steel Decking and Shoring Beam

14 Gauge Steel Shoring and Decking Beam featuring trigger latch and adjustable length. Made to go with Series E and Series A track.

$105.99

Ancra Heavy Duty Aftermarket Captive Style Shoring Beam

Aftermarket beam accessories and components. Replacement tube beams have all of the required labels.

$92.99

Ancra Poly Deck Board

ancra Poly Deck board for LAD System. For beams set at 24" on center. Tough high density polyethylene has excellent low temperature performance down to -40 degrees Fahrenheit. Tested to demonstrate durability under load and vibration at -40 degrees Fahrenheit.

$163.99

Ancra F Series Square Shoring Bar

Square Steel Shoring bar, adjustable in 2" increments.

$142.99

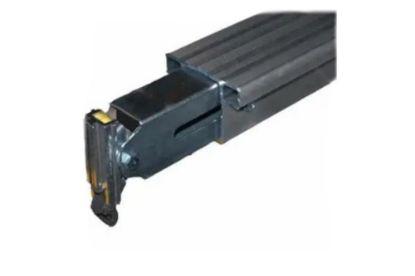

Ancra Series E Re-Enforced 4.5" Wide Top Shoring Beam

Cargo beams and Lift-A-Deck beams are rated at Working Load Limits (WLL) that are 1/3 of the breaking strength or failure load capacity of the beams. In order to account for dynamics and vibrations that are experienced during transit and avoid overloading the beams beyond the WLL rating, the actual weight of cargo supported by the beams should be reduced below the rated WLL value of the beam. The allowable weight of cargo supported by the beams should be factored down based on anticipated dynamic G forces expected during transit.

$114.99

Ancra Series E Lockable 103" Decking/Shoring Beam

Sold as Each

$121.99

Ancra Heavy-Duty Aluminum Series E and A Beam Assembly w/ Flat Latch

Ancra's heavy-duty aluminum series E & A beam assembly with flat latch is engineered with the truck driver in mind with maximum strength at minimum weight. Very easy to use, the beam easily inserts into the series E and series A tracks to establish a firm connection. This heavy-duty beam can handle a working load limit of 3,000 lbs. and is adjustable from 93.8 inches to 106.9 inches.

$154.99

Ancra Heavy Duty Series E 106" Lockable Shoring Beam Assembly

Sold as Each

$133.99

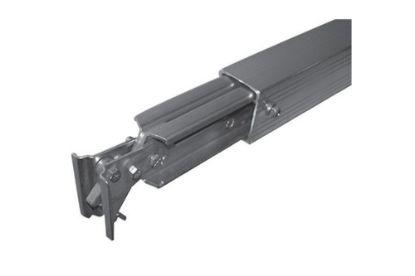

Ancra Aftermarket Captive Style Shoring Beam

Aftermarket beam accessories and components. Replacement tube beams have all of the required labels.

$157.99

Ancra Series E Wide Top Shoring Beam

Wide Top Decking Beam with textured, 4-1/2" top surface to increase contact area for cargo on the beam deck. Aluminum beams feature a patented flat latch mechanism that eliminates the age old problem of damaged trigger mechanisms. It's easier to release, even while wearing gloves. There is even a replacement flat latch channel assembly that can be used to update your existing beams. Extend beam life and keep your costs low.

$191.99

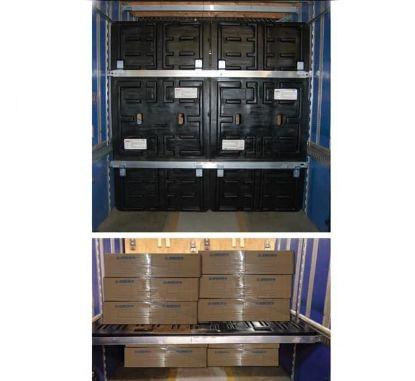

Ancra Single Panel Composite Bulkhead

Versatile Security Divider & Deck Board. High density polyethylene panels with hand slots for easy positioning are ideal for securing household items, keeping your freight separate and secure. Used with lockable beams to provide a secure load divider. When used as a decking board, the cargo carrying capacity is determined by the beams supporting it.

$246.99

Ancra Composite Bulkhead Kit for Heavy Duty Beams

$611.99

Ancra Composite Bulkhead Kit for Standard Duty Beams

$652.99

Ancra Heavy-Duty Wooden Beam Socket

Ancra's heavy-duty beam socket transforms pieces of lumber into reliable decking/shoring beams so that you can efficiently secure, stabilize, and separate your cargo. An inexpensive alternative to a standard aluminum logistic beam, this beam socket can be used with any standard commercial grade Douglas Fir 2" x 6" lumber. An internally welded plate offers extra holding strength. Note: The working load limit of lumber varies widely. Double check before using the beam to secure your loads.

$10.99

1 - 22 of 22 items

Load Bars and Shoring Beams for Secure Cargo Transport

When transporting cargo, keeping your load stable is critical for safety, efficiency, and damage prevention. Load bars and shoring beams are essential tools for professional truckers, delivery drivers, and anyone responsible for moving goods in trailers or trucks. These bars create adjustable partitions, support stacked cargo, and prevent shifting during transit. At Zips.com, we offer a wide selection of aluminum shoring beams, E track load bars, and adjustable systems designed for maximum strength and versatility.

Why Choose Load Bars and Shoring Beams?

Shoring beams act as a temporary barrier inside trailers, preventing cargo from shifting side to side or front to back. By distributing weight evenly and securing cargo, they help reduce the risk of damage and improve safety for both drivers and goods. Whether you’re using 2” shoring beams, 4” shoring beams, or adjustable aluminum variants, the right beam improves load stability and increases efficiency when loading and unloading.

Modern E track shoring beams and aluminum adjustable load bars fit standard E track and A track systems, making installation simple and compatible with most cargo setups. Lightweight aluminum designs combine durability with ease of handling, while heavy-duty models support larger and heavier loads.

Best-Selling Load Bars and Shoring Beams

We feature top-rated products from trusted brands like Ancra Cargo, ensuring quality, reliability, and ease of use. Notable products include:

Ancra Aluminum Series E and A Decking/Shoring Beam with Flat Latch – Lightweight, easy-to-install aluminum beams with a flat latch for secure fitment.
Ancra F Series Round Shoring Bar – Durable round aluminum beams designed for quick adjustments and versatile cargo setups.
Ancra F Series Square Shoring Bar – Heavy-duty square aluminum beams for added strength when transporting bulkier items.
Ancra Heavy-Duty Aluminum Series E and A Beam Assembly with Flat Latch – Robust beam assembly ideal for high-capacity trailers and frequent loading operations.

These beams are compatible with a wide range of trailers and flatbeds, making them suitable for commercial and light-duty hauling applications.

Shopping Guide: Choosing the Right Shoring Beam

When selecting aluminum load bars or shoring beams, consider the following factors:

Beam Size and Type – Choose between 2” shoring beams, 4” shoring beams, or adjustable lengths based on the height and width of your cargo space.
Material – Aluminum beams are lightweight yet strong, ideal for ease of handling and long-term durability. Steel options may be used for heavier loads.
Compatibility – Ensure the beam fits your E track, A track, or other trailer mounting systems. E track load bars and load bar holders provide a secure fit and easy adjustment.
Adjustability – For multi-load applications, consider adjustable aluminum load bars to accommodate different cargo heights and widths.

By matching the right shoring beam to your cargo needs, you improve both efficiency and safety.

FAQ: Load Bars and Shoring Beams

What are shoring beams used for?
Shoring beams are used to secure and stabilize cargo in trailers and trucks, preventing shifting and damage during transit.

Do shoring beams work with all trailer types?
Most aluminum shoring beams and E track load bars are compatible with standard trailers, including dry vans, flatbeds, and utility trailers, but it’s important to confirm fitment with your specific E or A track system.

What is the difference between 2” and 4” shoring beams?
The difference lies in strength and support. 2” shoring beams are lightweight and easier to handle, suitable for lighter loads, while 4” shoring beams provide additional support for heavier cargo.

Are adjustable aluminum load bars safe?
Yes, adjustable aluminum load bars are designed to safely lock into E track or A track systems and can support a variety of load sizes when properly installed.

How do I choose between round and square shoring beams?
Round beams offer smooth handling and easy positioning, while square beams provide extra rigidity for heavy-duty loads or stacked cargo.
