Hydraulic Pumps, Outriggers & Repair Parts

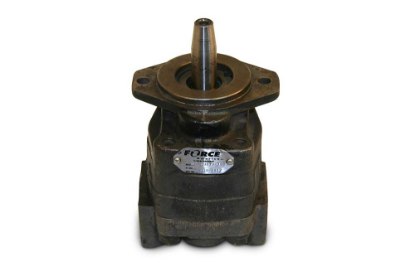

This Hydraulic Pump from Muncie has a 15 gallon per minute flow at 1,000 RPM. The PK Series Pumps from Muncie are designed to meet the application needs of either a pump or a motor. The all cast iron construction has 4 ports and a roller bearing design. The pumps bi-rotational feature helps reduce inventory requirements. It has a 2 bolt mount, 7/8 - 13 spline input shaft and O-ring ports on the rear and sides of the pump. This pump is used on Miller Car Carriers 2003 and newer. This pump will also work on a Vulcan 984 also. This part has replaced part number

This is our #1 selling filter. It is used on older style 411, 412, 601, 602, 611, 612, 552, 4400, 4800, 301, 311, 312, and 614.

This Hydraulic Pump from Muncie has an 11 gallon per minute flow at 1,000 RPM. The PK Series Pumps from Muncie are designed to meet the application needs of either a pump, or a motor. The all cast iron construction has 4 ports and a roller bearing design. It has a bi-rotational feature that helps reduce inventory requirements. There is a 2 bolt mount, 7/8"-13 spline input shaft, and O-Ring ports on the rear and sides of the pump. Use this pump on Miller Carriers made in 2002 or older.

Immersion Filter assembly - SMF1650. It mounts on top, inside, the hydraulic tank. The filter bypass is in the filter head. Replacement element #

This is a replacement hydraulic tube assembly for the Vulcan 880 / 890 Series light duty wreckers by Miller Industries. This is a 3/8" hydraulic tube assembly that gets used on the Extend and Tilt cylinders on these wreckers. This tube assembly will fit Vulcan 896/897, 880/890, and Modular 880/890 light duty wreckers. To view which specific models this part will fit please see Features below. To view part schematics click on the Brochure tab above.

This is a replacement hydraulic tube assembly for the Vulcan 880 / 890 Series light duty wreckers by Miller Industries. This is a 3/8" hydraulic tube assembly that gets used on the Extend and Tilt cylinders on these wreckers. This tube assembly will fit Vulcan 896/897, 880/890, and Modular 880/890 light duty wreckers. To view which specific models this part will fit please see Features below. To view part schematics click on the Brochure tab above.

This Commercial P315 Series Hydraulic Clutch Pump is commonly used for engine mounted applications. It is a cast iron, belt driven, Commercial P315 Series fixed displacement gear pump with Pitts Electro-Magnetic Clutch. This pump has a tapered and keyed shaft that accepts the 1172 Electric Clutch Assembly or the 1172S Serpentine Electric Clutch Assembly. Pump will also accept 740148 Serpentine Electric Clutch Assembly. This pump is rated at 7 GPM @ 2000RPM

10 gallon per minute hydraulic pump at 1000 rpm. Commonly used with the 250/251 series Chelsea PTO's. When used with the 122% output speed pto this pump will deliver 12.20 gallons per minute. This pump when combined with the 251GDHVP-B5XE pto kit on a Chevrolet/GMC K30 chassis will provide the maximum g.p.m. output for the allowed chassis pto/pump area.

This is a 3/4-11 Spline Ford PTO pump. It will fit 245FMKSP-B2XP PTO. The CGP-P11 series pumps can be ran on 4X4 or 4X2 vehicles. It is a 20.4 HP pump. It has a 3480 PSI intermittent pressure rating and a 3410 PSI continuous pressure rating. Max pump speed is rated at 1850 RPM with the max engine speed rated at 1201 RPM. The max pump flow is rated at 10.3 GPM.
