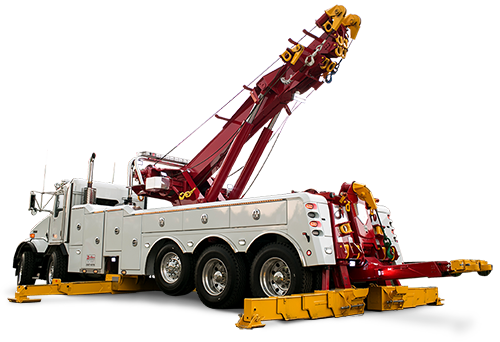

Century 1150 Heavy Duty Rotators
Zip’s is proud to offer the Century 1150S, 1150 RXP and 1150R models. Like the Century 1075, the 1150 features 360° of continuous boom rotation, a 3-stage recovery boom, optional deck and turret mounted winches, and a field-tested and proven SDU-4 underlift. All 1150 rotator models offer the optional, patent-pending Raptor Wireless Proportional Control System, which includes an informational screen with load-sensing functions.
The 1150 technology is also available in the Century 1150R, which features a unique patented roller system that allows the boom to travel up to 60”. The low-maintenance roller system has the ability to start and stop under heavy loads, even while rotating.
Get your next 1150 Rotator custom built by the best at Zip’s!
Call Now - 800-222-6047
Show me all Heavy Wreckers in stockFeatures
Body – All Models |
|
| • Aluminum Modular Body | • Hydraulic Rear Outriggers |
| • Rubber Mounting Isolators | • Removable Pads |
| • Body Mud Flaps 180” C.B. | • 2 D-Rings Mounted on 1st, 2nd & 3rd Stage |
| • Chain Rack | • Air Activated House Lock, Secures Boom for Transport in Rear or Forward Position |
| • Fork Holders | • Hydraulic Pump |
| • Compartments Over the Wheel Wall | • Dual 2-Speed Winches |
| • Attachment Storage | • Dual 2-Speed Winches |
| • Rubber Isolators | • 360° Sheave Heads |
| • Tailboard Mounted D-Rings | • Cable Tensioners |
| • Double Action Latches w/Keys & Power Locks | • Winch Air Free Spool |
| • LED Federal #108 Lighting | • Hydraulic Pressure Gauges (Driver Side) |
| • Two Rear Outrigger Spade Attachments with D-Rings | • Hydraulic Reservoir with an Oil Level Sight Gauge, Tank Drain & Access Panel |
| • LED Toolbox Lighting | • Rear Air & Electrical Hook-Ups |
| • Rubber Fenderettes | • Large Outrigger Pads |
| • Boom Angle Indicator | • Rotator Pylon |
| • 360° Continuous Boom Rotation | • D-Ring Package |
| • Hydraulic Front Outriggers | • Quick Connect Air |
| • Proportional 3 Stage Power Boom | • Safety Chain Roller |
| • Extension with Counter Balance Valve |
RXP Option |
|
| • (2) 35,000 lbs. 2 Speed Planetary Winches | • Directional Sheave Head (1 per Leg) |
| • Air Free Spool (1 per Winch) | • Recovery D-Ring (1 per Leg) Air Tensioner (1 per Winch) |
Underlift |
|
| • 9 Pairs of Cast Steel Forks | • Low Profile Fork Holders |
| • 1 Pair of Spring Lift Adapters | • Hydraulic Fold |
| • Power Elevation | • 3-Stage Design |
| • Low Profile Heavy Duty Crossbar | • 2-Piece Pivot Pin |
| • Power Extension | • Upper/Lower Thrust Washer |
| • 70° Pivoting Crossbar | • Fork Riser Brackets |
| • Power Tilt |
Optional |
|
| • Coach Low Rider Underlift | • 24”, 30”, 36”, 48” Saddle Tunnel Box |
| • Stainless Steel Fenderettes | • Water Tank Kit |
| • Front Outrigger Spade Attachment | • Handrail Kit |
| • Chain Rack Carousel | • Light Bar |
| • Chain Package | • Pintle Hook Attachment |
| • Stainless Steel Fenderettes | • Flasher Kit |
| • Endless Loop Sling Package | • 5th Wheel Plate (Req. Pintle Hook Attachment) |
| • Front Mounted 3 Stage H-Beam Outriggers (Standard on 1150S and 1150R) | • Trailer Ball Adapter (Req. Pintle Hook Attachment) |
| • Alloy Foundry Hooks | • Boom Scene Lights |
| • Front Mounted 2 Stage H-Beam Outriggers 212” Stance (1150S) | • Dual H-Beam Outriggers - 262” Stance (1150S, 1150R) |
| • Alloy Shackles | • Heavy-Duty Tire Lift |
| • Rear 4 Stage Outriggers - 220” Stance | • Wide Load Light Bar |
| • Alloy Snatch Blocks | • XHD Tire Lift (25k Capacity) |
| • LED Work & Hook-Up Lighting | • LED Side Lights |
| • Spreader Bar | • Offset Fort Holder Extensions |
| • Dual Rear Cameras & Monitor | • LED Body Strip Lights |
| • Manual Override Control for PTO | • Additional Lighting |
| • Air Shift PTO | • Chain Hook Slide Adapter |
| • 7 Drawer Toolbox | • Installation |
| • Additional Lift Forks |
Optional – 1150S & 1150RXP |
|
| • MMGO (Load Sensing) | • Backlit Controls |
| • Raptor Package (Standard on 1150R) | • Right Hand Manual Controls |
| • Radio Proportional Controls with Single Mounted Controls (includes backlit controls) | • Tailboard Underlift Controls |
Specifications
Boom |
||
| • Capacity | Retracted | 100,000 lbs. |
| • Capacity | Extended | 25,000 lbs. |
| • Extension | 248” | |
| • Rotation | 360° | |
| • Maximum Angle | 66° | |
| • Maximum Height | 495” |
Winch Rating & Cable |
|
| • Winch Capacity | 50,000 lbs. |
| • Winch Type | Planetary (2-speed) |
| • Cable Specifications | 3/4” x 250’ IWRC |
| • Winch Free Spool | Air Operated |
| • Cable Tensioners | Air |
Optional Drag & Auxillary Ratings |
|||
| Component | 50K | Dual 35K | Dual 22K Turret |
| • Winch Capacity | 50,000 lb. Drag | Dual 35,000 lb. | Turret-Mounted Dual 22,000 lb. |
| • Winch Type | Planetary 2-Speed | Planetary 2-Speed | Planetary Single Speed |
| • Cable, 6 x 37 IWRC | 3/4” x 200’ | 5/8” x 200’ | 5/8” x 200’ |
| • Air Cable Tensioner | Air | Air | |
Underlift |
||
| Feature | SDU-4 | SDU-4 Coach Low Rider |
| Capacity Fully Extended to C.L. of Forks | 17,000 lb. @ 143 1/2” | 18,000 lb. @ 165 1/2” |
| Capacity Fully Retracted to C.L. of Forks | 55,000 lb. @ 54” | 55,000 lb. @ 66” |
| Underlift Tilt | -10° / +10° | -10° / +10° |
Recommended Minimum* Chassis Specifications |
|||
| Feature | 1150S | 1150R | 1150RXP |
| Front Axle | 20,000 lb. | 20,000 lb. | 20,000 lb. |
| Rear Axle | 45,000 lb. | 52,000 lb. | 45,000 lb. |
| Front Axle | 20,000 lb. | 20,000 lb. | 20,000 lb. |
| Clear C.A./C.B. | 180” | 180” | 204” |
| After Frame from Center of Rear Axle | 40” | 40” | 40” |
| RBM | 4,000,000 in/lb. | 4,000,000 in/lb. | 4,000,000 in/lb. |
* All recommendations are minimums, heavier specifications may be required depending on chassis and equipment weight. Always consult your local distributor or the factory for additional information.
