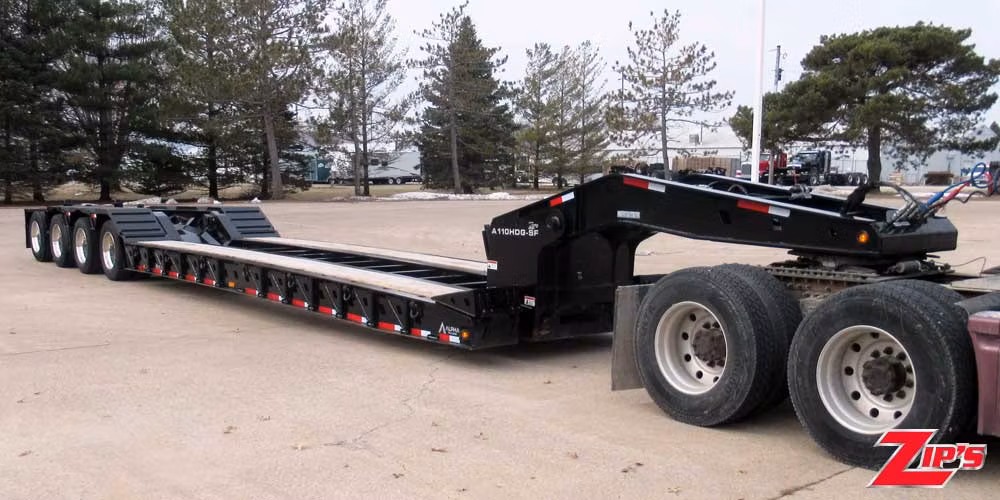

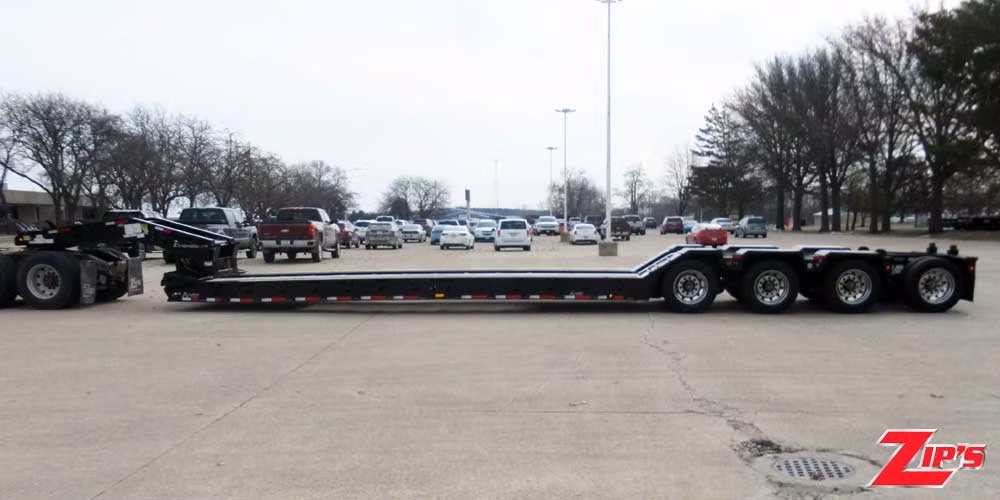

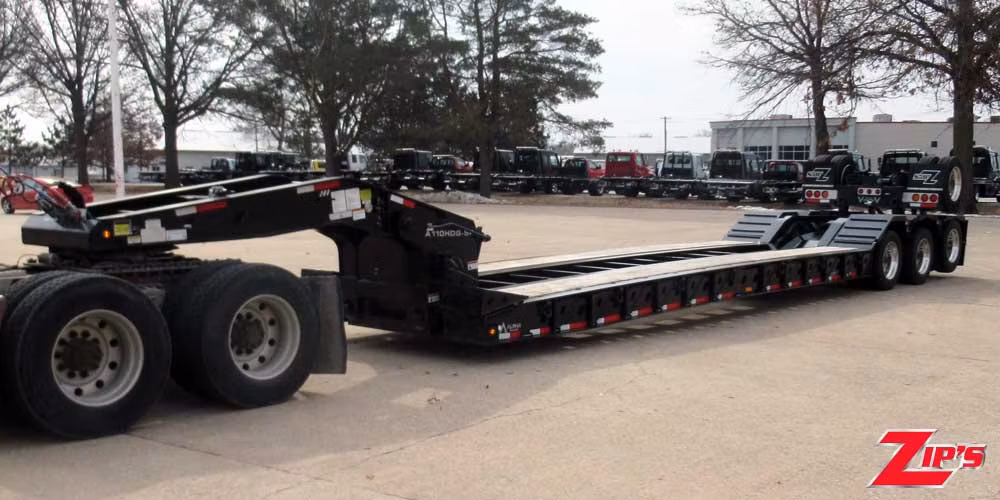

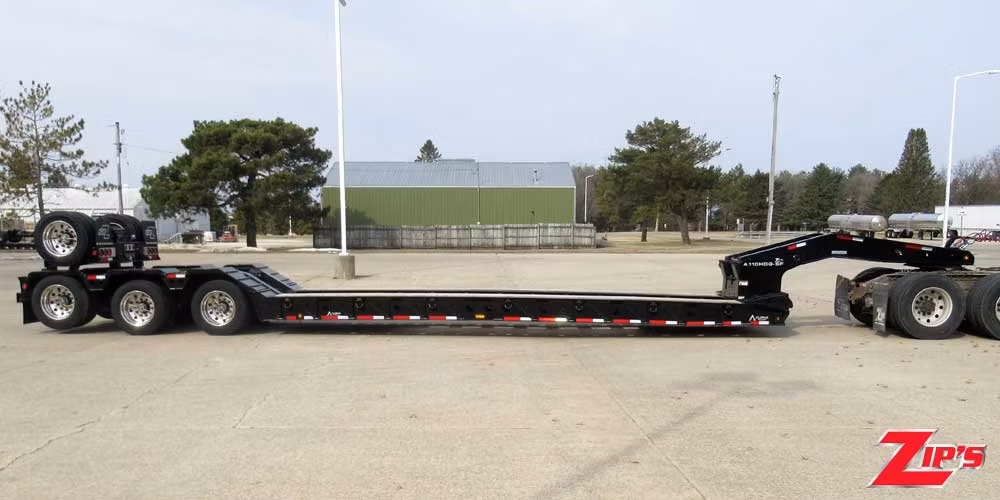

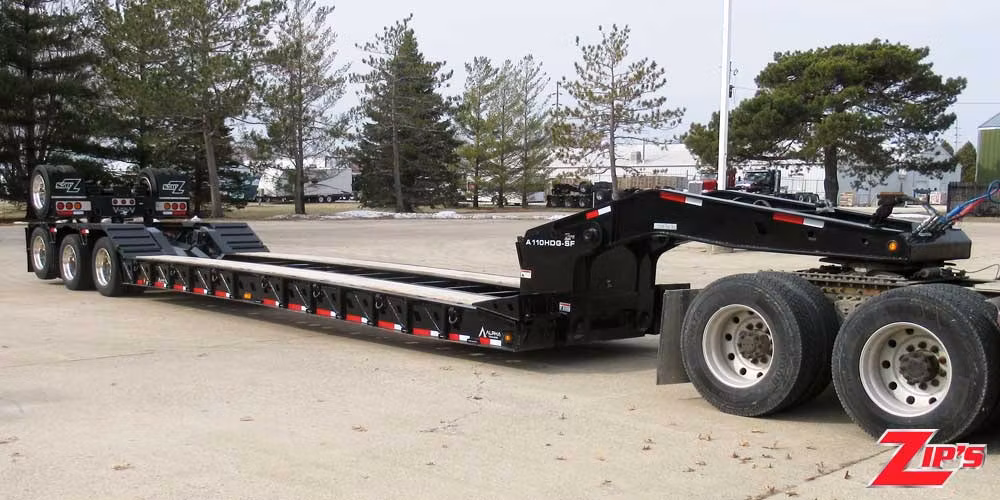

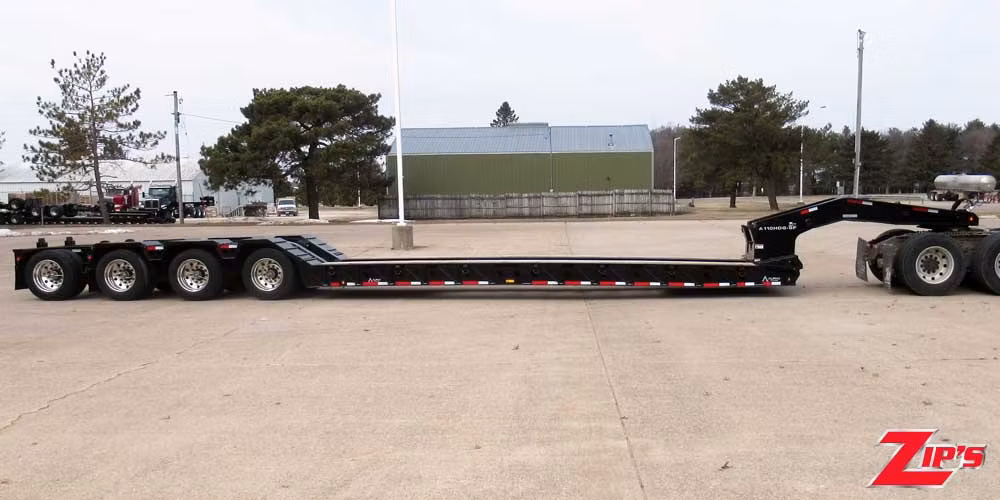

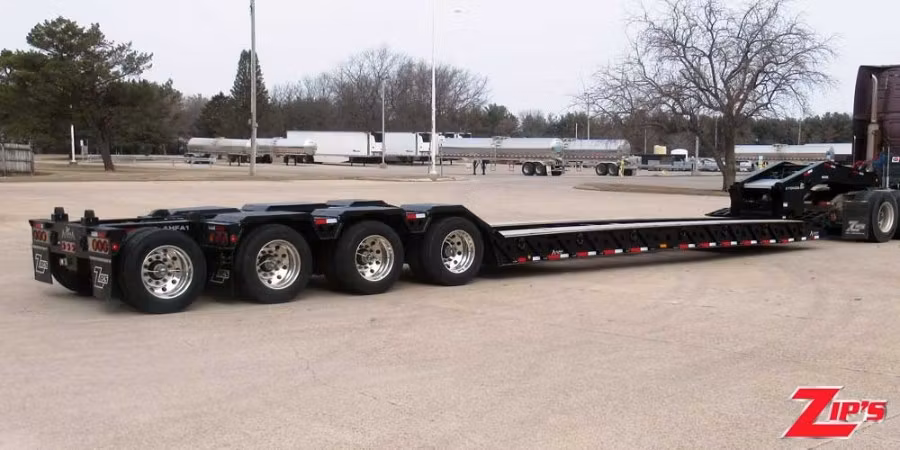

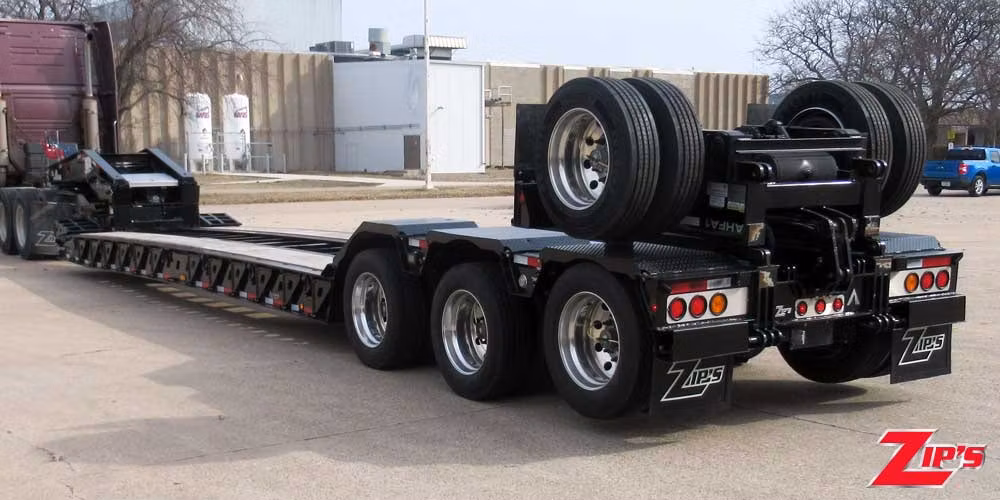

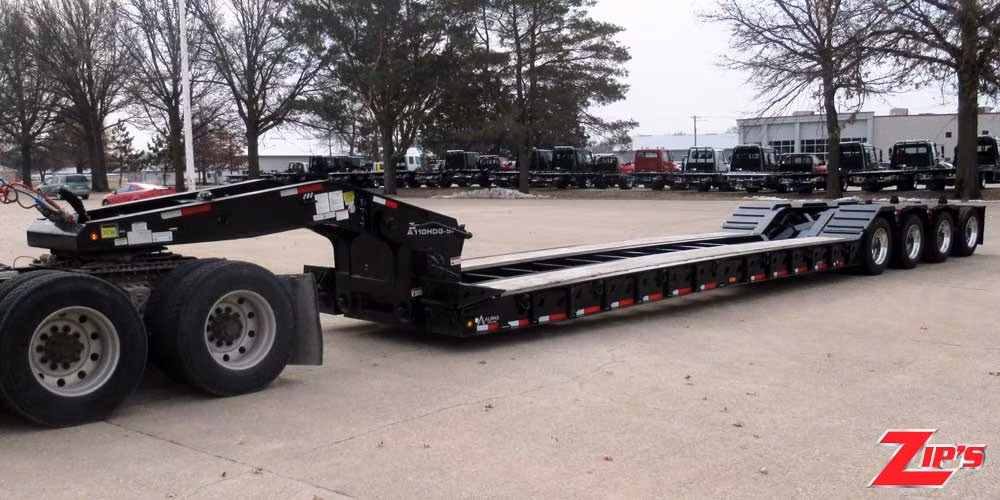

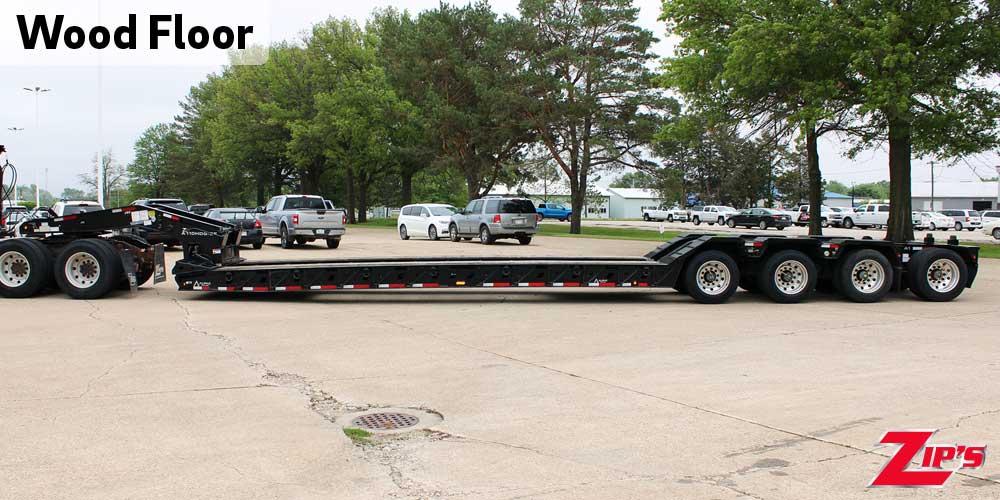

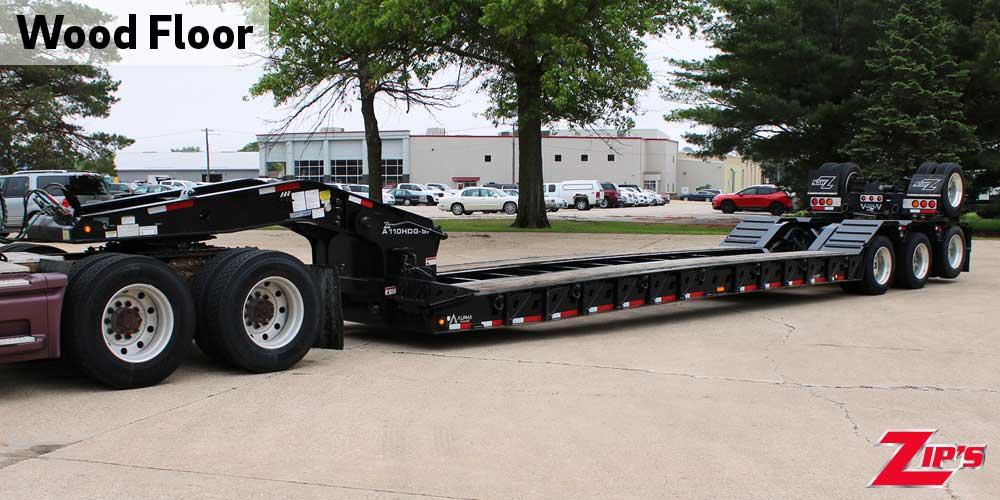

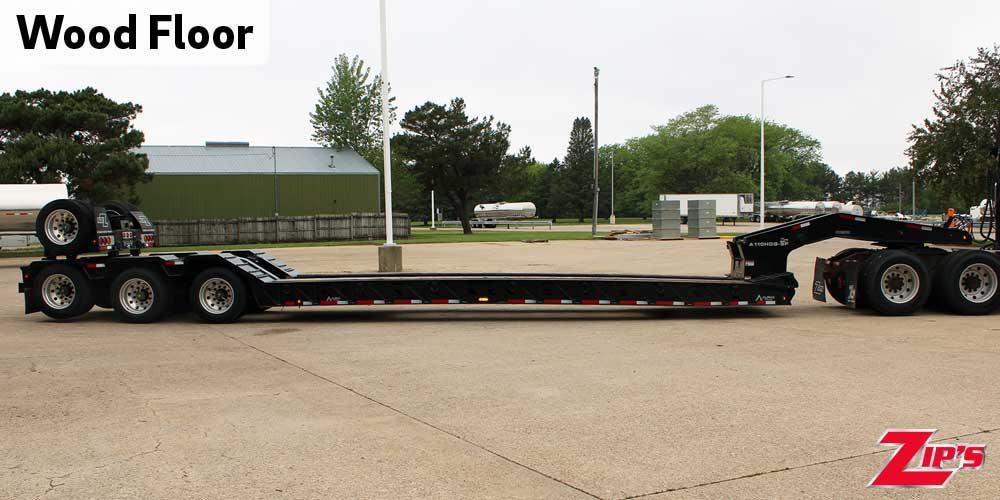

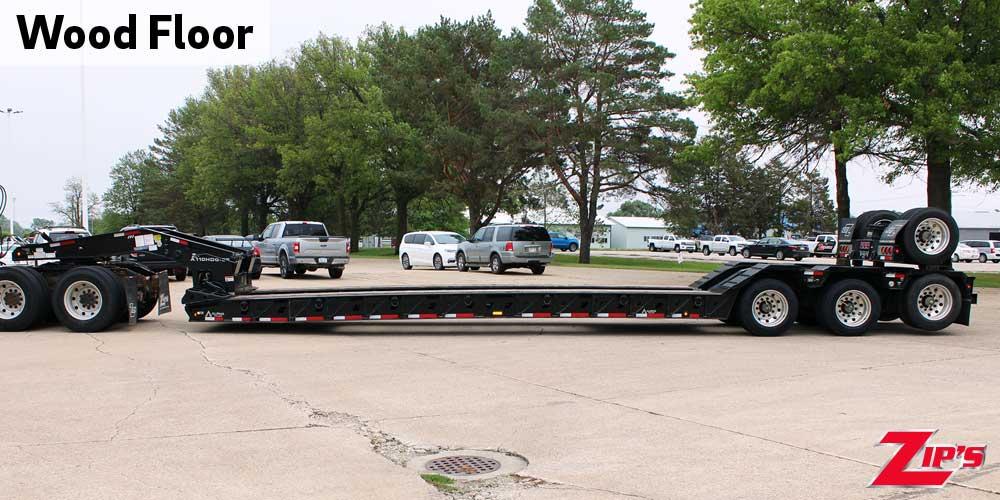

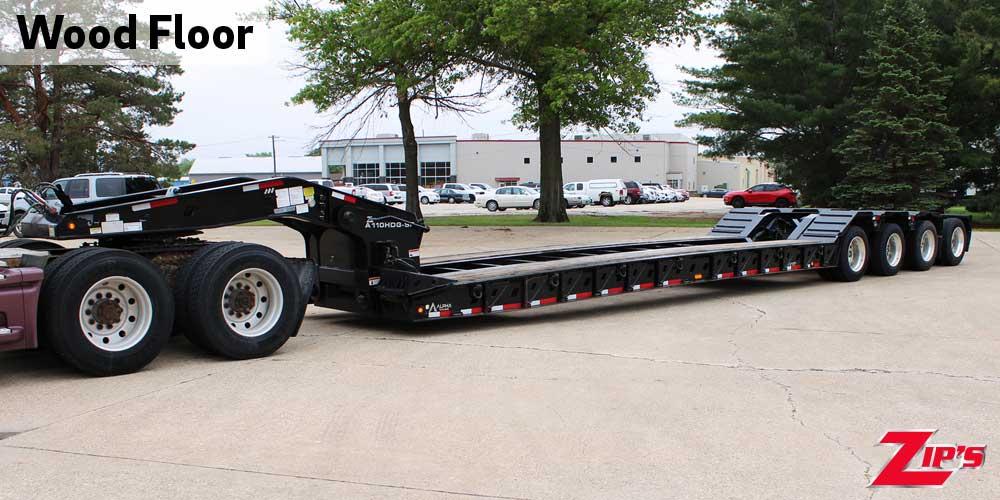

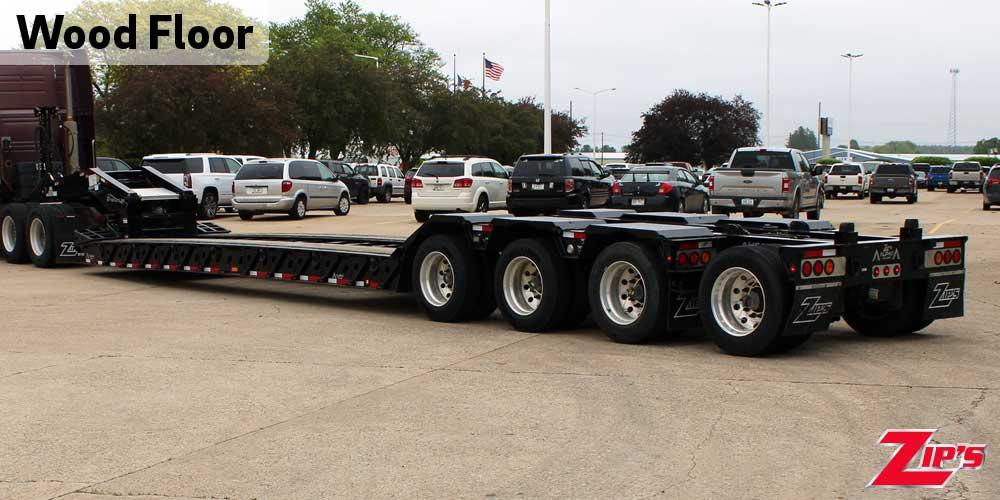

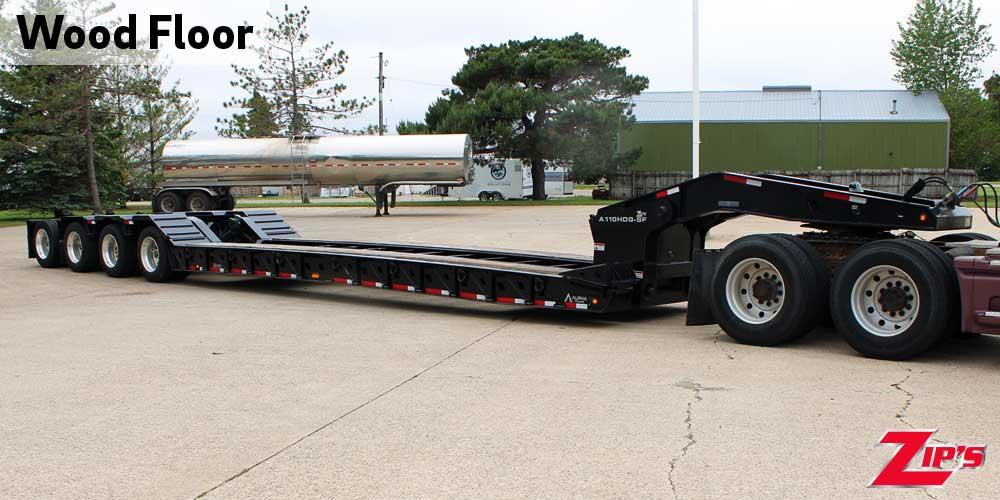

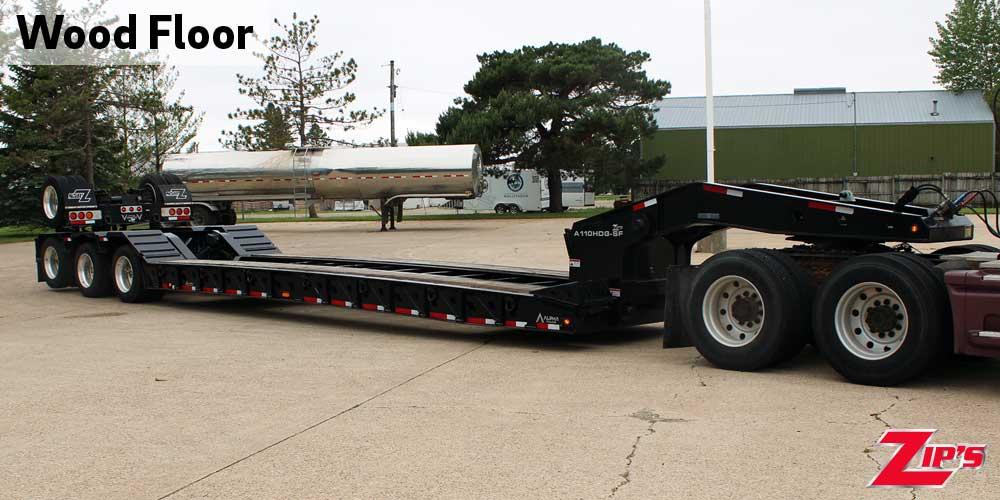

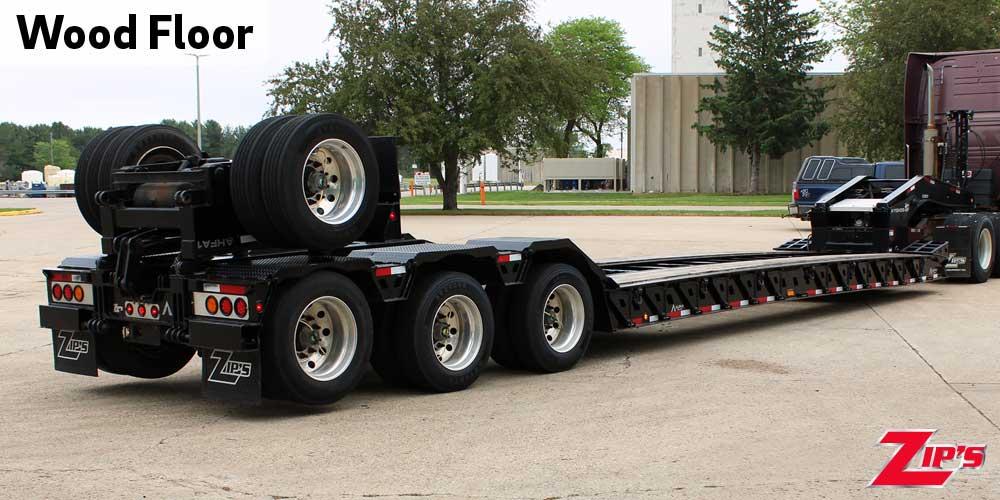

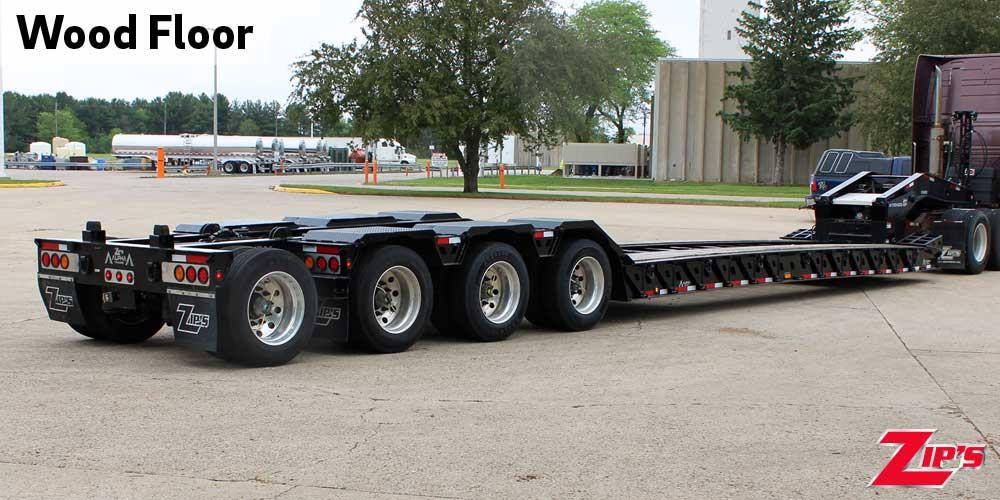

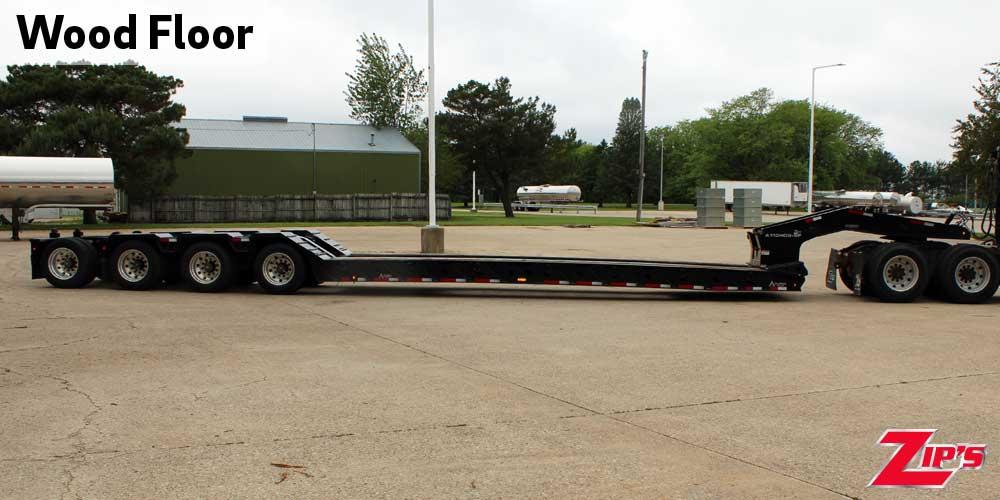

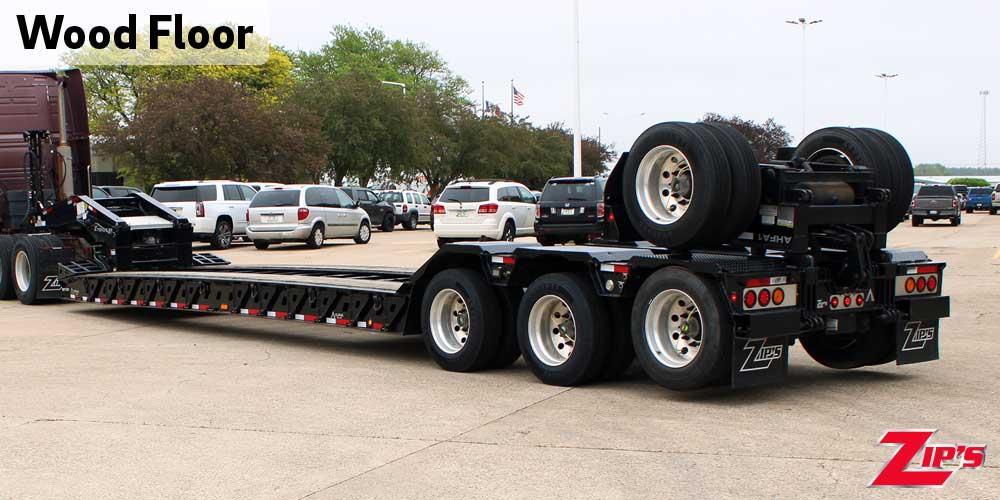

2022 Alpha A110HDG-SF Detachable Goose Neck 53' Industrial Trailer, 23212
Contact us to explore purchase options
Request Information
Body Specs
| Stock Number | UT23212 |
|---|---|
| Equipment Brand | Alpha |
| Equipment Model | A110HDG-SF Detachable Goose Neck |
| Body Serial Number | 1Z9A3EV35N1607083 Trailer,1Z9A1E114N1607084 Flip Axle |
| Body Type | Detachable Goose Neck w/Flip Axle |
| Length | 53' |
More Body Features
Capacity: 110,000#
Concentrated: 110,000 In 12'

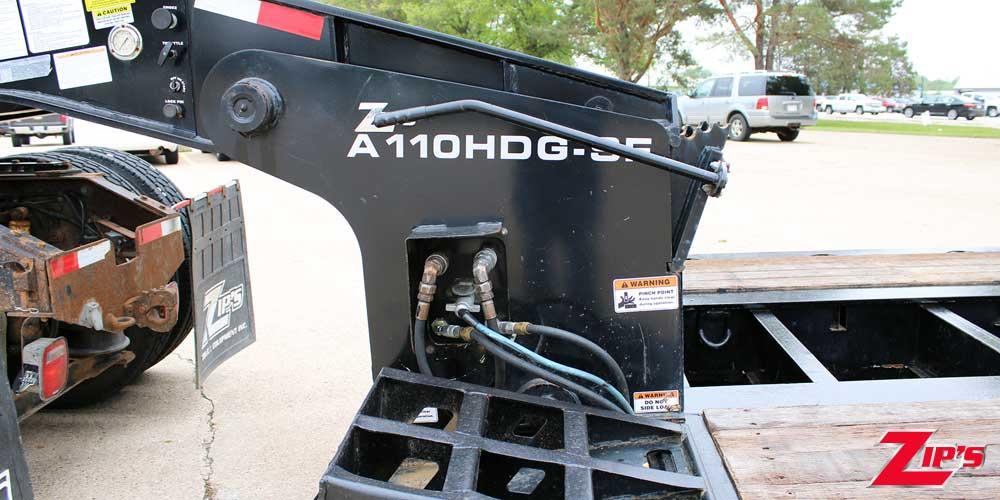

Gooseneck:
12' 11" Hydraulic Detachable
51" 5th Wheel Height
15" & 41" King Pin
110" & 84" Swing Clearance
5 Position Ride Height

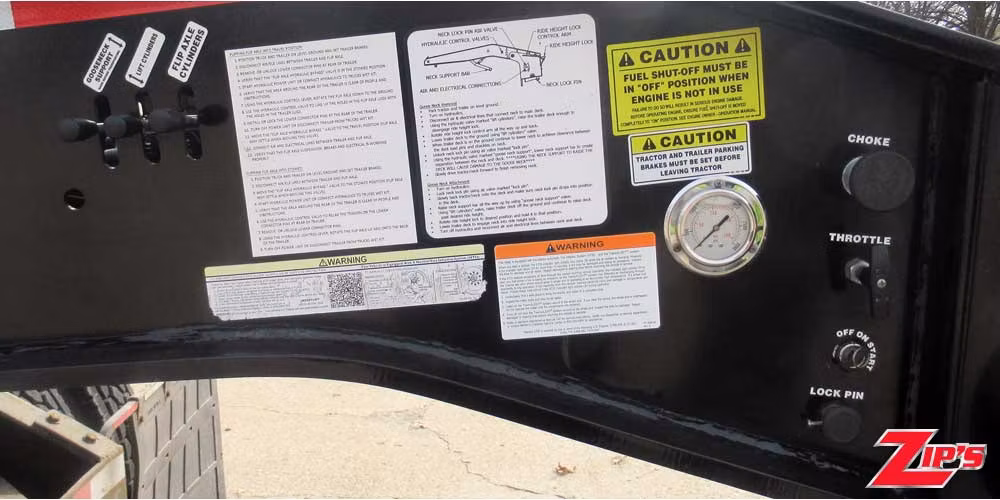

Hydraulics Run By Wet Kit
Air Operated Lock Pin

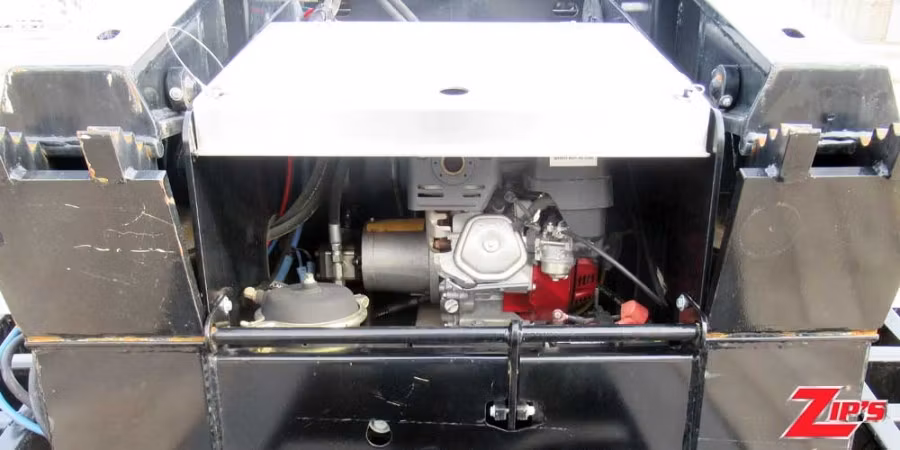

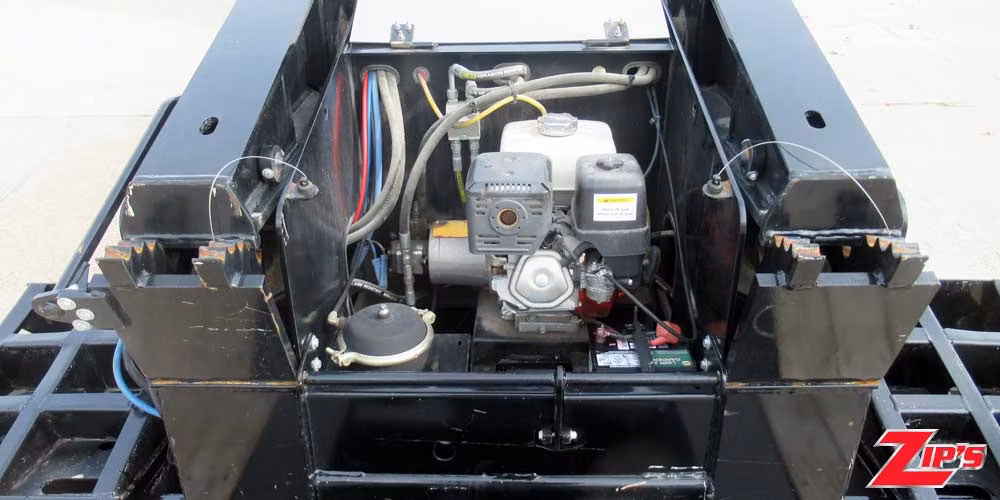

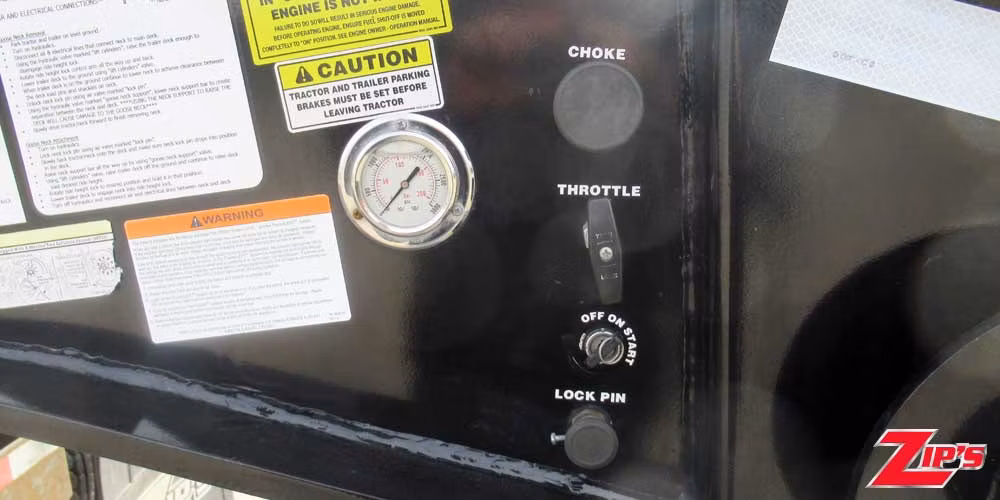

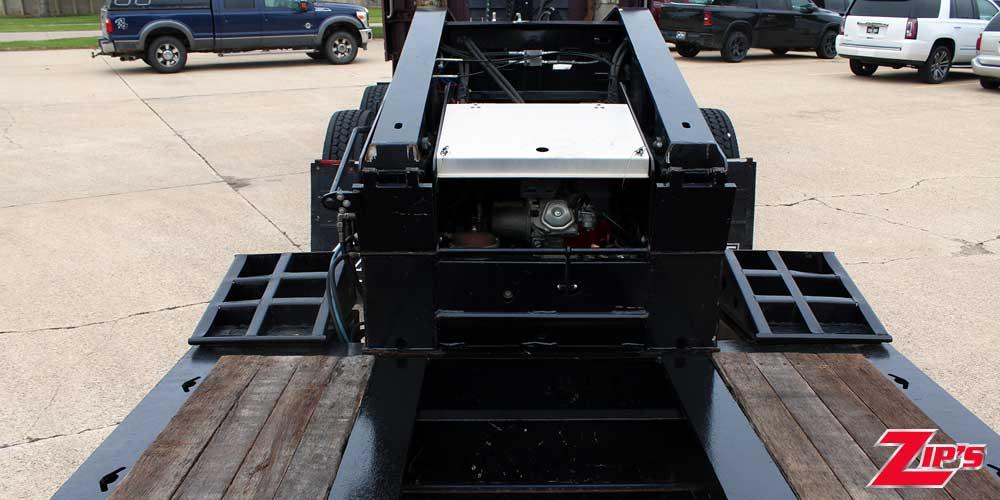

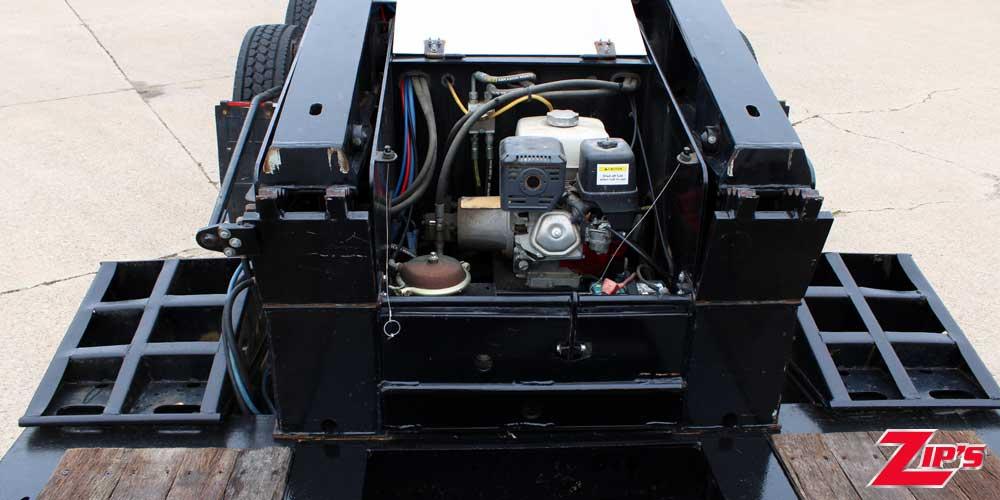

13HP Honda Self Contained Pony Motor Mounted In Base Section

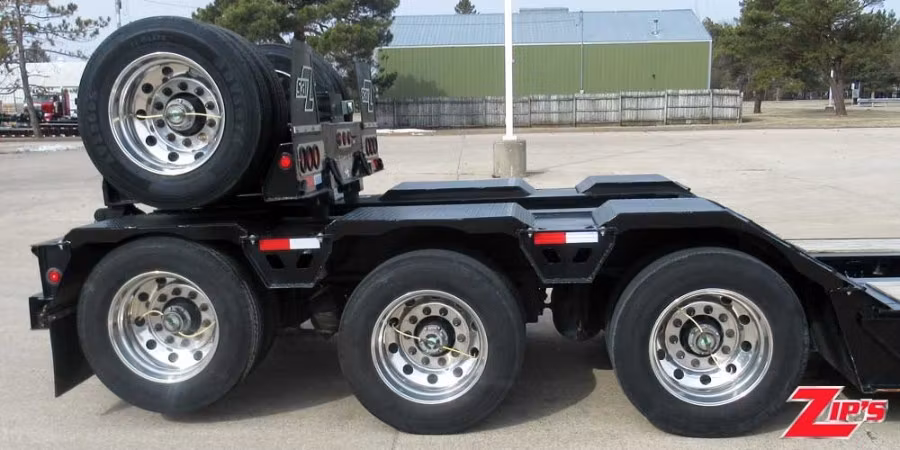

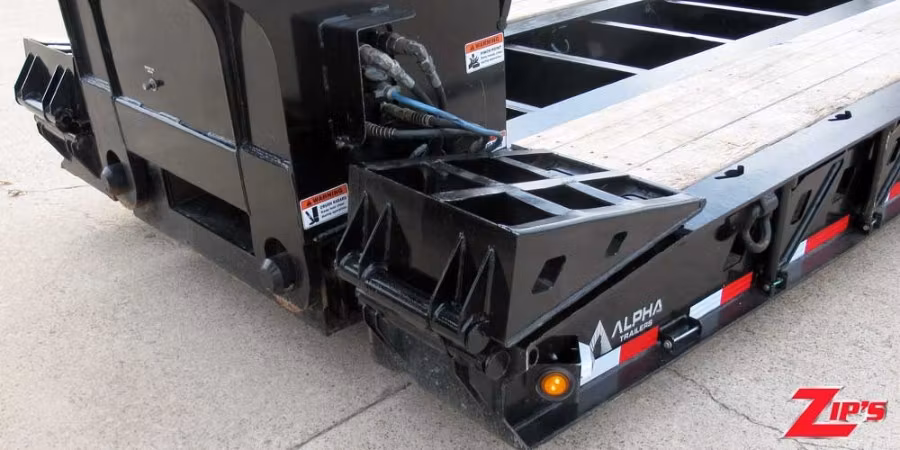

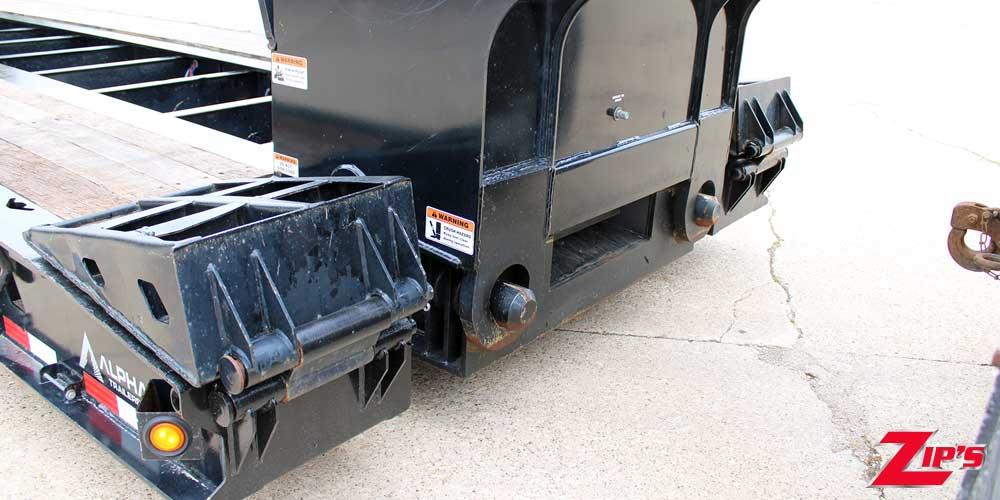

Sub Frame:
14' 1" Long
39" Loaded Deck Height
32 Degree Rear Transition
Open Wheels w/Bolsters
Chain Slots In Each Bolster
2 Flat D-Rings @ Rear
Flag Holders
1 Pair Stake Pockets In Tail Channel
Frame Reinforcement For Single Axle Stinger

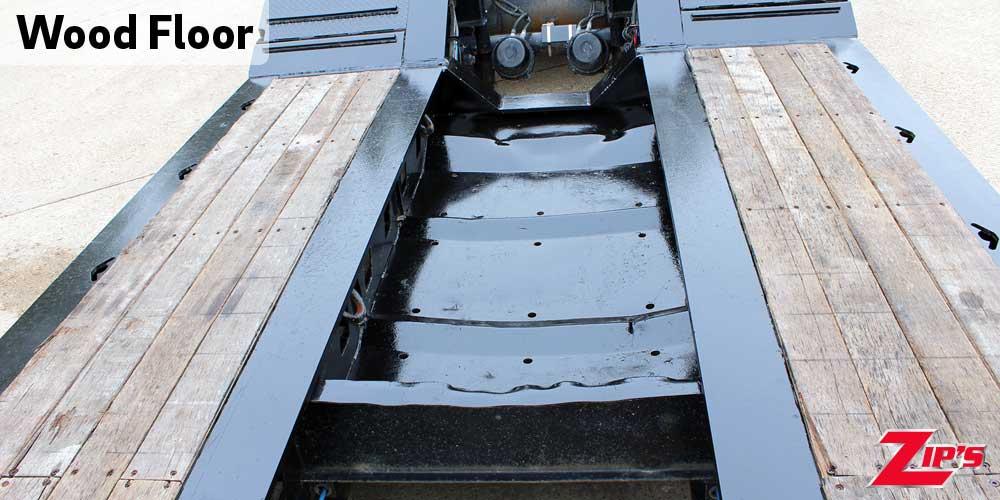

Covered Boom Trough-Bolt On

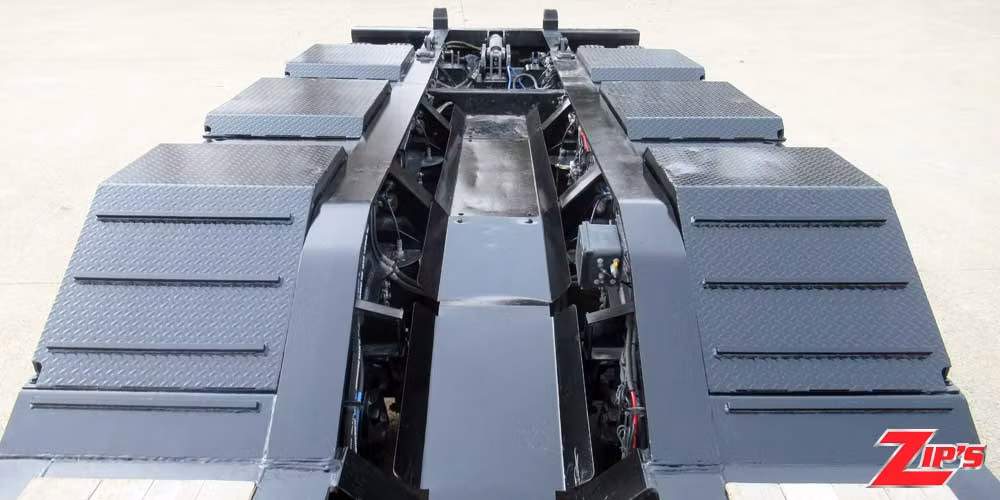

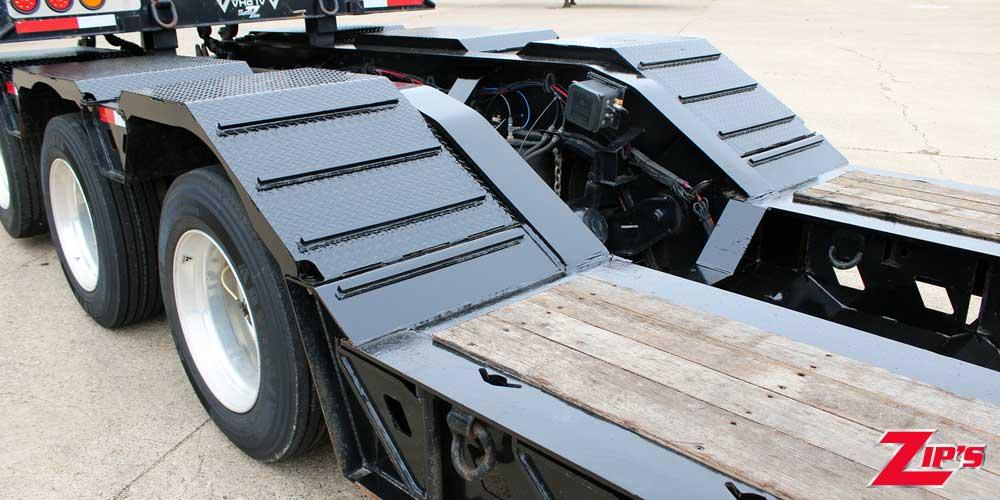

Covered Wheel Wells
Polished Aluminum Outer Wheels

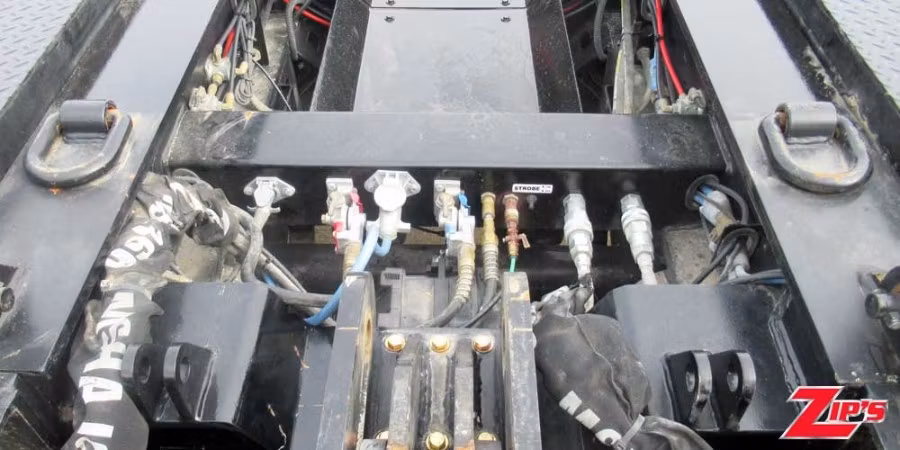

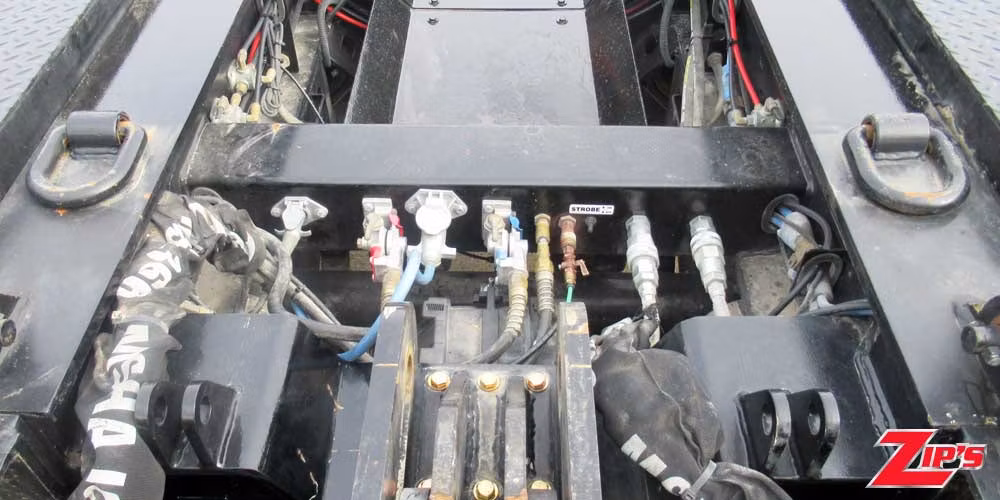

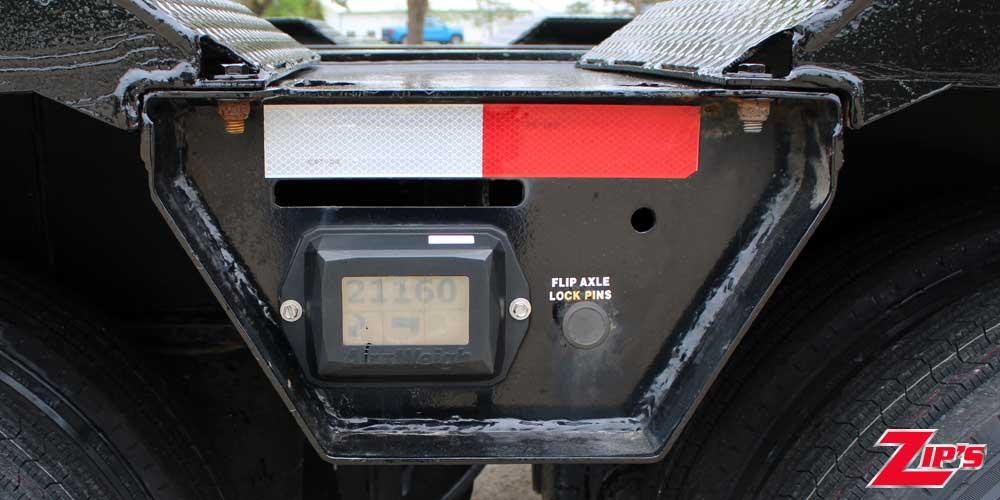

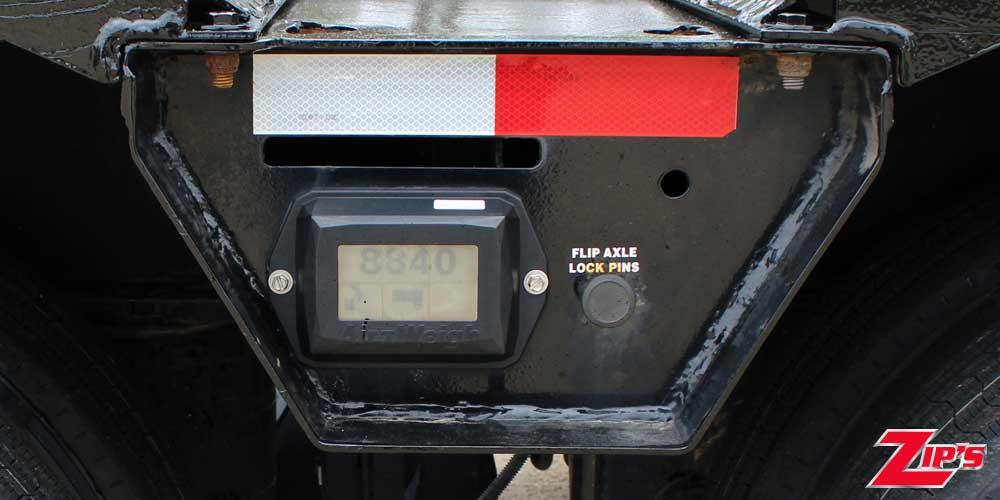

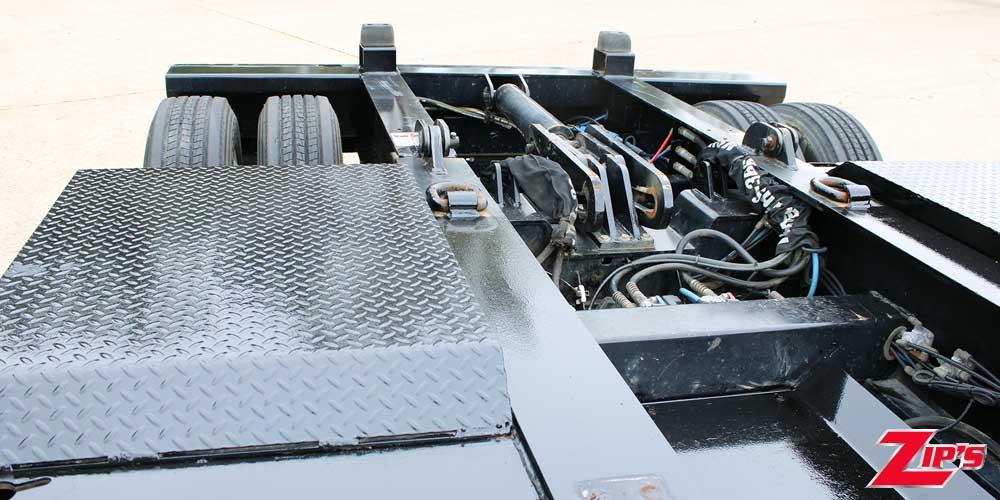

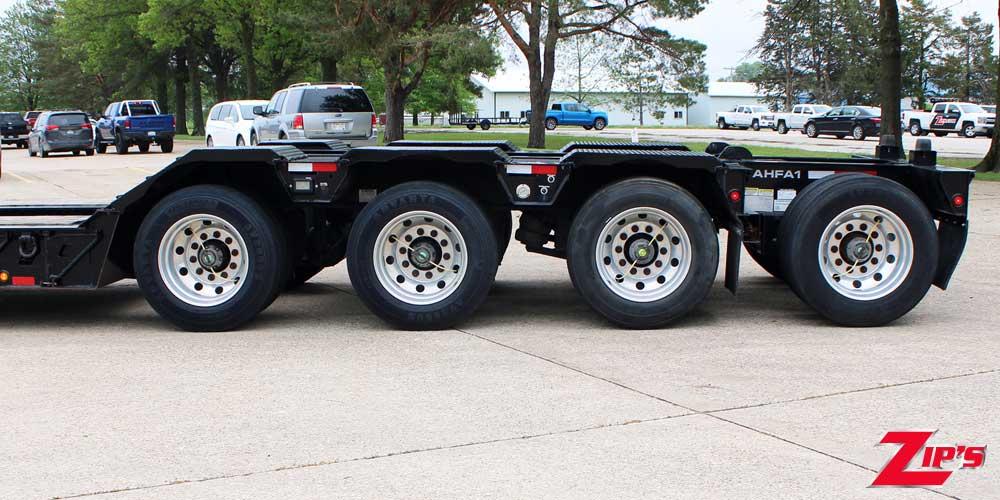

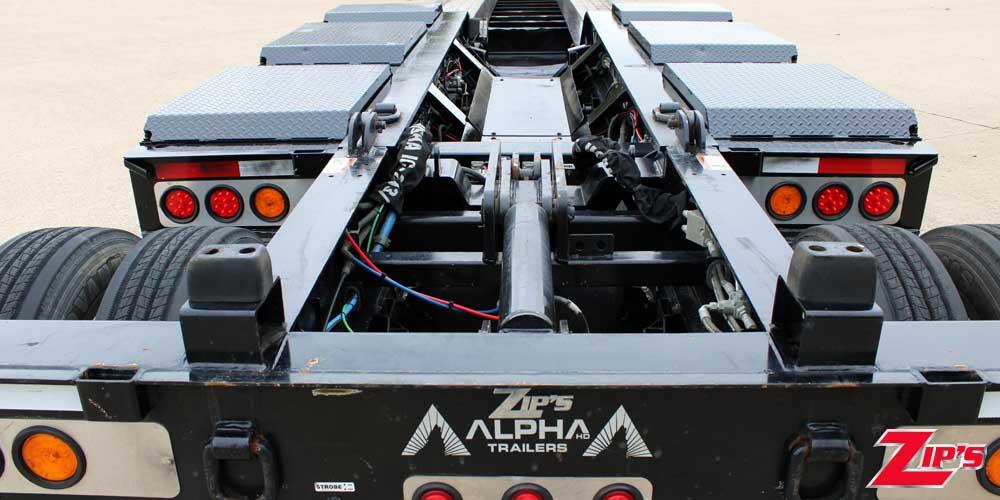

Air Lock Pins For Flip Axle Connection

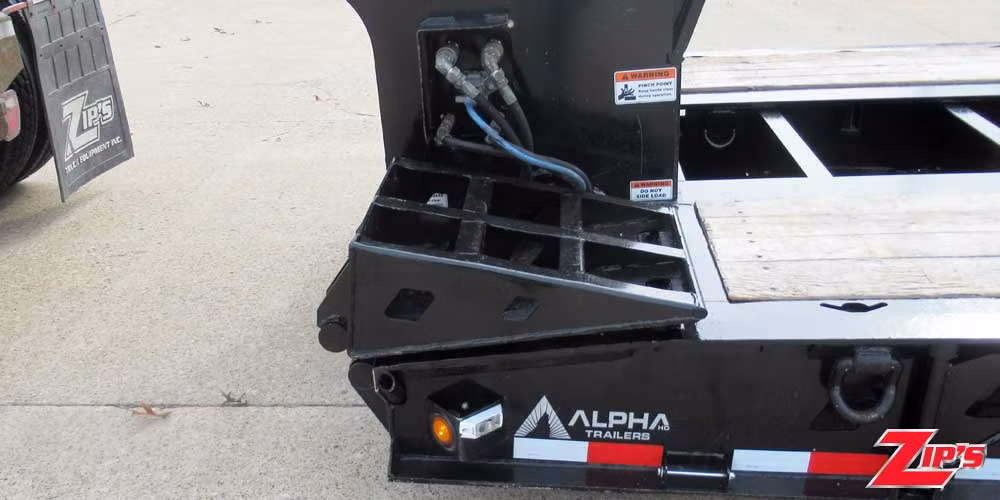

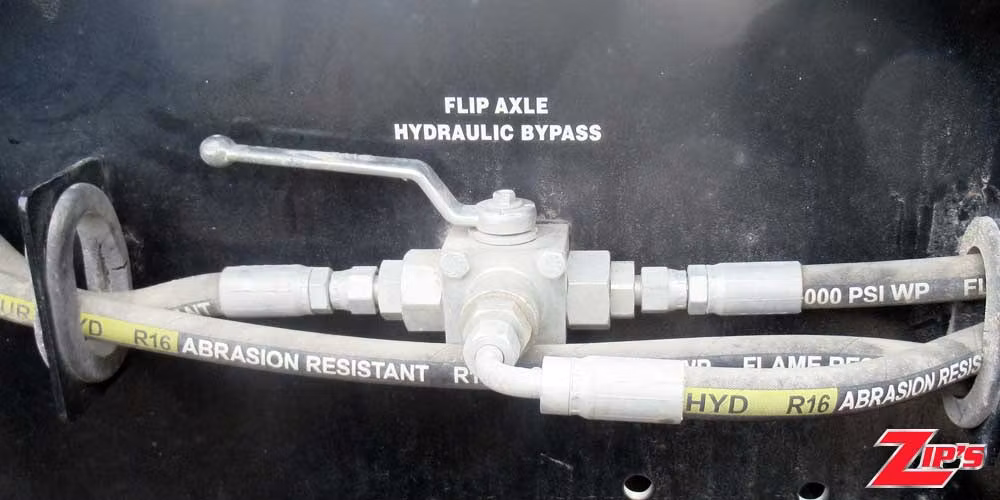

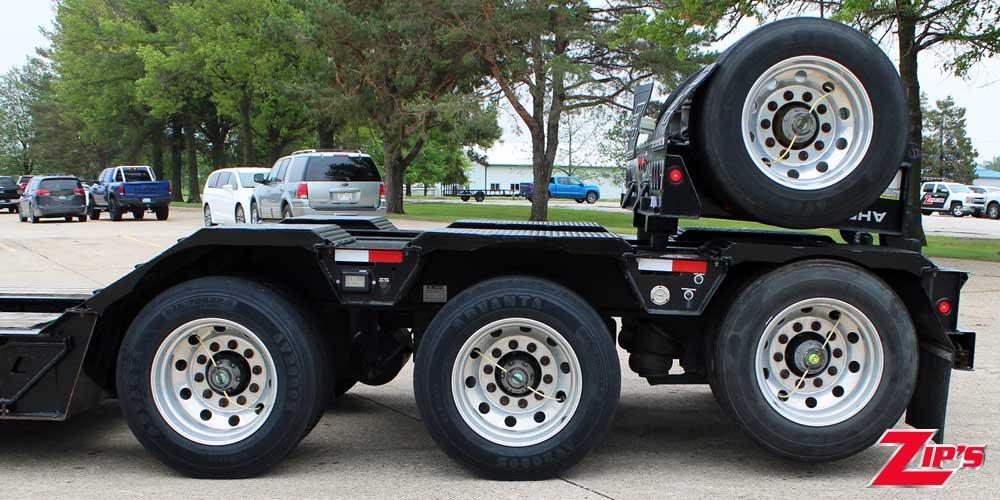

Hydraulic Flip/Nitrogen Stinger Top Lugs

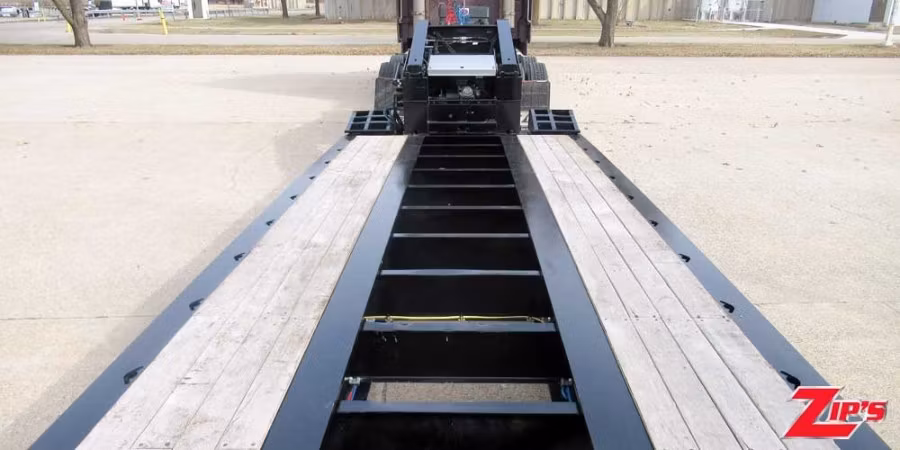

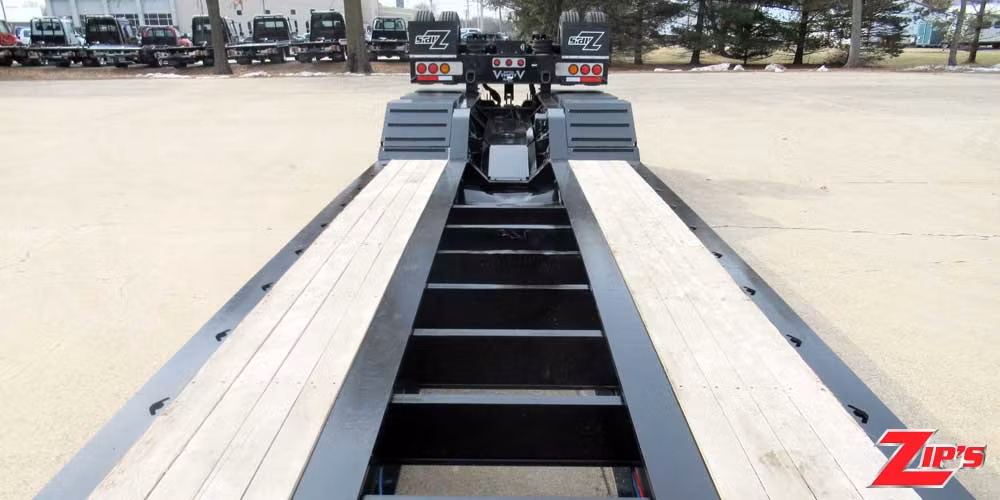

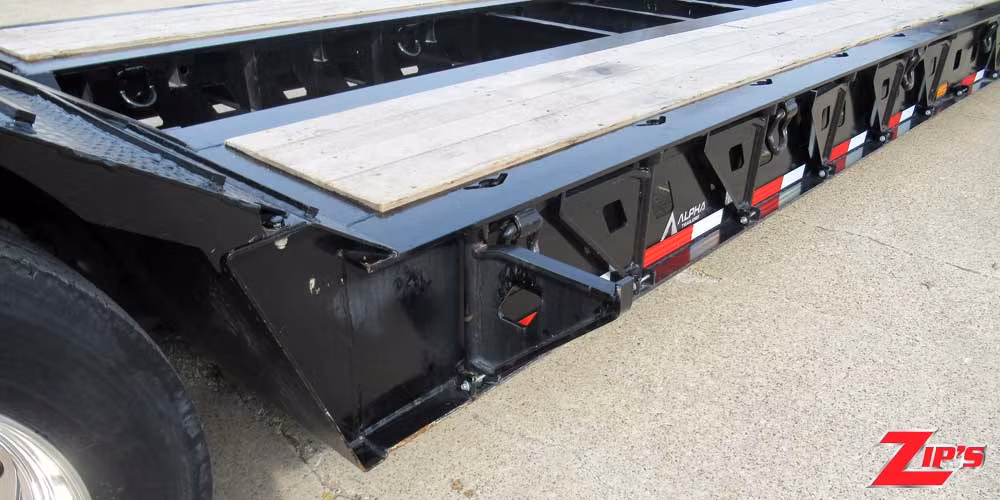

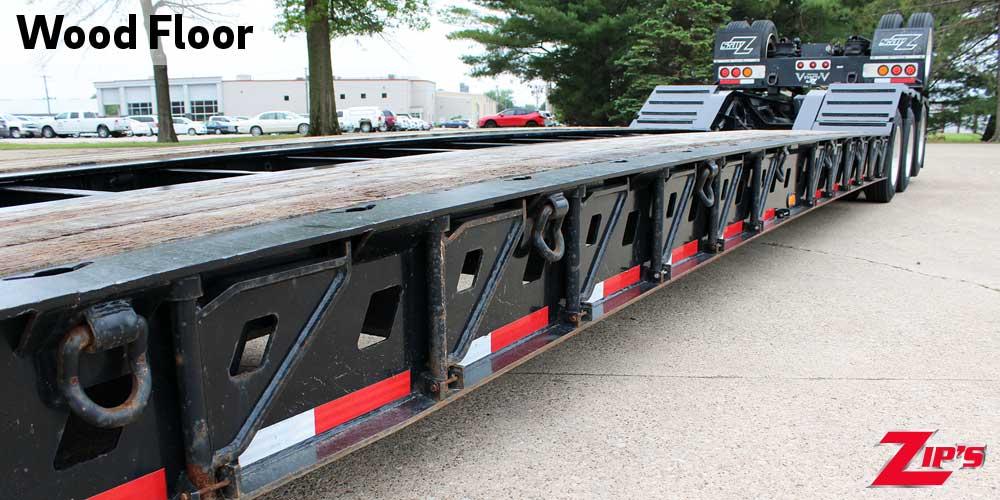

Main Deck:
26' Length
16" Fabricated I-Beams
22" Loaded Deck Height
6" Ground Clearance
12" Crossmember Spacing (10" & 4")

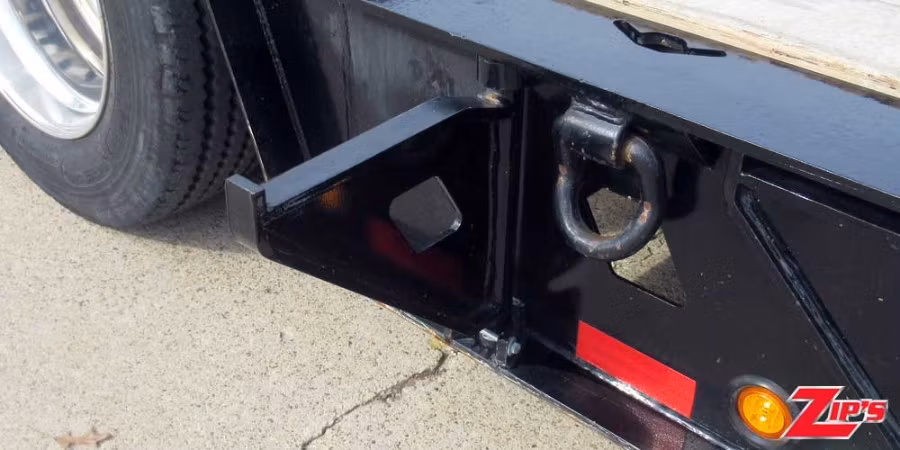

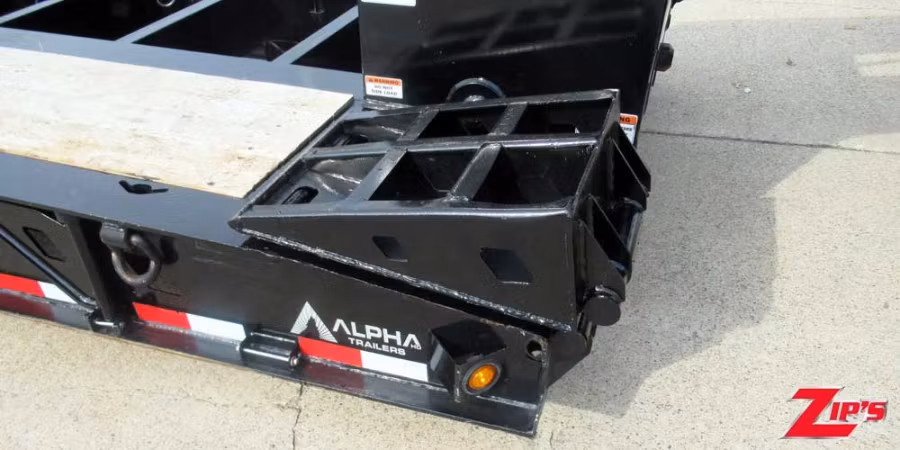

HD Swing Out Outriggers
2 Sets Of HD Removeable Flat Back Outriggers
Chain Drops On 24" Centers
7 Bent D-Rings Per Side
5' Tool Box @ Front w/2 Bent D-Rings
6' Bucket Well @ Rear w/2 Pair Bent D-Rings
Top Flange Reinforcement

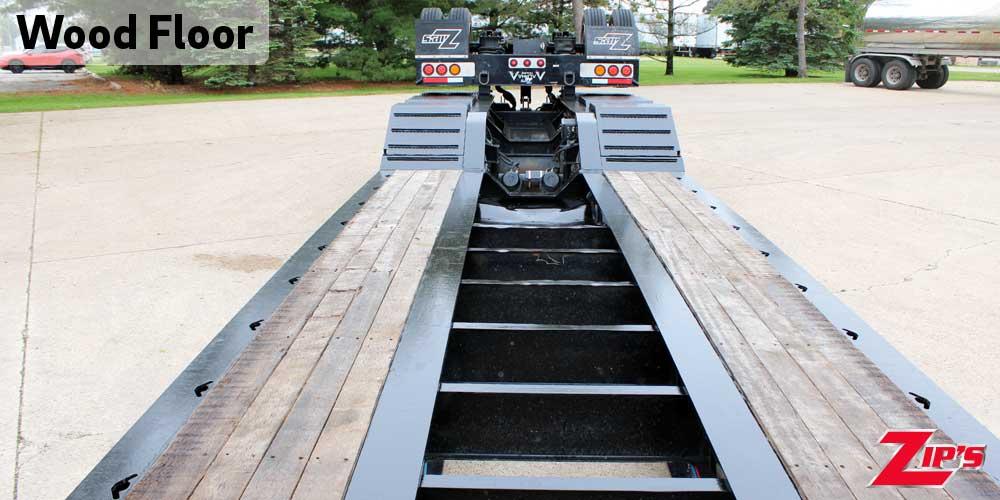

1 3/4" Apitong Decking

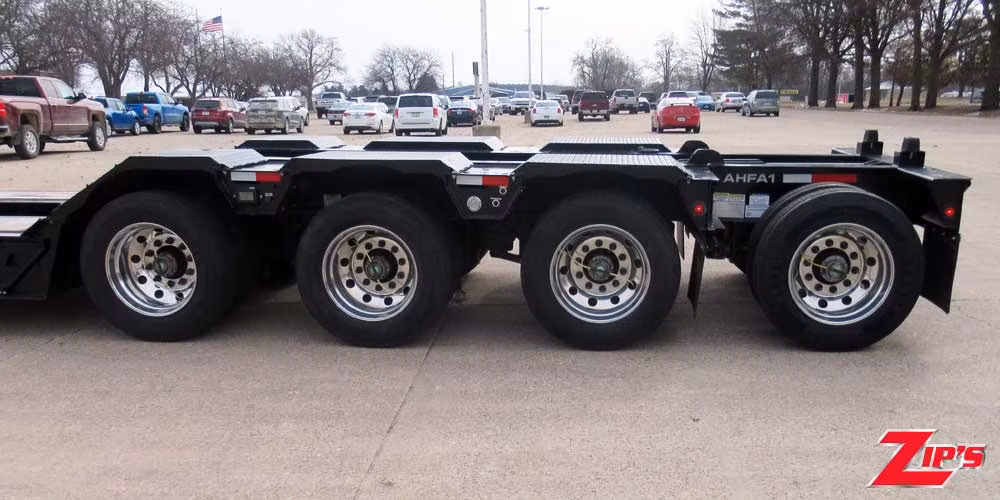

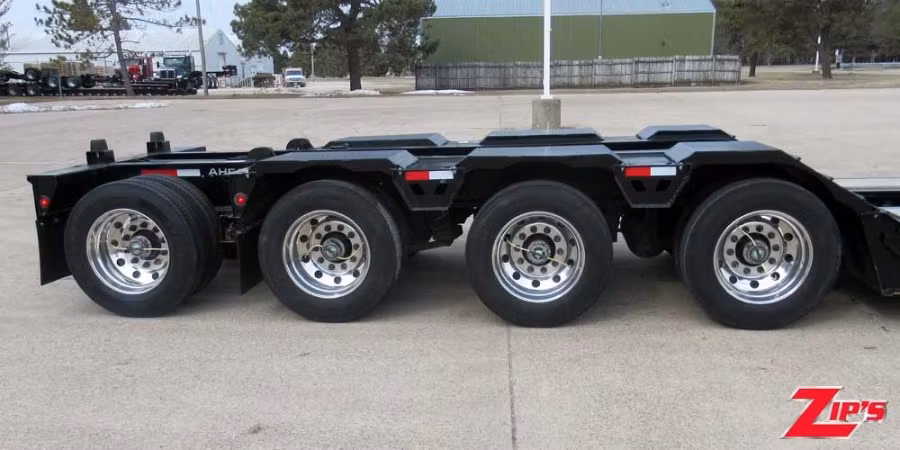

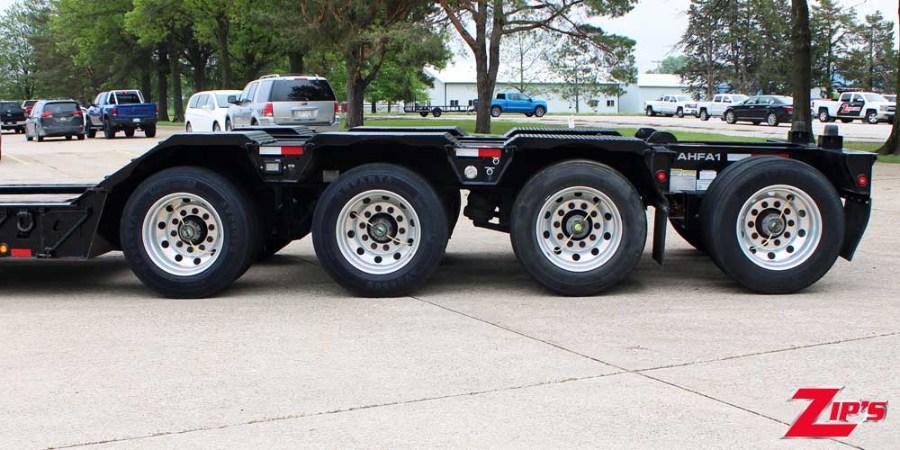

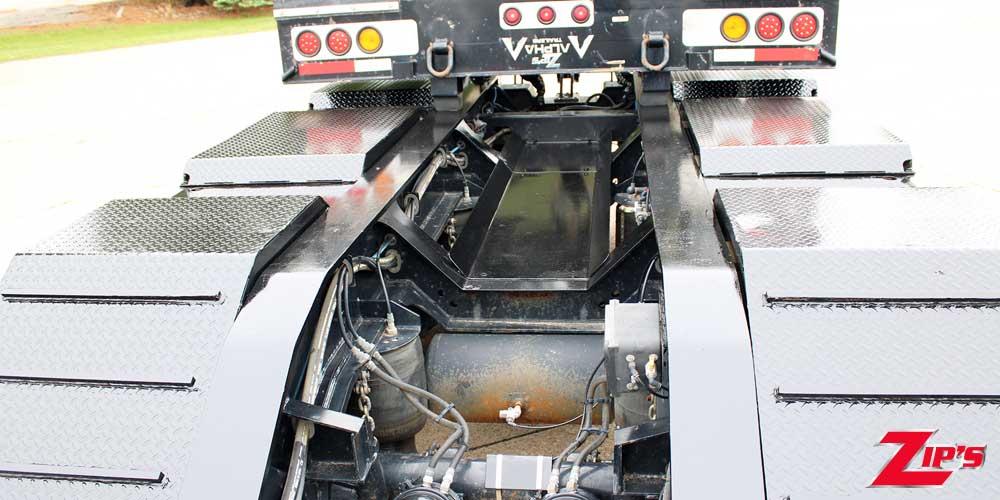

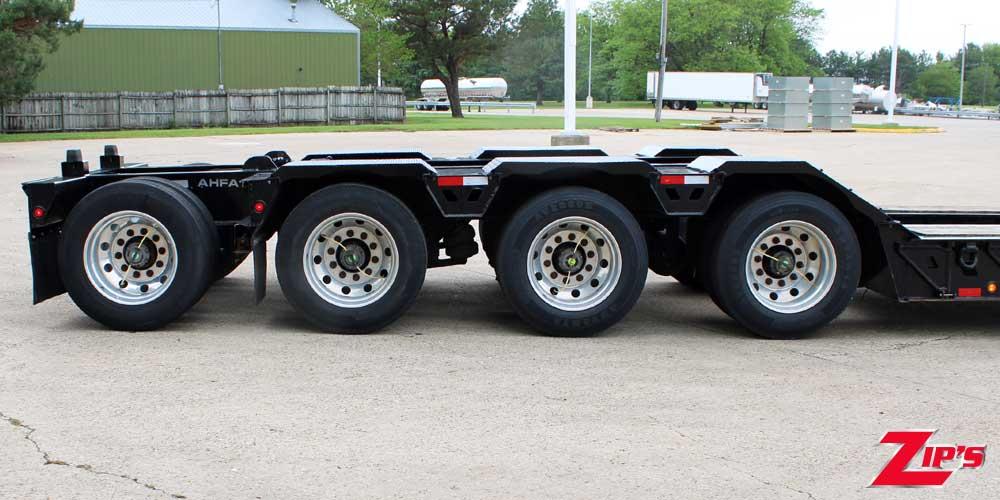

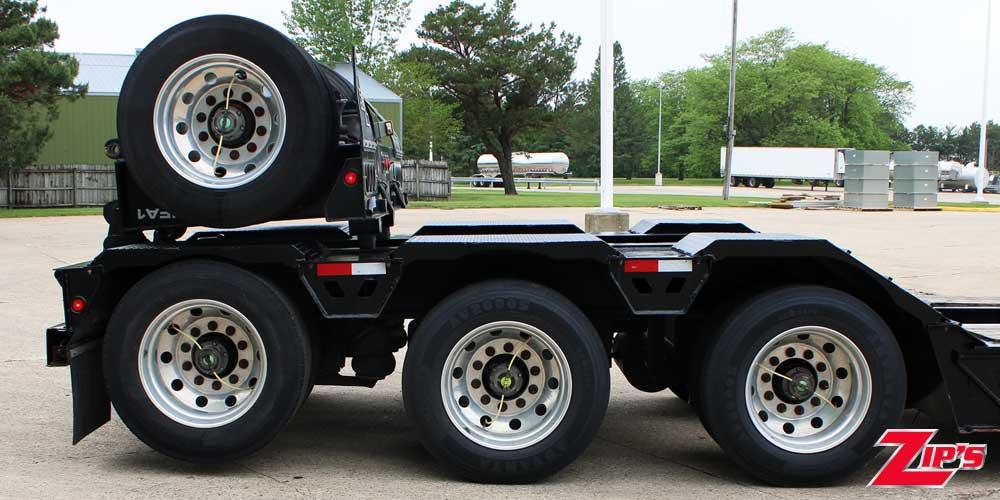

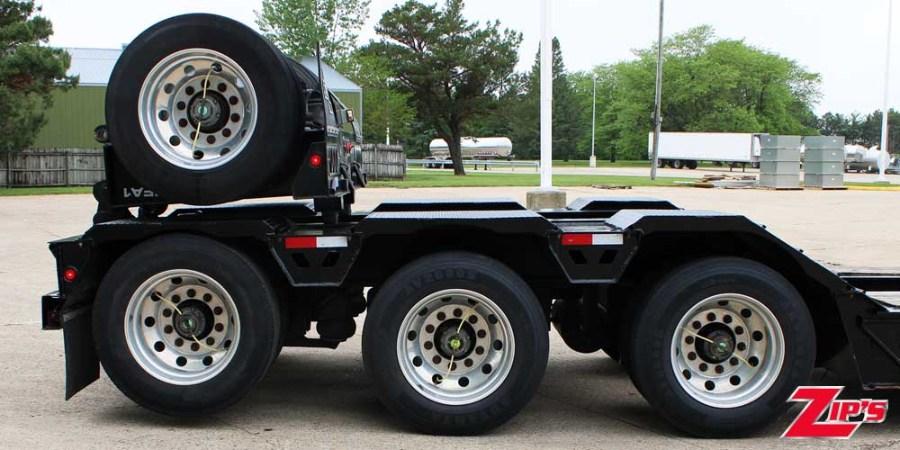

Axles & Suspension:
3-25,000# Axles
54 1/2" Axle Spacing
Ridewell Suspension
16 1/2" X 7" Drum Brakes
Spring Brakes On 2 Axles

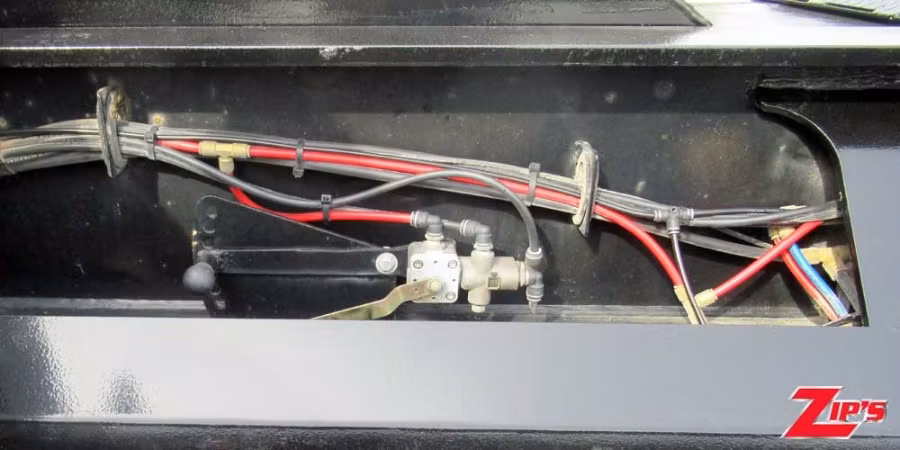

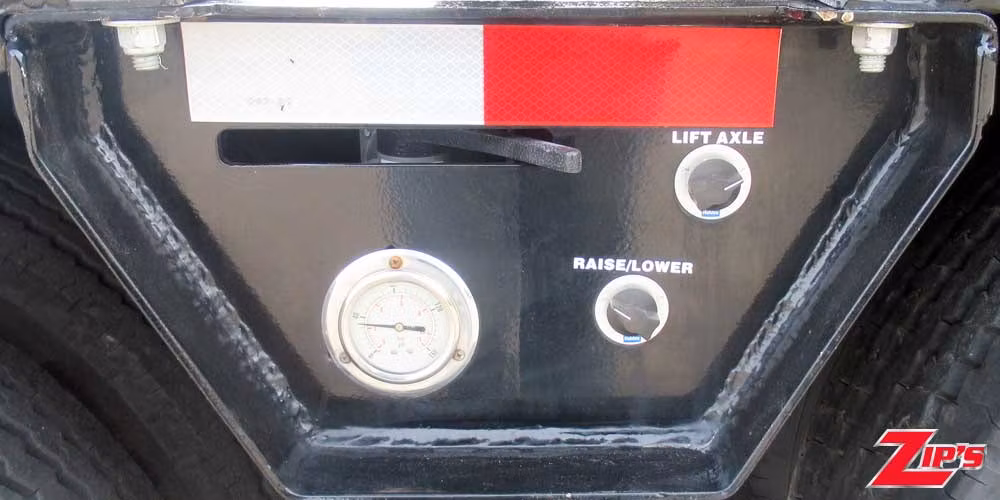

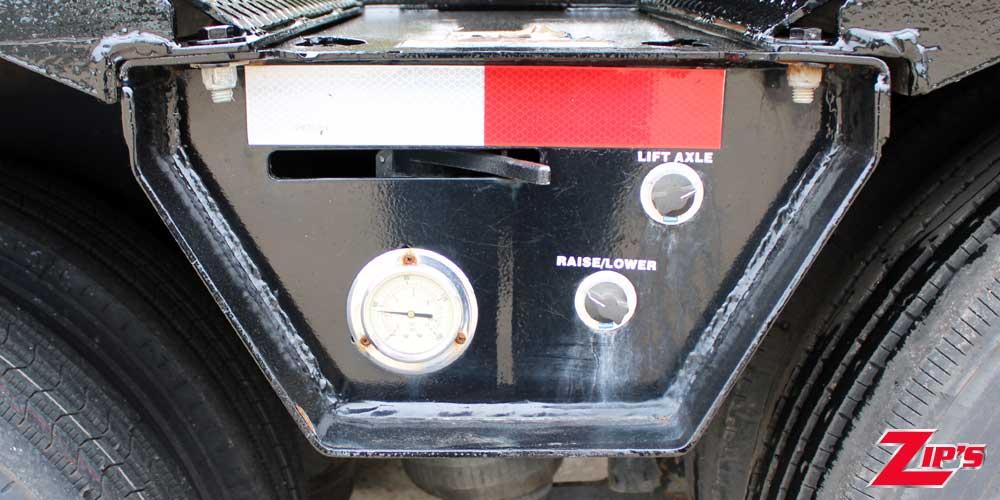

Raise/Lower Valve
Manual Ride Height Control
Air Lift On 3rd Axle
Liquid Filled Air Gauge
Suspension Controls On Bolster

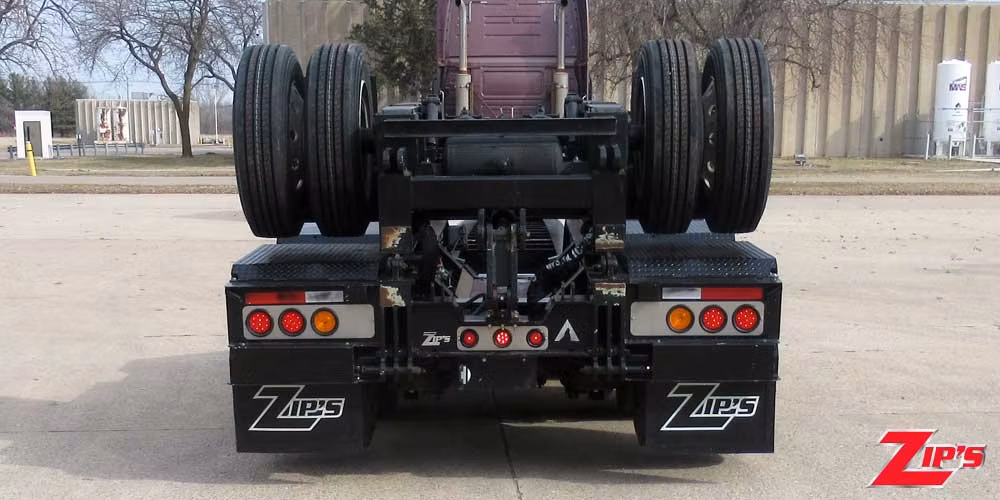

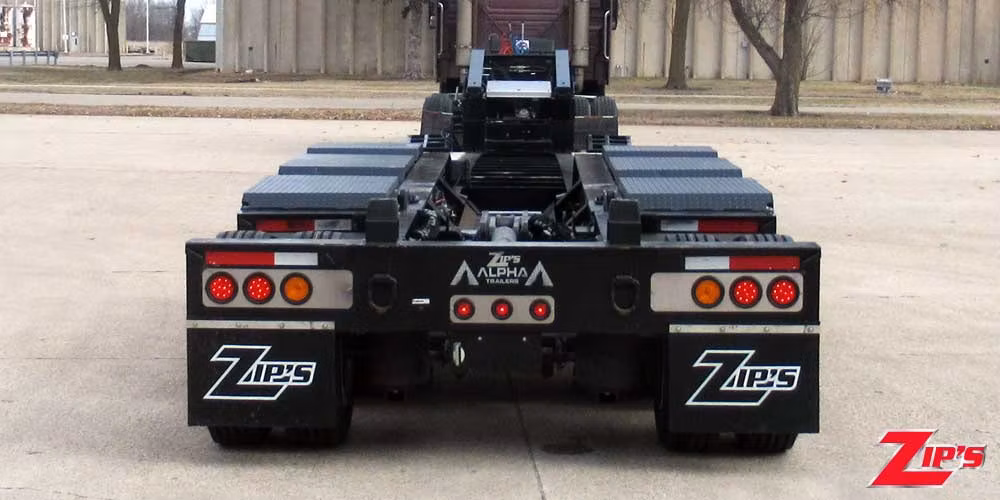

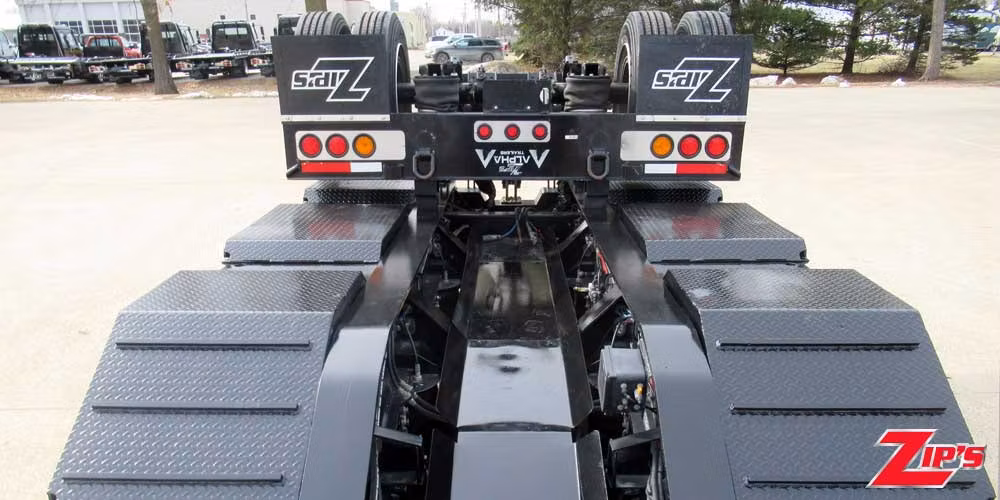

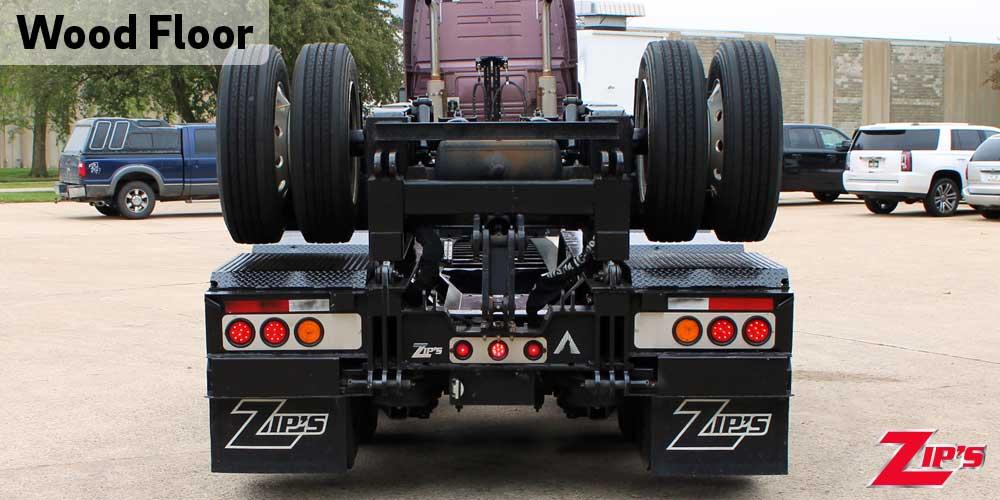

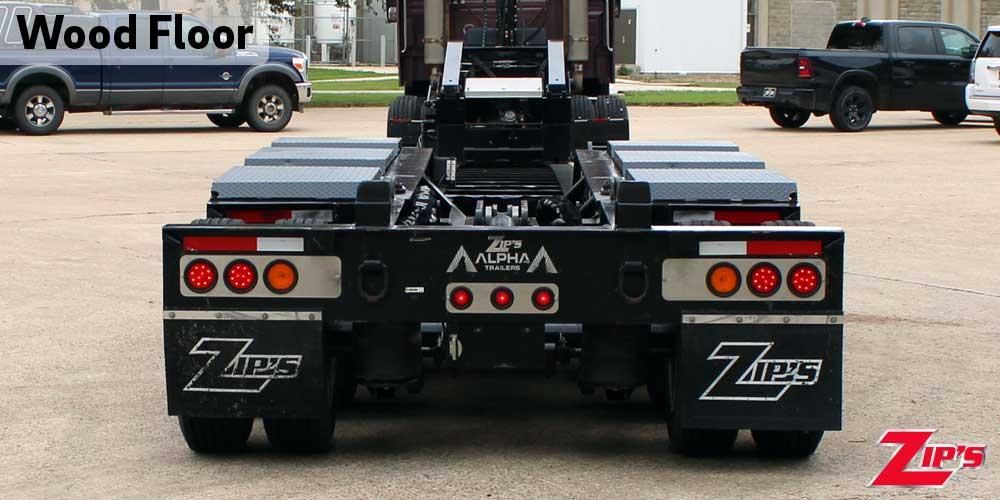

Lighting:
3rd Tail Light Package w/Strobe
Battery Back-Up For Strobe w/4-Way Plug For Flip Axle
2 Pair Side Markers with 1 Pair Mid-Turn On Deck
Grote Ultra Blue-Seal Wire Harness
Alpha Package Includes: Motor, Wheel Covers, Boomwell Cover, Strobes,Battery
Chassis Specs
| Number Of Rear Axles | 3 + Flip Axle |
|---|---|
| Stock Number | UT23212 |
| Year | 2022 |
| Make | Alpha |
| Model | A110HDG-SF |
| GVWR | 132,435# + 25,000# Flip Axle |
| Front Axle Weight Rating | 25,000# Each Rear Axle |
| Rear Axle Weight Rating | 25,000# Flip Axle |
| Brake Type | Air Brakes |
| Suspension | Air Ride |
| Tires | 1st Rear Tires: 275/70R22.5 13/32", 2nd Rear: 275/70R22.5 14/32",3rd Rear Tires: 275/70R22.5 15/32", Flip Axle: 275/70R22.5 14/32" |
| Wheels | Aluminum |
| VIN | 1Z9A3EV35N1607083 Trailer, 1Z9A1E114N1607084 Flip Axle |
