Holmes Detachable Towing Unit (DTU), 22932

SN: DTU1L255069

Standard Features:
Quick Connect Air Supply & Electric Hook Ups
Safety Chains
Front Stands
Passenger Side Controls
20,000 lbs. Planetary Winch 9/16” x 175’ IWRC Cable (Winch Options Include: Air Tensioners, Air Free Spool, 360º Sheave Heads)
Low Profile 70º Pivoting Heavy Duty Fabricated Cross Bar
Chain Hook End Caps
Lift Fork Storage

Optional Features:

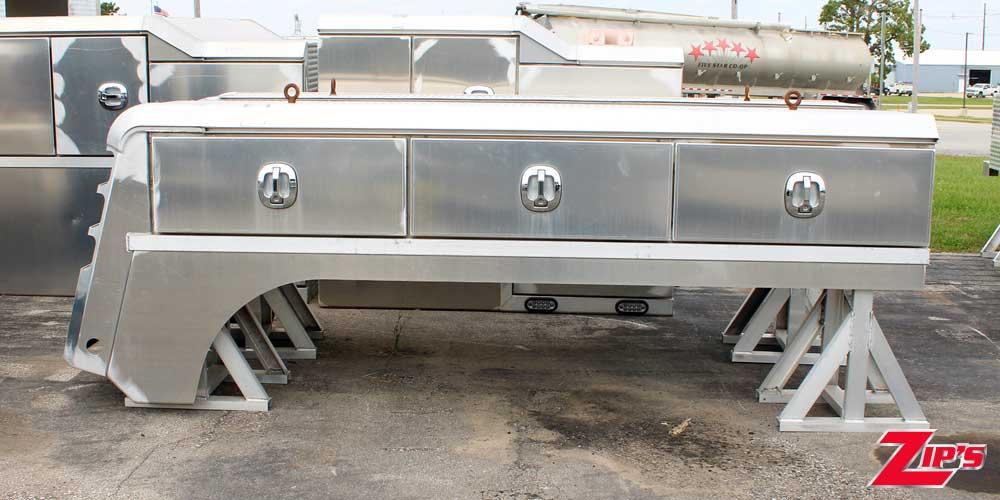

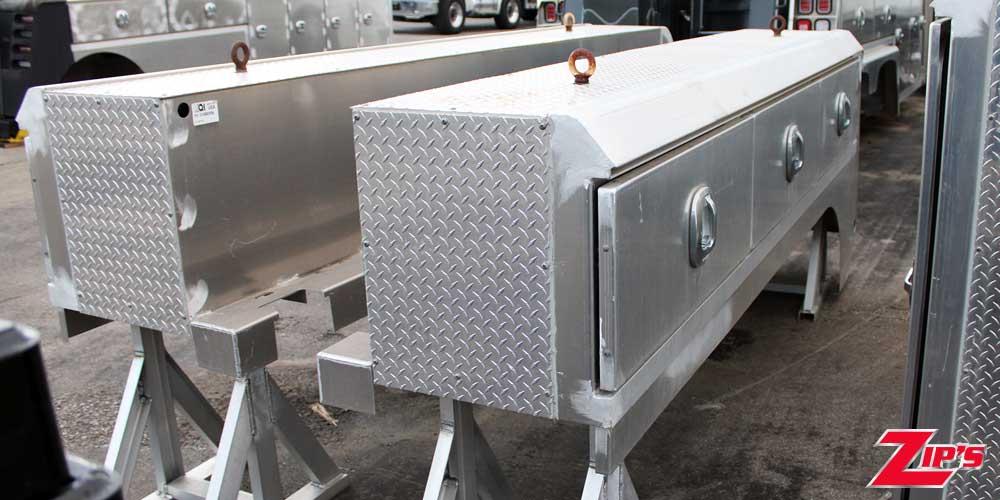

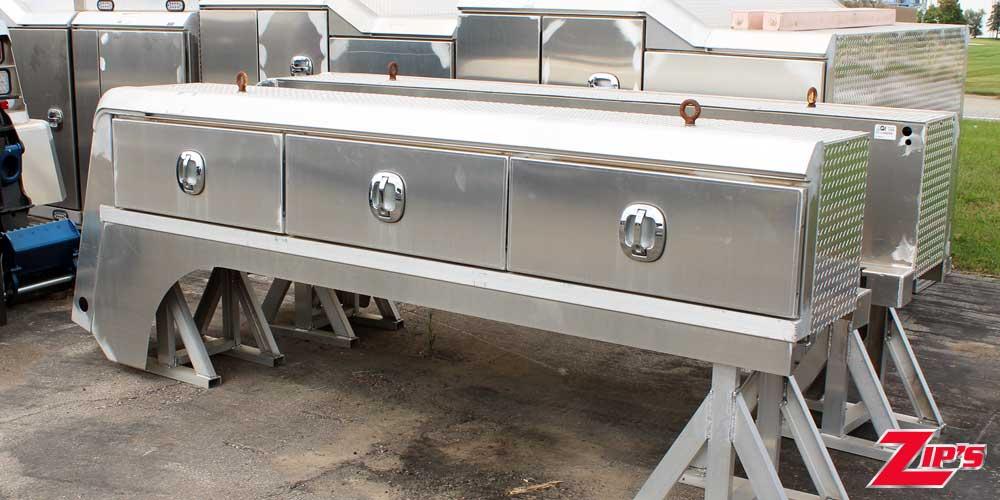

DTU Enclosed Side Pods
Air Shift PTO
Additional Lighting
Offset Fork Holder Extensions
Fork Riser Brackets
Heavy Duty Tire Lift (13k)
Additional Lift Forks
Light Bar
LED Work & Hook-Up Lighting
Wireless Wide Load Light Bar
Installation

Specifications:
Lift Capacity Retracted: 35,000 lbs.
Lift Capacity Extended: 16,000 lbs.
Reach Past Tailboard Fully Extended: 113 inches
Reach Past Tailboard Fully Retracted: 51 inches
Power Tilt Arc: 20°
Shipping Weight: 6,200 lbs.

Chassis Recommendation: Minimum Wheelbase 250". Minimum Clearance from Front of DTU to Center of Trunnion 84". Check out our website for available chassis that are in stock today and ready to install!!

Look at the body specs and brochures tabs for more information about this wrecker.

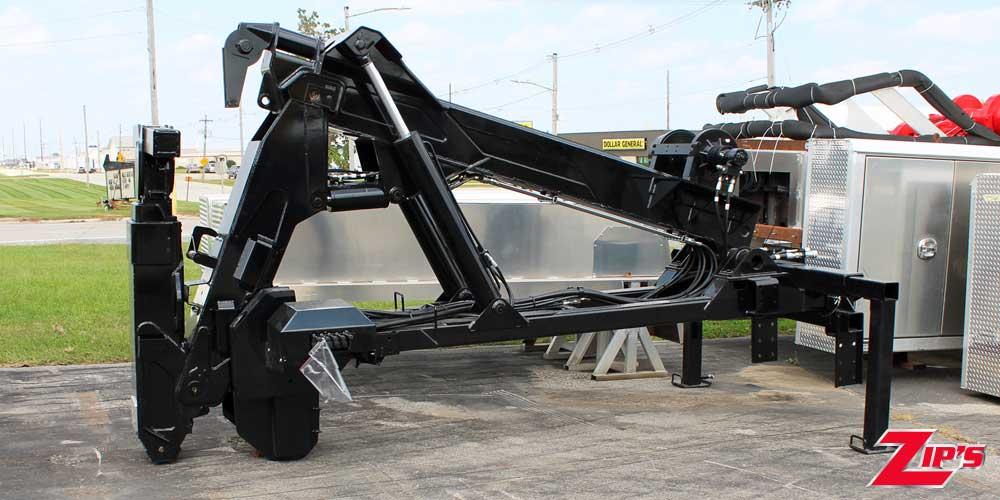

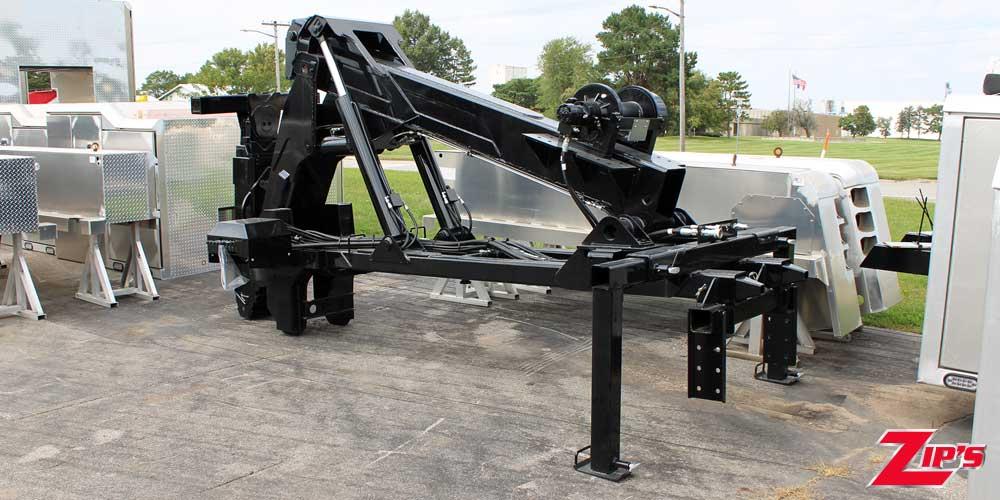

The Holmes DTU (Detachable Towing Unit) has been re-designed to decrease rear overhang, increase front axle weight, and offer better towability. With repositioned lift cylinders, the DTU also provides superior underlift height and further improved center of gravity and weight transfer.

The unit comes standard with a 20,000 lb planetary winch, 175’ of 9/16” wire rope and front legs that allow the unit to be easily removed in a matter of minutes so your truck can be multi-functional for both towing and pulling trailers. The DTU is designed to secure to your truck using a front lock-down bracket and your Fifth Wheel Plate. The power for the unit is provided by an optional wet line kit, with quick connect couplers, which is installed on your truck. Other popular options include a 25,000 lb planetary winch, tool boxes and lanyard controls; all of which are available from your local Holmes distributor.
