Body Specs

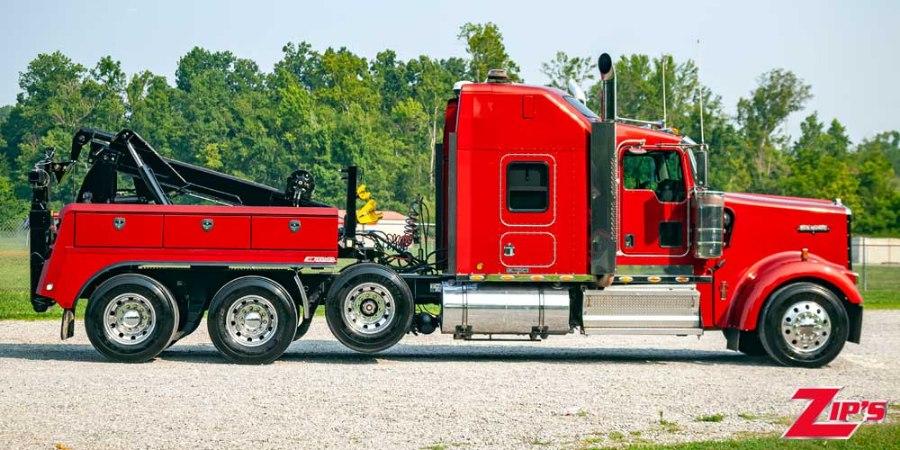

| Stock Number | Holmes Detachable Towing Unit (DTU) |
|---|---|
| Equipment Brand | Holmes |
| Equipment Model | Detachable Towing Unit |
| Body Type | Heavy Duty Wrecker |
| Number Of Winches | 1 |
More Body Features
Standard
- Low Profile Fabricated Cross Bar
- Front Stands
- Fork Storage Holders
- Air & Electrical Lines
- Safety Chains

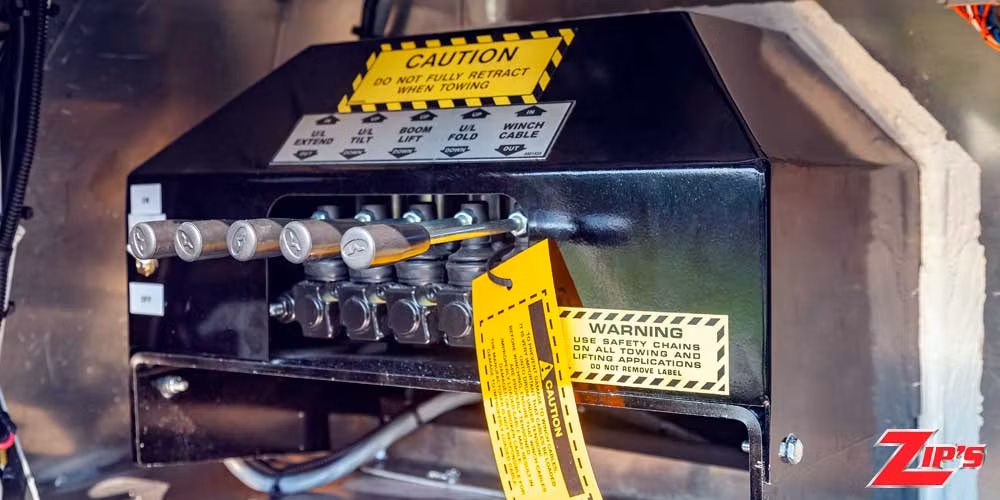

- Passenger Side Control
- Hook End Caps
- 5 Sets of Frame Forks
- 20,000 lb Planetary Winch 9/16” x 175’ IWRC Cable (Winch Options Include: Air Tensioners, Air Free Spool, 360° Sheave Heads)
Optional
- 25,000 lb Planetary Winch - 5/8” x 200’ IWRC Cable
- Wet Line Kit (PTO with Pressure Relief Valve, Pump, 15 Gallon Hydraulic Tank, Return Filter, Quick Disconnect, Fittings & Hoses)
- Hand Held Remote Control 6-Function Controller with 25’ Cord
- 5 or 9 Switch Panel
- Wireless Remote Control
- Tow Bar Lights (wired or wireless)
- Emergency Lighting
- Tool Compartment
- Work Area Lighting
- Additional Front Lock Down Kit (for setting up second tractor)
- Bus Lift & Bus Lift Storage System
- Additional Lift Forks & Towing Attachments
Specifications
| Lift Capacity | Retracted | 35,000 lbs. |
| Lift Capacity | Extended | 16,000 lbs. |
| Reach Past Tailboard | Fully Extended | 113 inches |
| Reach Past Tailboard | Fully Retracted | 51 inches |
| Power Tilt Arc | 20° | |
| Shipping Weight | 6,200 lbs. |
Chassis Specs
| Stock Number | Holmes Detachable Towing Unit (DTU) |
|---|
More Chassis Features
Chassis Recommendations
| Minimum Wheelbase | 250” | |
| Minimum Clearance from Front of DTU to Center of Trunnion | 84” |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
