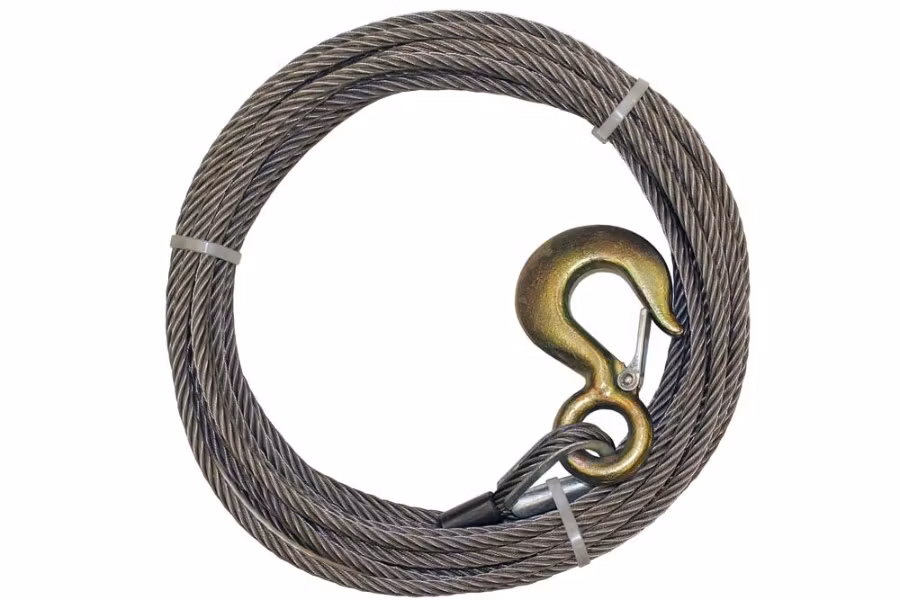

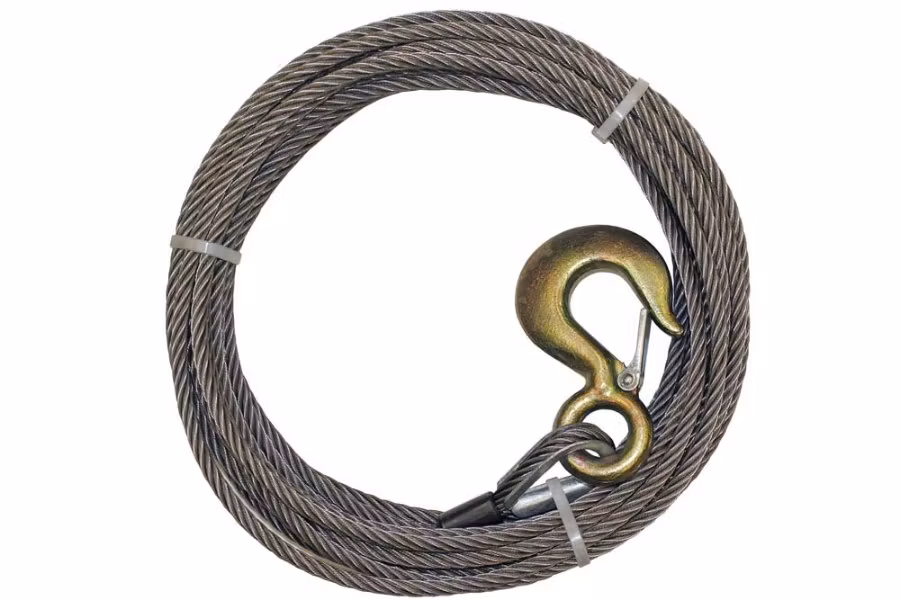

B/A Products Super Swaged Cable with Standard Hook

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a standard alloy hoist hook.

Please Note: Product Discontinued - ALL SALES FINAL!
Discontinued items are not eligible for return. View Returns Policy

Note:
This cable starts out as the next size bigger cable and through the swaging process it compresses the cable down to the next size smaller. This makes the strength of the cable equal to the next size bigger but it does make the cable less flexible.

Example:
A 3/8" swaged cable starts out as a 7/16" steel core cable, then through the swaging process gets compressed down to a 3/8" swaged cable. The 3/8" swaged cable has the working load limit of a 7/16" standard steel core cable.

• Sizes: 3/8" - 5/8"
• Lengths: 50' - 250'
• WLLs: 5,700 lbs. - 11,600 lbs.
• Minimum Breaking Strengths: 15,100 lbs. - 41,200 lbs.
• STRONGER - Compact design allows for up to 26% greater strength than s winch lines of the same diameter
• MORE DURABLE - Due to the swaging process the outer wires have a large area than that of standard winch lines providing better resistance to abrasion, pig tailing & kinking
• RESISTANT TO DRUM CRUSHING - Because the winch line is already compact the swaging process there is less space within the rope to compact if exposed to crushing
• CONSTRUCTION - (6 x 26 IWRC) Available in 3/8
• Self-Locking Hook

  3/8" Diameter Cable Specifications

• Minimum Break Strength = 20,400 lbs
• Working Load Limit = 5,700 lbs

  7/16" Diameter Cable Specifications

• Minimum Break Strength = 27,200 lbs
• Working Load Limit = 7,600 lbs

  1/2" Diameter Cable Specifications

• Minimum Break Strength = 34,800 lbs
• Working Load Limit = 9,800 lbs
• Available While Supplies Last

  5/8" Diameter Cable Specifications

• Minimum Break Strength = 54,000 lbs
• Working Load Limit = 15,200 lbs
• Available While Supplies Last
