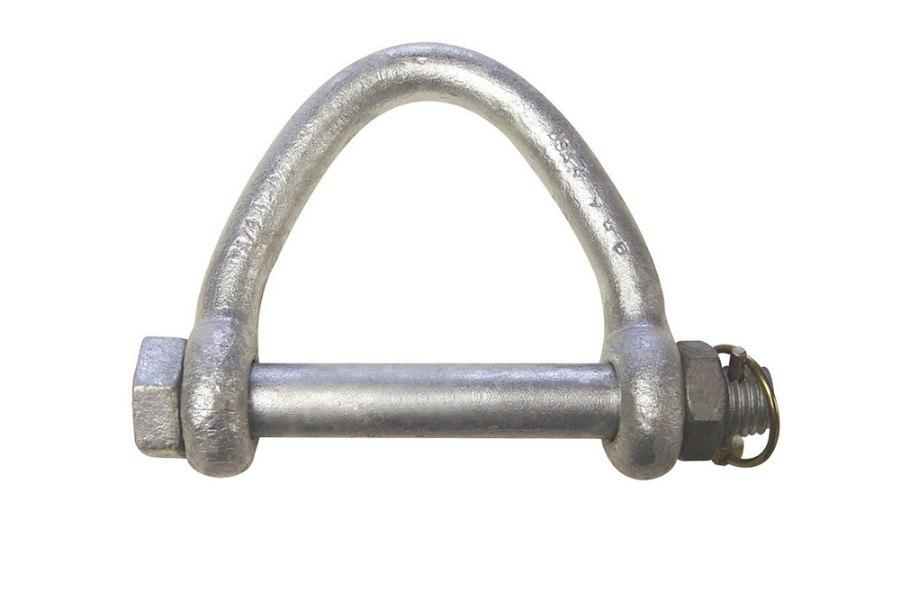

Columbus McKinnon Alloy Web Sling Shackle

Web sling shackles are designed to connect synthetic web and round slings to eye bolts and other lifting hardware.

• Design factor 6:1
• Web Sling Shackles can be used on web slings from 3 to 6 inches in width
• Utilize a bolt and nut with linchpin to secure the assembly in place
• All shackles are galvanized for longer life
• Marked with working load limit (WLL) and size
• Do not point load. The load should be evenly distributed over the entire pin to achieve full working load limit.
• Made in the USA

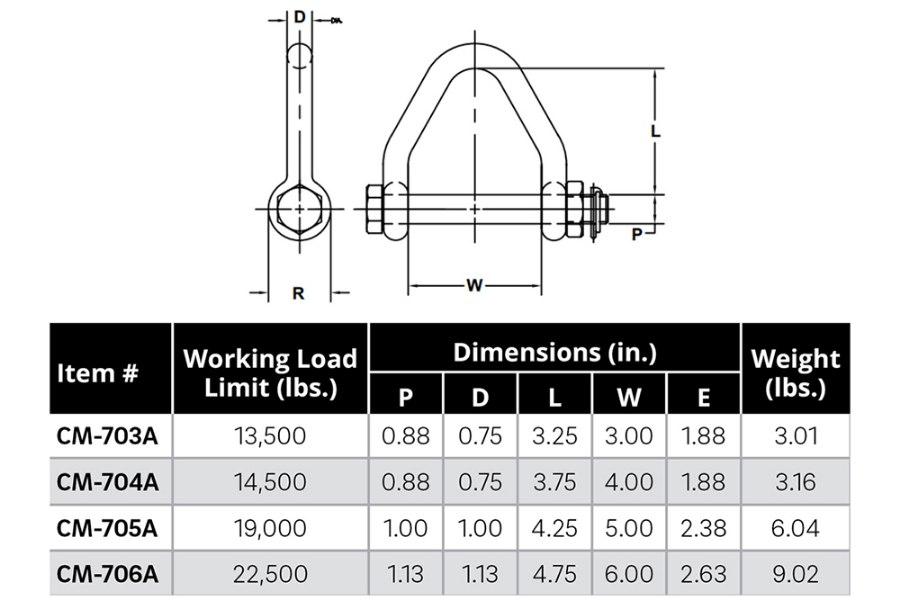

  Specifications

• CM703A: 13,500 lbs WLL
• CM704A: 14,500 lbs WLL
• CM705A: 19,000 lbs WLL
• CM706A: 22,500 lbs WLL
