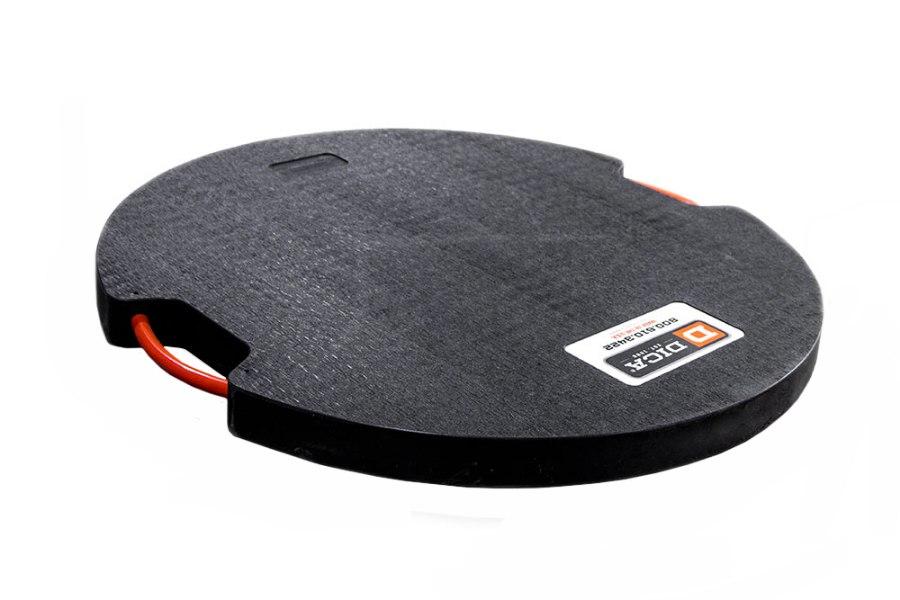

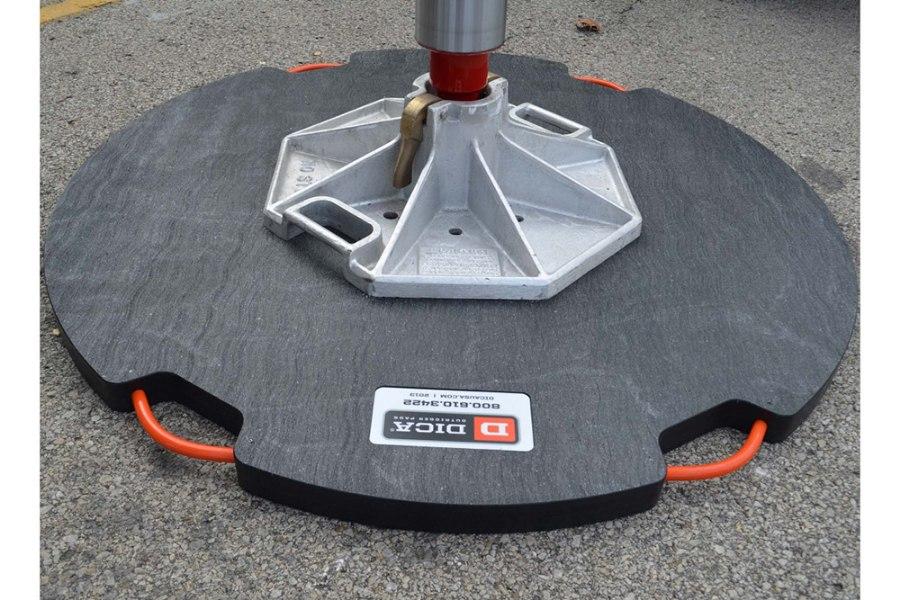

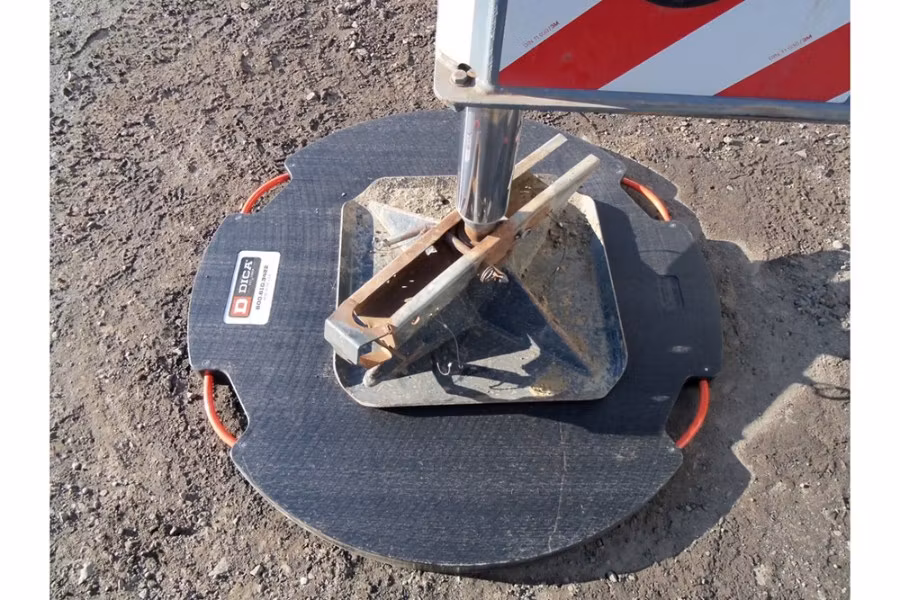

Dica Safety Tech Heavy Duty Round Outrigger Pads

Dica Safety Tech Outrigger Pads are engineered from top to bottom and built using propietary engineered thermoplastic formula for improved performance that meets your everday needs.

Owners and operators love Dica Safety Tech Pads for the toughness, durability, and ease of use. These qualities help teams work safely, effiently and cost-effectively in some of the toughest environments around the world.

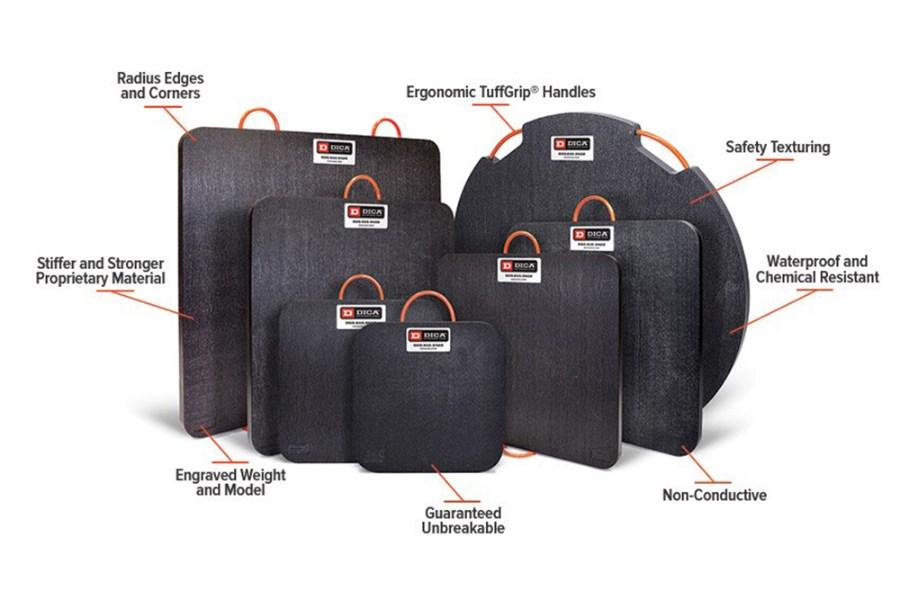

• Engineered Thermoplastic Material

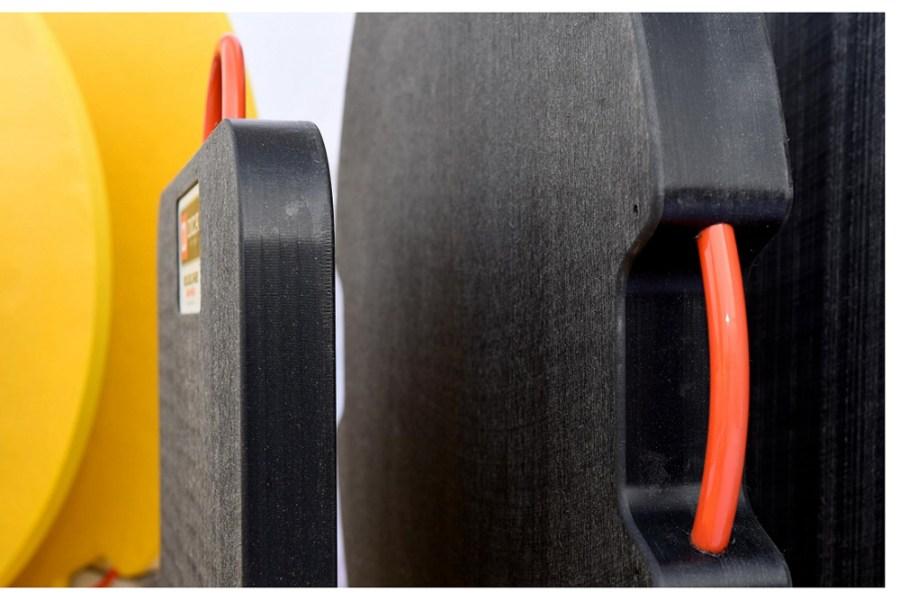

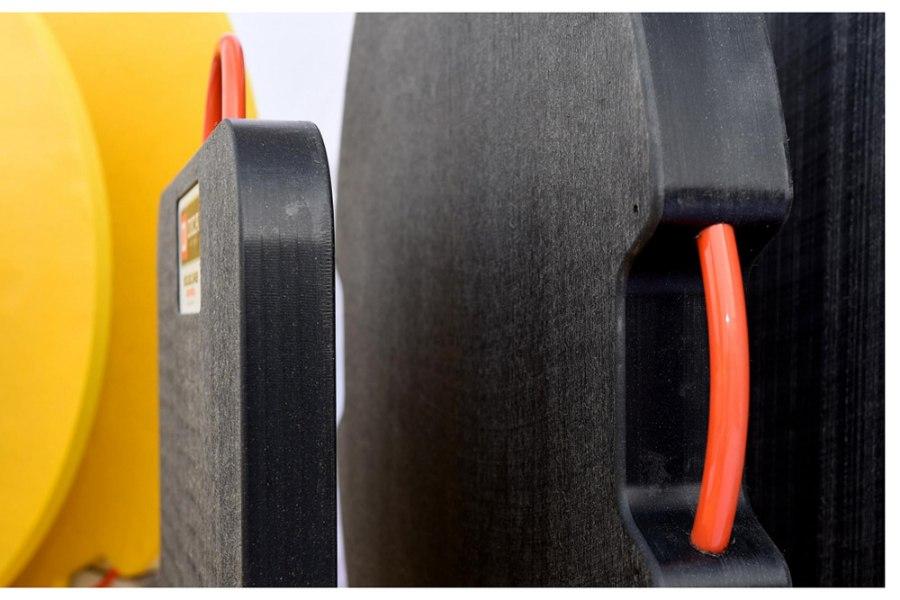

• Tuff Grip Handles
• Waterproof and Chemical Resistant
• Industrial Grade Safety Texturing
• Radius Edges and Corners
• Non-Conductive
• 1-2 Person Carry or Roll
• Guaranteed Unbreakable
• Max Allowable Pressure (Crush Rating): 500 psi
• Working Load Limits: 85,000 - 160,000 lbs
• Sold as Each

  Best Applications:

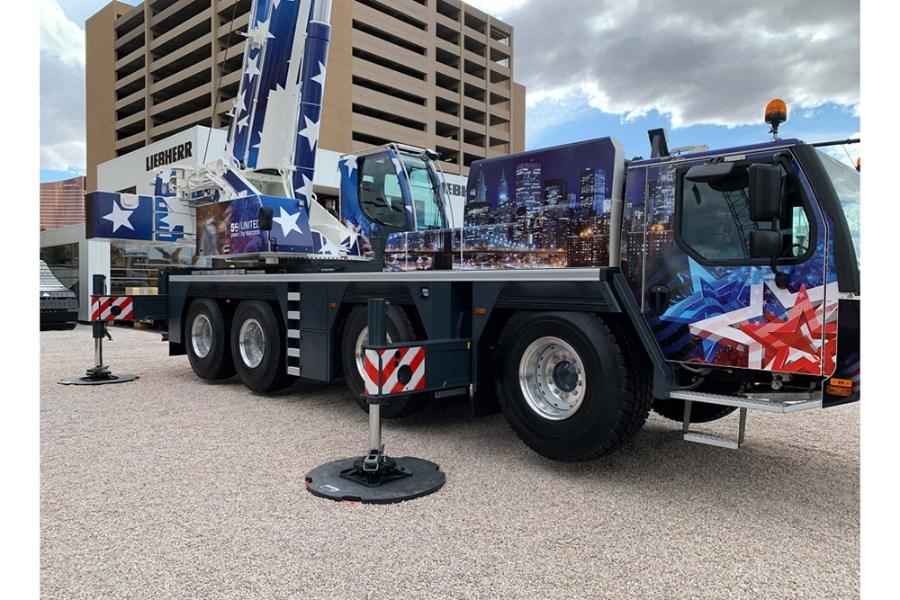

• Mobile Cranes
• Concrete Pumpers
• Aerial Lifts
• Digger Derricks



  Item #	Size	Pad Thickness	Approximate Area	Weight	Maximum Allowable Pressure	Working Load Limit (WLL)

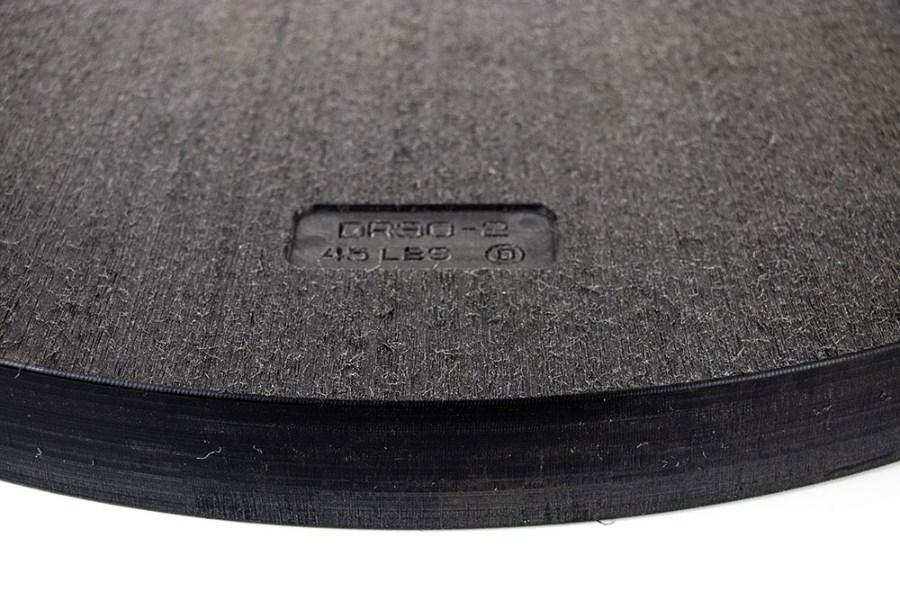

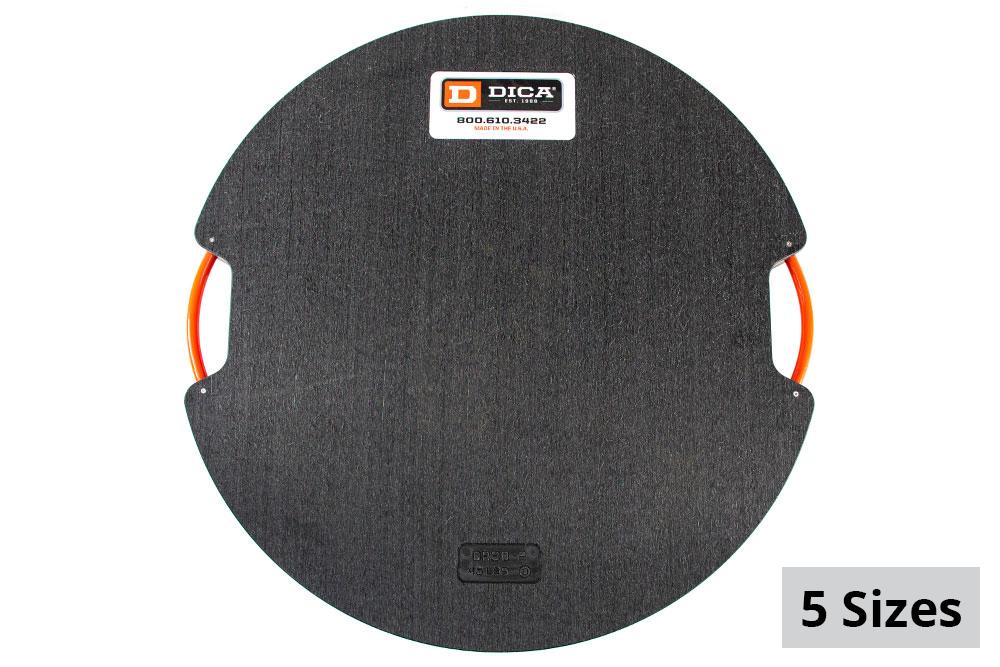

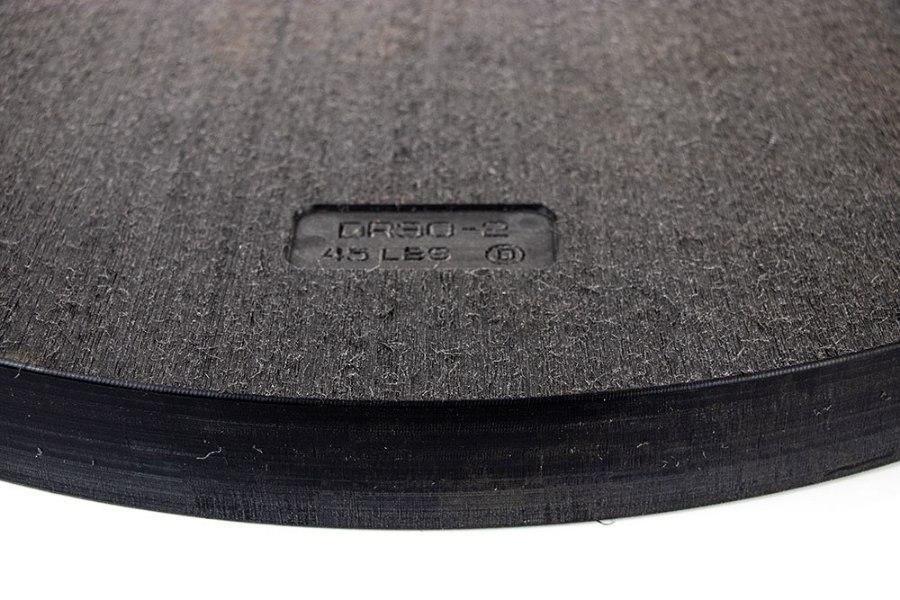

  DR30-2	30" x 2"	2"	5 sq. ft.	45 lbs.	500 psi	85,000 lbs.
  D36-2	36" x 2"	2"	7 sq. ft.	68 lbs.	500 psi	100,000 lbs.
  DR42-2	42" x 2"	2"	9.5 sq. ft.	92 lbs.	500 psi	115,000 lbs.
  DR48-2	48" x 2"	2"	12.5 sq. ft.	120 lbs.	500 psi	130,000 lbs.
  DR60-2	60" x 2"	2"	19.5 sq. ft.	190 lbs.	500 psi	160,000 lbs.
