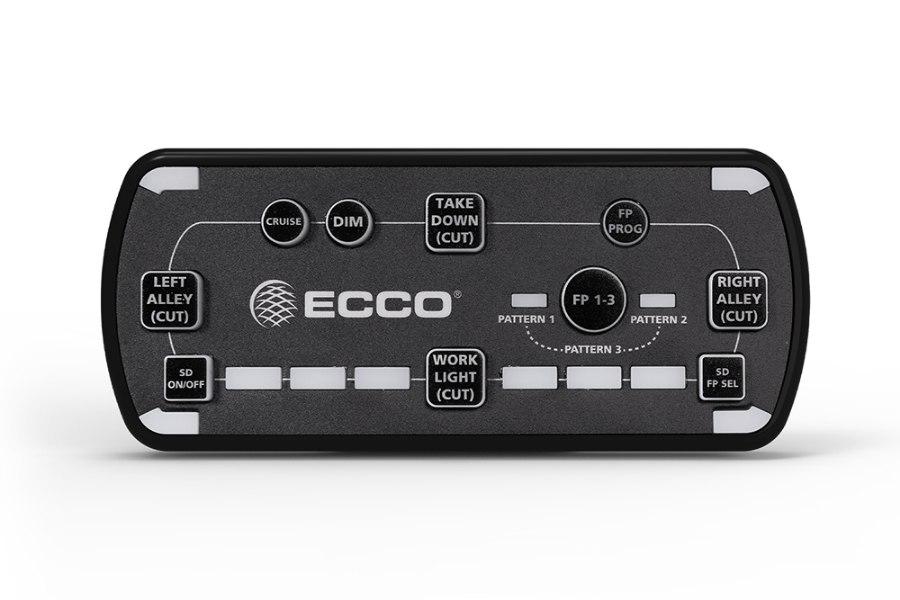

ECCO 12+ Series Light Bar Controller

The Ecco EZ1202 12+ Series light bar controller is an optional in-cab advanced control pad. This offers convenient control of the light bar's built in flash patterns and features with soft touch buttons and LED function indicator lights.

• Power - Press to cycle through three programmable flash pattern presets Hold button down to shut down all functions. Press again to resume as before
• Cruise - Press to illuminate all directional modules in steady burn mode
• Day/Night Mode - Press to backlight the keypad and lower the brightness of the directional modules in the lightbar
• Auxiliary Output - For use with the auxiliary output from the junction box to a relay (customer supplied), to control any auxiliary device via the junction box controlled relay
• Flash Pattern Select - Double press to enter flash pattern select mode and cycle one flash pattern. The 4 corner LEDs on the controller will mimic the lightbar to give pattern feedback. Press again once to cycle to the next flash pattern. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used to the active preset
• Safety Director On/Off (if configured) - Will resume pattern selected
• Safety Director Pattern Select - Press once to cycle to the next Safety Director flash pattern. There is a 5 second delay between the controller and the lightbar. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used
• Forward Worklamp - Will turn on forward facing worklamps
• Rear Worklamp - Will turn on rear facing worklamps
• Alley Left - Will turn on left alley lights
• Alley Right - Will turn on right alley lights
• If purchasing the controller, must also purchase harness (see accessory below)

  Accessory Options Available:

  Ecco Controller Cable Assembly - #EC-EZ1210
