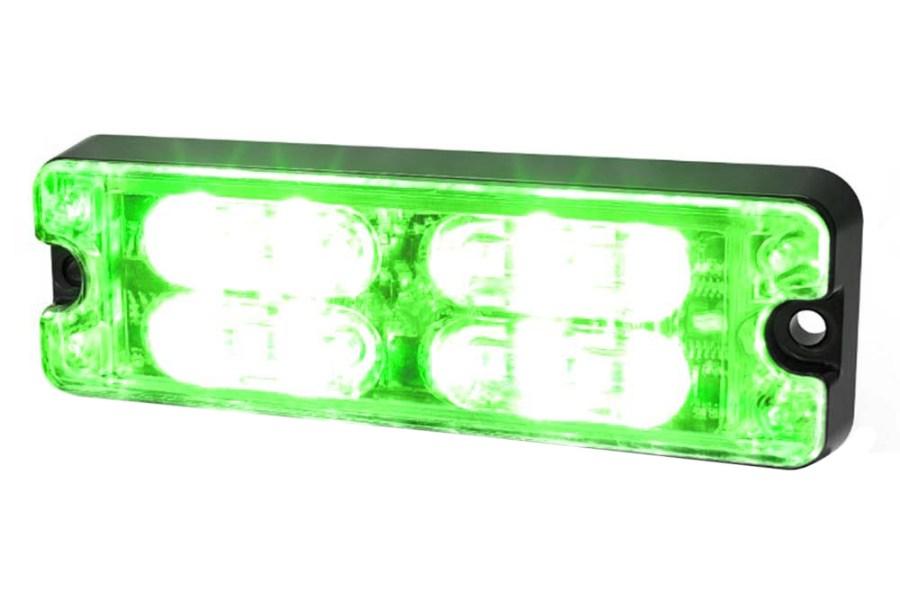

The ED3511 LED warning light is designed to offer maximum performance with a minimal footprint. This surface mount LED measures only 0.5 deep, features 36 flash patterns and is available in amber, blue, white, green and red single- or dual-color options. Its compact form allows for mounting in virtually any location on a vehicle body, while its twelve 1-watt LEDs provide high-intensity utility and warning lighting across use cases. With a low current draw, long maintenance-free service life and a 5-year warranty, the ED3511 Series is a small yet powerful LED for work trucks, tow trucks or any other commercial vehicle application.
- ED3511 Series replaces the 3510 Series
- Twelve 1-watt high-intensity LEDs provide exceptional warning
- Synchronizable with additional ED3511s and Hide-A-LEDs
- All electronics embedded in lighthead
- UV-stabilized polycarbonate lens
- 13 cable
- Temperature Range: -22°F to +122°F (-30°C to +50°C)
- Amps: 1.4
- Voltage: 12-24V
- Warranty: 5 Years
- Height 1.1; Length 3.3; Depth 0.5
- Approval SAE CLASS I, CA T13, CE, R10, RCM, R65, IP67, ROHS
- Flash Patterns: Single-Color:29; Dual-Color:69

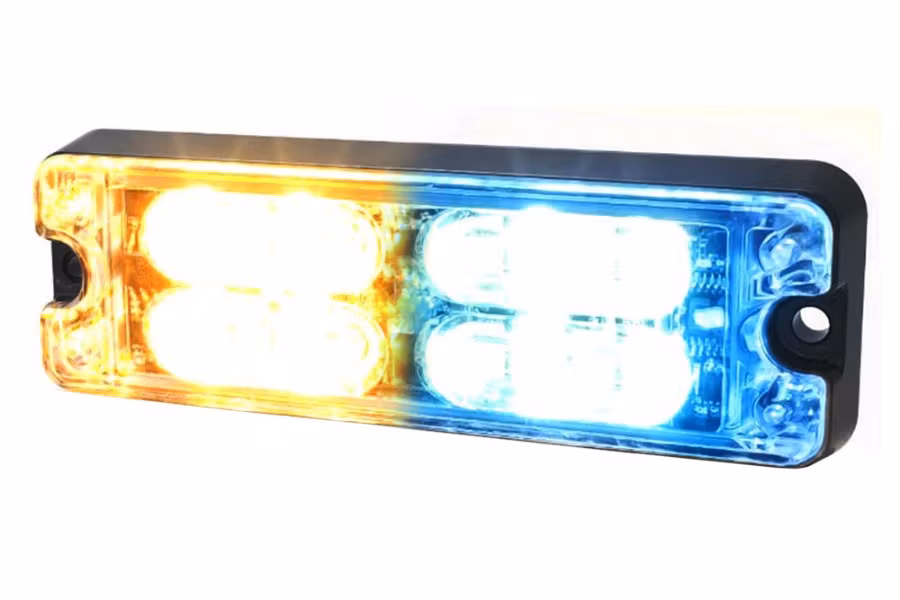

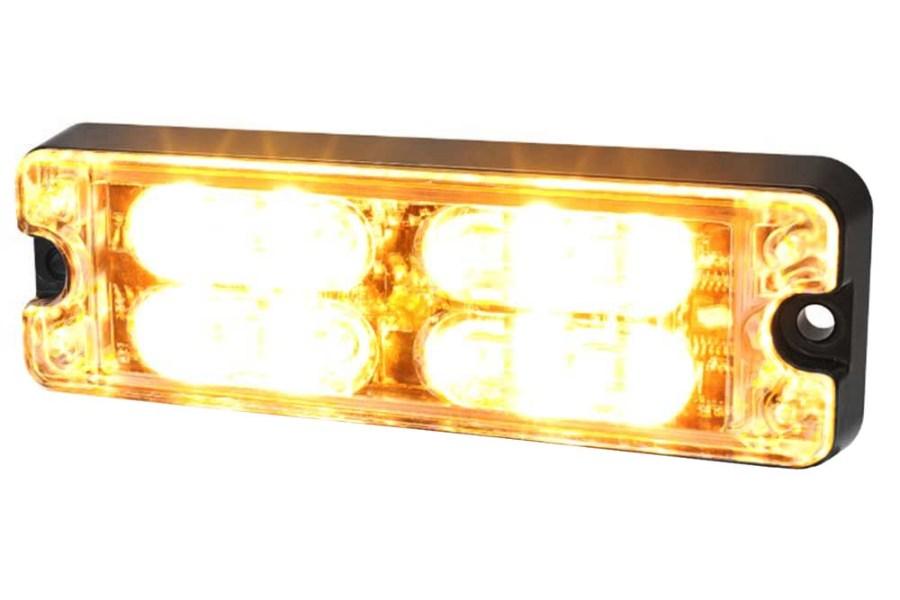

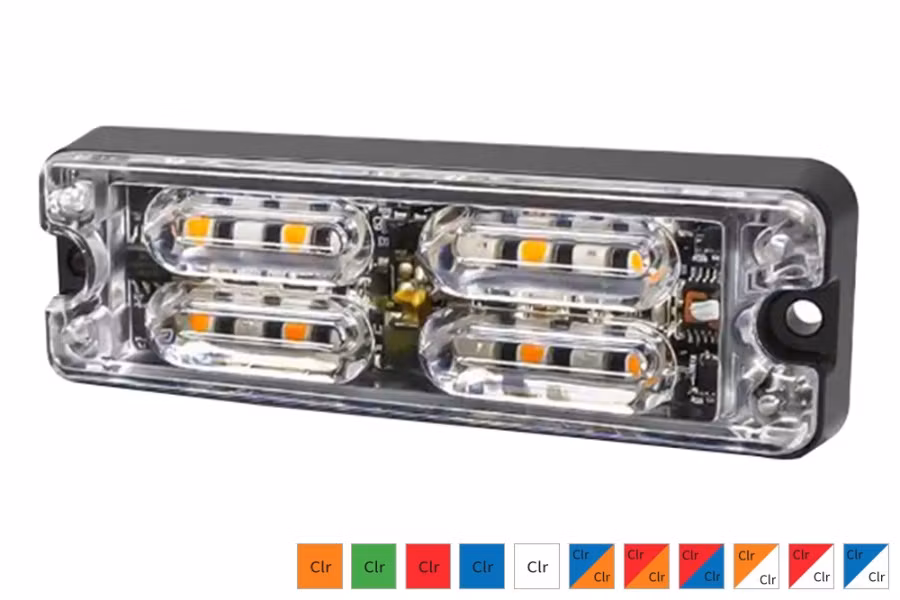

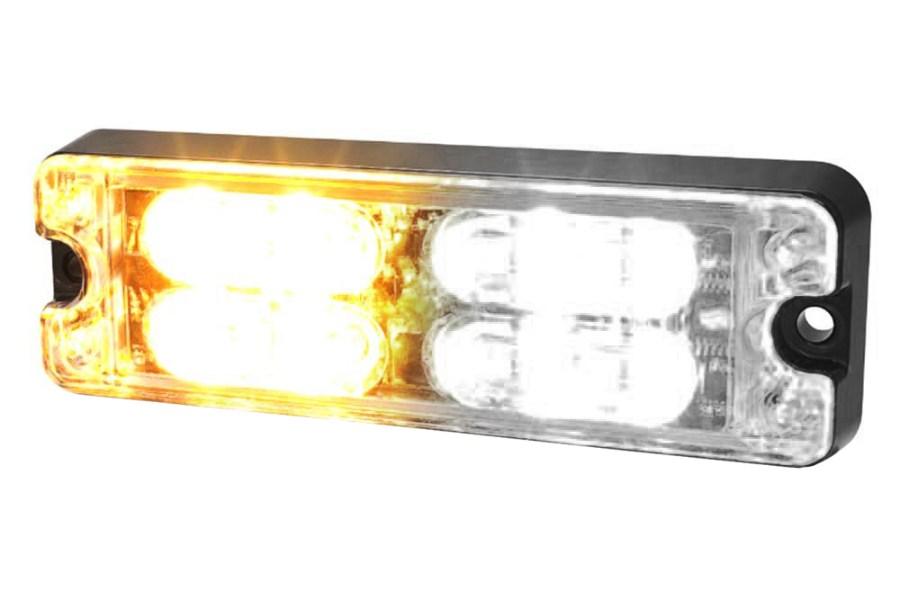

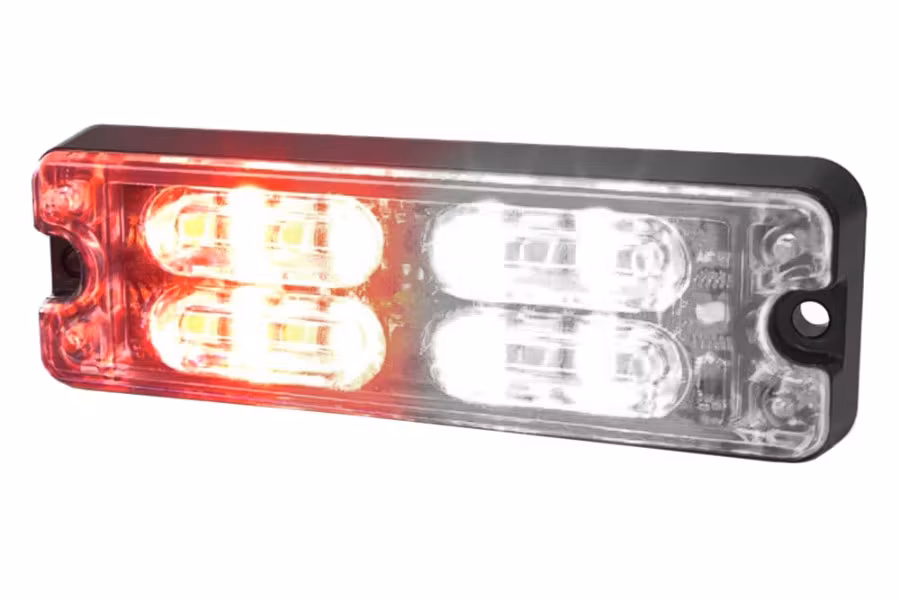

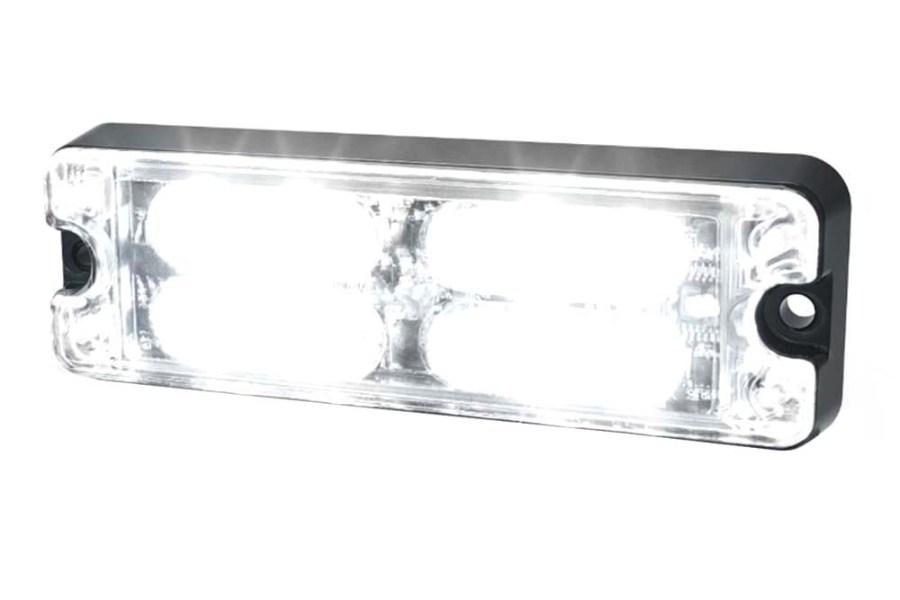

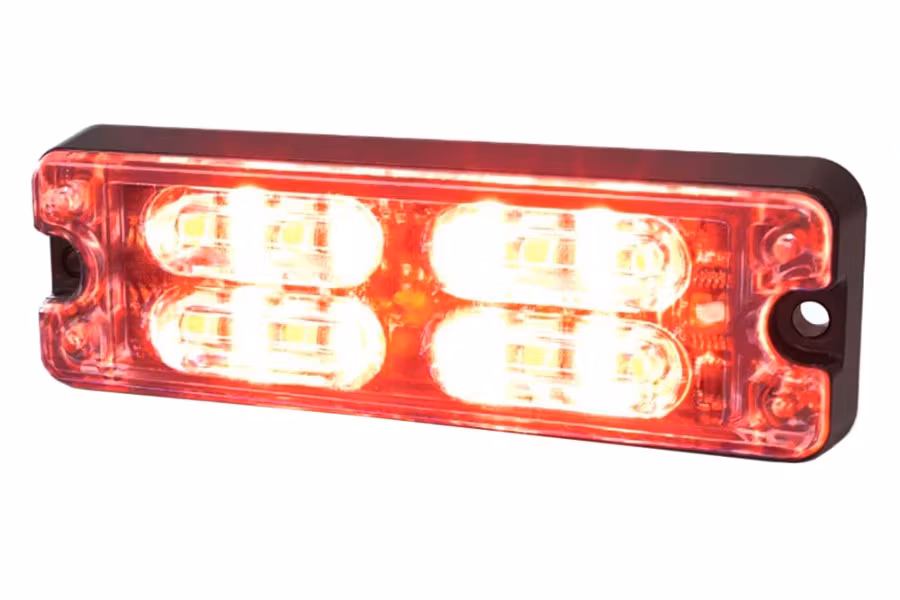

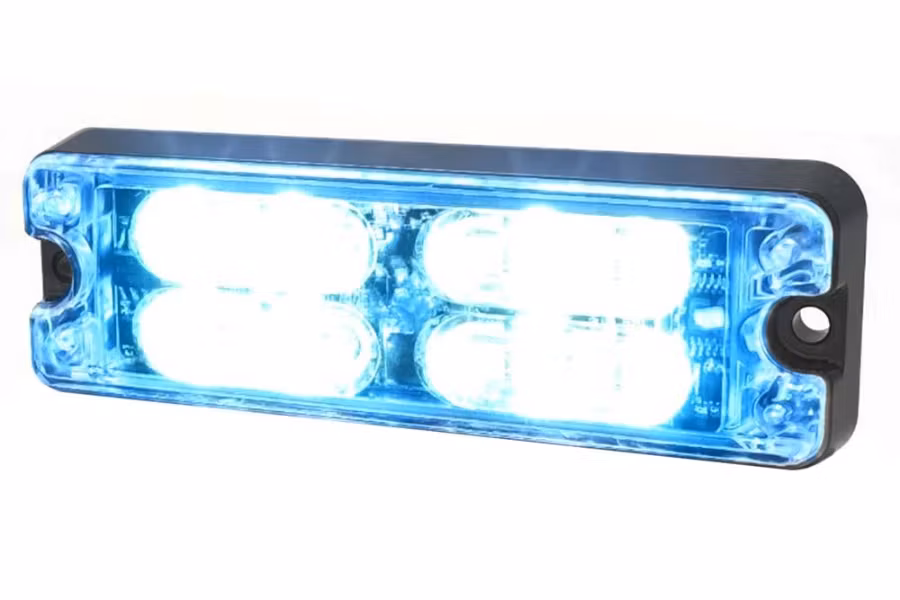

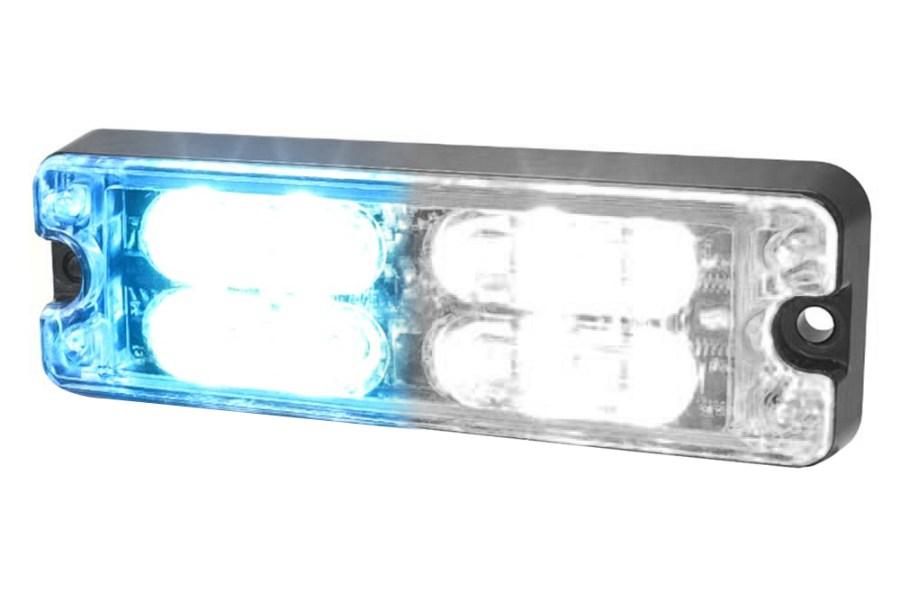

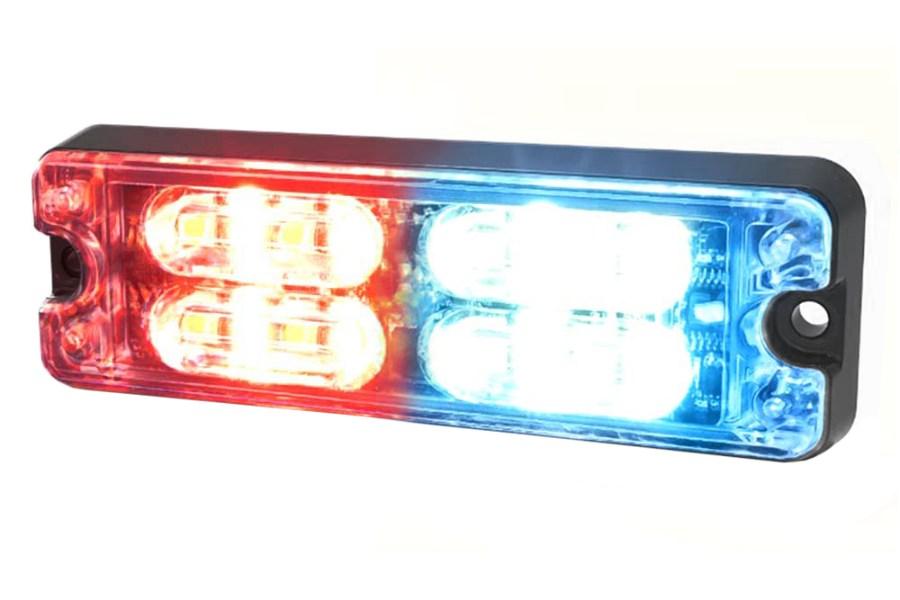

- Single-Color: Amb, Blue, Clr, Grn, Red; Dual-Color: Amb/Blue, Amb/Wht, Amb/Red, Blue/Clr, Red/Blue, Red/Wht
