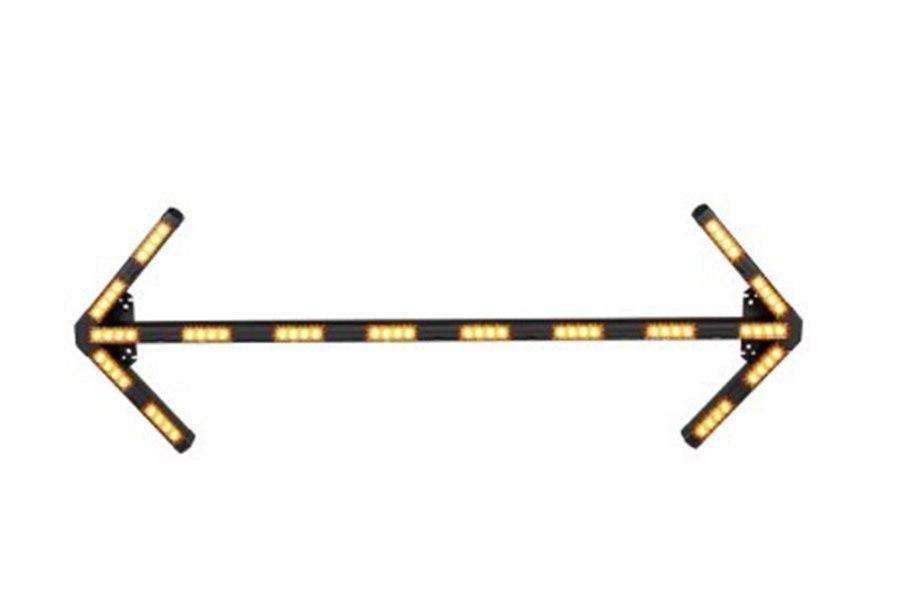

Federal Signal 4200S and 8200S SignalMaster Arrow

Introducing the Federal Signal 4200S and 8200S SignalMaster Arrow, a revolutionary lighting solution designed to maximize visibility and optimize safety on the road. Featuring advanced LED lighting technology and its arrow-shaped design, this light offers enhanced visibility and provides clear, direct instructions to passing vehicles, ensuring quick comprehension and efficient reactions to the work or hazards ahead.

The Signal Master Arrow Light is designed for convenience and adaptability. It can be easily mounted using the SignalMaster bracket, allowing for flexible positioning options. Its wide operating temperature range and resistance to water ensures reliable performance in various climates and weather conditions, ultimately resulting in trucks being on the road longer. This enhances productivity, especailly in unfavorable conditions.

Safety is paramount, which is why the Signal Master Arrow Light is SAE J595 Class 1 and CCR Title 13 approved. These certifications guarantee its effectiveness and compliance with regulations for lighting devices on vehicles. Additionally, it's dimming feature assures no worker will be stranded in the dark without warning.

This light also offers a 3-year warranty, showcasing its durability and providing you with peace of mind. Its long-lasting LED technology ensures exceptional visibility and safety on the road, regardless of lighting conditions. It's this durability and long lasting performance that makes replacement rates so low, providing a cost-effective lighting solution.

• LED directional warning light
• 18 inch whip with water-light connector
• Aluminum housing with rail design
• 14 flash patterns
• Discrete cable or serial controller options
• Low-power mode
• Operating voltage: 12 Vdc
• Current Draw: 0.5 A per head
• Operating Temperature: -40F to 176F (-40 to 80C)
• Three-year warranty
• SAE J595, Class 1
• CCR Title 13
• Mounting options
• Extensions available
• Multiple lengths
• 4200: 4 LEDs per light head / 8200: 8 LEDs per light head

Specifications:

Signalmaster Models Specs
4200SM6-A
 Dimensions: 32.8” L x 2.0” W x 1.4” H
 Weight 5.0 lb
4200SM8-A-42
 Dimensions: 44.0” L x 2.0” W x 1.4” H
 Weight: 7.0 lb
4200SM8-A-51
 Dimensions: 53.0” L x 2.0” W x 1.4” H
 Weight: 7.5 lb
8200SM6-A
 Dimensions: 32.9” L x 1.9” W x 2.3” H
 Weight: 5.0 lb
8200SM8-A-42
 Dimensions: 43.9” L x 1.9” W x 2.3” H
 Weight: 7.0 lb
8200SM8-A-51
 Dimensions: 52.9” L x 1.9” W x 2.3” H
 Weight: 7.5 lb

Signalmaster Arrow Models Specs
4200SMA10-A
 Dimensions: 33.1” L x 2.2” W x 10.1” H
 Weight” 10.0 lb
4200SMA16-A
 Dimensions: 53.0” L x 2.2” W x 18.5” H
 Weight: 13.0 lb
8200SMA10-A
 Dimensions: 16.6” L (Per Side) x 2.3” W x 11.9” H
 Weight: 13.5 lb

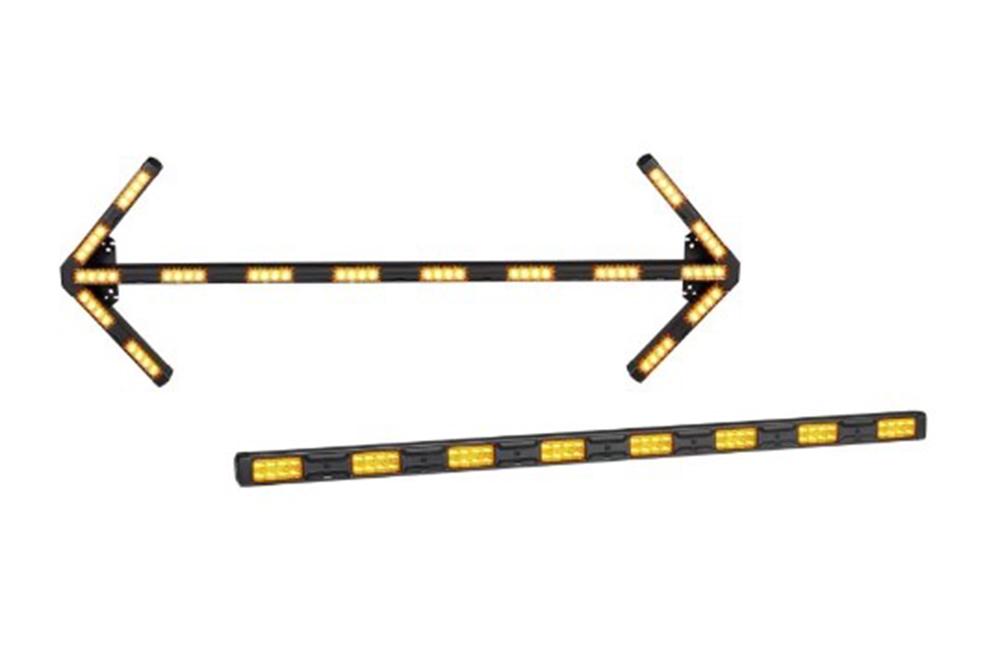

8200SMA10-A-2
 Dimensions: 33.1” L x 2.3” W x 11.9” H
 Weight: 13.5 lb

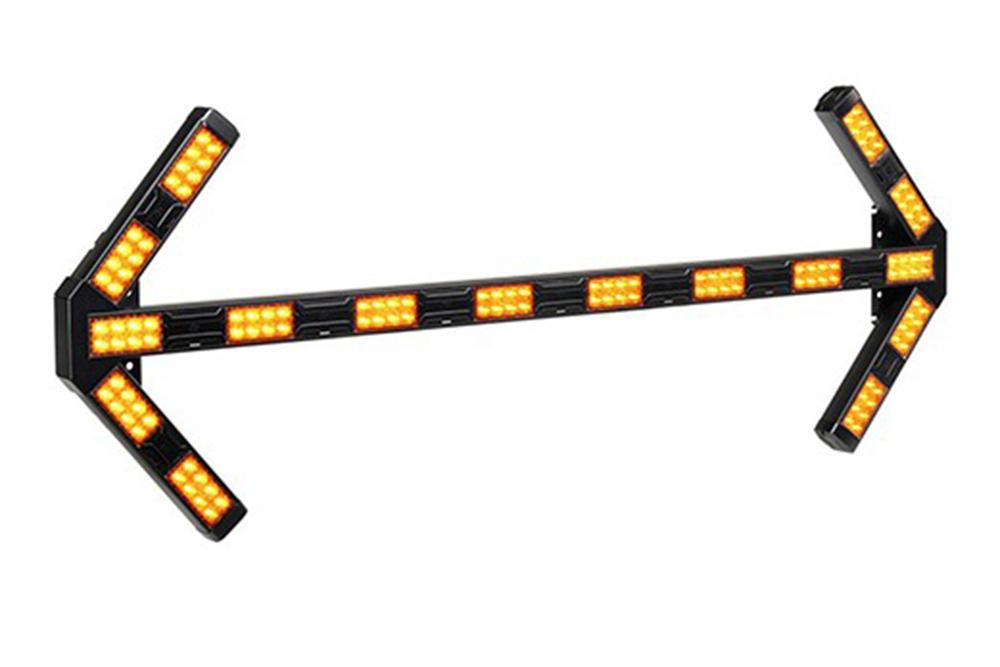

8200SMA16-A
 Dimensions: 53.1” L x 2.11” W x 20.2” H
 Weight: 18.0 lb

Required Accessories (Must order one with each 4200s or 8200s signalmaster)
SMCABLE-15- Discrete cable, 15-ft
SMCABLE-30- Discrete cable, 30-ft
SMCONTROL- Eight-button serial controller with 20-ft cable
Optional Accessories
SMEXTENSIONS-15- Extension cable, 15-ft, for use with SMCONTROL
SMEXTENSIONS-30- Extension cable, 30-ft, for use with SMCONTROL
SW200-B- Four-switch box with bail bracket, for use with SMCABLE
SW300-B- Six-switch box with bail bracket. For use with SMCABLE
SW400SS-B- Four-switch with slide switch box with bail bracket, for use with SMCABLE
