Federal Signal MicroPulse Wide Angle Led Warning Light

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

Experience the next level of visibility and safety with the Micropulse Wide-Angle from Federal Signal. Engineered to perfection, this advanced lighting solution is designed to revolutionize work trucks, emergency vehicles and many other applicable vehicles. With its exceptional features, cutting-edge design, and unmatched benefits, the Micropulse Wide-Angle sets a new standard in lighting performance.

The Micropulse Wide-Angle features a high-intensity LED design that delivers a powerful and bright output, ensuring maximum visibility in any condition. Its wide-angle beam provides a broader coverage area, making it perfect for applications where broad illumination is needed. It's bright illumination, but low energy usage, reduces pull on the vehicle's electrical system and makes it a long-lasting, cost-effective lighting solution.

Built with durability in mind, this light is equipped with a robust polycarbonate lens that offers exceptional protection against impacts and harsh weather conditions. With its IP67 certification, the Micropulse Wide-Angle is resistant to dust and water, ensuring reliable operation even in challenging environments. Adding assurance and support to it's durability,c ustomers can trust in the longevity of the Micropulse Wide-Angle as it comes with a generous 5-year warranty.

One of the standout features of the Micropulse Wide-Angle is its advanced synchronization capabilities. It can seamlessly coordinate with other Micropulse lights, allowing customers to create a highly visible and synchronized lighting display, maximizing their impact and enhancing overall safety on the road. This, matched with it's convenience is what makes it a favorite as installation is quick and effortless. Thanks to its compact size and compatibility with various mounting options, The Micropulse Wide-Angle seamlessly integrates into your work truck or emergency vehicle, providing a sleek and professional appearance.

• Utilizes 6, 9, 12 LEDs, 180-degree light spread
• Perfect for mounting on push bumpers, rub rails, side mirrors, and spoilers
• Synchronizes with other MicroPulse products

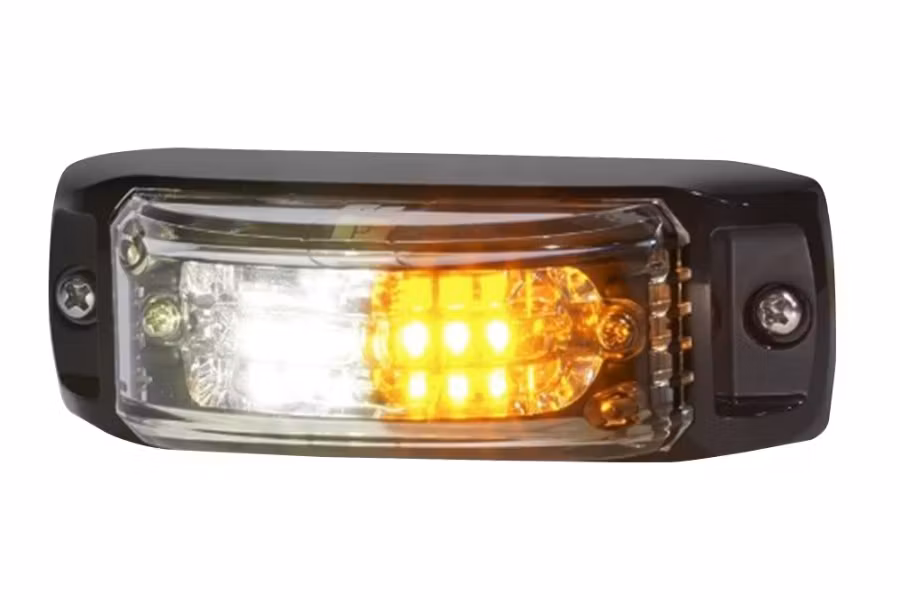

• Available in single, split, and dual-color models
• Colors: amber, blue, red, white, amber/white, blue/white, red/white
• UV resistant polycarbonate clear lens
• Black bezel included; optional chrome and white bezels available
• Steady burn model (MPSW9X) are FSJoin compatible and suitable for use with Pathfinder sirens or other external flashers
• Models available for use as part of NFPA1901 compliant packages
• Five-year warranty
• Approvals: IP67 certified, CCR Title 13

Specifications:

Single-Color Specs
Operating voltage: 12/24 Vdc
Current draw: 0.58 A @ 12 Vdc, 0.28 A @ 24Vdc
Operating temperature: -40F to 176F (-40C to 80C)
12 flash patterns
Surface mount: 5.0” L x 1.5” W x 1.5” H
Weight: 0.5 lb
SAE J595 Class 1 (amber, blue, red, white)
SAE J845 Class 1 (amber, blue, red, white)
NFPA 1901 (blue, red, white)

Dual-Color Specs
Operating voltage: 12Vdc
Current draw: 0.6 A @ 12 Vdc
Operating temperature: -40F to 176F (-40C to 80C)
18 flash patterns
Surface mount: 5.04” L x 1.48” W x 1.5” H
Weight 0.5 lb
SAE J595 Class 2 (amber, blue, white)
SAE J595 Class 1 (red)
SAE J845 Class 1 ( amber, blue, red, white)
NFPA 1901 (blue, red, white)

Single/Split Specs
Operating voltage: 12 Vdc
Current draw: 0.8 A @ 12 Vdc
Operating temperature: -40F to 176F (-40C to 80C)
27 flash patterns
Surface mount: 3.8” L x 1.5” W x 1.4” H
Under side mirror mount: 2.9” L x 2.6” W x 1.3” H
Weight: 0.42 lb
SAE J595 Class 1 (amber, blue, red, white)
SAE J845 Class 1 (amber, blue, red, white)

Accessories
MPSMW9-1: Chrome bezel for (1) MPSW9
MPSMW9-2: White bezel for (1) MPSW9
MPSMW9-3: Black bezel for (1) MPSW9
MPSMW6-1: Chrome bezel for (1) MPSW6
MPSMW6-2: White bezel for (1) MPSW6
MPSMW6-3: Black bezel for (1) MPSW6
MPSMW9-SHD: Shroud kit (2) MPSW9 to prevent backflash
MPSMW9-TAH21MIR: Pair of side under mirror brackets, each bracket holds (1) MPSW9 light, 2021-2022 Chevrolet Tahoe
MPSMW9-FRD21MIR: Pair of side mirror brackets for (1) MPSW9 each, Ford F-150 (non-towing mirrors)/Lightning, 2021-2023
MPSMW9-FPIU20MIR: Pair of side mirror brackets, each bracket holds (1) MPSW9 light, Ford Police Interceptor Utility, 2020-2023
MPSMW9-DUR15MIR: Pair of side mirror brackets, each bracket holds (1) MPSW9 light, Dodge Durango, 2015-2023; Dodge Ram SSV, 2016-2023; Ford F-150 & Super Duty, 2017-2022 models with tow mirrors
MPSMW9-LB: L-bracket for 1 MPSW9
MPSMW9-RAM19MIR: Pair for side mirror brackets for 1 MPSW9 each, 2019+ Dodge Ram
MPSMW9-CHGR11MIR: Pair of side mirror brackets, each bracket holds 1 MPSW9 light, Dodge Charger 2011-2023
MPSMW9-SPACRKT: Kit, 4 5-degree rubber mounting wedges for MSPW9
MPSMW9-SIL19MIR: Pair of side brackets for 1 MPSW9 each, 2019+ Chevrolet Silverado
