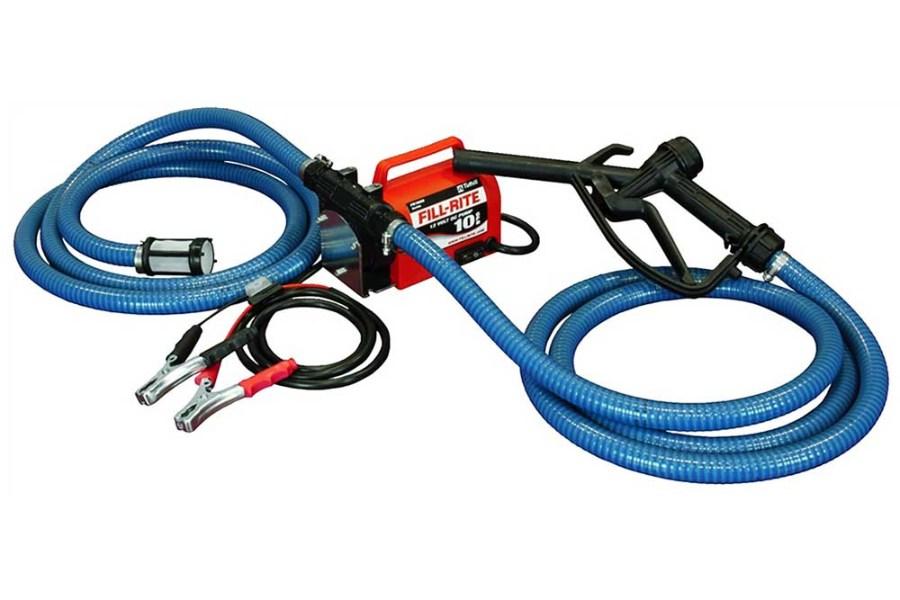

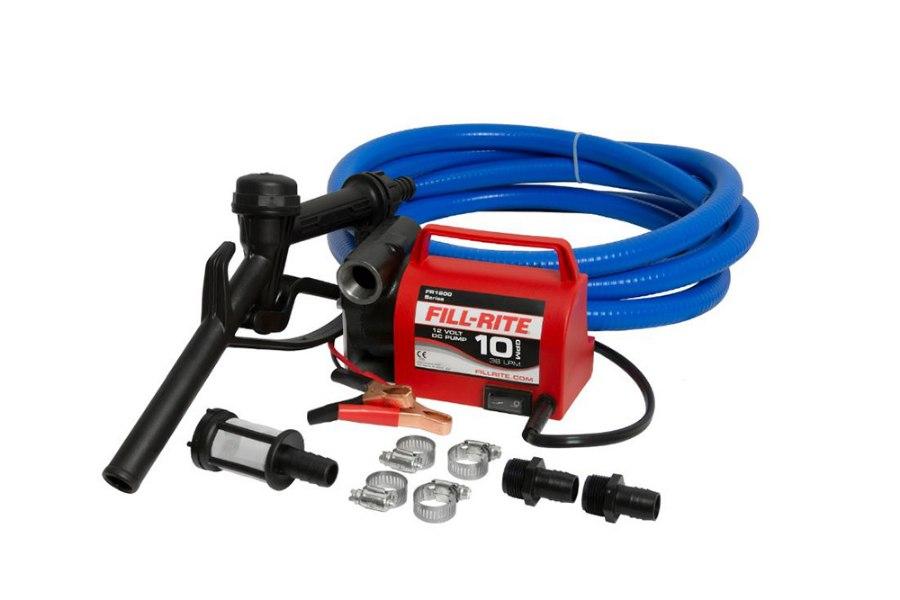

Fill-Rite 12V DC 10 GPM Fuel Transfer Pump with Nozzle

Leave a Review

Shop all Fill-Rite products

Picture of Fill-Rite 12V DC 10 GPM Fuel Transfer Pump with Nozzle

SKU: FR1614

Price: $224.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Fill Rite's 1600 Series provides extreme portability for low-volume diesel transfer, ideal for transferring out of drums and totes into smaller equipment.

The FR1614 model is a 12V DC, 10 GPM fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, and installation components.

Cast-Iron Construction - durable cast-iron construction provides heavy-duty performance and withstands daily use in diesel applications
Compact Size - weighing under 8 pounds, can be easily transported or held during operation
Ready Out of Box - battery cable and clips are pre-installed at the factory, saving you time and eliminating frustration
Reliable Technology - proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
Easy to Use - toggle switch allows pump to be turned on and off with the simple touch of a button
Max Flowrate: 10
Flowrate Range: 0-10GPM
Inlet / Outlet Thread Size (in.): 0.75 / 0.75
Duty Cycle: 30 min
Motor Power: 0.2
Power Type: DC
Operating Temperature Range: 0°F to 105°F
Dry Vacuum (in. Hg): 5
Max Discharge Pressure: 16
Max Operating Pressure (PSI): 50
Assembled Product Depth (in.): 3.9
Assembled Product Weight (lbs.): 8
Package Height x Width x Depth (in.): 7.25 x 16.13 x 16.13
Gross Weight (lbs.): 14.000

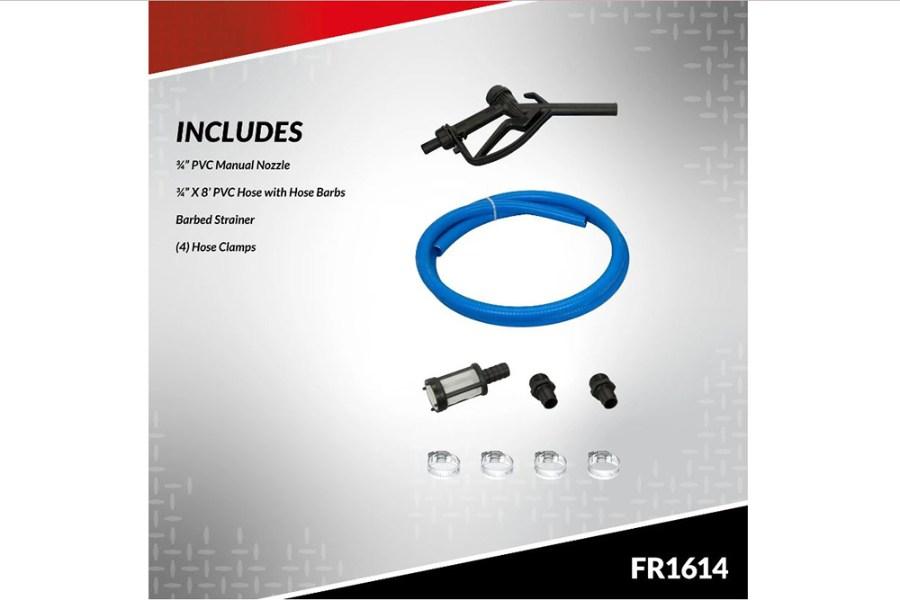

Included Accessories:

Discharge Hose: X 8 PVC Hose with Hose Barbs
Nozzle: PVC Manual Nozzle
Cable Length (ft.): 6.5
Cable Gauge: 12
Cable Connection: Battery Clips
