Fill-Rite 12V DC 20 GPM Fuel Transfer Pump with Nozzle

Leave a Review

Shop all Fill-Rite products

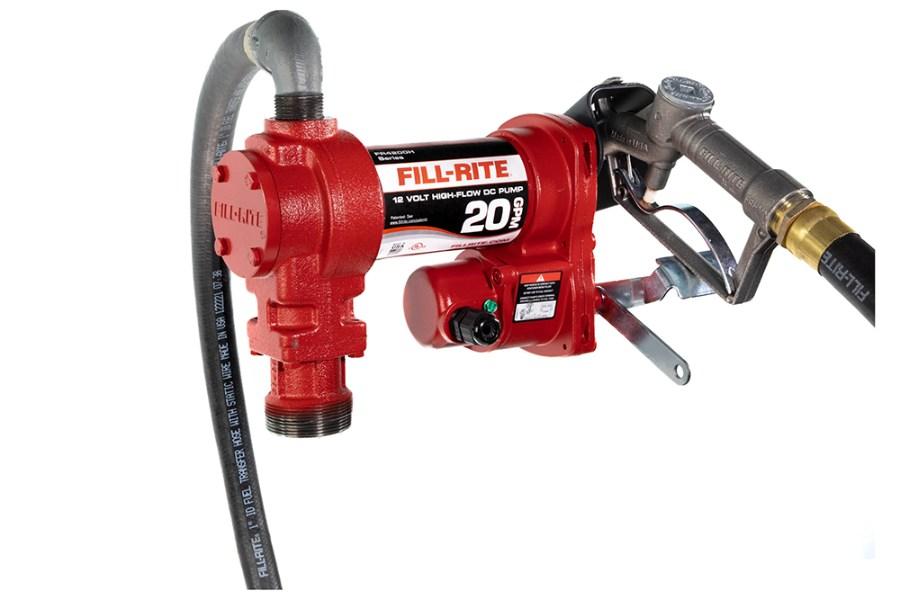

Picture of Fill-Rite 12V DC 20 GPM Fuel Transfer Pump with Nozzle

Video of Fill-Rite 12V DC 20 GPM Fuel Transfer Pump with Nozzle

SKU: FR4210H

Price: $589.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

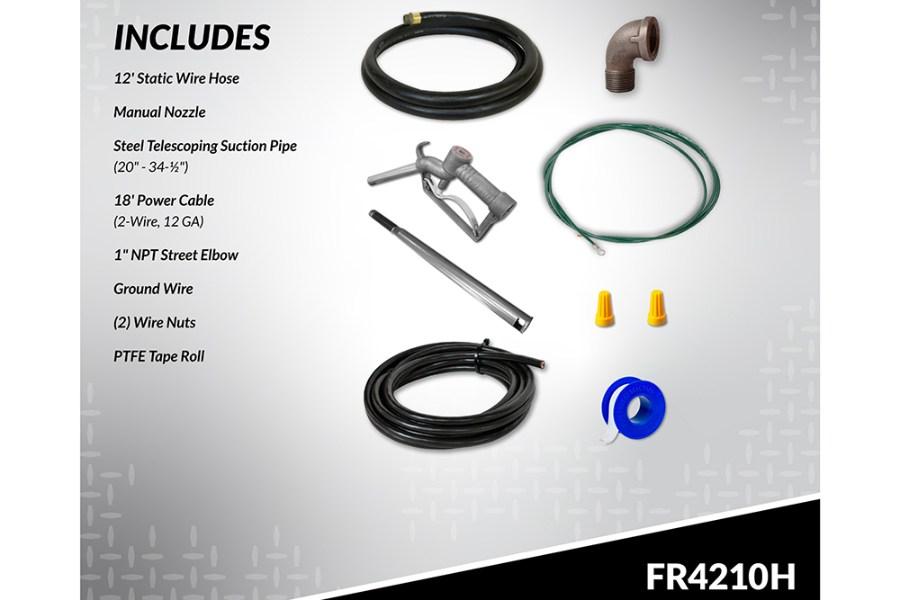

Fill-Rite's 4200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction. The FR4210H model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons
Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
Max Flowrate: 20 GPM / 75 LPM
Power Type: 12V DC
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 1 " / Female / NPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Power Source: Electrical
Motor Power (HP): 0.25
Max Current (A): 19 A
Thermal Protection Switch: Yes
Self Priming: Yes
Suction Lift (ft.): 8 '
Dry Vacuum (in. Hg): 5
Discharge Head (ft): 37 '
Strainer Mesh Size (Micron): 20x20
Max Operating Pressure (PSI): 16
Viscosity Range (cSt): 1 to 4
Assembled Product Height x Width x Depth (in.): 8.4 x 13.7 x 6.5
Assembled Product Weight (lbs.): 32.2
Package Height x Width x Depth (in.): 10.63 x 15.44 x 18.31
Gross Weight (lbs.): 35.000 lbs

Shipping & Returns

Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	GTIN #
FR4210H	FR4210H	89404247952
