Fill Rite 6-40 GPM 4-Digit Mechanical Fuel Transfer Meter

Leave a Review

Shop all Fill-Rite products

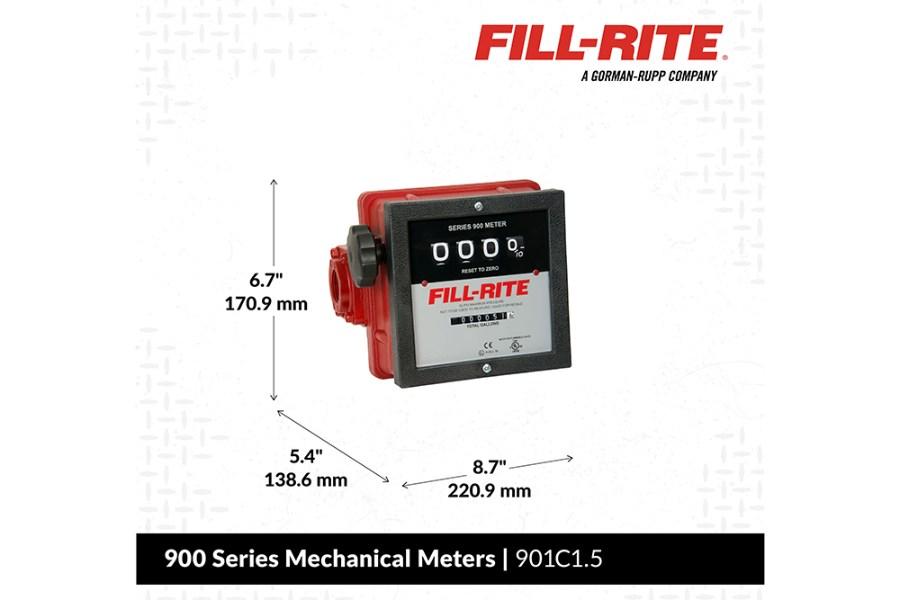

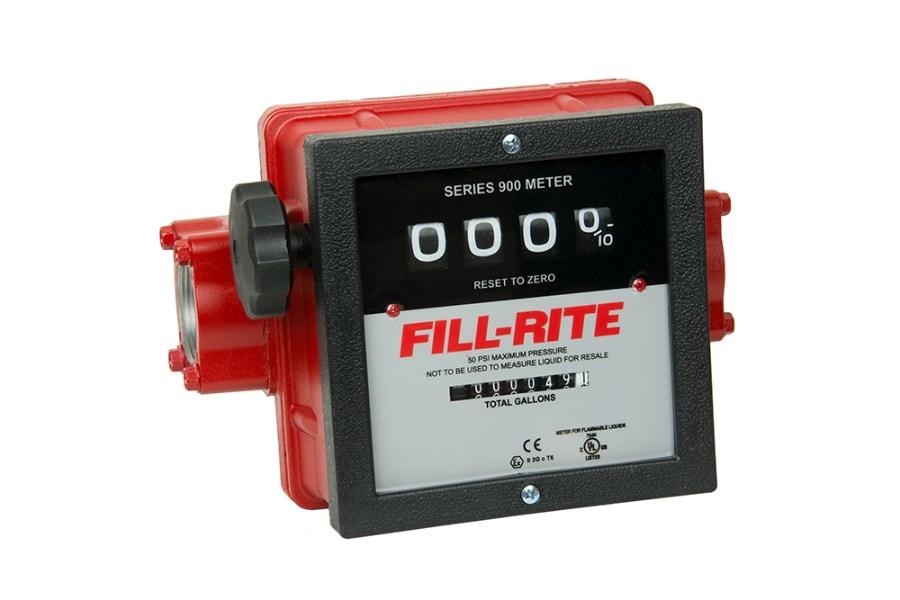

Picture of Fill Rite 6-40 GPM 4-Digit Mechanical Fuel Transfer Meter

Video of Fill Rite 6-40 GPM 4-Digit Mechanical Fuel Transfer Meter

SKU: 901C1.5

Price: $344.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

The 901C is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 2% accuracy. This model does not include additional installation components.

Fill-Rite’s 900 Series of mechanical fuel transfer meters are ideal for high-volume applications, registering up to 999 gallons per batch

Versatile Technology – designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
Cast-Aluminum Construction – built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Extreme Accuracy – measures fuel within +/- 2% accuracy, ensuring your record-keeping is precise as possible
Low-Volume Applications – 4-digit counter registers flow rates between 6-40 GPM and up to 999.9 gallons per batch, perfect for heavy equipment with large fuel tanks
Lifetime Tracking – 7-digit non-resettable counter tracks total volume transferred over lifetime of meter
Flowrate Range (GPM): 6-40 GPM
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Hexane
Inlet Size / Connection / Thread: 1.5 " / Female / NPT
Outlet Size / Connection / Thread: 1.5 " / Female / NPT
Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C
Max Operating Pressure (PSI): 50
Accuracy (+/- %): 2 %
Repeatability (+/- %): 0.38 %
Display Type: Mechanical
Display Digits: 4
Power Source: Mechnical
Totalizer: Yes
Pulse Output: No
Assembled Product Height x Width x Depth (in.): 6.7 x 9.2 x 5.5
Assembled Product Weight (lbs.): 7.4
Package Height x Width x Depth (in.): 7.38 x 7.25 x 10.5
Gross Weight (lbs.): 8.100 lbs

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #
901C1.5	901C1.5	89404080108
