Fill-Rite SD Series Green Automatic Diesel Spout Nozzle

Fill-Rite's automatic fuel transfer nozzles feature heavy-duty construction and come in a variety of gasoline, diesel, and cold weather options.

The SDN075GAN is a 0.75" automatic shutoff nozzle designed for fuel transfer. This model is designed for diesel applications with a 15/16" spout size and green jacket. The SD Series nozzles from Fill-Rite usher in a new era of both value and performance. These nozzles are graded standard-duty and are offered at competitive prices, yet still feature the trusted Fill-Rite reliability and durability customers expect. Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems

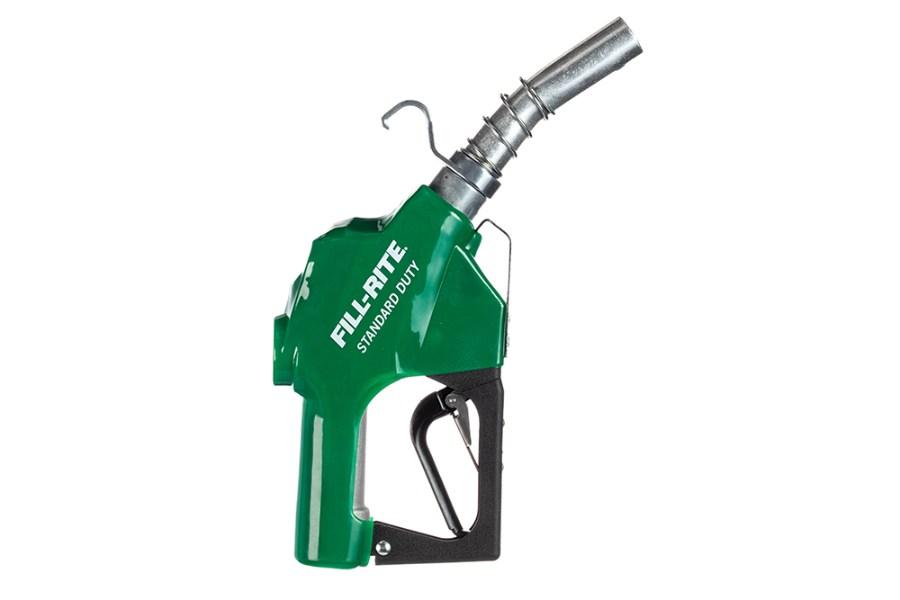

The SDN100GAN is a 1" automatic shutoff nozzle designed for fuel transfer. This model is designed for diesel applications with a 1-1/8" large spout size and green jacket. The SD Series nozzles from Fill-Rite usher in a new era of both value and performance. These nozzles are graded standard-duty and are offered at competitive prices, yet still feature the trusted Fill-Rite reliability and durability customers expect. Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems

• Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications
• Easy to Use – included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage
• Adjustable Latching – three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment
• Automatic Shut-Off – automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient
• Multiple Configurations – available in a variety of configurations to meet your application’s temperature, flow, and fluid compatibility requirements

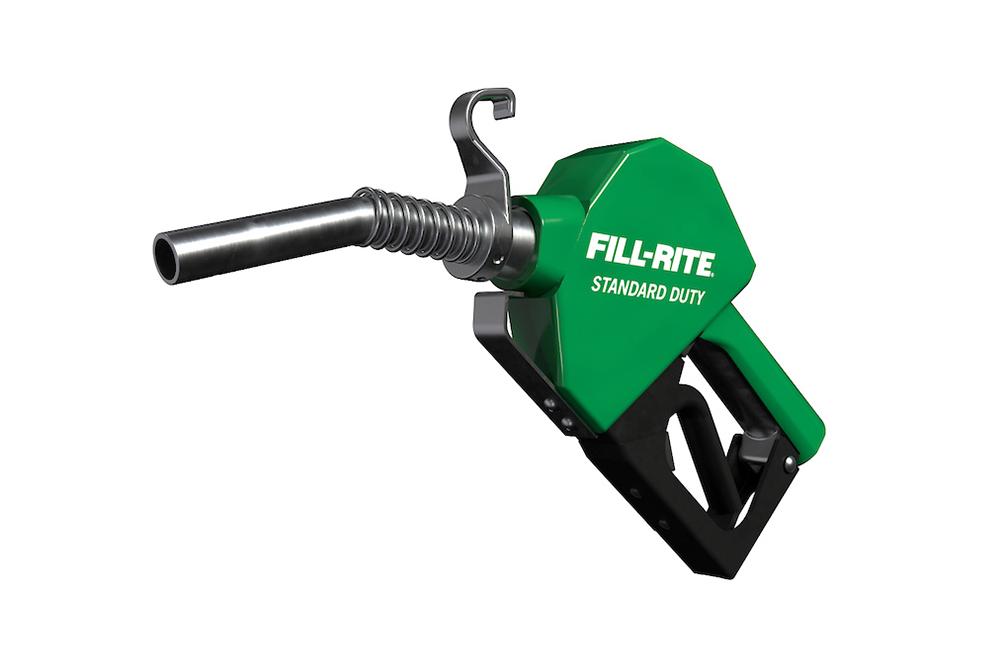

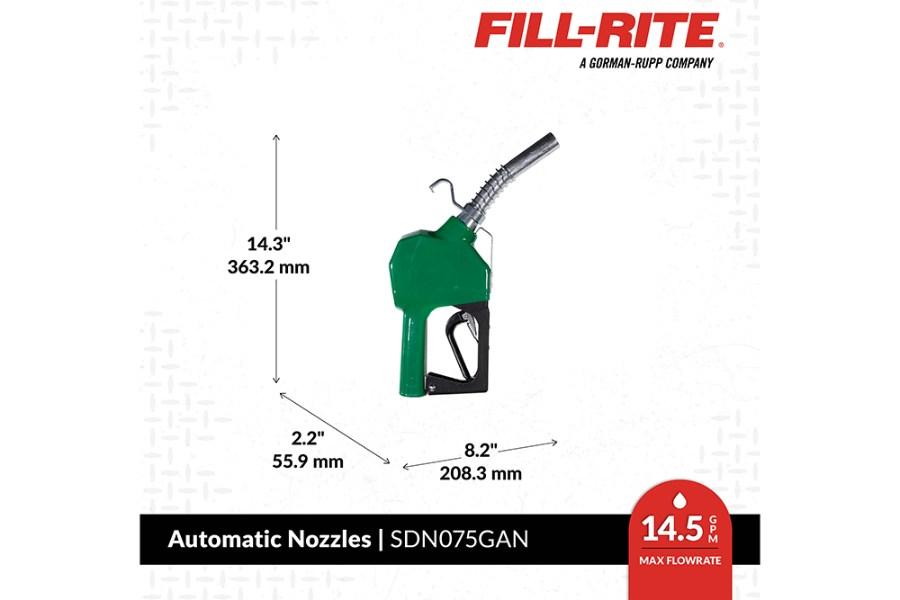

3/4" - SDN075GAN
• Nozzle: 3/4" Hi-Flow Automatic Diesel Nozzle (Green)
• Max Flowrate: 14.5 GPM / 54.8 LPM
• Compatible Fluids: Diesel, Gasoline, Kerosene, Biodiesel
• Inlet Size / Connection / Thread: 0.75 " / Female / NPT
• Spout Diameter (in.): .94
• Max Operating Pressure (PSI): 50
• Nozzle Type: Automatic
• Flowrate Range (GPM): 2.5 - 14.5
• Package Height x Width x Depth (in.): 14.75 x 9 x N/A
• Gross Weight (lbs.): 3.870 lbs

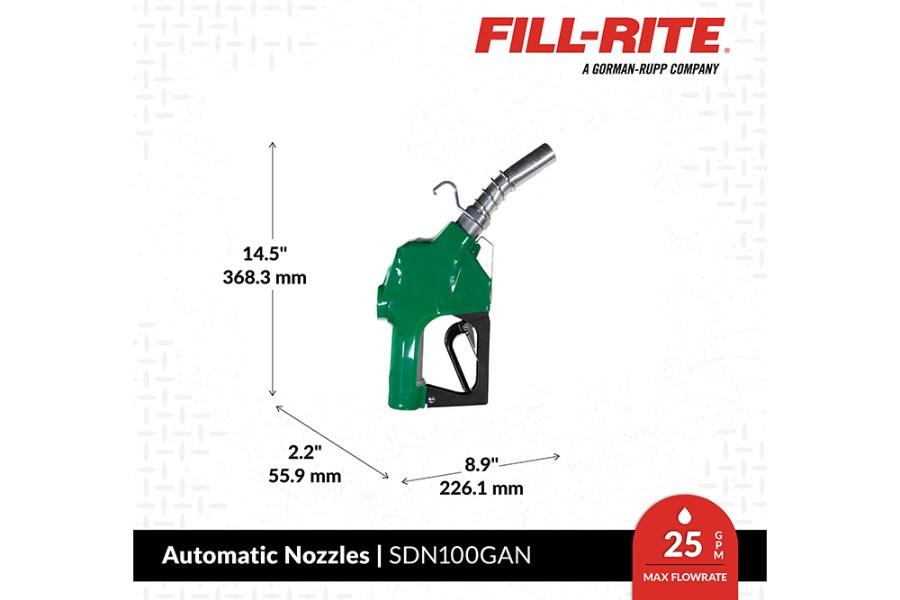

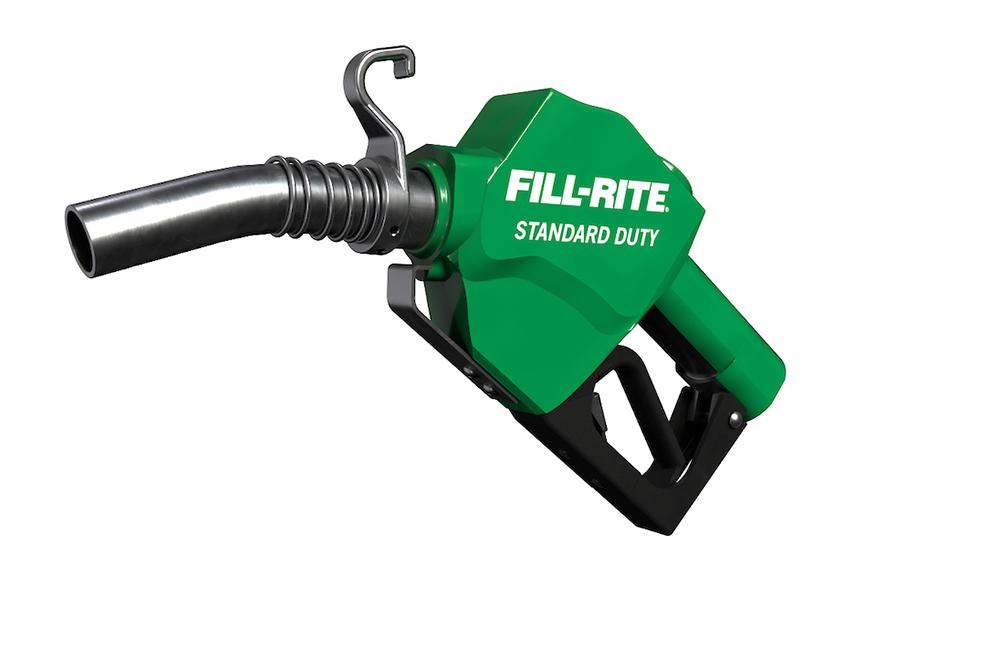

1" - SDN100GAN
• Nozzle: 1” Hi-Flow Automatic Diesel Nozzle (Green)
• Max Flowrate: 25 GPM / 94 LPM
• Inlet Size / Connection / Thread: 0.75 " / Female / NPT
• Spout Diameter (in.): 1.125
• Max Operating Pressure (PSI): 50
• Nozzle Type: Automatic
• Package Height x Width x Depth (in.): 14.75 x 9 x N/A
• Gross Weight (lbs.): 3.870 lbs
