Fill-Rite Fuel Transfer Pump with Nozzle Spout

Leave a Review

Shop all Fill-Rite products

Picture of Fill-Rite Fuel Transfer Pump with Nozzle Spout

Choose SIZE *: 10 GPM

10 GPM

Not available

20 GPM

20 GPM

Not available

SKU: FR-HAND PUMP

Price: $249.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Fill-Rite's Rotary hand-operated fuel transfer pump series ensure consistent performance and are ideal for low volume transfer in rugged environments.

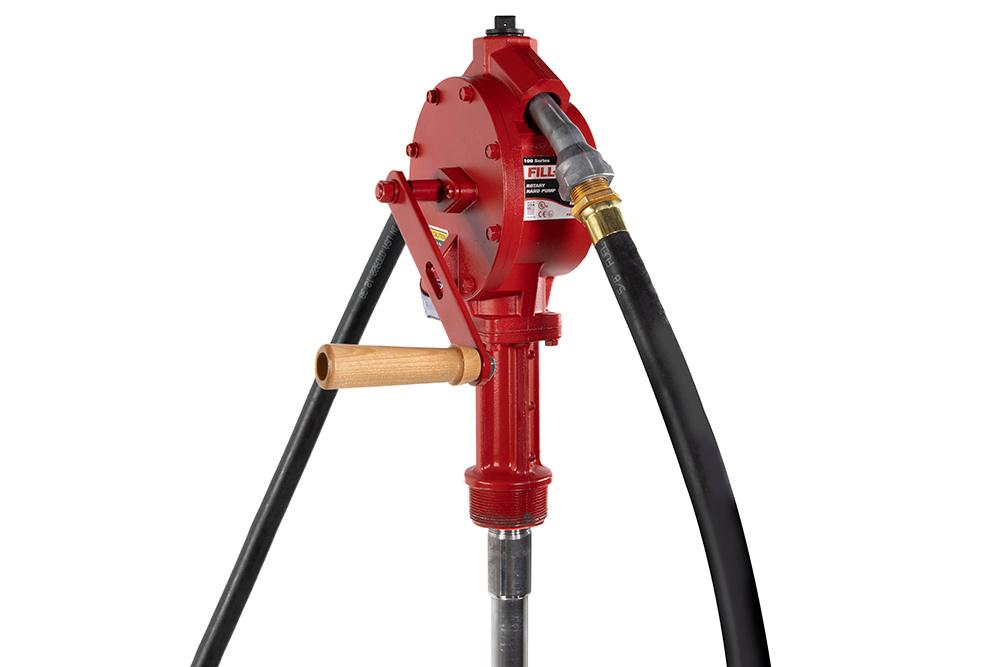

The FR112 model is hand-operated, heavy-duty fuel transfer pump that delivers 10 gallons per 100 rotations. This pump and accessory bundle comes complete with a hose, nozzle spout, suction pipe, and installation components.

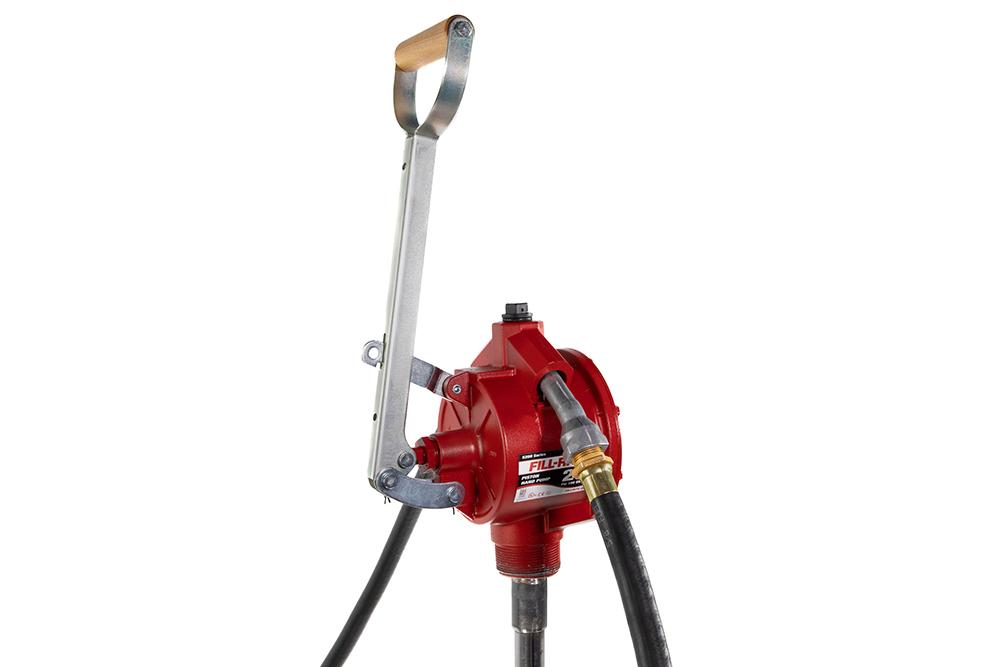

The FR152 model is a 20 gallons per 100 strokes, hand lever fuel transfer pump. This pump and accessory bundle comes complete with a spout, suction pipe, discharge hose, and installation components.

Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Flexible Fueling — reversible flow design allows you to use your pump for fueling and draining vehicle fuel tanks
No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
Theft Prevention — padlock-compatible handle adds security to protect your investment
Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
Protects Equipment — included strainer keeps large particulate contaminants out of your equipment
Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

FR112:

Max Flowrate: 10 Gal / 38 Liters Per 100 Revolutions
Power Type: Hand-Operated
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): Continuous Duty
Suction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe
Nozzle: ¾” Cast Aluminum Nozzle Spout
Discharge Hose: 5/8" X 8' UL Listed Hose with Static Ground Wire

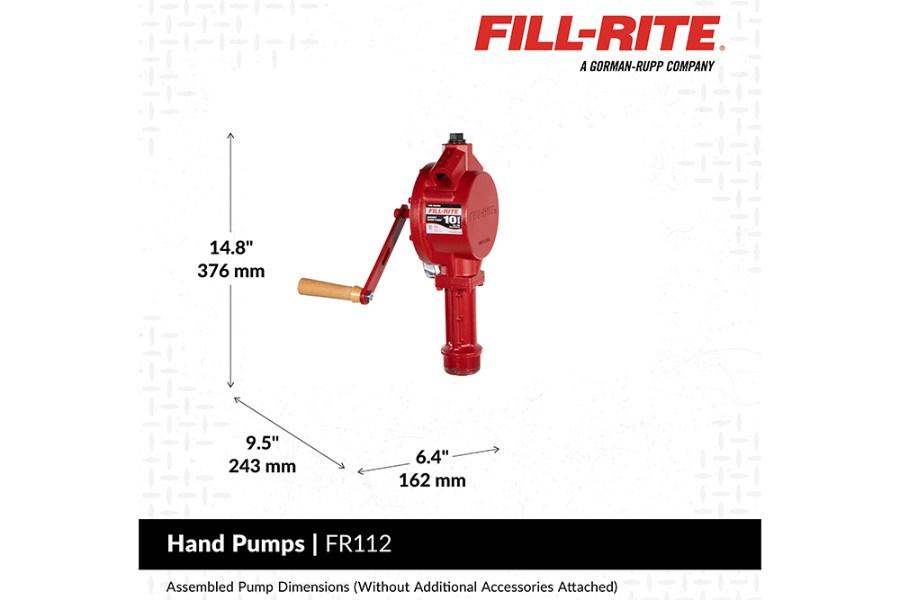

Assembled Product Height x Width x Depth (in.): 15 x 6.5 x 5
Assembled Product Weight (lbs.): 14.5
Package Height x Width x Depth (in.): 8.56 x 23.38 x 8.63
Gross Weight (lbs.): 15.600 lbs

FR152:

Max Flowrate: 20 Gal / 75 Liters Per 100 Strokes
Power Type: Hand-Operated
Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size / Connection / Thread 1 " / Female / NPT
Outlet Size / Connection / Thread: 0.75 " / Female / NPT
Mounting Size / Thread / Type: 2" / NPT / Bung Mount
Duty Cycle (min): Continuous Duty
Suction Pipe : 20” – 34 ½” Steel Telescoping Suction Pipe
Nozzle: ¾” Cast Aluminum Nozzle Spout
Discharge Hose: 5/8" X 8' UL Listed Hose with Static Ground Wire

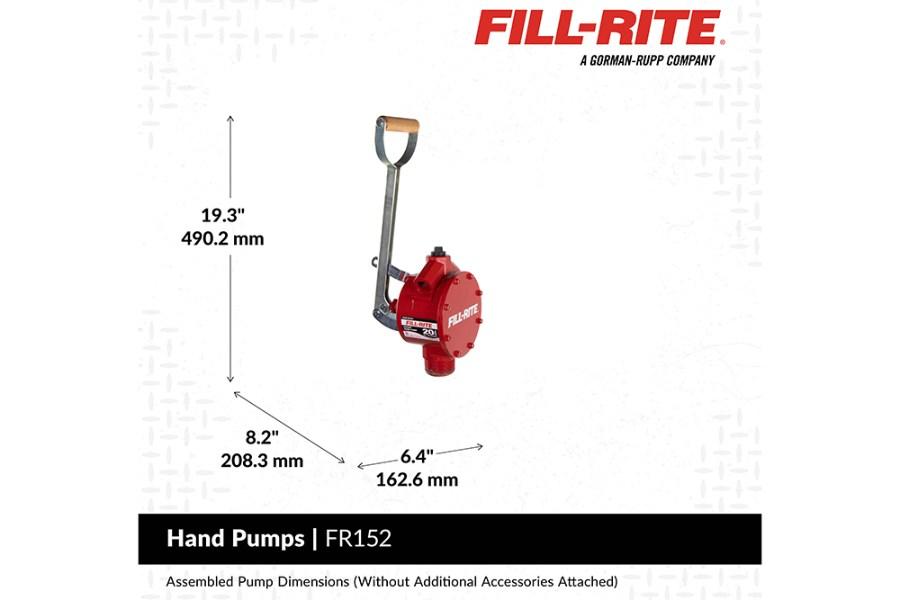

Assembled Product Height x Width x Depth (in.): 20 x 6.5 x 9.25
Assembled Product Weight (lbs.): 11.2
Package Height x Width x Depth (in.): 8.56 x 23.38 x 8.63
Gross Weight (lbs.): 13.800 lbs

Shipping & Returns

Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	GTIN #	Size
FR112	FR112	--	10 GPM
FR152	FR152	89404004289	20 GPM
