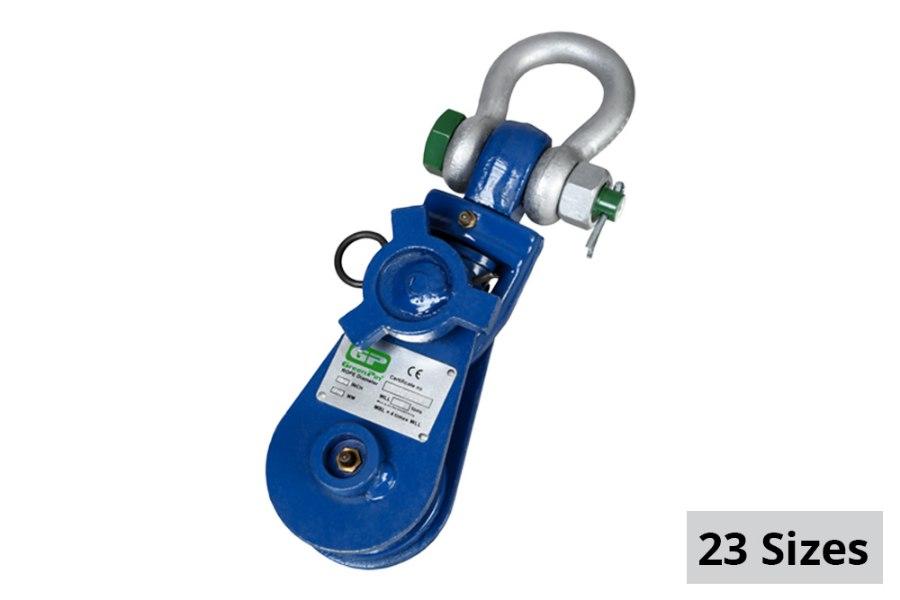

Green Pin Snatch Block with Swivel Shackle

The Green Pin Snatch Block S is a light-weight snatch block type 601S with a Green Pin Shackle attached. The Green Pin Snatch Block S has a smooth, uninterrupted pull due to conical roller bearings. Its coating ensures long-term durability, even under harsh conditions. The Green Pin Snatch Block S is available in a range with a working load limit from 2 up to 30 ton.

• Smooth, uninterrupted pull due to conical roller bearings
• Includes Green Pin shackle
• Coating assures long-term durability
• Lightweight
• Product Code: P-6951
• Material: carbon steel, fitted with conical roller bearings
• Safety Factor: MBL equals 4 x WLL
• Finish: painted
• Note: Working Load Limit is on the headfitting

  Available in the following sizes



  Itvoid(0)em #	Size	WLL	Wire Rope Size
  GP-BKOFFSS0302	3"	2 Ton	9/32" - 3/8"
  GP-BKOFFSS0404	4.5"	4 Ton	3/8" - 1/2"
  GP-BKOFFSS0604	6"	4 Ton	1/2" - 9/16"
  GP-BKOFFSS0608	6"	8 Ton	3/4" - 7/8"
  GP-BKOFFSS55060816	6"	8 Ton	9/16" - 5/8"
  GP-BKOFFSS0612	6"	12 Ton	3/4" - 7/8"
  GP-BKOFFSS061216	6"	12 Ton	9/16" - 5/8"
  GP-BKOFFSS0814	8"	4 Ton	3/8" - 1/2"
  GP-BKOFFSS0808	8"	8 Ton	3/4" - 7/8"
  GP-BKOFFSS0812	8'	12 Ton	3/4" - 7/8"
  GP-BKOFFSS081216	8'	12 Ton	9/16" - 5/8"
  GP-BKOFFSS0815	8'	15 Ton	1"
  GP-BKOFFSS1008	10"	8 Ton	3/4" - 7/8"
  GP-BKOFFSS100816	10"	8 Ton	9/16" - 5/8"
  GP-BKOFFSS1012	10"	12 Ton	3/4" - 7/8"
  GP-BKOFFSS1215	12"	15 Ton	1"
  GP-BKOFFSS1412	14"	12 Ton	3/4" - 7/8"
  GP-BKOFFSS1615	16"	15 Ton	1"
  GP-BKOFFSS1812	18"	12 Ton	3/4" - 7/8"
  GP-BKOFFSS1815	18"	15 Ton	1"
