Grote Die Cast 7 Pole Split Pin Socket

Leave a Review

Shop all Grote products

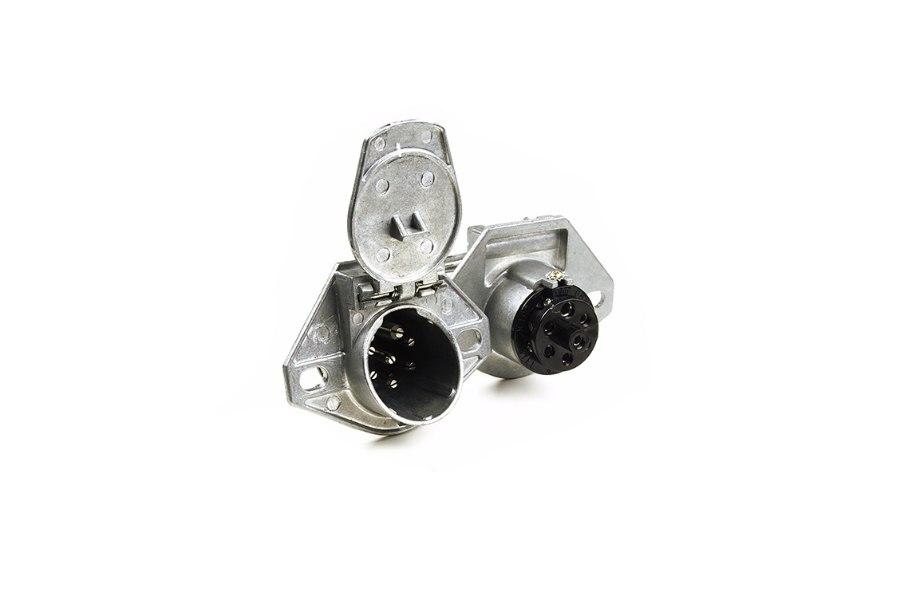

Picture of Grote Die Cast 7 Pole Split Pin Socket

SKU: GRT-82-1002

Price: $15.39

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

One of the biggest ways to ruin electronics is by exposing it to corrosion. That’s why this 7-pole, die-cast split pin socket from Grote was made with corrosion-resistant housing. By protecting the solid brass pin terminals from being exposed to the elements, they won’t get corroded or damaged. As a result, it has a longer lifespan.

On top of that, it works with a variety of products. With its SAEJ560 compliance, you can trust that the sockets can seamlessly integrate with other compliant devices. This allows for better reliability because you know what it will work with. Plus, the solid brass pin terminals provide the best conductivity, so you know that it will get the job done.

Amperage: 40 Amp @ 6-28V DC
Standards: SAE J560
Mtg Hole: 1/2", 2
Conductor: 7
Terminals accept 16-10 gauge wires; 8 gauge ground wire
Material: zinc die-cast
Product Type: socket
Terminals: enclosed, split pin
Circuit identification on the back of the socket
Solid brass pin terminals for best conductivity
Housing provides superior corrosion resistance
Plated-steel cable guards prevent cable chafing
Terminals accept from #16 wire to #8 ground wire
Circuit identification on the back of the plug & socket

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #
GRT-82-1002	82-1002	621935000660
