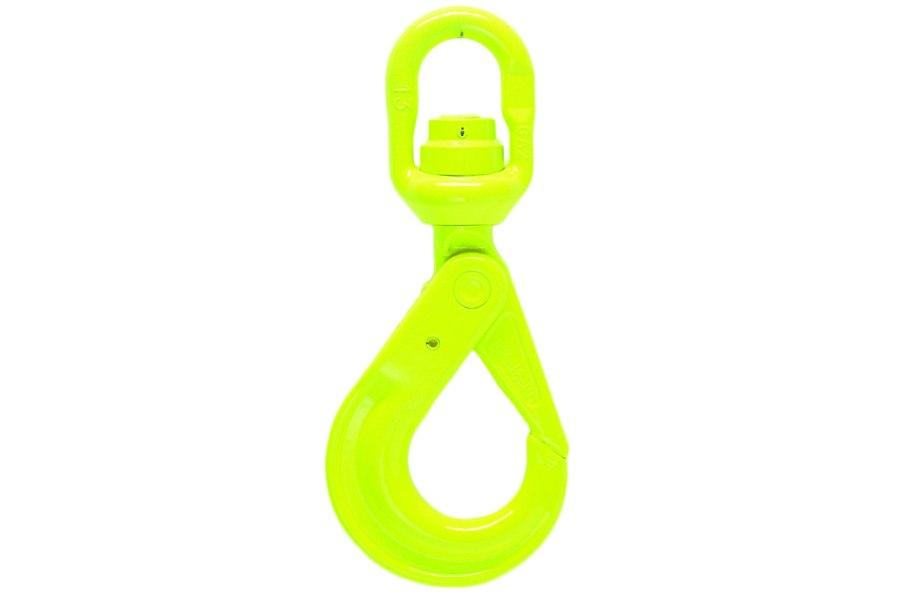

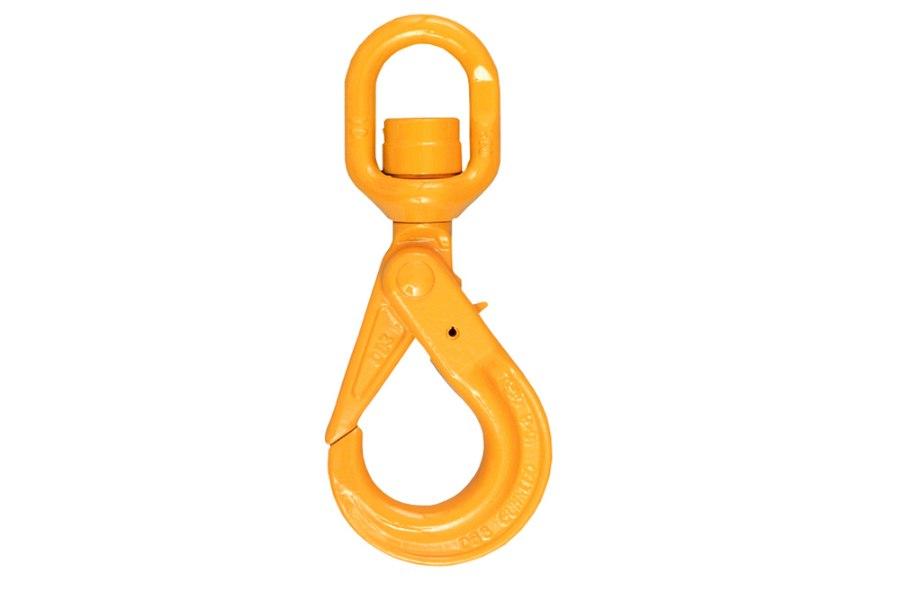

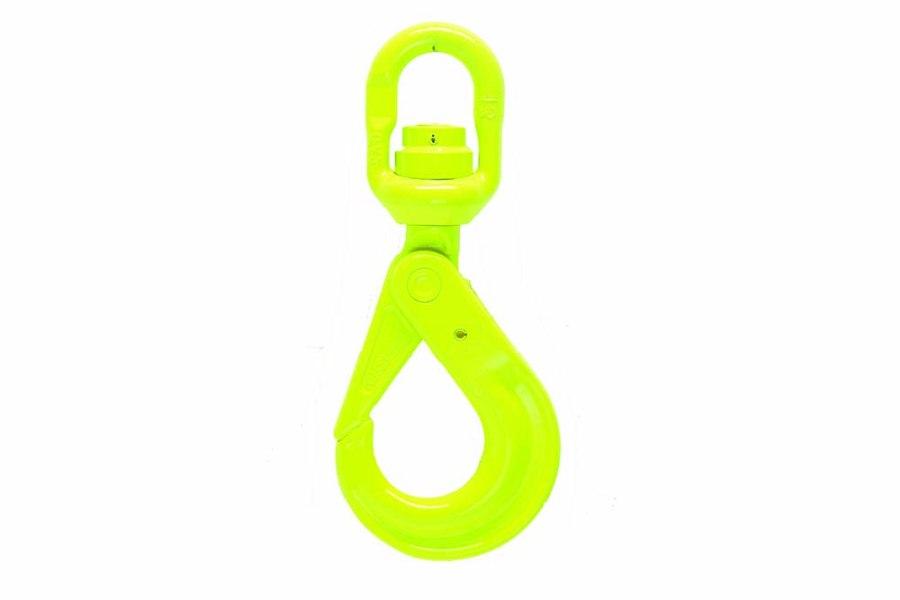

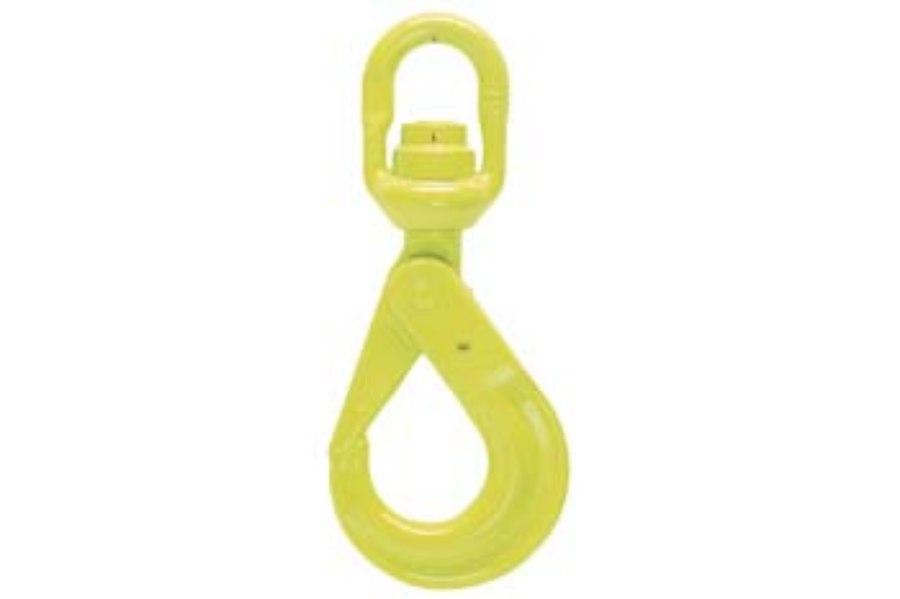

Gunnebo GrabiQ Swivel Safety Hook BKLK

Leave a Review

Shop all Gunnebo products

Picture of Gunnebo GrabiQ Swivel Safety Hook BKLK

Choose SIZE *: 7/32" - 3,306 WLL

7/32" - 3,306 WLL

Not available

1 1/4" - 72,300 WLL

1 1/4" - 72,300 WLL

Not available

5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

3/4" - 35,300 WLL

3/4" - 35,300 WLL

Not available

7/8" - 44,080 WLL

7/8" - 44,080 WLL

Not available

1" - 60,169 WLL

1" - 60,169 WLL

Not available

SKU: GI-SWIVELSAFEHK-BKLK

Price: $250.99–$6,303.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

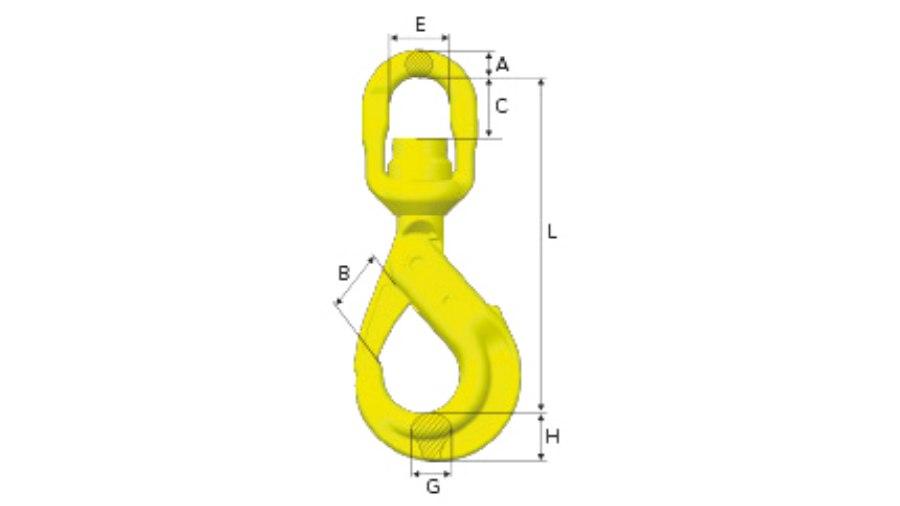

Item #	GI-Z101116	GI-Z101106	GI-Z101030	GI-Z101038	GI-Z101046	GI-Z101095	GI-Z101294	GI-Z101295
Code	BKLK-6-10	BKLK-7/8-10	BKLK-10-10	BKLK-13-10	BKLK-16-10	BKLK-18/20-10	BKLK-22-10 OS	BKLK-26-10 OS
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	44,080	60,169
L	5.87	7.20	8.58	11.02	13.35	14.49	17.17	19.13
B	1.14	1.46	1.77	2.17	2.44	2.68	3.11	3.94
C	0.94	1.06	1.38	1.77	2.44	2.36	3.15	4.33
E	1.30	1.50	1.73	1.89	2.40	2.83	3.15	4.02
A	0.43	0.47	0.59	0.75	0.98	1.22	1.38	1.77
G	0.59	0.67	0.83	1.18	1.46	1.73	1.97	2.13
H	0.83	1.02	1.22	1.57	1.97	2.44	2.44	2.68
Weight lb	1.54	2.65	4.41	8.82	16.09	25.35	37.04	57.32
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. For larger sizes, see Classic Grade 8. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101116	GI-Z101106	GI-Z101030	GI-Z101038	GI-Z101046	GI-Z101095	GI-Z101294	GI-Z101295
Code	BKLK-6-10	BKLK-7/8-10	BKLK-10-10	BKLK-13-10	BKLK-16-10	BKLK-18/20-10	BKLK-22-10 OS	BKLK-26-10 OS
WLL tonnes*	1.5	2.6	4.0	6.8	10.3	16.0	20.0	27.3
L	149	183	218	280	339	368	436	486
B	29	37	45	55	62	68	79	100
C	24	27	35	45	62	60	80	110
E	33	38	44	48	61	72	80	102
A	11	12	15	19	25	31	35	45
G	15	17	21	30	37	44	50	54
H	21	26	31	40	50	62	62	68
Weight kg	0.7	1.2	2.0	4.0	7.3	11.5	16.8	26.0
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. For larger sizes, see Classic Grade 8. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	GTIN #	Size
GI-Z101030	Z101030	--	3/8" - 8,800 WLL
GI-Z101038	Z101038	--	1/2" - 15,000 WLL
GI-Z101106	Z101106	--	5/16" - 5,700 WLL
GI-Z101294	Z101294	--	7/8" - 44,080 WLL
GI-Z101344	Z101344	--	1 1/4" - 72,300 WLL
GI-Z101295	Z101295	--	1" - 60,169 WLL
GI-Z101116	Z101116	--	7/32" - 3,306 WLL
GI-Z101046	Z101046	7318953539960	5/8" - 22,600 WLL
GI-Z101095	Z101095	--	3/4" - 35,300 WLL
