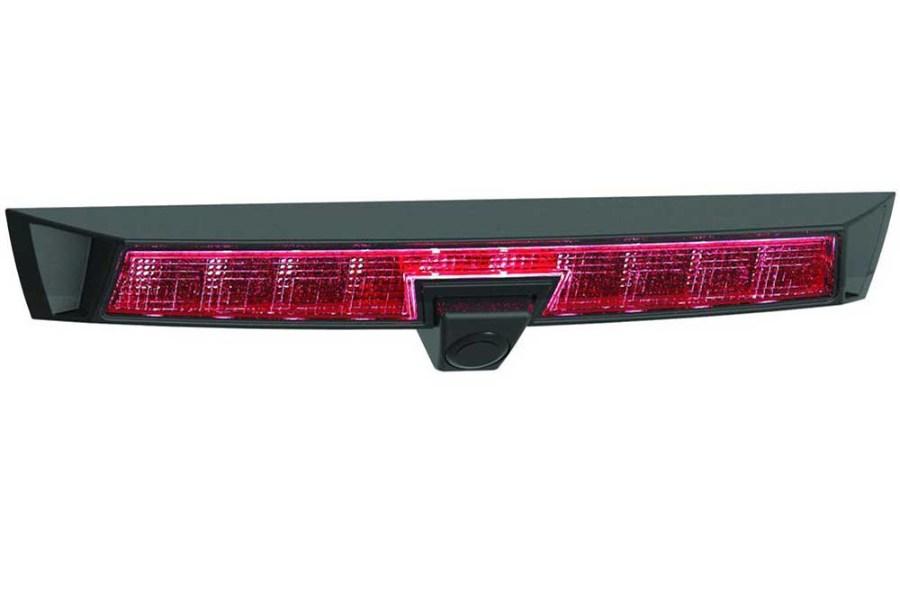

CHMSL Specifications:
Operating Voltage: 12Vdc
Operating Current: 0.2A @ 12Vdc
Power Consumption: 2W
Temperature Range: -40°C to +85°C
Ingress Protection: IP65
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Compliance: FMVSS108

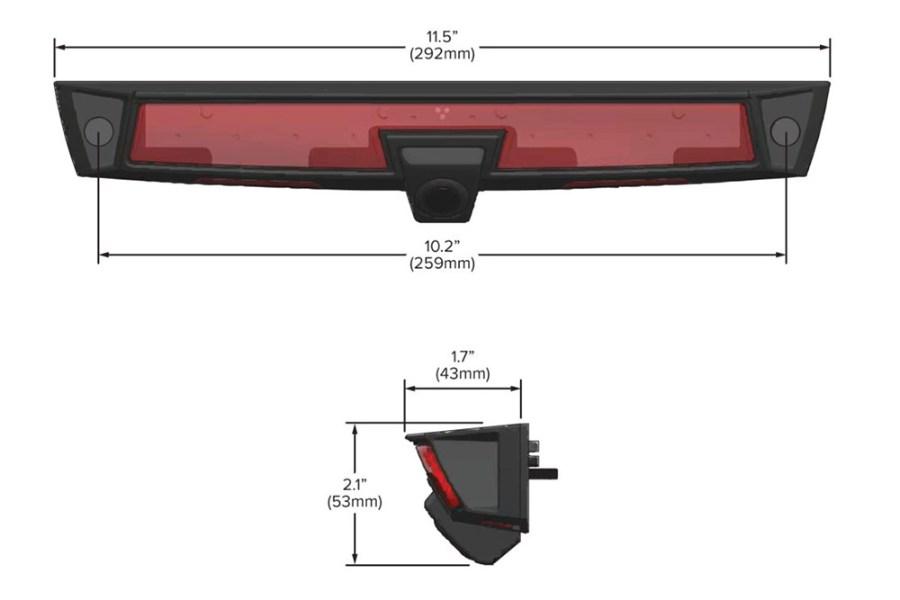

11.5"L x 2.1"H x 1.7"D
Camera Specifications:
View Angle: 170?
Night Vision: Yes
Operating Voltage: 12Vdc
Operating Current: 110mA
Temperature Range: -40?C to +85?C
Ingress Protection: IP68
Guidelines Enabled: Yes

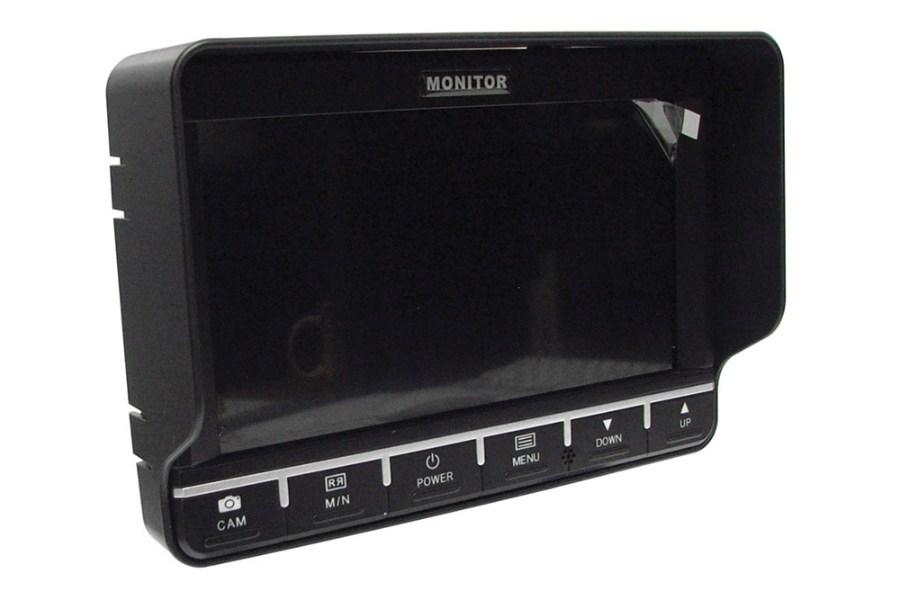

Monitor Specifications:
Operating Voltage: 12Vdc
Screen Size: 7 with TFT Panel
Aspect Ratio: 16:9 Image
System: PAL and NTSC Auto Switching
Overall Dimensions: 7.5 x 5.25 x 2.25
Resolution: 800 x 480 (RGB)
Brightness: 450cd/m2
Guidelines: Red, Blue, Green & Yellow
Speaker: Built-In
Video Output: Colour
Video Input: 2-Way Video Input with 2-Way Reversing Cable
Temperature Range: -20?C to +70?C
Storage Temperature: -30?C to +80?C
Mounting: Includes Bracket Hardware
Extension Cable: 30 Industrial Grade PVC Jacketed Video Cable w/ Steel Shell
Swivel Locking Connectors
Connector Cables: Yes
