InPower Stand Alone Throttle - 2020 F250-F550

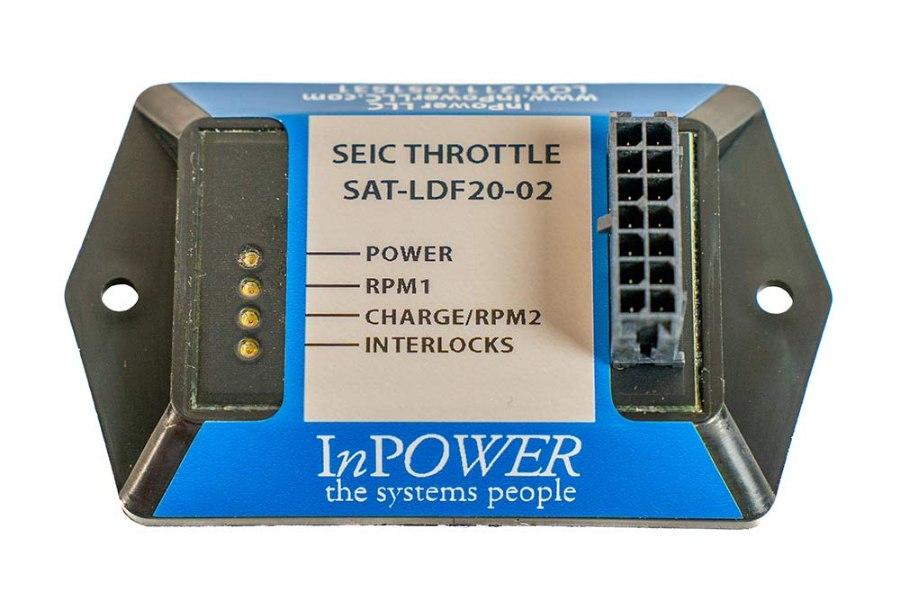

InPower s SAT-LDF20 Throttle provides high idle engine RPM control for vehicles with an SEIC connector (F250-F550) directly. The SAT-LD has a blunt cut wire harness available if no SEIC connector is available for direct connect under the hood connection to available wiring. The LDF20 control module connects to the vehicle s SEIC connector. The cable also includes blunt-cut wires for the operating mode inputs, RPM1, RPM2\Charge, and the speed adjustment whereas the SAT-LD has blunt cut wires for all interfaces.

• Fits 2020 Ford F250-F550
• SEIC Throttle with Connector
• 2 RPM
• 12V Enable

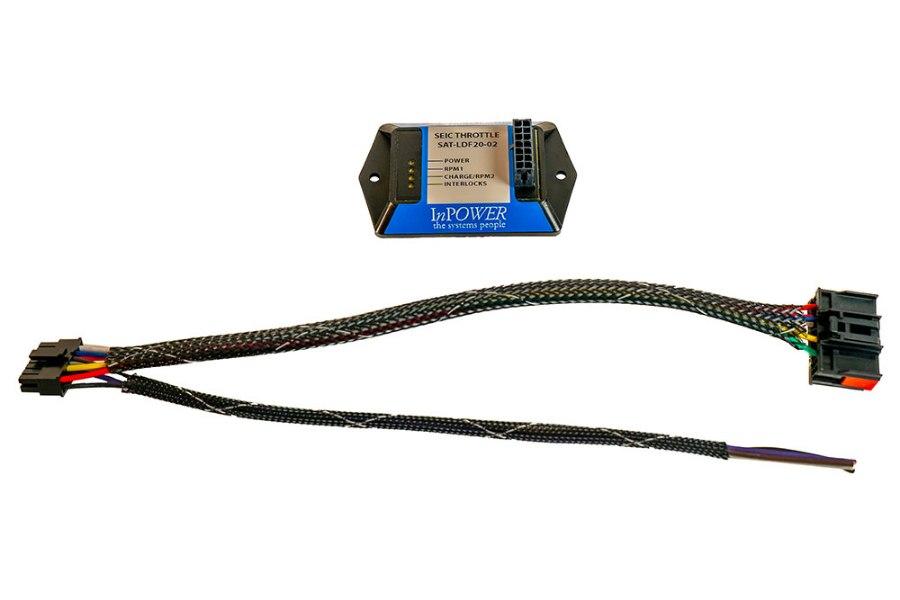

• SAT-LDF20 Cable connects to SEIC connector on vehicles so equipped and the SAT-LD has a fully blunt-cut harness for vehicles without.
• Automatic charge protect and fixed speed modes.
• Customized functions are available.
• Operation of the two is identical, and the only differentiation is the harness.
• Low cost with fast and easy installation.
• Adjustable RPM Speed Settings.
• LED status and diagnostic indicators.


  Specifications

• +12 volts: Sourced from SEIC connector (SAT-LDF) or from fused Ignition source SAT-LD
• RPM1: +12 volts or ground as determined by software (see ordering guide)
• RPM2: +12 volts or ground as determined by software (see ordering guide)
• Ground: Sourced a Good Solid Battery Ground
• Speed Adjust Input: Adjusts preset RPM to desired value between 900 and 3000 RPM - (SEIC Max), (Chassis and Engine Dependent). Connect to +12V to increment, GND to decrement (50RPM/Sec).
• Dimensions: 3.17 L x 1.92 W x 0.79 H inches
