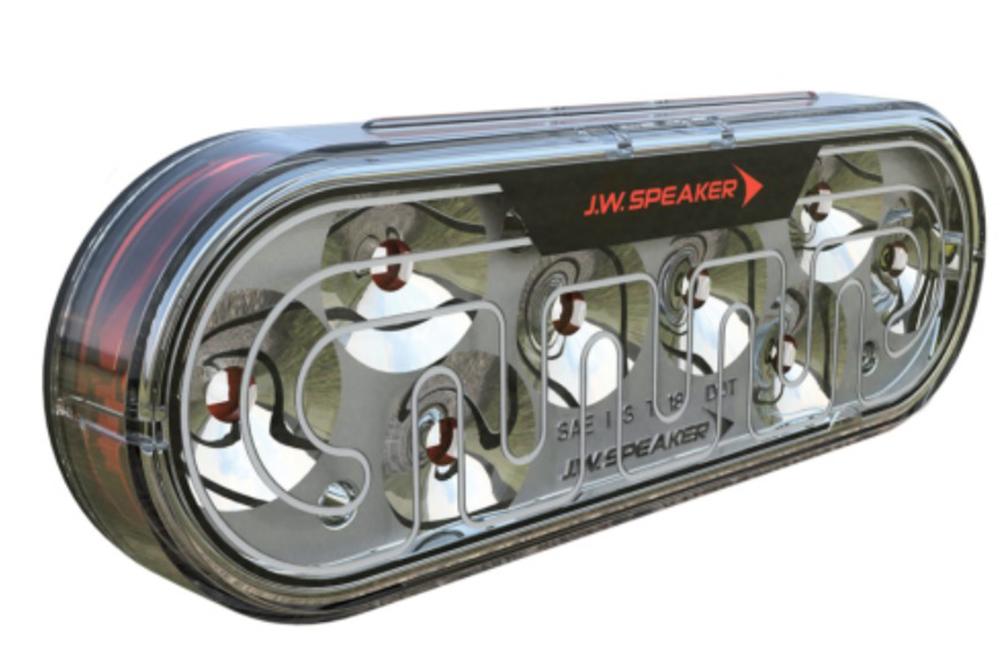

JW Speaker Heated Red Stop, Tail, & Turn Light

Leave a Review

Shop all JW Speaker products

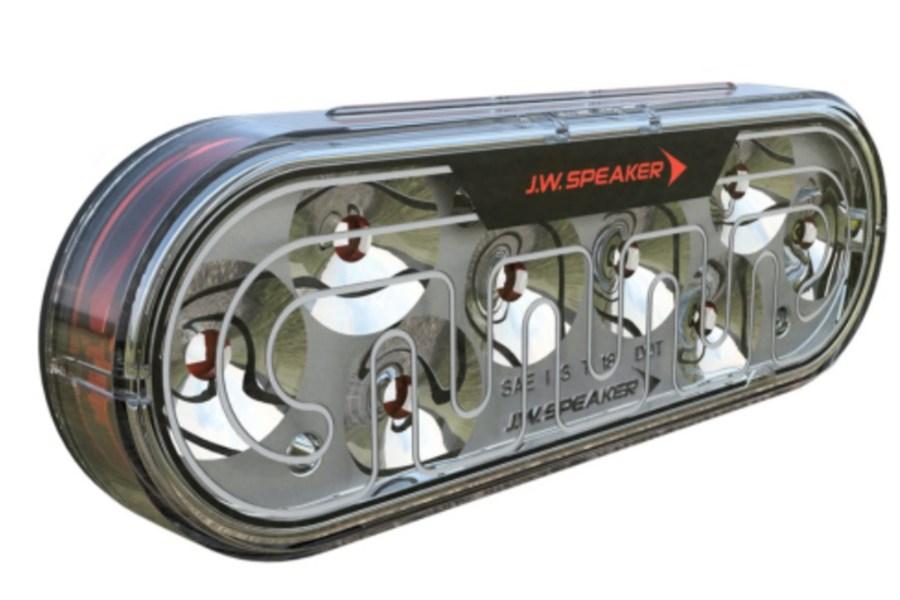

Picture of JW Speaker Heated Red Stop, Tail, & Turn Light

Choose Style *: Harness

Harness

Not available

No Harness

No Harness

Not available

SKU: JW-034670

Price: $77.99–$87.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

When winter hits, it can be annoying to scrape off every single light to make sure it shines as brightly as the day it was installed. And, if you decide to leave the snow and ice buildup, you can cause accidents due to obscured lights. That’s what the JW Speaker Heated Red Stop, Tail, & Turn Light takes care of. With its SmartHeat technology, you won’t have to deal with the buildup anymore as the light will heat up enough to melt it.

This light is also very durable. With an IP69K rating, you can trust it will hold up in demanding environments that might include dust, high-pressure, high-temperature water jets and more. Plus the polycarbonate lens and housing provide impact resistance. This means they aren’t likely to break anytime soon.

Retrofits standard 6"" oval lights
Stop, tail, and turn light
LED
Flange, grommet, and L-shaped bracket mounting options
IP69K rating
DOT and Transport Canada compliant (section 108 FMVSS), SAE (J585, J586, J588), and ECE Reg. 10 compliant
Optional flash and strobe feature
SmartHeat technology
360 degree lighting solution (Model 274 lights)
Applications in agriculture, construction, industrial, specialty vehicles, trucks, and buses
Dimensions (HxWxD): 2.24" x 6.52" .83"
Outer lens cover: clear
Polycarbonate lens and housing
Black housing
Red bezel
Operating temperature range: -40 °F to 122 °F
Product weight: .35 lbs
3-Pin AMP connector
Input Voltage 10-30V DC
Operating Voltage: 12-24V DC
Transient Spike Protection 150V Peak @ 1 HZ-100 Pulses
Current Draw:
0.15A @ 12V DC (Turn)
0.15A @ 24V DC (Turn)
0.15A @ 12V DC (Stop)
0.15A @ 24V DC (Stop)
1.2A @ 12V DC (Tail Heated)
1.2A @ 24V DC (Tail Heated)

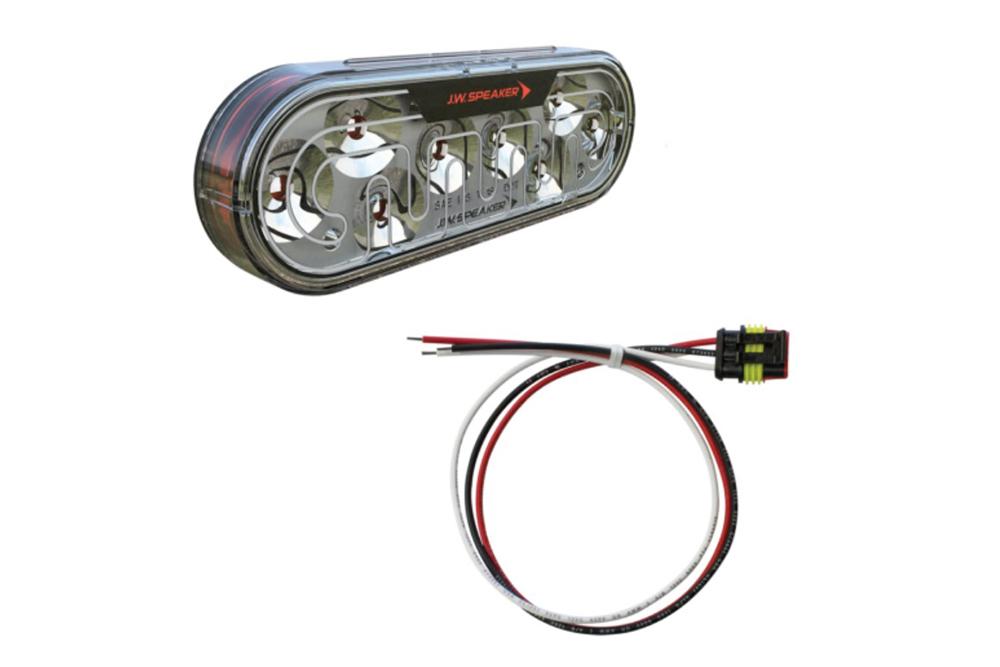

Wiring harness included on Part #0346704 only
Black wire must be connected for heat to operate
Made in the USA

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #	STYLE
JW-0346704	346704	750958178770	Harness
JW-0346701	346701	750958178695	No Harness
