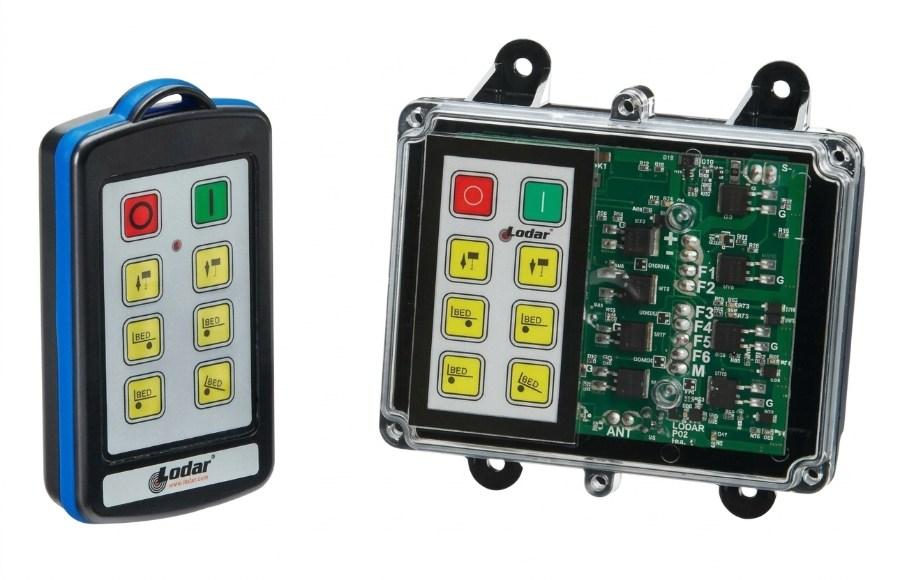

Lodar 6 Function Wireless Remote System with Key-on Receiver and IP Transmitter

For custom button inserts, please give us a call to order.  Here are the available options: Button Images
Complete plug-and-play wireless control system - includes the IP handheld transmitter and the FET receiver, coded together at the factory and ready to wire to your equipment. Operates 6 functions on the Lodar 9 Series.

The 6 Function Lodar IP Wireless System (92206K-8) gives you 6-function wireless control with a 150 ft (45 m) range. DC FET output switching, 10 A per output (15 A system total), 12/24V DC. It includes a master output - an additional output that energizes whenever any function is operated, for equipment that has to run alongside the controls (a hydraulic power unit during a lift, or a beacon while winching).

What does the keypad receiver add?
The keypad receiver lets you operate the 6 functions directly at the receiver with a built-in keypad, as a backup to the wireless handset. Confirm your power supply: this system runs on 12/24V DC. Each FET output is rated to 10 A, with the system rated to 15 A total across all outputs. Run several heavy functions at once and the combined draw can reach that 15 A ceiling, where the overload protection trips to protect the board. Solid-state switching means there are no mechanical relay contacts to wear or arc. It is the current standard across the Lodar line — choose it for functions that draw more than the 5 A per output a mechanical relay handles.

• 6 functions of wireless control
• IP (Industrial Pro) transmitter - IP 65 rated
• FET receiver - solid-state DC switching, 10 A per output (15 A system total), 12/24V DC, wide band, IP 65 rated
• 12/24V DC operating voltage
• 150 ft (45 m) operating range
• Keypad receiver - operate functions at the receiver as a wired backup
• Master output - fires on every function for run-along equipment
• Lodar SKU 92206K-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.
