Please call for custom faceplate options. All default faceplates on 6+ function transmitters will be numbered.
Note:
Receiver and Transmitter must have the same frequency indicated by the last digit in the model number.
Example TX1002-3 needs P92102TX-3 (-3 indicates the frequency)
Functions |
Part Number |
Operating
Distance |
Operating
Voltage |
Max
Amps |
Master
Output |
Channel |
Frequency |
Receiver IP Rating |
Series |
Transmitter |
Transmitter
Batteries |
Transmitter
IP Rating |
Type |
Includes |

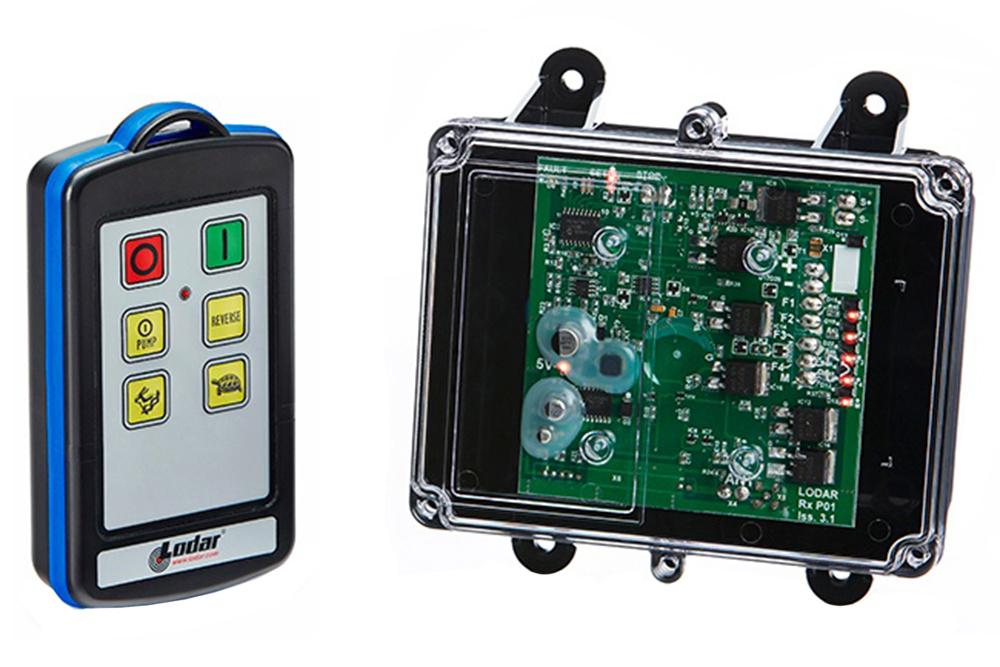

4 |
P92204-8 |
200 ft. (61 m.) |
12/24
Volts DC |
15 |
Yes |
Wide Band,
Fixed |
418 MHz |
IP 65 |
9000 Series |
Industrial Pro |
AAA x 4 |
IP 65 |
Full
System |
1 x (9204RX-8) 4 Function Lodar FET Receiver | 92 Series
1 x (92204TX-8) 4 Function Lodar IP Transmitter | 9000 Series
1 x Instructions
1 x Lanyard |

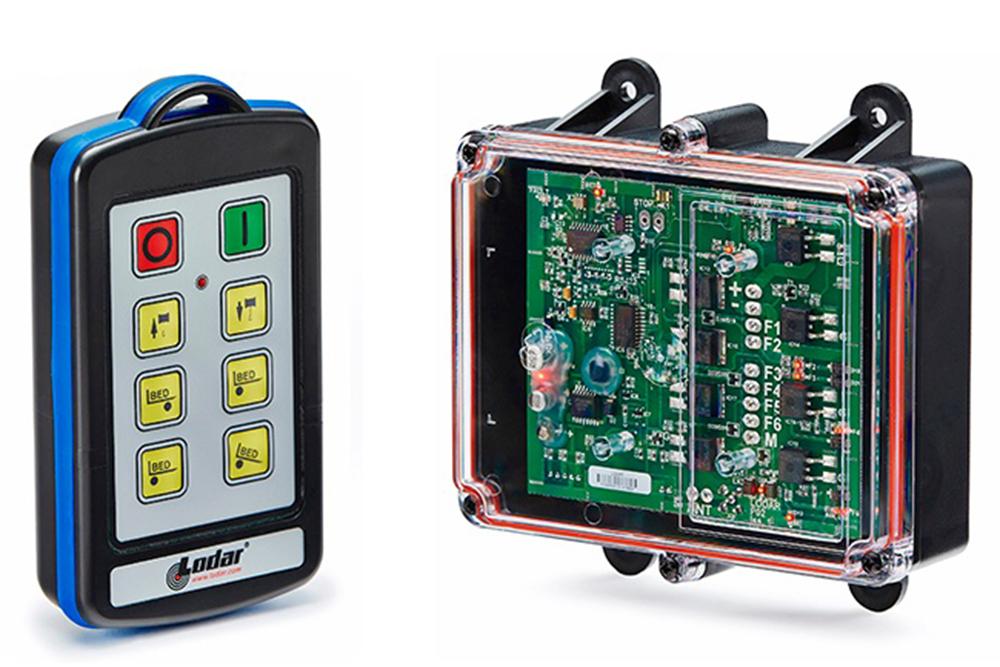

6 |
P92206-8 |
200 ft. (61 m.) |
12/24
Volts DC |
15 |
Yes |
Wide Band,
Fixed |
418 MHz |
IP 65 |
9000 Series |
Industrial Pro |
AAA x 4 |
IP 65 |
Full
System |
1 x (9206RX-8) 6 Function Lodar FET Receiver | 92 Series
1 x (92206TX-8) 6 Function Lodar IP Transmitter | 9000 Series
1 x Instructions
1 x Lanyard |

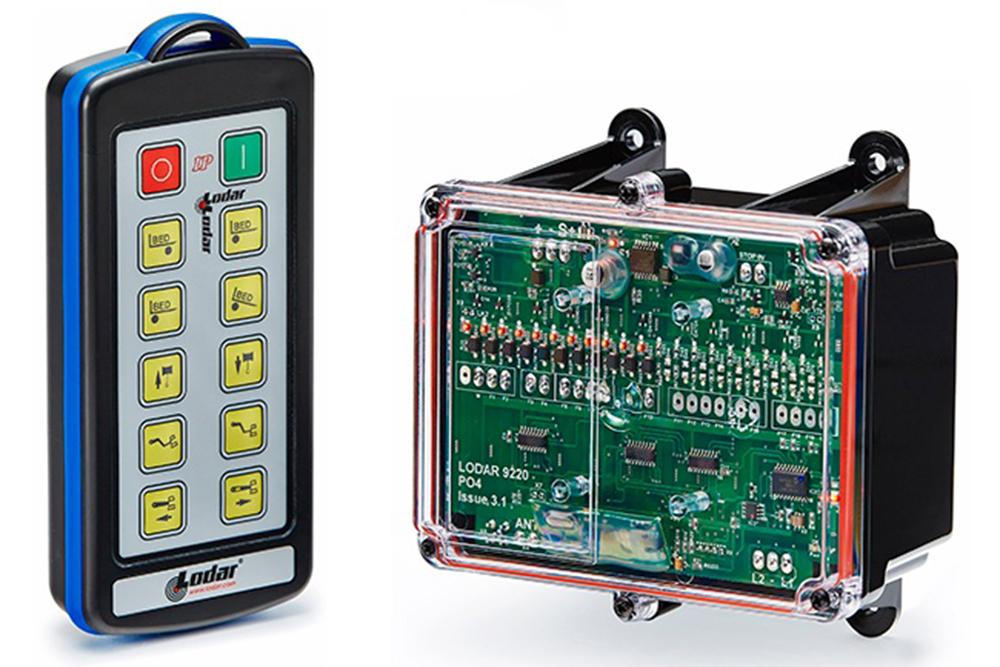

10 |
P92210-8 |
200 ft. (61 m.) |
12/24
Volts DC |
15 |
Yes |
Wide Band,
Fixed |
418 MHz |
IP 65 |
9000 Series |
Industrial Pro |
AAA x 4 |
IP 65 |
Full
System |
1 x 9210RX
1 x (92210TX-8) 10 Function Lodar IP Transmitter | 9000 Series
1 x Instructions
1 x Lanyard |
16 |
P92216-8 |
200 ft. (61 m.) |
12/24
Volts DC |
15 |
Yes |
Wide Band,
Fixed |
418 MHz |
IP 65 |
9000 Series |
Industrial Pro |
AAA x 4 |
IP 65 |
Full
System |
1 x (9216RX-8) 16 Function 12/24 Volt Lodar Receiver | 92 Series
1 x (92216TX-8) 16 Function Lodar IP Transmitter | 9000 Series
1 x Instructions
1 x Lanyard |

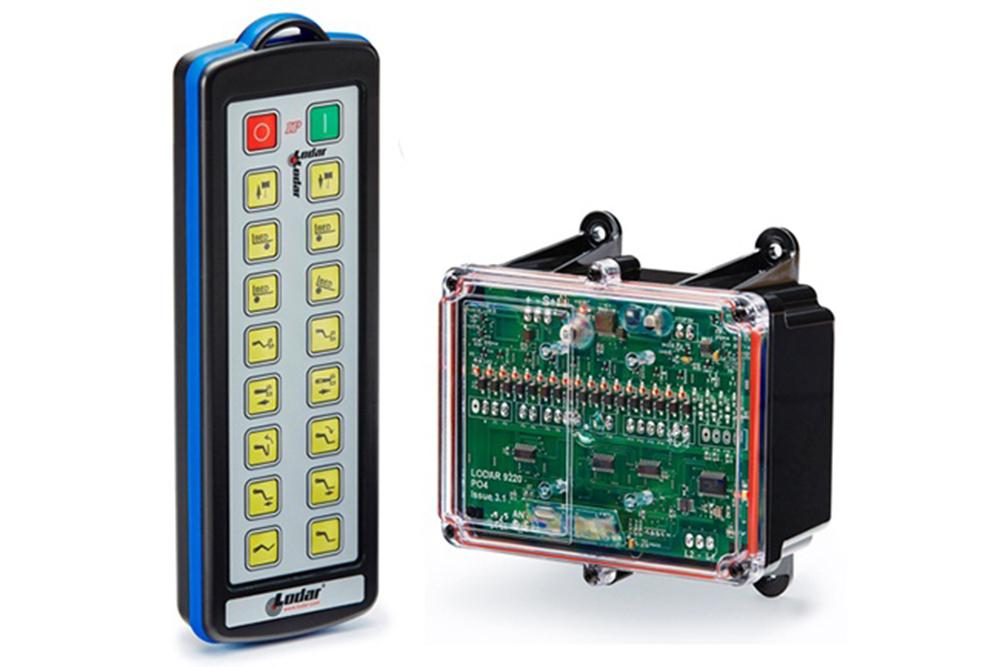

20 |
P92220-8 |
200 ft. (61 m.) |
12/24
Volts DC |
15 |
Yes |
Wide Band,
Fixed |
418 MHz |
IP 65 |
9000 Series |
Industrial Pro |
AAA x 4 |
IP 65 |
Full
System |
1 x (9220RX-8) 20 Function 12/24V Lodar FET Receiver | 92 Series
1 x (92220TX-8) 20 Function Lodar IP Transmitter | 9000 Series
1 x Instructions
1 x Lanyard |
