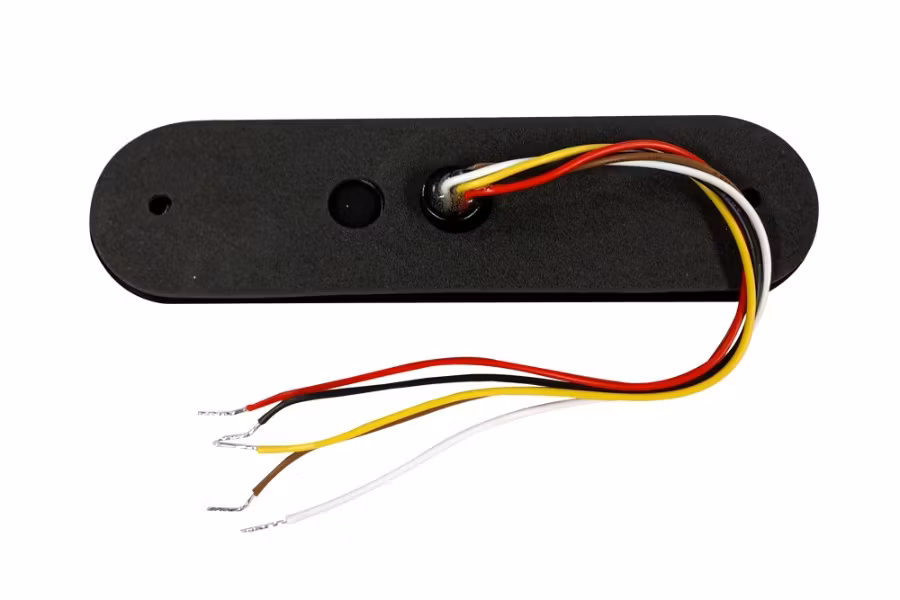

Maxxima Quad Color Warning LED

The Surface Mount Warning Quad Color Light from Maxxima is a versatile and powerful lighting solution featuring four colors in one light. Powered by 24 LEDs (six red, six blue or green, six amber and six white), it offers a variety of different functions. These include 28 selectable flash patterns, 15 selectable flash color options and up to 11 programmable “modes” for you to get the exact lighting experience you need.

The light meets SAE J595 Class 1 & CA Title 13 standards. Constructed with a durable polycarbonate lens and aluminum housing, it comes with a black bezel for a sleek, low-profile design. The light operates on 12/24VDC with an amp draw of 0.8A at 12VDC and 0.4A at 24VDC.

• 4 colors in one light
• Each color fills the whole light
• 24 LEDs (6 Red, 6 Blue or Green, 6 Amber, 6 White)
• 28 selectable flash patterns
• 15 selectable flash color options
• Up to 11 programmable “modes”
• Dimming feature
• Synchronized & alternating patterns
• SAE J595 Class 1 & CA Title 13
• Polycarbonate lens & aluminum housing
• Black bezel included
• Low-profile design
• 5-year warranty
• Voltage 12/24VDC
• Amp draw 0.8A 12VDC / 0.4A 24VDC
• Dimensions:
• Light only 5.6” W x 1.6” H x 0.5” D
• With bezel 5.9” W x 1.6” H x 0.5” D
• Mounting 2-hole surface, 4.7” C to C
• Connector 5 leads blunt cut, 7”
