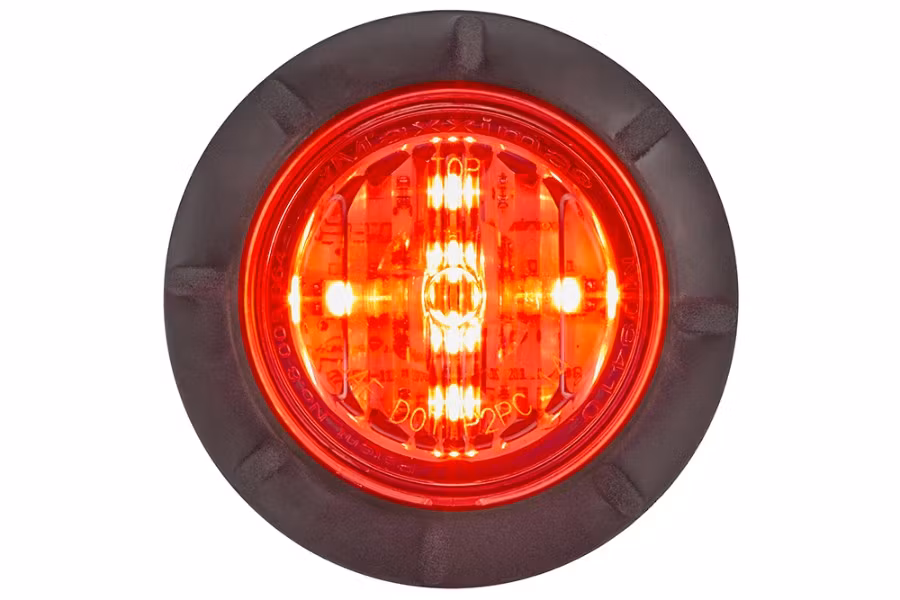

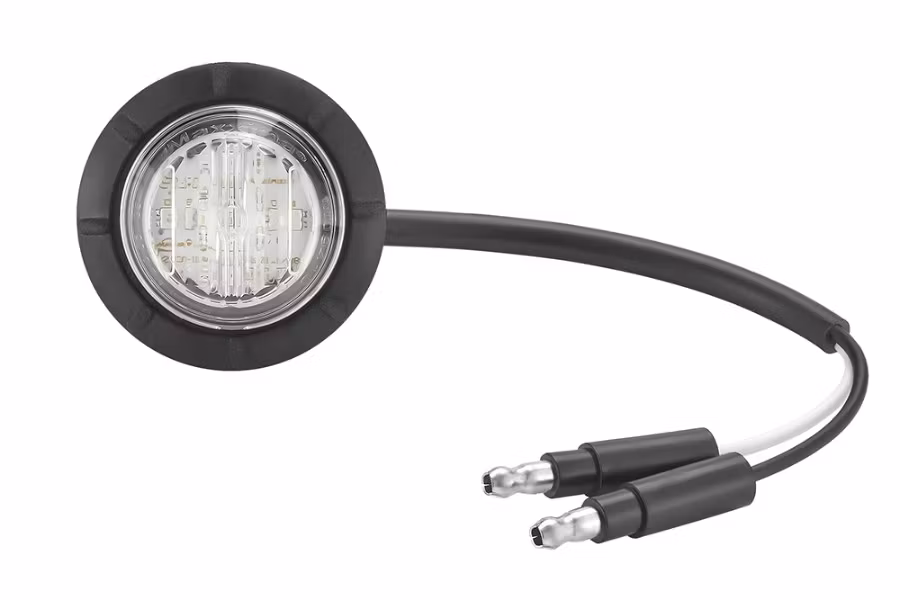

Maxxima Red 1.25" Round Clearance Marker - Clear Lens

The Maxxima M09410RCL is a compact 1.25” round LED clearance and marker light featuring a clear lens with red illumination, designed to deliver reliable performance and maximum visibility in a low-profile form. Built with Maxxima’s patented Lightning Lens® optic, it provides bright, uniform output with 180° visibility and meets P2, P3, and PC2 requirements for commercial applications. This versatile light installs easily using either the included grommet or 3M tape, requiring only a ¾” mounting hole, and comes pre-wired with 7” leads and .180” bullet connectors for quick installation. Constructed from durable polycarbonate to withstand harsh environments, the M09410RCL is ideal for trucks, trailers, and fleet vehicles, and is backed by a 5-year warranty for long-term reliability.

• Includes Mounting Grommet & 3M Tape
• Requires 3/4" Hole
• Grommet Mount or 3M Tape Mount
• 180° Visibility - PC/PC2 Rated
• Patented Lightning Lens Optic
• US Patent No 8,009,364
• US Patent No 8,717,679 B2
• Optional Steel Bezel (M50118)
• Polycarbonate Lens & Housing
• 5 Year Warranty
• LEDs: 6
• Voltage: 12.8VDC
• Amp Draw: 80 mA
• Dimensions: 1.25” Diam. x 1.0” D
• Mounting: Grommet or 3M Tape, 3/4" Hole Cutout
• Connector: (2) 7” Leads with .180” Bullet Connectors
• Legal Heading: P2/P3/PC2
• DOT/SAE: J592, J2042
