Maxxima Tri Color Warning LED

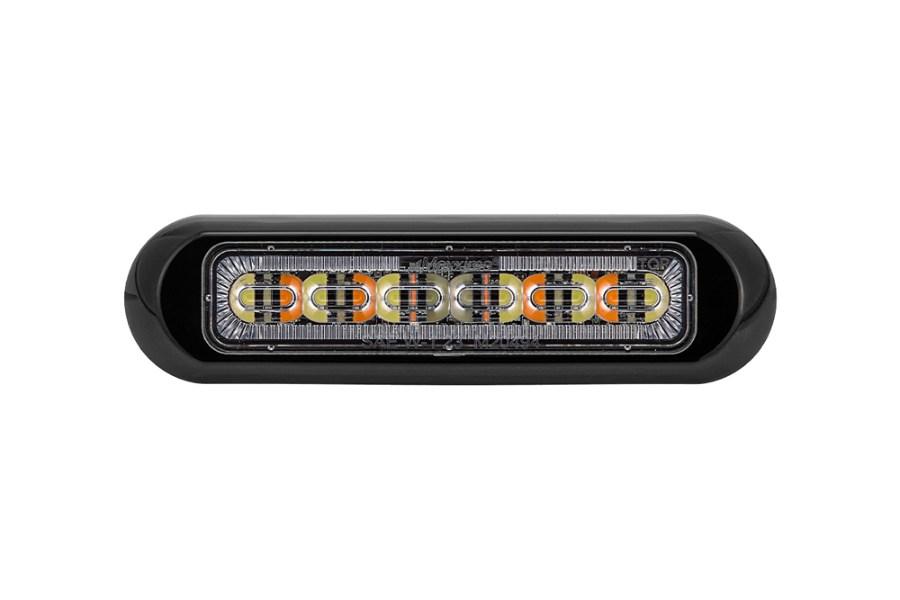

Maxxima tri color low profile surface mount flashing emergency warning light. Fully programmable, this light allows the installer to program the color option (7 to choose from), the flash pattern (28 to choose from), and also the brightness level (full or dim). Each of these settings can then be assigned to one of 11 available “modes” or memory slots using one or two wire combinations. This light is SAE Class 1 and CA Title 13 compliant. Multiple lights can be synchronized to flash simultaneously or alternately. It features an aluminum housing & polycarbonate lens, and is backed by a 5-year warranty.

• M20494-TC Tri Color-Series Available in 5 Models / Color Combinations
• Each Model Includes 3 Colors in One Light
• Each Color Fills The Whole Light
• 28 Selectable Flash Patterns
• 7 Selectable Flash Color Options
• Up to 11 Programmable “Modes”
• Programmable Dim Feature Available
• Synchronized & Alternating Patterns
• SAE J595 Class 1 & CA Title 13
• Polycarbonate Lens & Aluminum Housing
• Black Bezel Included
• Low Profile Design
• 5 Year Warranty
• Voltage 12/24VDC
• Amp Draw 0.8A 12VDC / 0.4A 24VDC

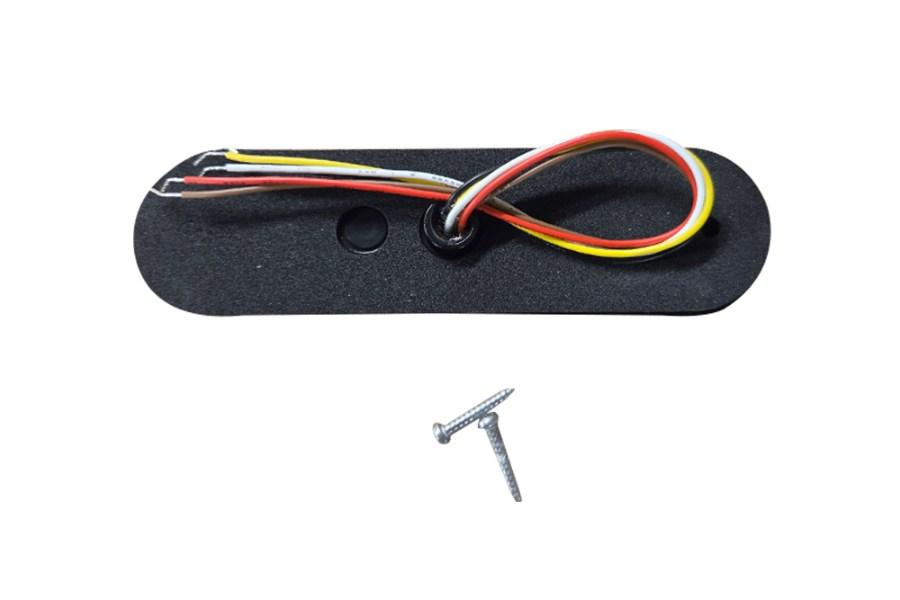

• Connector 5 Leads Blunt Cut, 7”
• LEDs 18
• Legal Heading W-1
• SAE J595 Class 1 CA13

Dimensions:

• Light Only 5.6” W x 1.6” H x 0.5” D
• With Bezel 5.9” W x 1.6” H x 0.5” D
• Mounting 2 Hole Surface, 4.7” C to C
