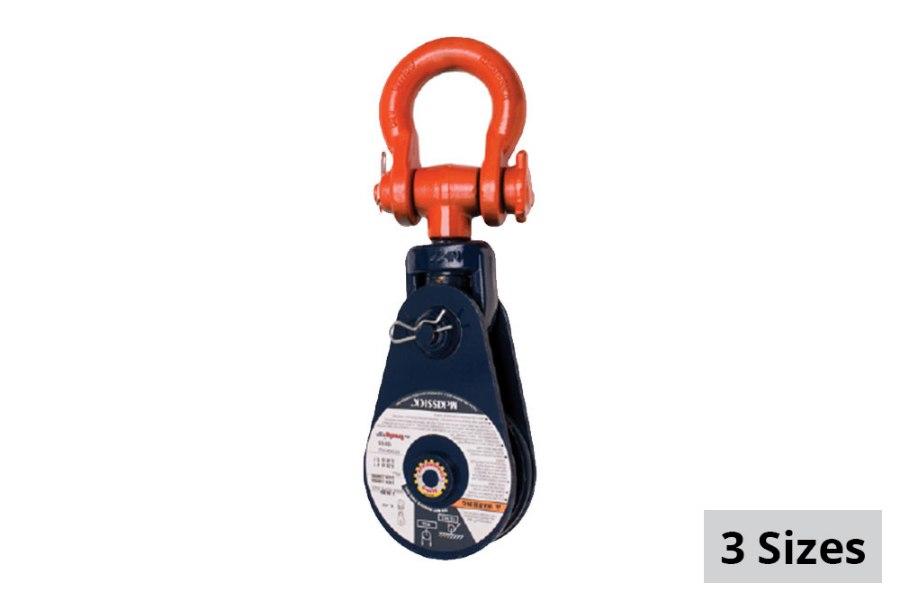

McKissick Snatch Block Model 419

With its sturdy shackle, the McKissick Snatch Block Model 419 offers a reliable connection. Not to mention this snatch block meets or exceeds all requirements of ASME B30.26. As a result, you know this snatch block will hold up.

The McKissick Snatch Block Model 419 works with either bronze bushings or roller bearings. This convenience is enhanced by its opening feature which allows the rope to easily be inserted without reeving. It also allows you to do so while it is suspended.

• Opening feature
• Can be furnished with bronze bushings or roller bearings.
• All sizes feature sheave grooves suited for a range of wireline diameters
• Meets or exceeds all requirements of ASME B30.26


Available in the following sizes



Item #	Sheave	WLL	Wire Rope Size
WS-109091	3"	2 Ton	5/16"-3/8"
WS-109064	4-1/2"	4 Ton	3/8"-1/2"
WS-109126	6"	8 Ton	5/8"-3/4"
WS-109224	8"	8 Ton	3/4"-7/8"
