Mico 4 Channel Anti-Lock Brake Lock System (Vehicles Over 19,000 lb. GVW)

Leave a Review

Shop all Mico products

Picture of Mico 4 Channel Anti-Lock Brake Lock System (Vehicles Over 19,000 lb. GVW)

Video of Mico 4 Channel Anti-Lock Brake Lock System (Vehicles Over 19,000 lb. GVW)

SKU: 02-691-403

Price: $2,069.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

MICO 691 Brake Lock Systems lock hydraulic pressure in the service brakes to supplement the vehicle's original equipment parking brake and provide extra holding in heavy-duty and high frequency applications. These systems also function as an interlock to apply pressure to the service brakes when other vehicle mounted equipment is being used.

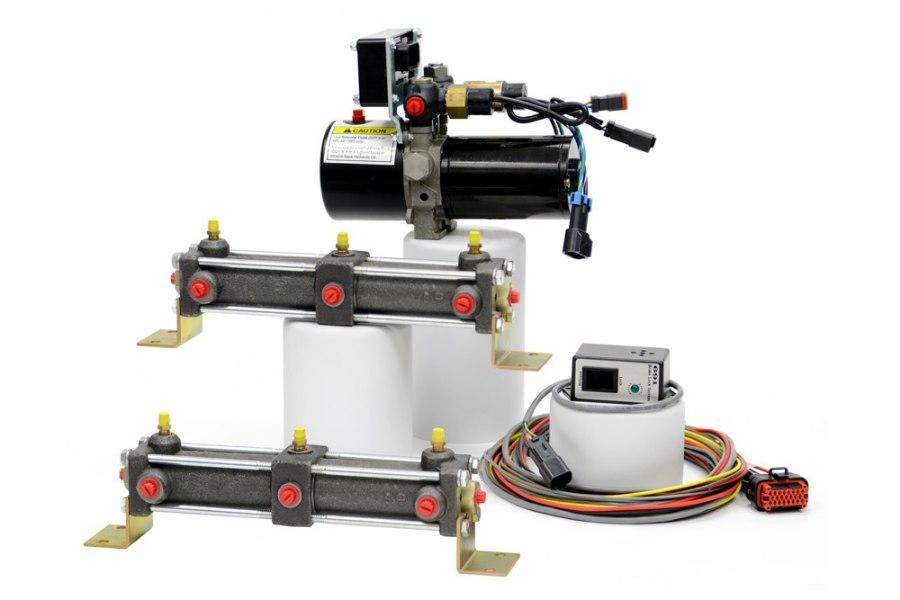

The 691 System consists of a small electrohydraulic pump, remote mounted actuator (single and/or dual), electronic control module, and a small dash mounted user interface. The operator simply activates a switch and the 691 System automatically applies, monitors, and maintains brake-locking pressure. A 691 Brake Lock will significantly enhance vehicle holding capability while not interfering with normal service brake function.

For vehicles over 19,000# GVW
Used on international 4600-4900 models
Four channel anti-Lock system
Self contained actuation system
800 psi line pressure
Self monitoring
Simple to operate; activates with a flip of a switch
Does not interfere with normal service braking
Provides added safety for vehicle, operator and work area
Supplements existing parking brake for additional holding

Documents

Brake Lock Application Guide

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #
02-691-403	02-691-403
