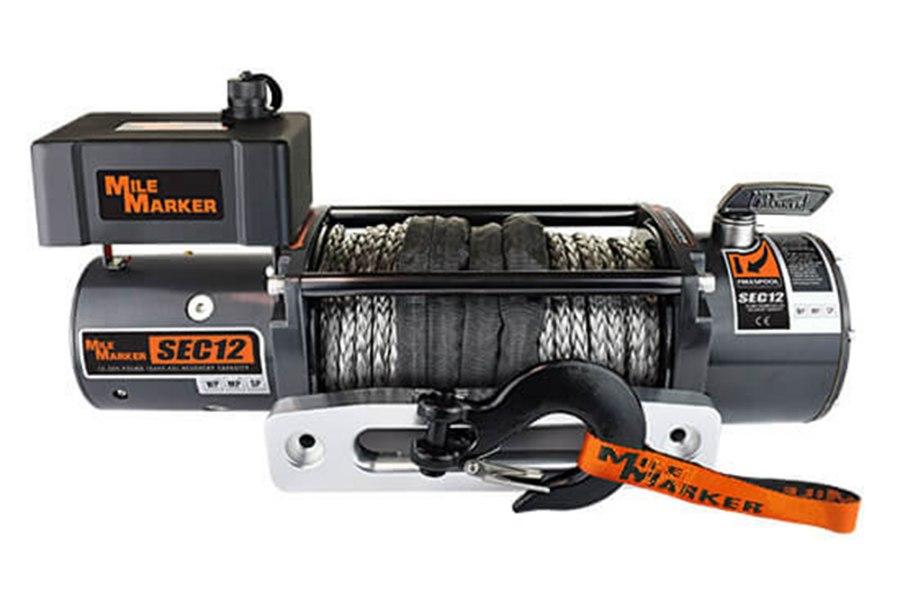

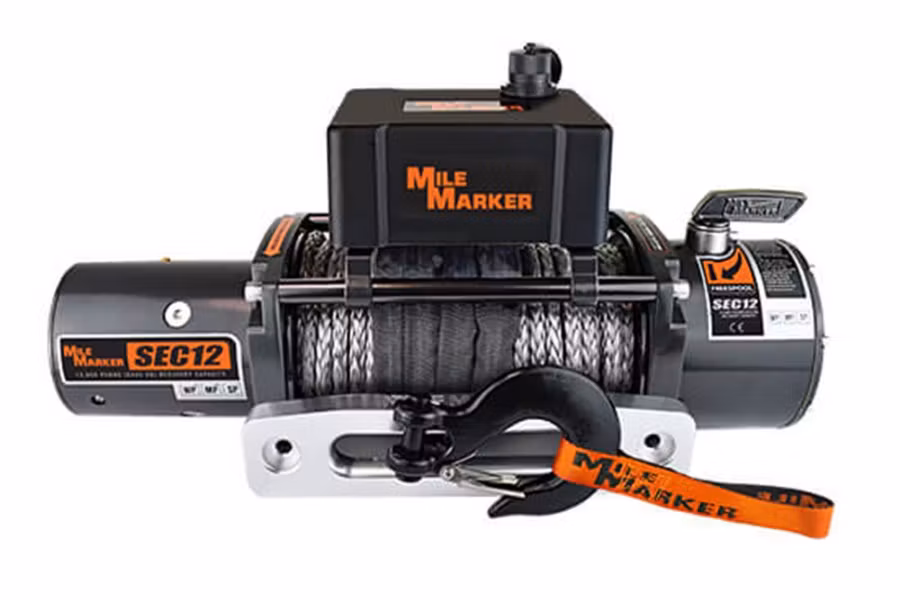

Mile Marker 12,000 lb Waterproof Electric Winch

The Mile Marker SEC12 premium Jeep/Truck/SUV winch with an impressive 12,000 pound pull strength stands up to the most aggressive off-road environments. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. With robust controls, fully sealed 400-amp solenoids and body, and an integrated kill switch, the SEC12 is an industry proven winch at an unmatched value.

Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC12 comes with a 3/8 x 100 steel cable, a roller fairlead, stainless steel hardware, corrosive-resistant, and a handheld remote control with a 12' cord.

• 4.9 HP Series Wound Motor
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Fast Line Speeds

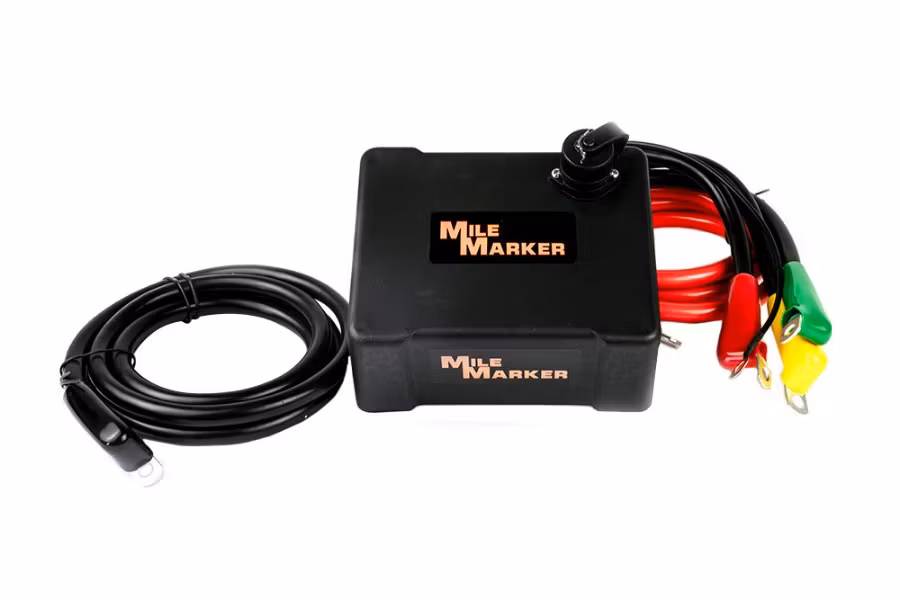

• Submersible, 400 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless Steel Fasteners

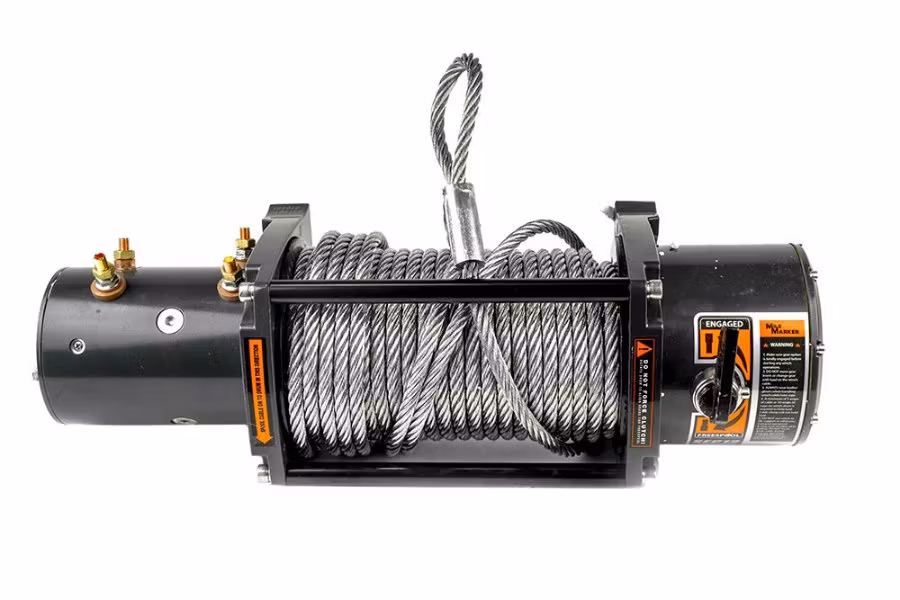

• 100' Steel Cable

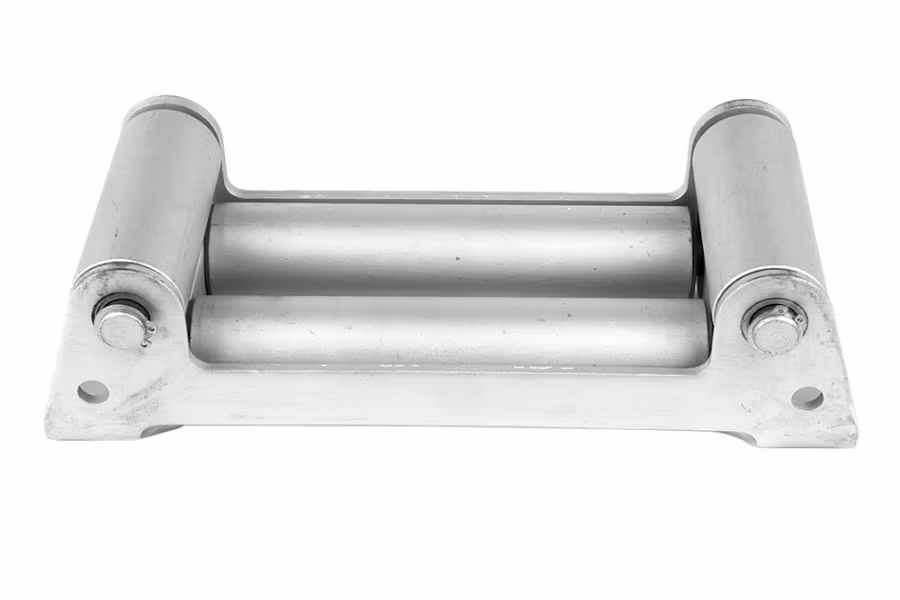

• Roller Fairlead
• Waterproof

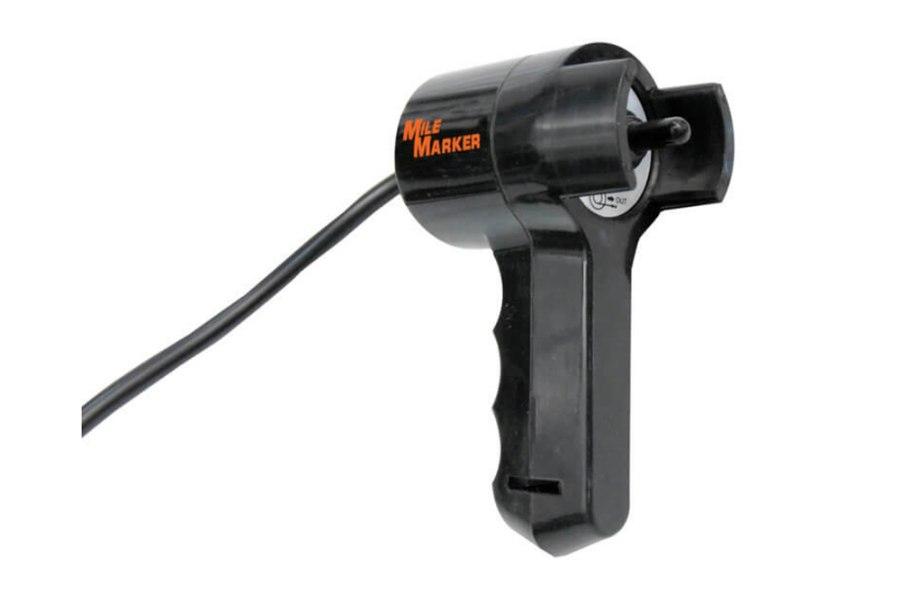

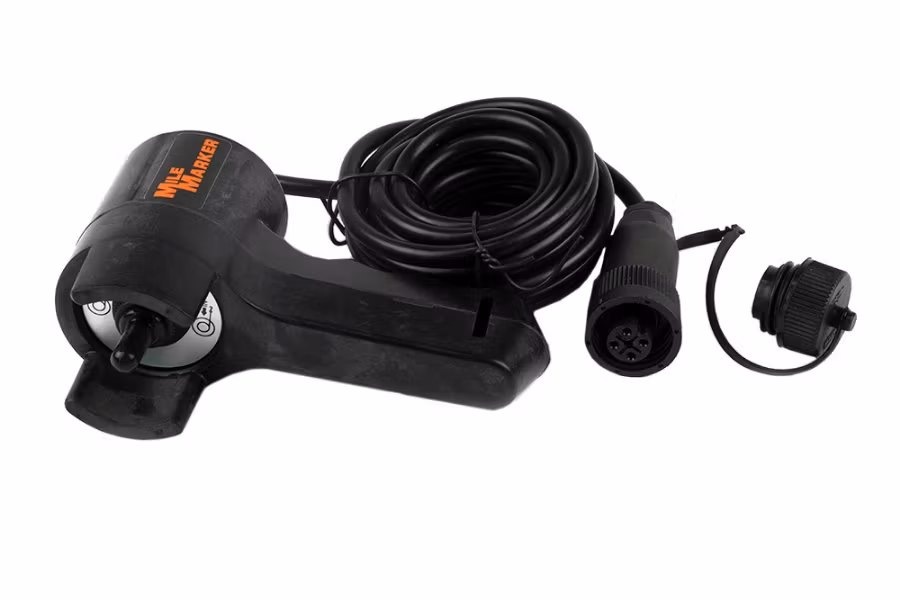

• Handheld Remote control

  Specifications

• Part Number: 76-50251BW
• Rated Line Pull: 12000 lbs (5443 Kgs)
• Gear Train: 3 Stage Planetary
• Gear Ratio: 294:1
• Motor: Series Wound, 4.9 hp (3.6 KW), 12V (24V available, call to order)
• Remote Control: Power In, Power Out Remote, 12
• Dimensions (LxWxH): 22.25 X 6.25 X 8.00 (565.2 mm X 158.8 mmX 203.2 mm)
• Steel Cable: 3/8 X 100 (9.53 mm X 30.5 m)
• Drum Size: 2.5 X 9 (63.5 mm X 228.6 mm)
• Net Weight: 92 lbs. (41.7 kg)
• Bolt Pattern: 4 Bolt Pattern, 4.5 X 10 , (114.3 mm X 254 mm)
