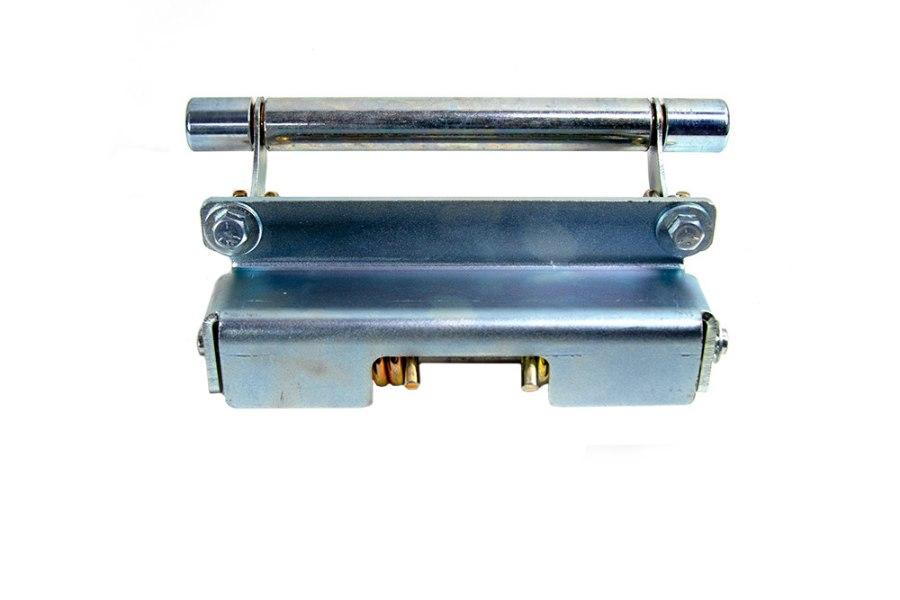

Ramsey 200 Series Century Car Carrier Roller Tensioner Kit

Note: Special Handling Fees Apply

The Quick Max is our most popular long-reach tool featuring a pre-bent shape that makes it usable in most situations without any further modification. The Store-N-Go handle holds extra tips for the long-reach tool, and the scratch-proof coating protects the vehicle's finish when performing a lockout.

There is a quick instructional manual included or an online access code included with the kit that provides quick, expert training on the proper use of the included tools.

• Best seller
• 52" long
• Pre-bent at a precise location
• Scratch-proof coating
• Store-N-Go handle

AW Direct Elite Series Winch Cables can also be known as: winch line, wire rope carrier cables, and rollback cables. The Fiber Core Winch Cables provide superior flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, providing a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. The Elite Series winch cables from AW Direct provide strength and flexibility.

B/A Exclusive! The BalldogTM Plus Hitch Attachment Device is the newest innovation in hitch attachment. Pear Link fits over 1-7/8 , 2 and 2-5/16 Tow Balls, Large Oblong fits into 2 and 2-1/2 Receiver Tubes.

This waterproof Flood Light from Buyers Products has 6 white LEDs with a black powder coated cast aluminum housing. This light is a 12-24 volt system with a 1.5 Amp draw that has an output of 1620 Lumens. Light comes with an adjustable stainless steel stud mount. The dimensions for this flood light are 5.75" W x 2" T x 3" D and weights around 1.6 lbs.

Note: Special Handling Fees Apply for Specific Items

With rounded ends and a shorter rooftop stance, the 16 Series LED light bar from ECCO offers a slimmer profile and sleeker appearance over its predecessor, the 21 Series light bar. As its name implies, the 16 Series stands only 1.6” tall versus the 2.1” height of the 21 Series light bar. The eased ends on the 16 Series light bar also complement any vehicle’s roofline compared to the more square edges of the 21 Series.

Backed by TORUS LED technology, this updated light bar comes in two lengths. The 58” model is available with 12, 14, 16, 18 or 20 LEDs, while the 69" model is available with 18 LEDs. Both feature 31 flash patterns.

Similar to the 21 Series light bar, the 16 Series 12V light bar provides exceptional warning and off-angle performance with its single- or dual-color LEDs producing high-intensity outputs. Featuring polycarbonate lenses, the compact, low-profile design of this light bar provides a streamlined look without compromising long-range visibility and safety.

• Length: 58" or 69"
• Height: 1.6”T
• Depth: 12.3”
• .5” shorter stance than 21 Series light bar
• Aerodynamic ends
• Aluminum frame with clear polycarbonate lens
• Torus LED technology
• Choose from 12, 14, 16, 18 or 20 LED modules
• Available color combinations: Amber warning, White work, Red S/T/T, Blue rear/front facing
• 31 flash patterns
• Mount options: Adjustable foot, permanent KITTOW bracket or no mount
• Compact, low profile appearance
• Five-year warranty

This 3,000-amp jump starter from NOCO is what the professionals trust to power up high-displacement gas and diesel engines in cars, trucks, boats, commercial vehicles and equipment. The lithium-ion battery lasts up to 80 uses on a full charge, and UltraSafe technology protects against reverse polarity and overcharging. With an included 12V plug, the rugged and portable unit can provide remote power to tire pumps, inverters and chargers. The USB port can also charge personal electronic devices.

Note: Special Handling Fees Apply for Specific Items

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.

• Model: HD-234R
• Line Pull: 8,000 lbs
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• See Brochures for Product Drawings
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  Applications

• Replaces Chevron Car Carrier OEM Winches
• Replaces Jerr-Dan Car Carrier OEM Winches
• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Trailer



  Winch Mount Configuration





  Model Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 28'/min / 8.5m/min
• Gear Ratio: 34:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 140' / 42.7m
• Recommend Cable Size: 3/8" / 9.5mm
• Hydraulic Pressure Required: 2,375 PSI (164 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 3.6 Cu. In. (59 cc)
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric



  HD-234R Specifications:

• Ramsey Part Number: 121807
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA



  HD-200R Specifications:

• Ramsey Part Number: 121818
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Lever
• Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA
• For an alternative winch see part number H-246
• Replaces part number 12-0300250



  HD-234RA Specifications:

• Ramsey Part Number: 121797
• Model: HD-234R
• Line Pull: 8,000 lbs
• Clutch: Air Shift
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 34:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11.125"+-/16"
• Adjustable/Automatic Brake: No
• Fast Line Speed
• Recommended Cable: 3/8"
• Meets SAE-J706
• Made in the USA

ITI Control Arm Skate is designed for use on a disabled or wrecked vehicle with a missing wheel or lugnuts, a broken ball joint, control arm, axle or other suspension components. The top of this patented skate has a pocket for the ball-joint and cradles the a-frame of the suspension. The rounded ends of this skate allow for easy loading as it will navigate the approach lip of a bed or trailer.

ITI Automotive Skates are ideal to use when moving, loading and unloading a locked, disabled or wrecked car or truck. These ITI Skates will drastically reduce the moving resistance, eliminate tire damage and make your operator more efficient and safer. Simply wedge a skate under the tires of the vehicle and begin winching. In times when you are having difficulty wedging the skates beneath the tires or wheels, the large face and durable design of the ITI skate withstands being driven into place with a mallet. These lightweight skates perform well on most surfaces including gravel, asphalt and cement. Also, utilizing skates when loading vehicles will protect the deck of your bed or trailer from damage. A better customer service will be provided because the skates will minimize the scrapes and mars on the driveway or parking lot too!

These Galvanized Toolbox Mounting Bracket easily mounts toolboxes on rollbacks or carriers. It is used for 20" or 24" deep underbody toolboxes on car carrier beds. Sold as a pair.

Millennium marker lights are commonly called the Peterbilt Style. These lights are commonly mounted on the Miller aluminum car carriers with the removable side rail. These are also applied on wreckers as well.

Phoenix electrical junction blocks are high-quality, easy-to-use terminal blocks that allow you to connect multiple electrical sources in your car, truck, trailer, or RV. They feature a two-piece design and are available with a range of poles to accommodate a variety of wiring requirements. These blocks ensure that your wires stay in place and don't contact other leads, keeping all of your electrical devices organized and safe from short circuiting.

Set up your truck so you never have to open your hood for a jump start again. Quick-connect plugs make your job easier, and extended cable combinations give you extra length when needed. Choose the cable type, the gauge you prefer and the length of the cables to suit your specific needs. Heavy-duty construction is ideal for equipping your service vehicle or tow truck. Fine-stranded copper conductor provides maximum conductivity and flexibility. Parallel-bonded cables (except 1/0) resist tangling and remain flexible in cold weather.

Color-coded by working load limit, the All-Grip Endless Loop Eye Sling gives you a high amount of convenience. With a working load limit of up to 21,200 pounds (check the drop-down menu for more information), you can take on a heavy load with ease. Because it’s made of polyester, those heavy loads won’t get scrapes and damage from the sling.
