Ramsey Commercial-Grade 9500 Patriot 9,500 lb. 12V Electric Planetary Winch

Leave a Review

Shop all Ramsey Winch products

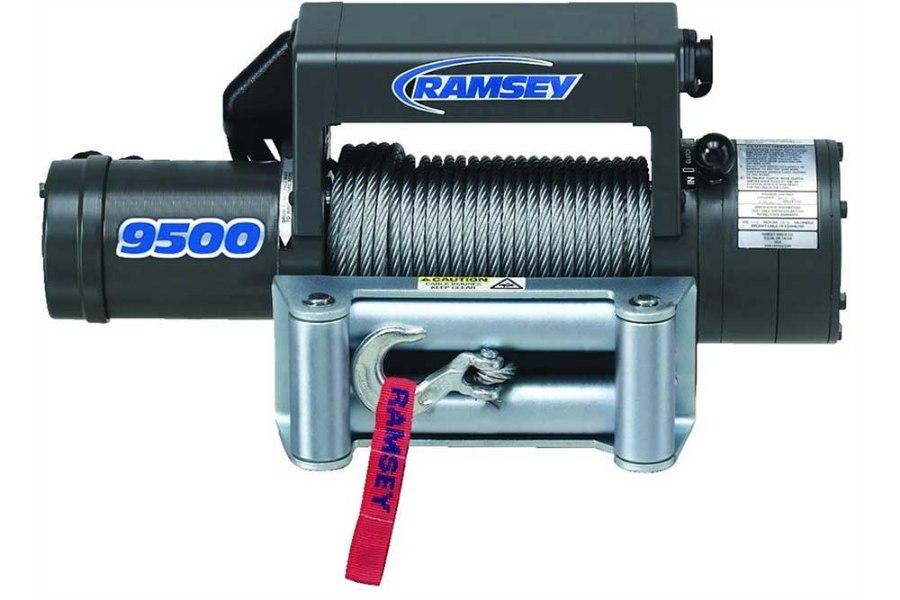

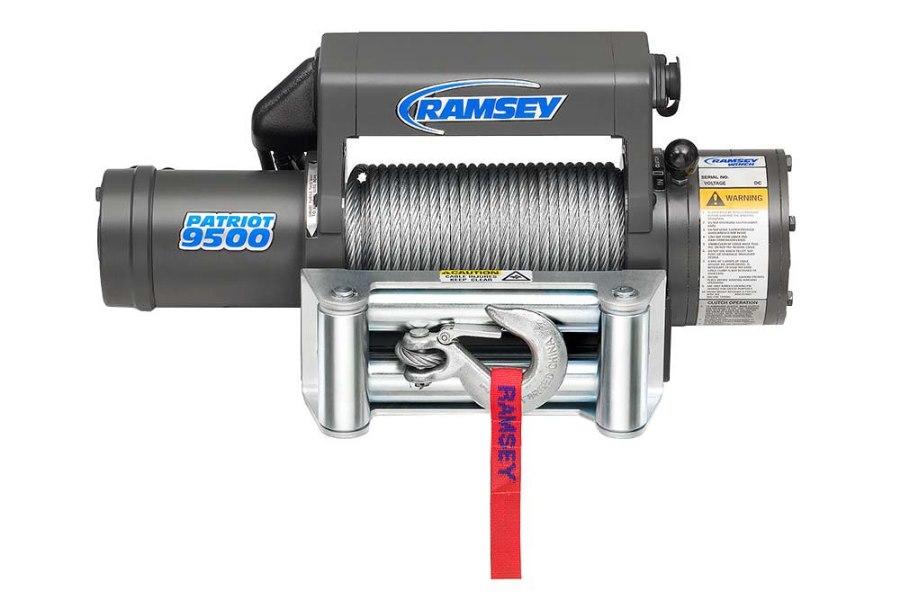

Picture of Ramsey Commercial-Grade 9500 Patriot 9,500 lb. 12V Electric Planetary Winch

SKU: 109153

Price: $1,824.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

These Commercial-Grade Patriot Winches are ideal for heavier loads. Winches feature a 12V DC motor, planetary gearing, an automatic load holding brake, roller fairlead, freespooling clutch and 23' remote control. Options: 9,500-lb. 12V DC Planetary Gear Patriot Winch comes with 105' of 5/16" wire rope and features 138:1 gear ratio, 7 FPM/full load line speed and 430A/full load draw. 15,000-lb. 12V DC Planetary Gear Patriot Winch comes with 90' of 7/16" wire rope and features 251:1 gear ratio, 4.4 FPM/full load line speed and 460A/full load draw.

Not for commercial recovery use or overhead lifting. Patriot 9500 R 12V W/12' Wire Pendant, Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Weather resistant integrated solenoid assembly.

Pulls Heavier Loads: Winches come in 9,500-lb. and 15,000-lb. line pulls, making them strong enough for self-recovery or heavy landscaping hauling
Increase Safety: Winches feature an automatic load holding brake
Protect Wire: Roller fairleads and freespooling clutch keep wire smoothly wrapped around drum
Patriot Series comes with either a 12 ft. pendant or the wireless remote
Sealed high torque 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Sealed drum & gear housing assembly to keep the elements out of the winch
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength and reliability
6 ft. (1.83 M ) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Length: 28"
Width: 9"
Height: 3"
