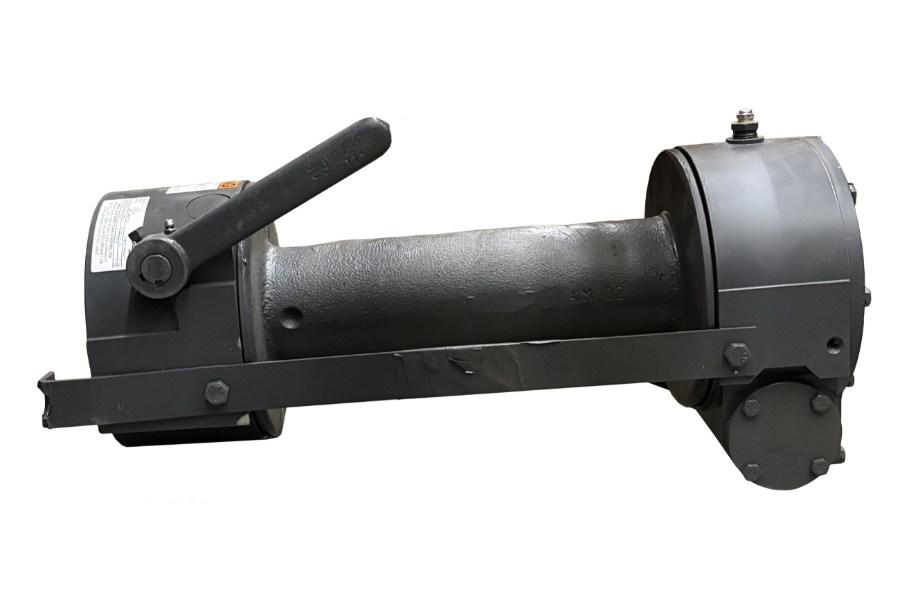

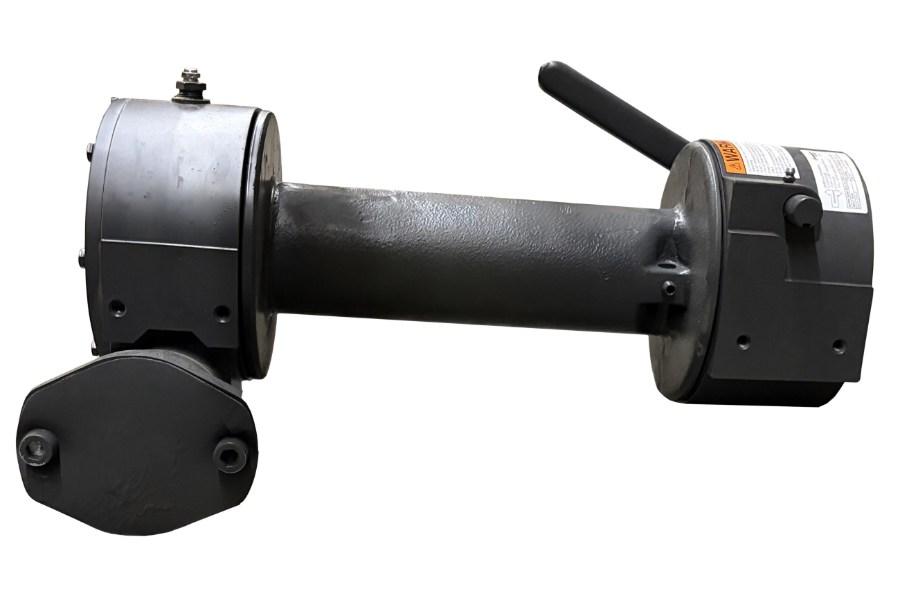

Ramsey H-200 Winch

Leave a Review

Shop all Ramsey Winch products

SKU: 121704

Price: $1,054.99

Qty:

Go Straight to Checkout

Truck Freight Required

Description

This is an 8,000 lb. lever lock H-200 winch fitted for a left hand drive motor by Ramsey Winch.

Lever Lock
Left Hand Drive
8,000 lbs.
Does not include motor
Recommended cable 3/8
Meets SAE-J706
Made in the USA

Applications
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 12.6'/min / 3.8m/min
Gear Ratio: 60:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140 Ft / 42.7 M
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,600 PSI (110 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: None, Air, Manual
