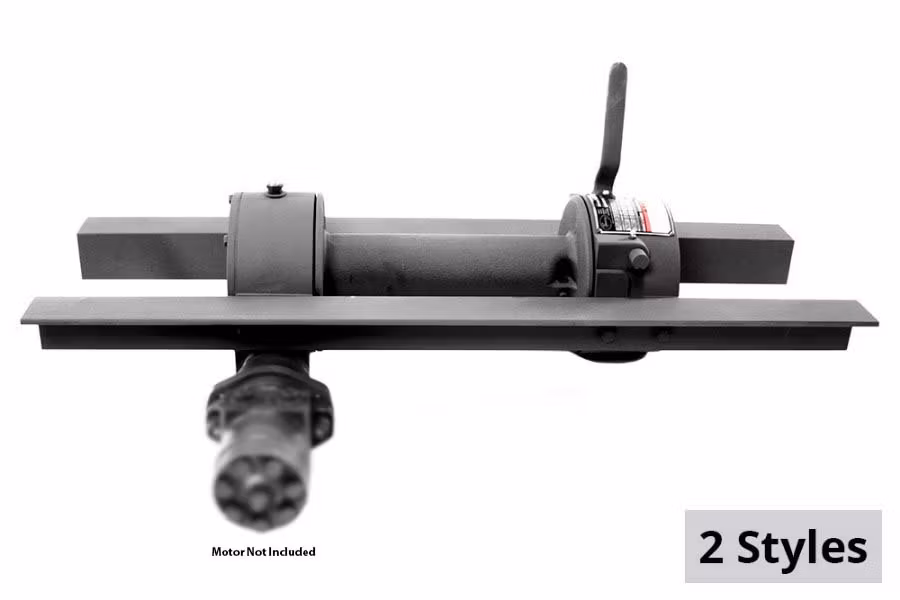

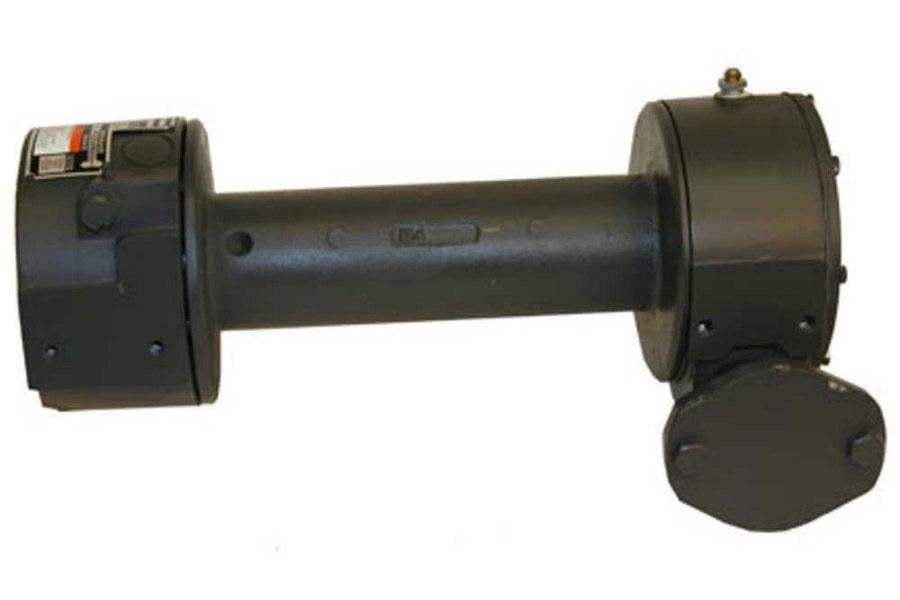

Replacement Ramsey Winch for Century and Champion carriers. Winch only. Does
not include the motor, mounting angles.
- Ramsey Part Number: 121710
- Model: H246R
- Line Pull: 8,000 lbs
- Clutch: Lever Style (Lever Not Included)
- Mounting Configuration: Front Overwind Left Side/Rear Overwind Right Side
- Gear Ratio: 46:1
- Motor Included: No
- Angles Included: No
- Drum Length: 11"+-/16"
- Adjustable/Automatic Brake: No
- Recommended Cable: 3/8"
- For an alternative winch see part number HD-200R
- Replaces part number 12-0300250
- Meets SAE-J706
- Made in the USA

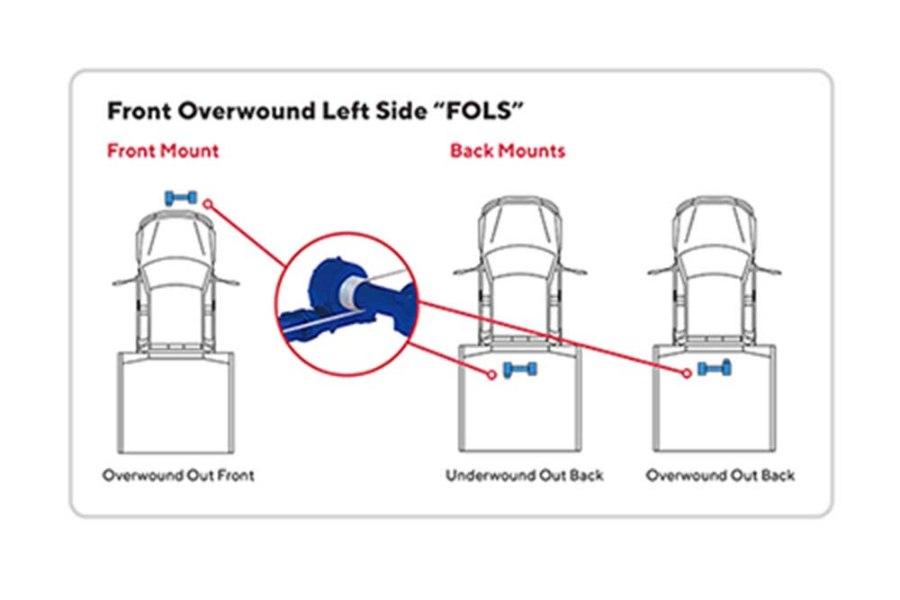

Winch Mount Configuration
Applications
- Replaces Century and Champion Carrier Winch
- General Industrial
- Mining & Construction
- Railroad
- Specialty Vehicle
- Towing & Recovery
- Towing & Recovery (Carrier)
- Towing & Recovery (Light Wrecker)
- Trailer
Model H246 Specifications
- Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
- 1st Layer Line Speed: 16.5'/min / 5.0m/min
- Gear Ratio: 46:1
- Weight w/o Cable: 110 lbs / 50 Kg
- Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
- Cable: None
- Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
- Cable Capacity: 140' / 42.7m
- Recommend Cable Size: 3/8" / 9.5mm
- Hydraulic Pressure Required: 1,800 PSI (124 Bar)
- Hydraulic Flow Required: 15.0 GPM (57 LPM)
- Motor Size: 4.5 Cu. In. (74 cc)
- Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
- Clutch Control: Air, Manual, Electric
