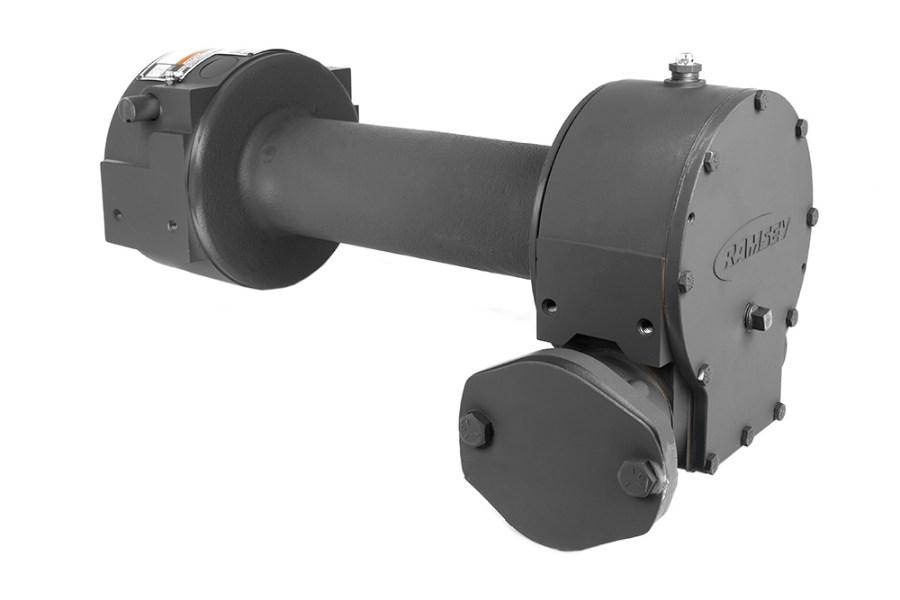

Ramsey H-246 8,000 lb. FOLS Square Drive Hydraulic Worm Winch - Winch Only

Replacement Ramsey Winch for Century and Champion carriers. Winch only. Does not include the motor, mounting angles, or square drive.

• Ramsey Part Number: 121710
• Model: H246R
• Line Pull: 8,000 lbs
• Clutch: Lever Style (Lever Not Included)
• Worm Gear: Square Drive
• Mounting Configuration: Front Overwind Left Side/Rear Overwind Right Side
• Gear Ratio: 46:1
• Motor Included: No
• Angles Included: No
• Drum Length: 11"+-/16"
• Adjustable/Automatic Brake: No
• Recommended Cable: 3/8"
• For an alternative winch see part number HD-200R
• Replaces part number 12-0300250
• Meets SAE-J706
• Made in the USA



  Applications

• Replaces Century and Champion Carrier Winch
• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Trailer



  Model H246 Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 16.5'/min / 5.0m/min
• Gear Ratio: 46:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 140' / 42.7m
• Recommend Cable Size: 3/8" / 9.5mm
• Hydraulic Pressure Required: 1,800 PSI (124 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 4.5 Cu. In. (74 cc)
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric
