Ramsey H-246 FORS with Lever includes Motor/Angles

Leave a Review

Shop all Ramsey Winch products

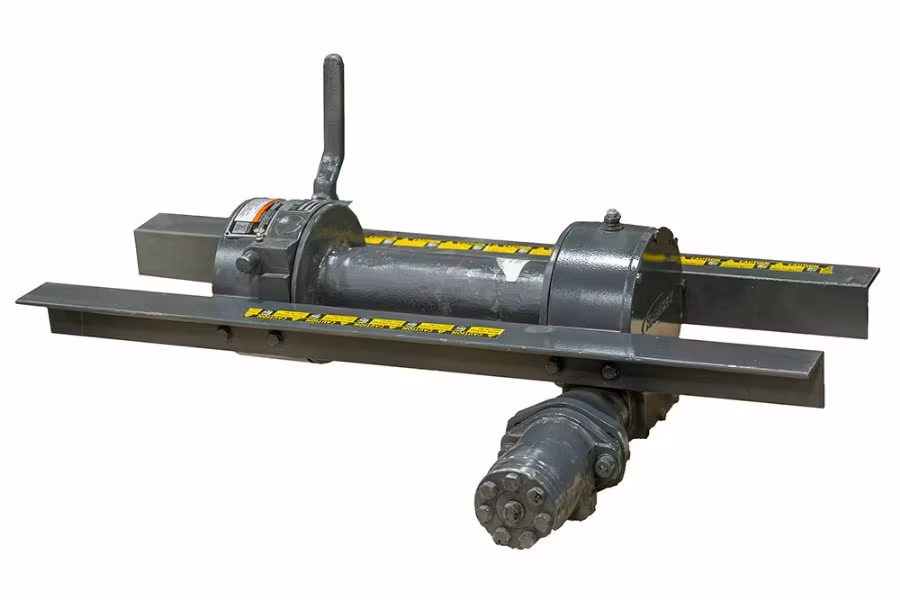

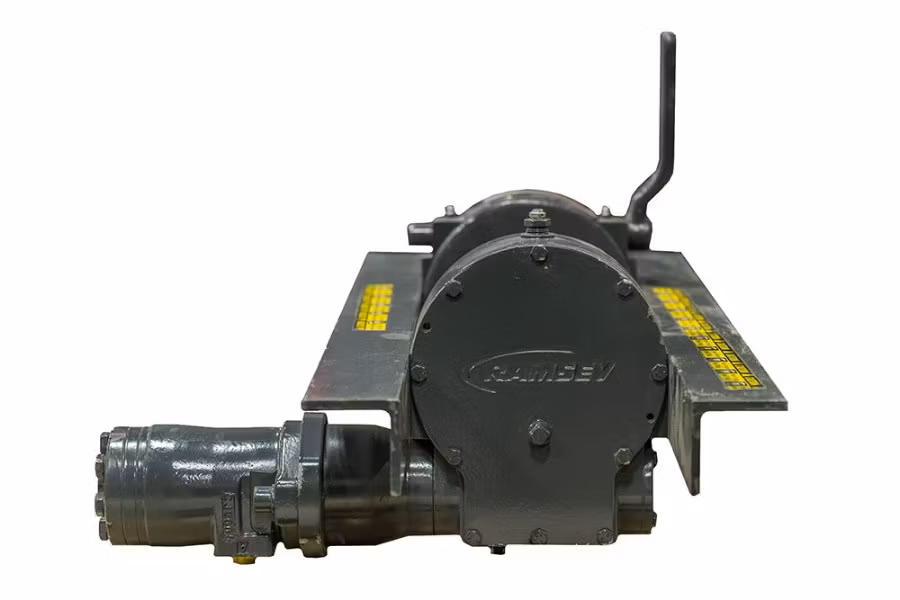

Picture of Ramsey H-246 FORS with Lever includes Motor/Angles

SKU: H-246 L/SRH

Price: $2,334.99

Qty:

Go Straight to Checkout

Truck Freight Required

A special handling fee of $21.00 will be added to this product

Description

One of the most popular winches in the industry. These 8000 lb. Ramsey Winches are used on most Century, Vulcan and many other tow t rucks.

Ramsey Part Number: 124002 FORS
Model: H246R
Line Pull: 8,000 lbs
Clutch: Lever

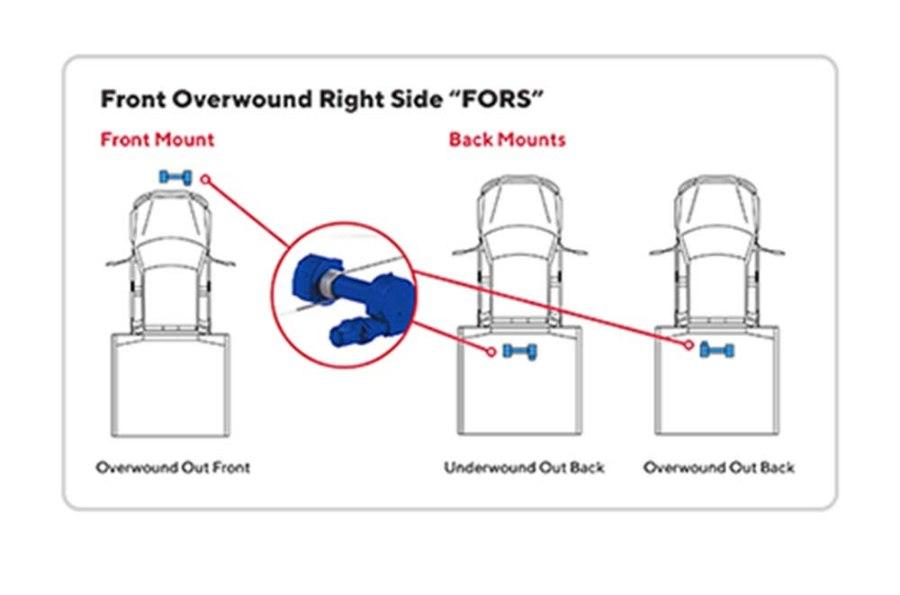

Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 46:1
Motor Included: Yes
Angles Included: Yes
Drum Length: 11.125"+-/16"
Adjustable/Automatic Brake: No
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA

Winch Mount Configuration

Applications
Replaces may Wrecker and OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model H246 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 16.5'/min / 5.0m/min
Gear Ratio: 46:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,800 PSI (124 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric

Documents

Shipping & Returns

This product requires truck freight delivery. Standard parcel carriers are not available for this item.

This item requires additional packaging or handling for safe transport. A $21.00 handling fee will be added at checkout.

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #
H-246 L/SRH	124002

Ramsey H-246 FORS with Lever includes Motor/Angles

Winch Mount Configuration

Applications

Model H246 Specifications
