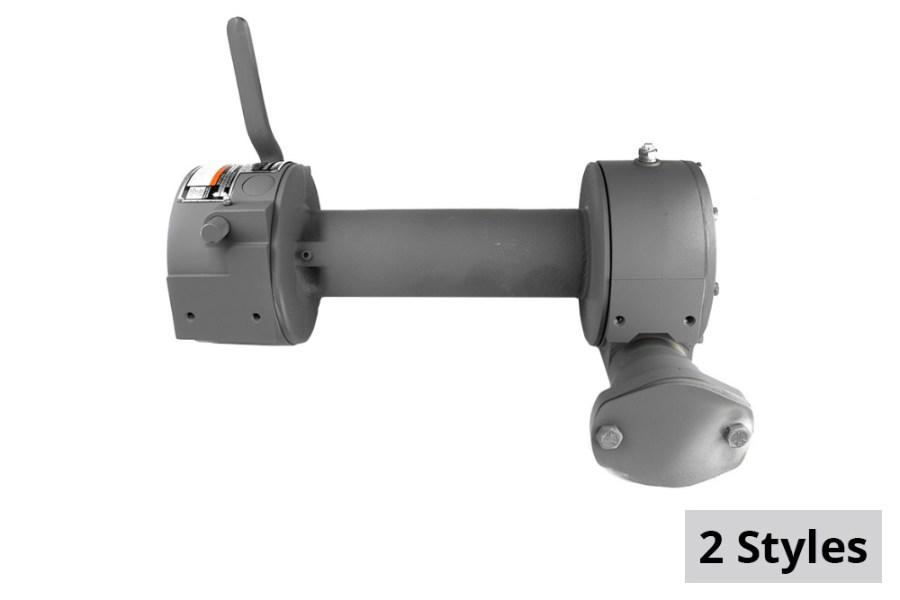

Ramsey H-246R 8,000 lb. FORS Hydraulic Worm Winch

$1,221.99$1,340.99
SKU: H-246R-FORS
*
View Cart
Qualifies for Free Shipping
with $199.00 minimum order
Description
One of the most popular winches in the industry. These 8000 lb. Ramsey Winches are used on most Century, Vulcan and many other tow trucks. These winches are just the basic winch with no hydraulic motor and no mounting angles. This makes it more economical to replace your old winch rather than repair it.

  • Model: H246R
  • Line Pull: 8,000 lbs

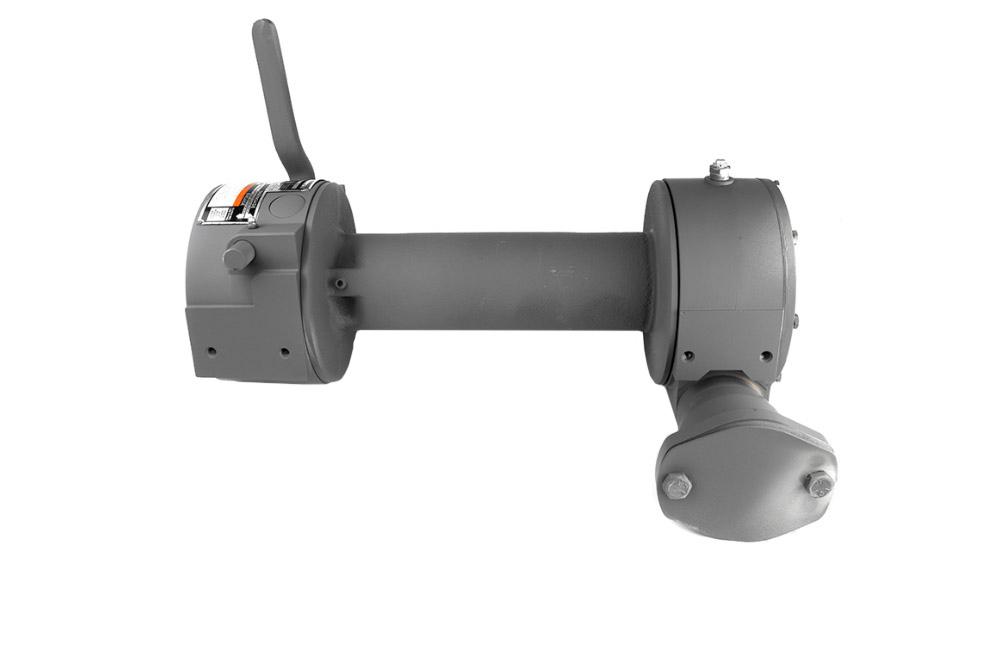

  • Clutch: Lever
  • Mounting Configuration: Font Overwind Right Side/Rear Overwind Left Side
  • Gear Ratio: 46:1
  • Motor Inlcuded: No
  • Angles Included: No
  • Drum Length: 11" +-/16"
  • Adjustable/Automatic Brake: No
  • Recommended Cable: 3/8"
  • Meets SAE-J706
  • Made in the USA

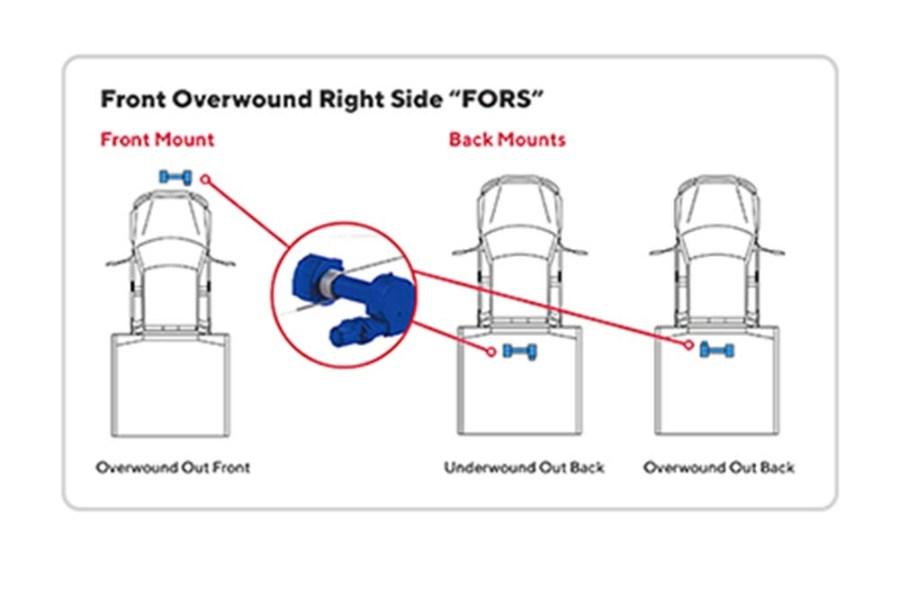

    Winch Mount Configuration



    Applications

  • Replaces many Tow Truck and OEM Winches
  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Light Wrecker)
  • Trailer

    Model H246 Specifications

  • Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 16.5'/min / 5.0m/min
  • Gear Ratio: 46:1
  • Weight w/o Cable: 110 lbs / 50 Kg
  • Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
  • Cable: None
  • Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
  • Cable Capacity: 140' / 42.7m
  • Recommend Cable Size: 3/8" / 9.5mm
  • Hydraulic Pressure Required: 1,800 PSI (124 Bar)
  • Hydraulic Flow Required: 15.0 GPM (57 LPM)
  • Motor Size: 4.5 Cu. In. (74 cc)

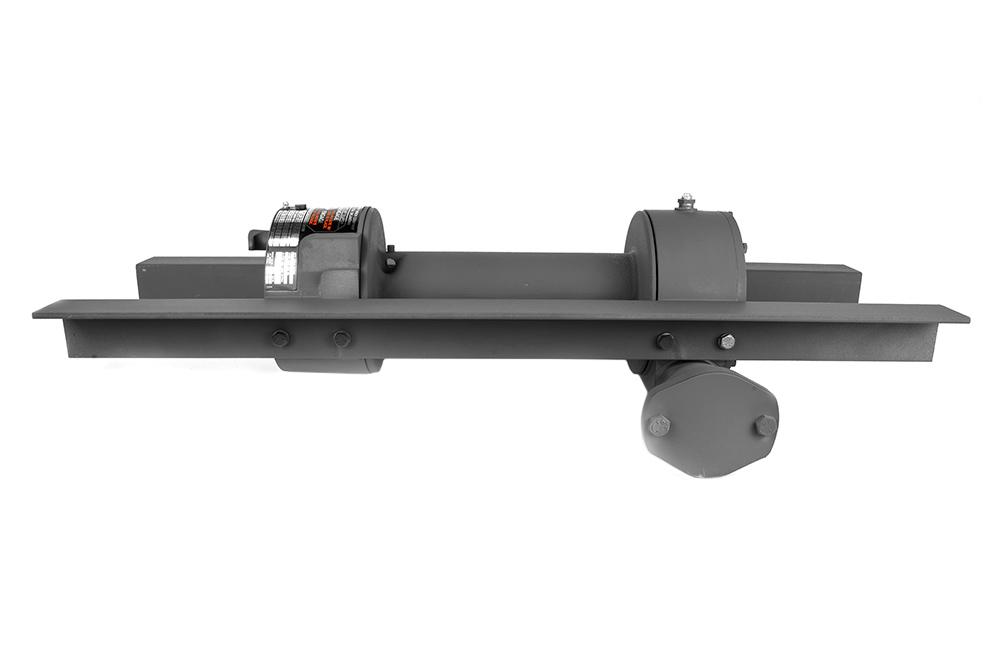

  • Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
  • Clutch Control: Air, Manual, Electric
