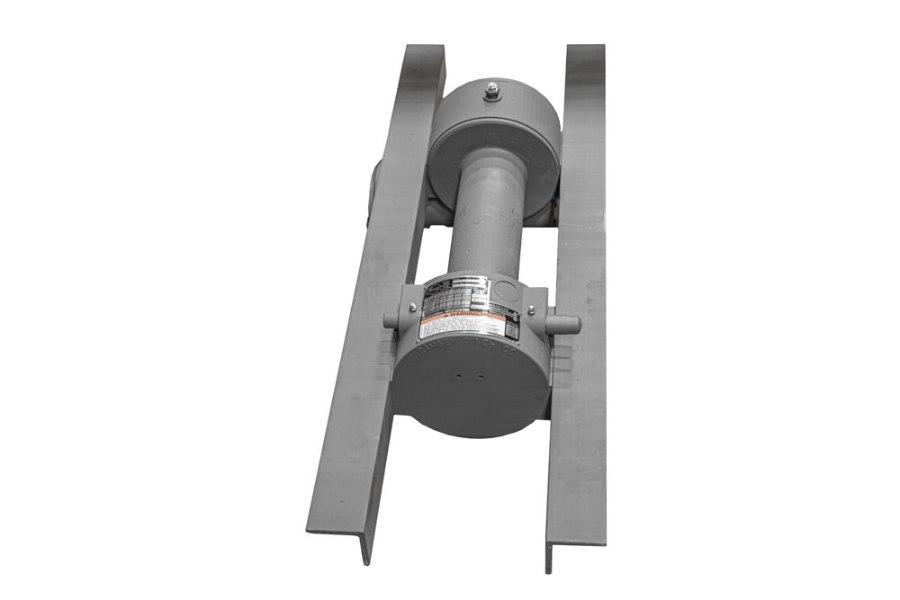

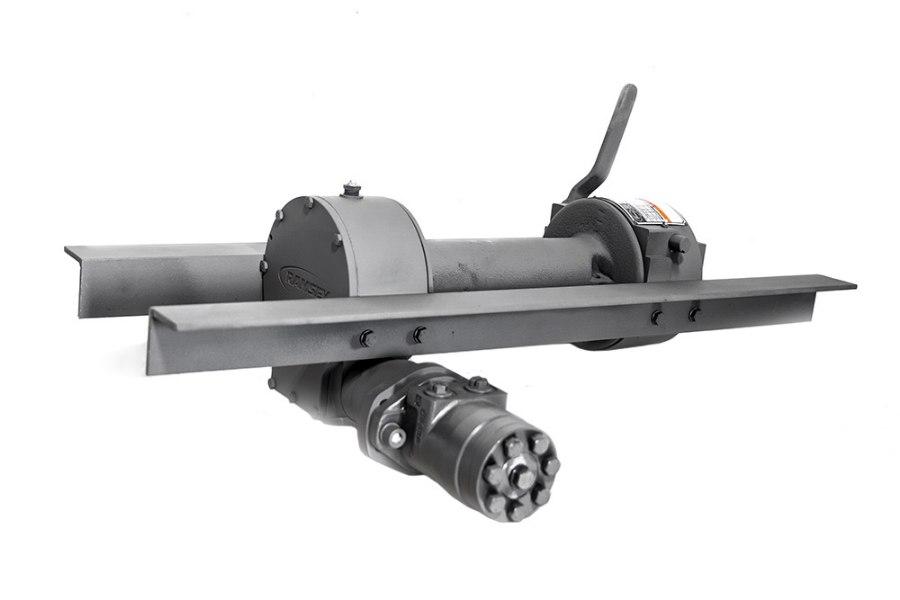

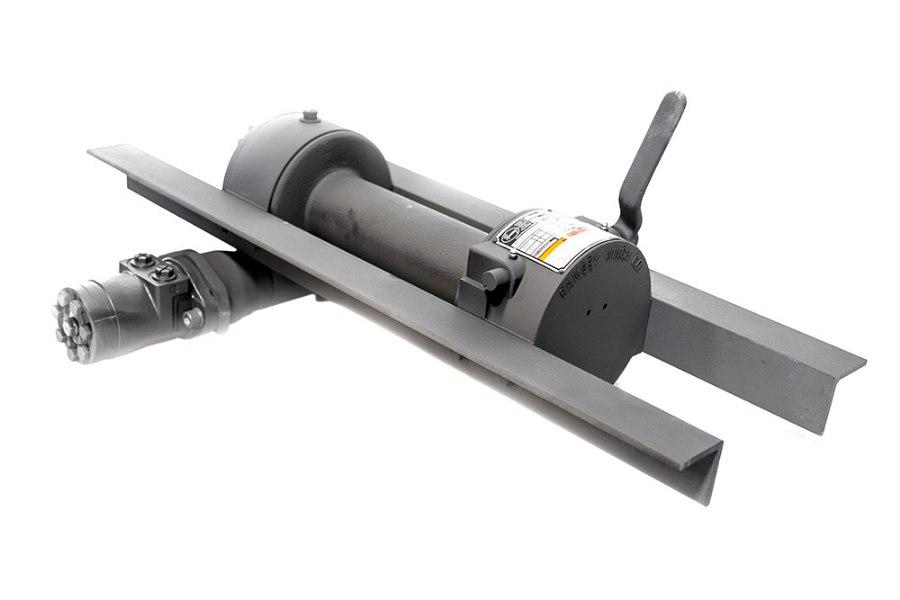

Ramsey H-246R FOLS with Lever includes Motor/Angles

SKU: H-246 L/SLH
$2,119.99
0 In Your Cart   →
Go Straight to Checkout
Truck Freight Required
Description
One of the most popular winches in the industry. These 8000 lb. Ramsey Winches are used on most Century, Vulcan and many other tow trucks.

  • Recommended Cable: 3/8"
  • Ramsey Part Number: 124001/FOLS
  • Model: H246R
  • Motor Included: Yes
  • Motor Number: 101-1034-009
  • Angles Included: Yes
  • Gear Ratio: 46:1
  • Drum Length: 11.125" +-/16"
  • Clutch: Lever
  • Adjustable/Automatic Break: No
  • Mounting Configuration: Front Overwind Left Side
  • Meets SAE-J706
  • Made in the USA

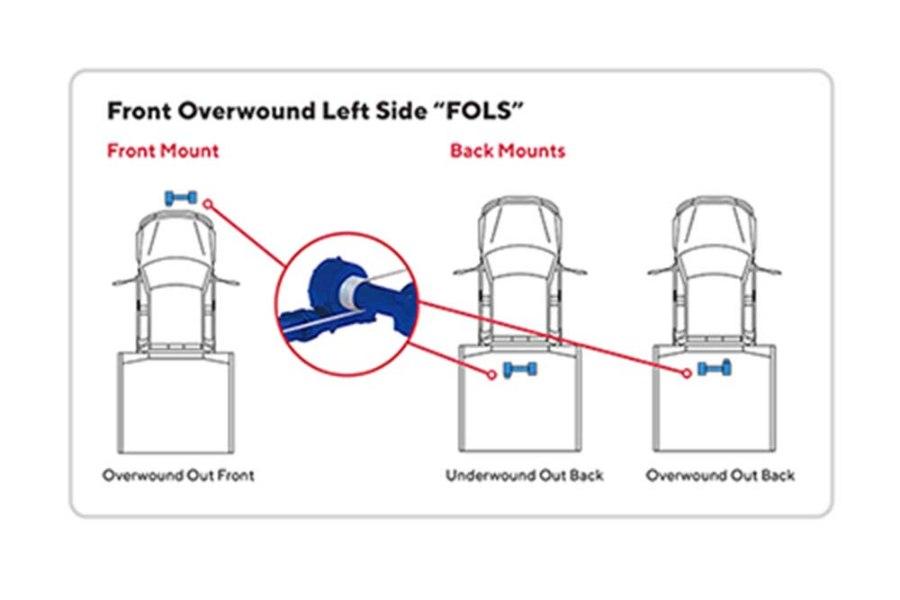

    Winch Mount Configuration



    Applications

  • Replaces most Tow Truck and OEM Winches
  • Used on many Century and Vulcan Tow Trucks
  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Light Wrecker)
  • Trailer

    Model H246 Specifications

  • Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 16.5'/min / 5.0m/min
  • Gear Ratio: 46:1
  • Weight w/o Cable: 110 lbs / 50 Kg
  • Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
  • Cable: None
  • Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
  • Cable Capacity: 140' / 42.7m
  • Recommend Cable Size: 3/8" / 9.5mm
  • Hydraulic Pressure Required: 1,800 PSI (124 Bar)
  • Hydraulic Flow Required: 15.0 GPM (57 LPM)
  • Motor Size: 4.5 Cu. In. (74 cc)
  • Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
  • Clutch Control: Air, Manual, Electric
