Ramsey H-400

Leave a Review

Shop all Ramsey Winch products

SKU: H-400

Price: $2,429.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

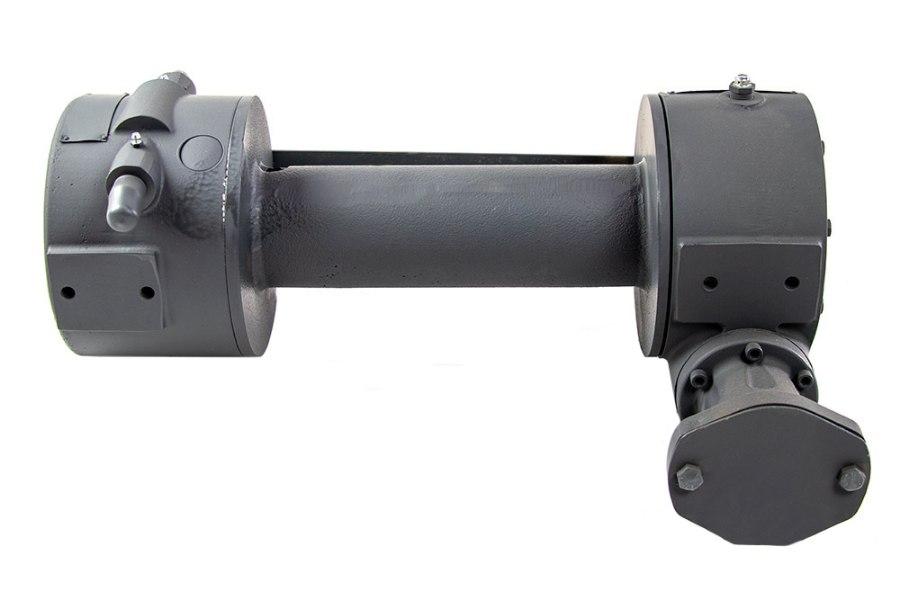

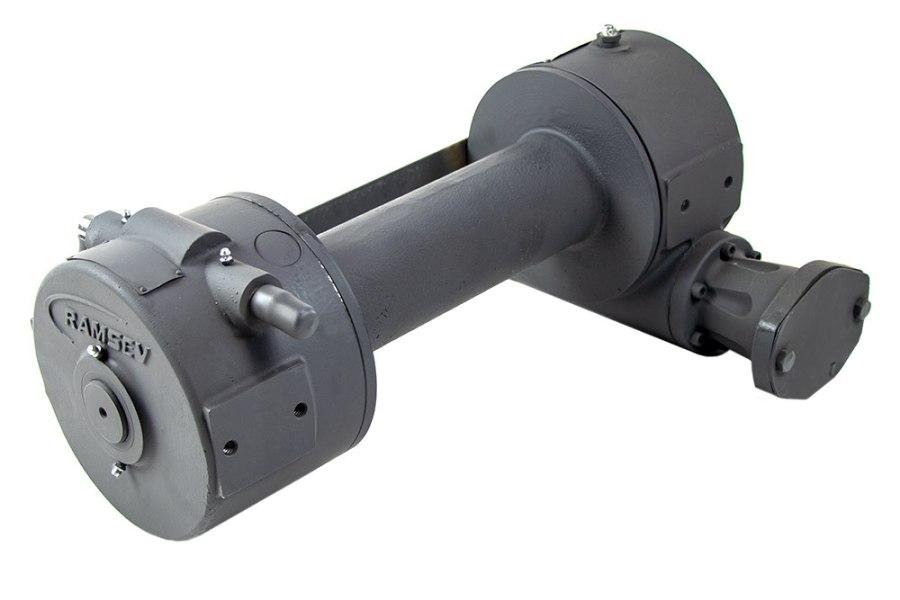

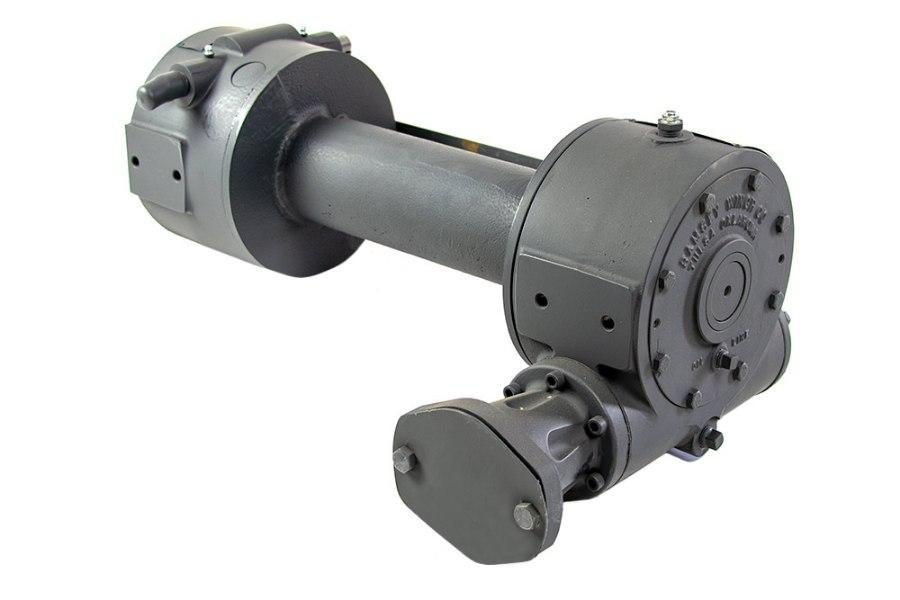

The H-400R is a 10,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 11 5/16" wide drum accepts up to 125' of 7/16" cable.

10,000 lbs. rated line pull
29:1 gear ratio
Lever style clutch release
Can be ordered in Left or Right hand mounting configuration
Fast Line Speed (33 ft/min)
Recommended Cable: 7/16"
Meets SAE-J706
Made in the USA

Applications
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Towing & Recovery (Medium Wrecker)
Trailer

Model H-400 Specifications
Rated Line Pull: 10,000 lbs / 4,536 Kg (1st Layer of Cable)
1st Layer Line Speed: 33'/min / 10.1m/min
Gear Ratio: 29:1
Weight w/o Cable: 150 lbs / 68 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.63" x 7.88" x 3.63" / 295.4mm x 200.2mm x 92.2mm
Cable Capacity: 130' / 39.6m
Recommend Cable Size: 7/16" / 11.1mm
Hydraulic Pressure Required: 2,800 PSI (193 Bar)
Hydraulic Flow Required: 23.0 GPM (87 LPM)
Motor Size: 6.2 Cu. In. / 102 cc
Additional Motor Options: Call Factory
Clutch Type: Blocked, Lever Style
Clutch Control: Manual
