Ramsey H-400R FORS with Lever

$2,757.99
SKU: H-400R
View Cart
Truck Freight Required
Description

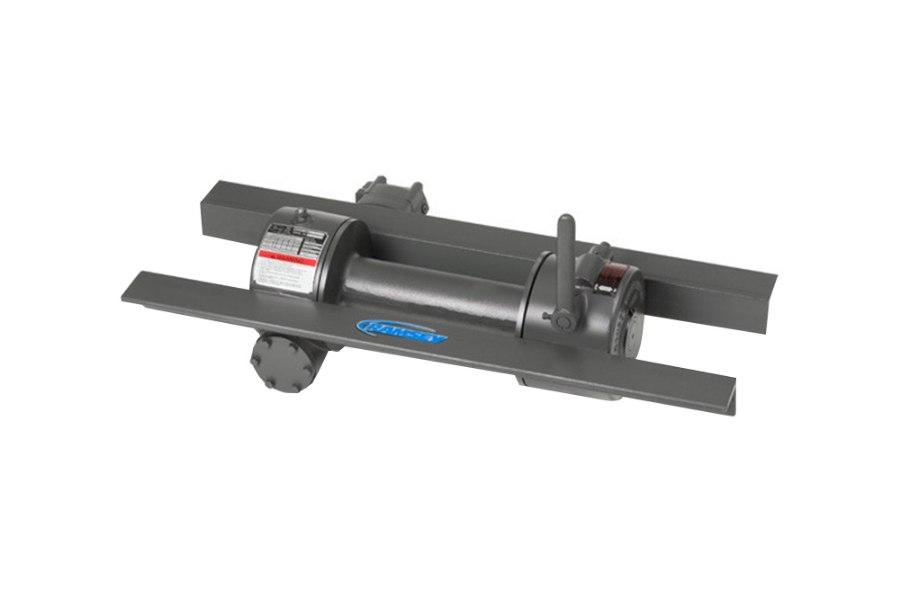

The H-400R is a 10,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 11 5/16" wide drum accepts up to 125' of 7/16" cable.

  • Ramsey Part Number: 120249
  • Model: H-400R
  • Line Pull: 10,000 lbs
  • Clutch: Lever
  • Mounting Configuration: Front Overwind Right Side / Rear Overwind Left Side
  • Gear Ratio: 29:1
  • Motor Included: Yes
  • Angles Included: Yes
  • Drum Length: 11.5"+-/16"
  • Adjustable/Automatic Brake: No
  • Fast Line Speed: 33 ft/min
  • Recommended Cable: 7/16"
  • Meets SAE-J706
  • Made in the USA

    Applications

  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Light Wrecker)
  • Towing & Recovery (Medium Wrecker)
  • Trailer

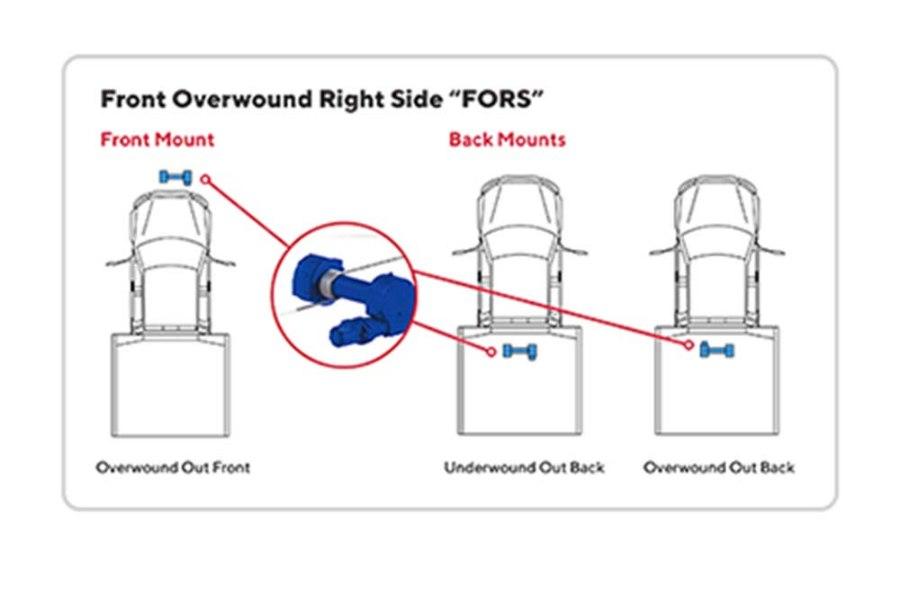

    Winch Mount Configuration



    Model H400 Specifications

  • Rated Line Pull: 10,000 lbs / 4,536 Kg
  • 1st Layer Line Speed: 33'/min / 10.1 m/min
  • Gear Ratio: 29:1
  • Weight w/o Cable: 150 lbs / 68 Kg
  • Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
  • Cable: None
  • Drum Size (L x F x B): 11.63" x 7.88" x 3.63" / 295.4mm x 200.2mm x 92.2mm
  • Cable Capacity: 130' / 39.6m
  • Recommend Cable Size: 7/16" / 11.1mm
  • Hydraulic Pressure Required: 2,800 PSI (193 Bar)
  • Hydraulic Flow Required: 23.0 GPM (87 LPM)
  • Motor Size: 6.2 Cu. In. / 102 cc
  • Additional Motor Options: Call Factory
  • Clutch Type: Blocked, Lever Style
  • Clutch Control: Manual
