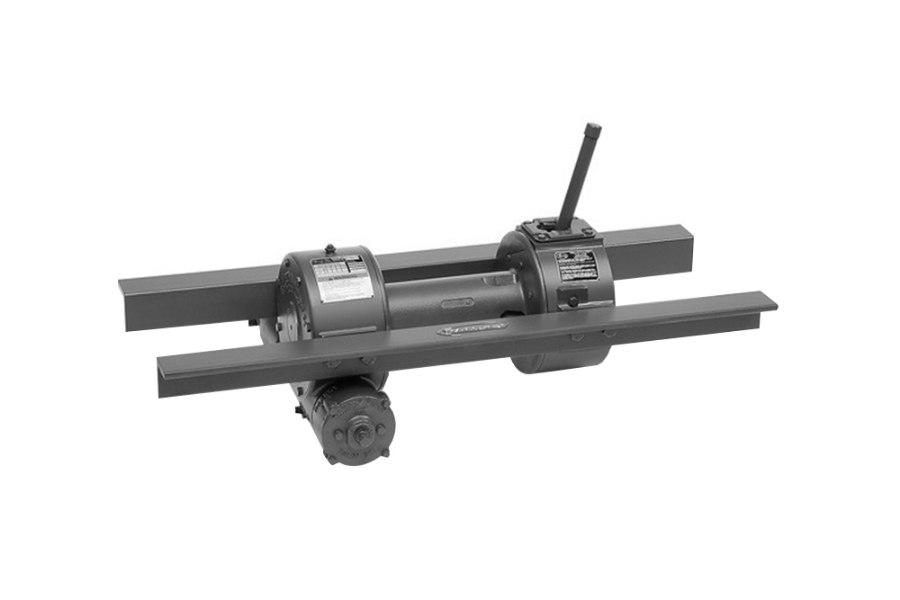

The H-700R is a 15,000 lbs. hydraulic worm gear winch with a direct mount
hydraulic motor. 11" wide drum accepts up to 170' of 9/16" cable.
- Ramsey Part Number: 120461
- Model: H-700R
- Line Pull: 15,000 lbs
- Clutch: Dow-Lok
- Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
- Gear Ratio: 35:1
- Motor Included: Yes
- Angles Included: Yes
- Drum Length: 11"+-/16"
- Adjustable/Automatic Brake: Yes
- Heavy Duty
- Includes Brake
- Recommended Cable: 9/16"
- Meets SAE-J706
- Made in the USA

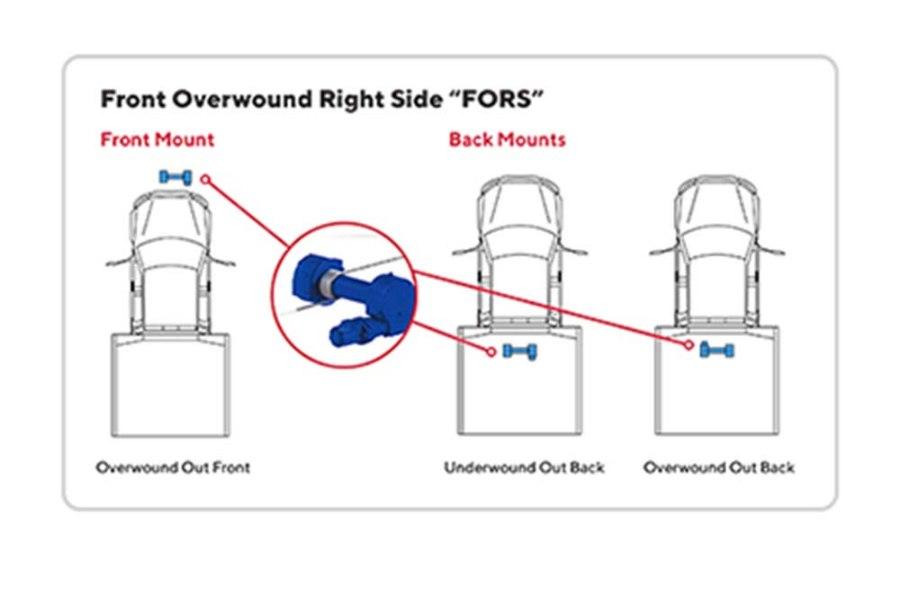

Winch Mount Configuration
Applications
- General Industrial
- Mining & Construction
- Railroad
- Specialty Vehicle
- Towing & Recovery
- Towing & Recovery (Carrier)
- Towing & Recovery (Medium Wrecker)
- Trailer
Model H-700 Specifications
- Rated Line Pull: 15,000 lbs / 6,804 Kg (1st Layer of Cable)
- 1st Layer Line Speed: 27'/min / 8.2m/min
- Gear Ratio: 35:1
- Weight w/o Cable: 258 lbs / 117 Kg
- Brake: Yes - brake is self-locking (Includes auxiliary brake)
- Cable: None
- Drum Size (L x F x B): 11" x 10.63" x 4.75" / 279.4mm x 270.0mm x 120.7mm
- Cable Capacity: 170' / 51.8m
- Recommend Cable Size: 9/16" / 14.3mm
- Hydraulic Pressure Required: 2,750 PSI (190 Bar)
- Hydraulic Flow Required: 30.0 GPM (114 LPM)
- Motor Size: 9.6 Cu. In. (157 cc)
- Additional Motor Options: Must Call
- Clutch Type: Blocked, DOW-LOK?
- Clutch Control: Air, Manual
