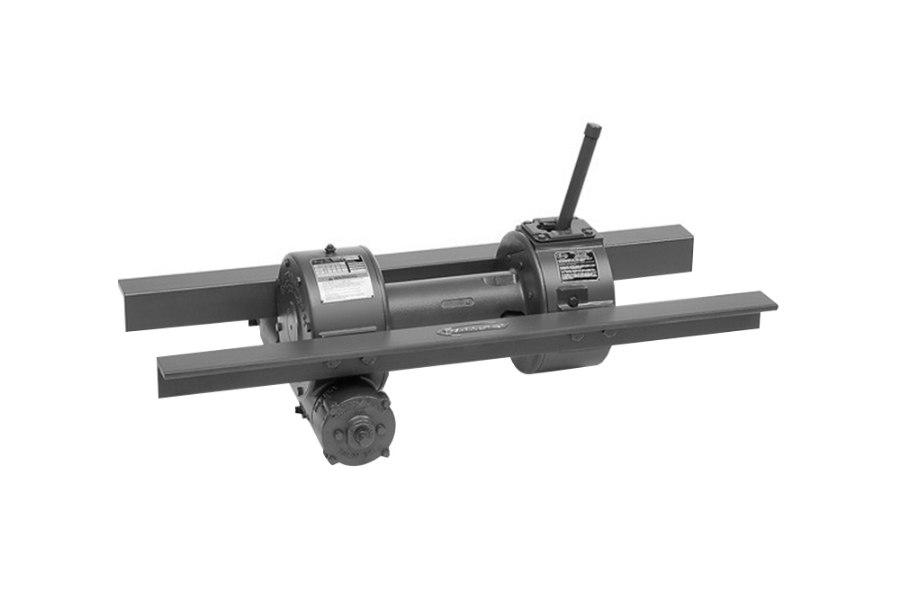

Ramsey H-700R Hydraulic Worm Winch

SKU: H-700-WINCH
$6,619.99
0 In Your Cart   →
Go Straight to Checkout
Truck Freight Required
Description
The H-700R is a 15,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 11" wide drum accepts up to 170' of 9/16" cable.

  • Rated Line Pull: 15,000 lbs / 6,804 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 27'/min / 8.2m/min
  • Gear Ratio: 35:1
  • Weight w/o Cable: 258 lbs / 117 Kg
  • Brake: Yes - brake is self-locking (Includes auxiliary brake)
  • Cable: None
  • Drum Size (L x F x B): 11" x 10.63" x 4.75" / 279.4mm x 270.0mm x 120.7mm
  • Cable Capacity: 170' / 51.8m
  • Recommend Cable Size: 9/16" / 14.3mm
  • Hydraulic Pressure Required: 2,750 PSI (190 Bar)
  • Hydraulic Flow Required: 30.0 GPM (114 LPM)
  • Motor Size: 9.6 Cu. In. (157 cc)
  • Additional Motor Options: Must Call
  • Clutch Type: Blocked, DOW-LOK?
  • Clutch Control: Air, Manual

    Winch Mount Configuration


    Applications

  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Medium Wrecker)
  • Trailer

    H-700R Specifications

  • Ramsey Part Number: 120460
  • Model: H-700R
  • Line Pull: 15,000 lbs
  • Clutch: Dow-Lok

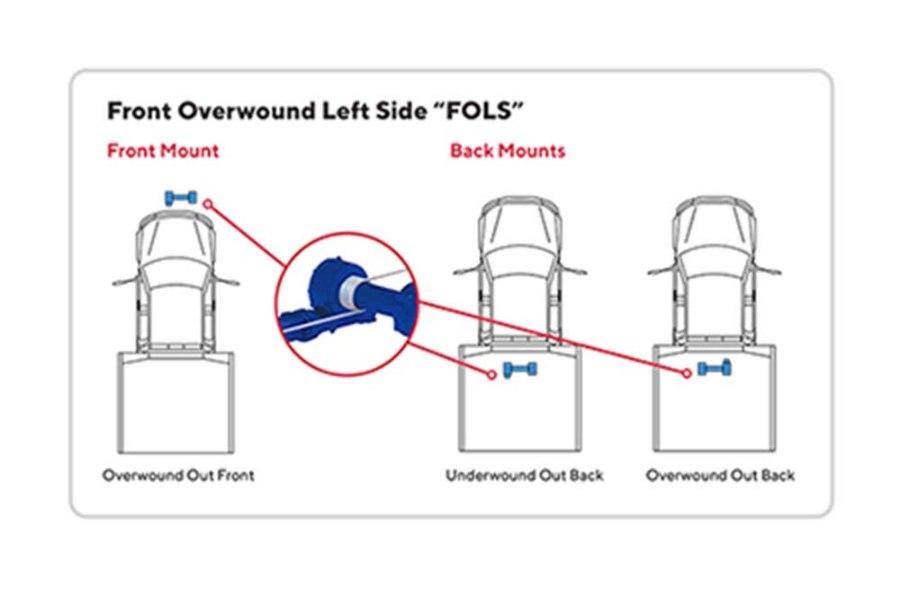

  • Mounting Configuration: Front Overwind Left Side/Rear Overwind Left Side
  • Gear Ratio: 35:1
  • Motor Included: Yes
  • Angles Included: Yes
  • Drum Length: 11"+-/16"
  • Adjustable/Automatic Brake: Yes
  • Heavy Duty
  • Includes Brake
  • Recommended Cable: 9/16"
  • Meets SAE-J706
  • Made in the USA

    RW-120461 Specifications

  • Model: H-700R
  • Line Pull: 15,000 lbs
  • Clutch: Dow-Lok
  • Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
  • Gear Ratio: 35:1
  • Motor Included: Yes
  • Angles Included: Yes
  • Drum Length: 11"+-/16"
  • Adjustable/Automatic Brake: Yes
  • Heavy Duty
  • Includes Brake
  • Recommended Cable: 9/16"
  • Meets SAE-J706
  • Made in the USA
