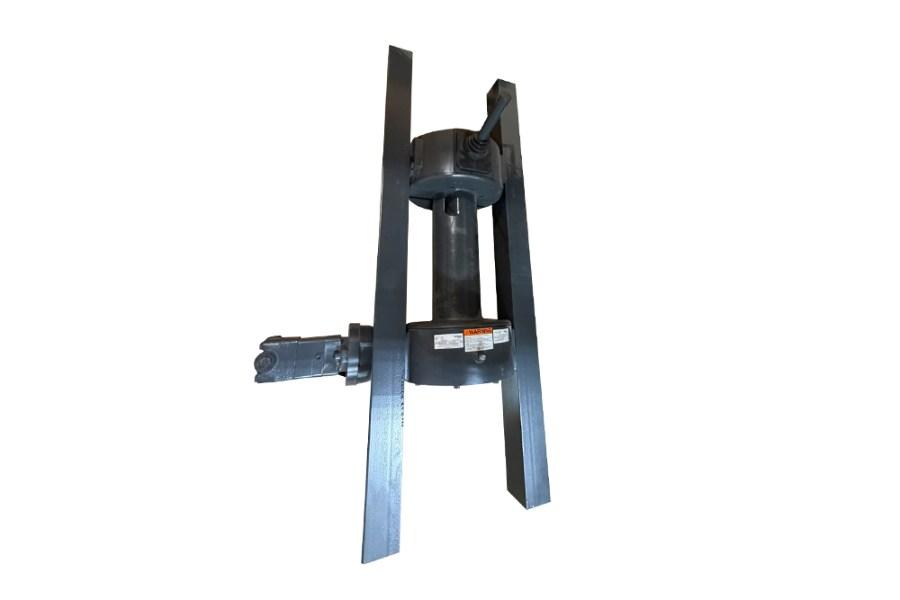

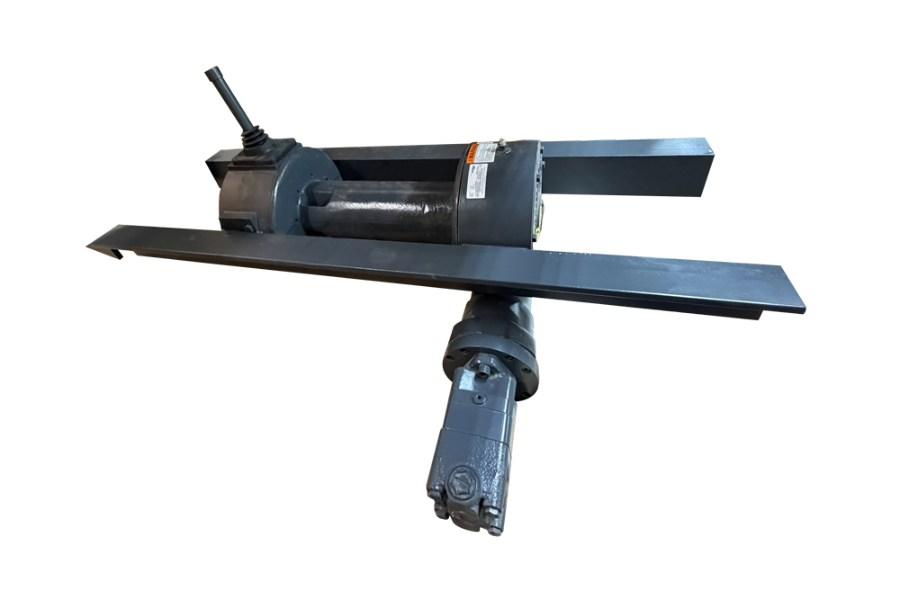

Ramsey H-800R FORS with Dow-Lok including Motor and Angles

The H-800 is a 20,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 15" wide drum accepts up to 240' of 5/8" cable.

• Ramsey Part Number: 124410
• Model: H-800R
• Line Pull: 20,000 lbs
• Clutch: Dow-Lok
• Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
• Gear Ratio: 40:1
• Motor Included: Yes
• Angles Included: Yes
• Drum Length: 14.75"+-/16"
• Adjustable/Automatic Brake: Yes
• Heavy Duty
• Standard drum holds 240' of Cable
• Includes Brake
• Recommended cable 5/8
• Meets SAE-J706
• Made in the USA

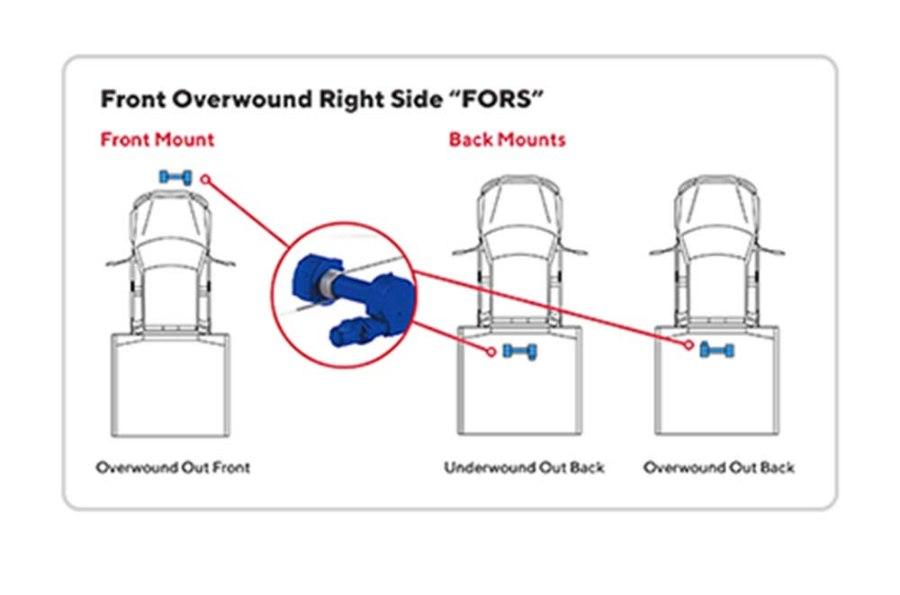

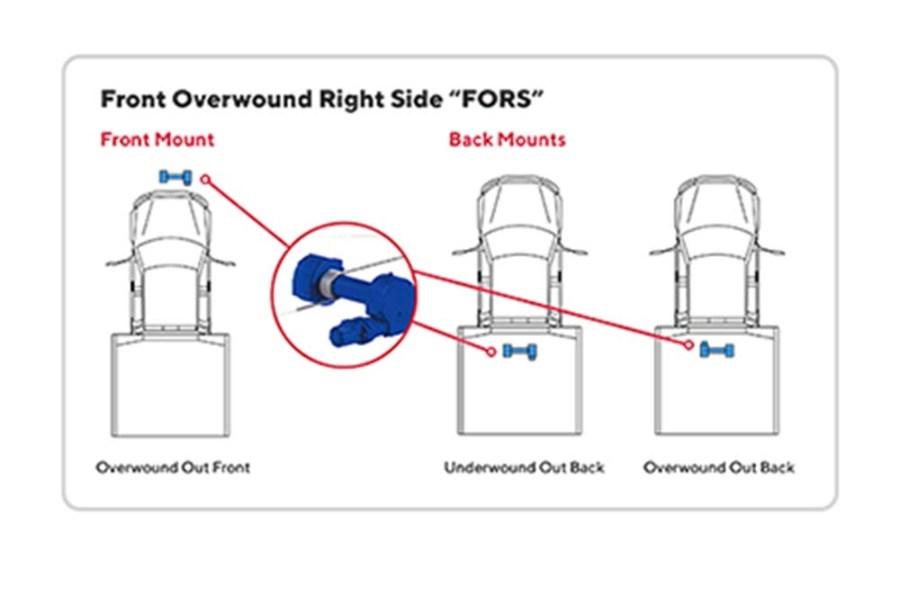

  Winch Mount Configuration





  Applications

• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Heavy Wrecker)
• Towing & Recovery (Medium Wrecker)
• Trailer



  Model H-800 Specifications

• Rated Line Pull: 20,000 lbs / 9,072 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 18'/min / 5.5m/min
• Gear Ratio: 40:1
• Weight w/o Cable: 330 lbs / 150 Kg
• Brake: Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 15" x 12.13" x 5.69" / 381mm x 308.1mm x 144.5mm
• Cable Capacity: 240' / 73.2m
• Recommend Cable Size: 5/8" / 15.9mm
• Hydraulic Pressure Required: 2,200 PSI (152 Bar)
• Hydraulic Flow Required: 30.0 GPM (114 LPM)
• Motor Size: 14.9 Cu. In. (244 cc)
• Additional Motor Options: Must Call
• Clutch Type: Blocked, DOW-LOK?
• Clutch Control: Air, Manual
