Ramsey H-930R FOLS with Dow-Lok

$8,260.99
SKU: H-930
View Cart
Truck Freight Required
Description
The H-930R is a 30,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 13 7/8" wide drum accepts up to 155' of 3/4" cable.

  • Ramsey Part Number: 120651
  • Model: H-930R
  • Line Pull: 30,000 lbs
  • Clutch: Dow-Lok
  • Mounting Configuration: Front Overwind Left Side
  • Gear Ratio: 41:1
  • Motor Included: Yes
  • Angles Included: Yes
  • Drum Length: 13.81"+-/16"
  • Adjustable/Automatic Brake: Yes
  • Heavy Duty
  • Includes Brake
  • Recommended Cable: 3/4"
  • Meets SAE-J706
  • Made in the USA

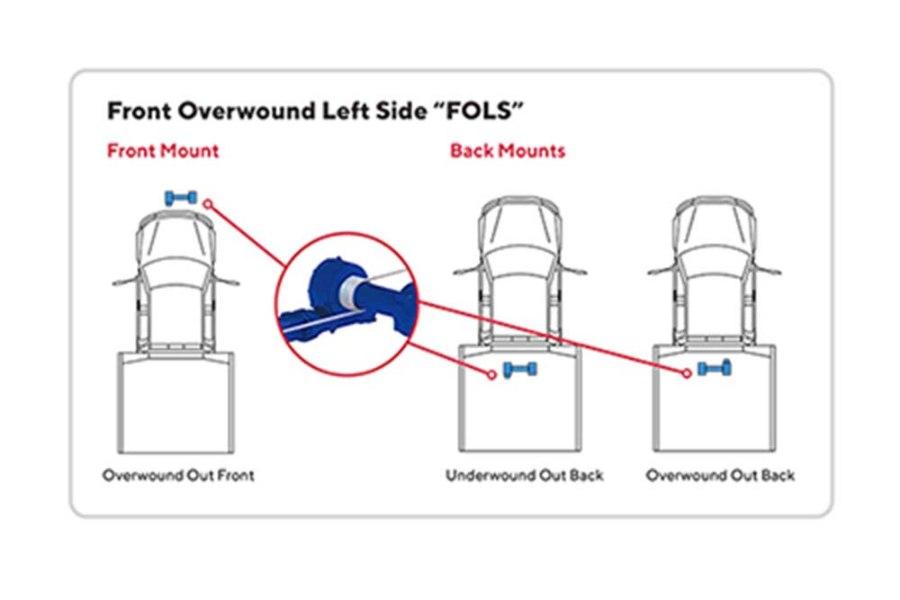

    Winch Mount Configuration



    Applications

  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Heavy Wrecker)
  • Towing & Recovery (Medium Wrecker)
  • Trailer

    Model H-930R Specifications

  • Rated Line Pull: 30,000 lbs / 13,608 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 13'/min / 3.9m/min
  • Gear Ratio: 41:1
  • Weight w/o Cable: 515 lbs / 234 Kg
  • Brake: Yes - brake is self-locking (Includes auxiliary brake)
  • Cable: None
  • Drum Size (L x F x B): 13.81" x 13.12" x 6" / 350.8mm x 333.2mm x 152.4mm
  • Cable Capacity: 155' / 47.2m
  • Recommend Cable Size: 3/4" / 19.1mm
  • Hydraulic Pressure Required: 2,500 PSI (172 Bar)
  • Hydraulic Flow Required: 35.0 GPM (132 LPM)
  • Motor Size: 24.0 Cu. In. (393 cc)
  • Additional Motor Options: Must Call
  • Clutch Type: Blocked, DOW-LOK?
  • Clutch Control: Air, Manual
