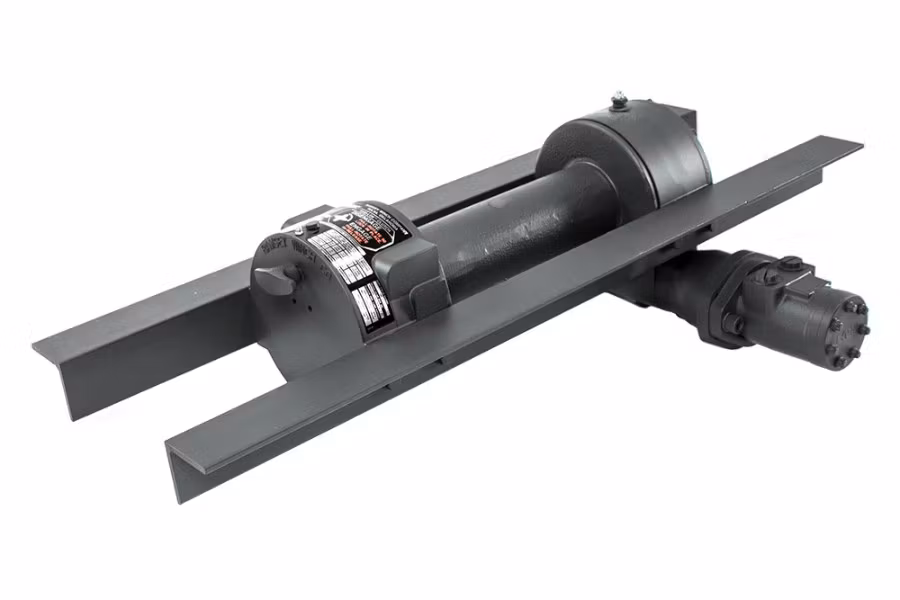

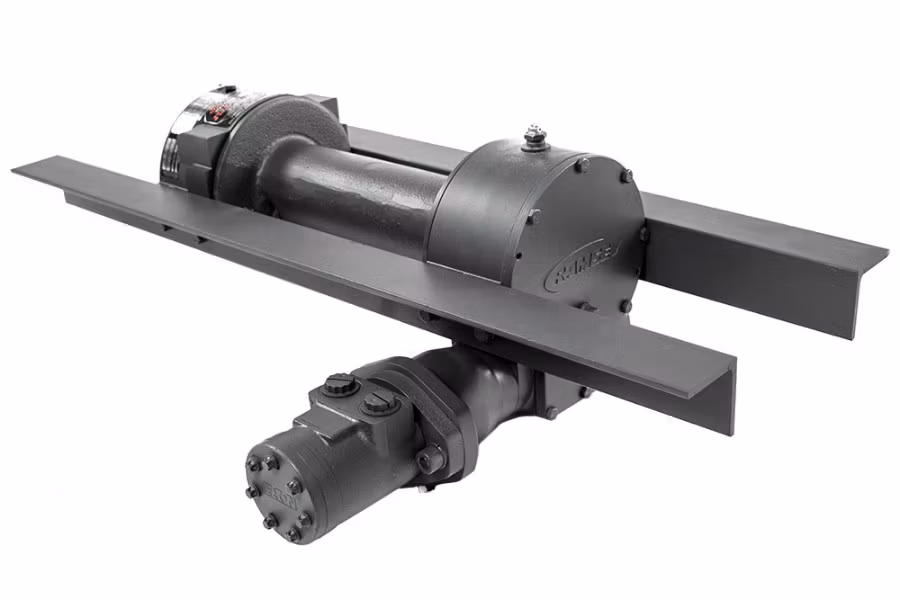

Ramsey HD-234 8,000 lb. Hydraulic Worm Winch

*
*
*
SKU: HD-234-WINCH
$1,169.99
0 In Your Cart   →
Go Straight to Checkout
Qualifies for Free Shipping
with $199.00 minimum order
Description
One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey winches are used on most tow trucks and car carriers. This makes it more economical to replace your old winch rather than to repair it.

  • Model: HD-234
  • Line Pull: 8,000 lbs
  • Gear Ratio: 34:1
  • Drum Length: 11"+-/16"
  • Adjustable/Automatic Brake: No
  • Fast Line Speed
  • Recommended cable 3/8
  • Meets SAE-J706
  • Made in the USA

    Applications
  • Replaces Chevron Car Carrier OEM Winches
  • Replaces Jerr-Dan Car Carrier OEM Winches
  • Replaces Century Car Carrier OEM Winches
  • Replaces Vulcan Car Carrier OEM Winches
  • Replaces Champion Car Carrier OEM Winches
  • Replaces Challenger Car Carrier OEM Winches
  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Light Wrecker)
  • Trailer

    Model HD-234R Specifications
  • Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 28'/min / 8.5m/min
  • Gear Ratio: 34:1
  • Weight w/o Cable: 110 lbs / 50 Kg
  • Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
  • Cable: None
  • Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
  • Cable Capacity: 140' / 42.7m
  • Recommend Cable Size: 3/8" / 9.5mm
  • Hydraulic Pressure Required: 2,375 PSI (164 Bar)
  • Hydraulic Flow Required: 15.0 GPM (57 LPM)
  • Motor Size: 3.6 Cu. In. (59 cc)
  • Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
  • Clutch Control: Air, Manual, Electric

Loading also purchased products, please wait
Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information
Item # MFG # CONTROL Mount STYLE
RW-121784 121784 Ram-Lok Right Hand (FORS) Winch w/Motor & Angles
